5-284931-3

Description
Card Edge Connector
CategoryThe connector    The connector
File Size204KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

5-284931-3 Overview

Card Edge Connector

5-284931-3 Parametric

Parameter NameAttribute value
Objectid7288328330
Reach Compliance Codeunknown
ECCN codeEAR99
Body/casing typePLUG
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact materialNOT SPECIFIED
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulator colorNATURAL
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Power Connector Ratings2A
Mixed contactsNO
Installation typeCABLE
Number of connectorsONE
Number of ports1
Number of rows loaded1
Maximum operating temperature110 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Rated current (signal)2 A
Terminal pitch2.5 mm
Termination typeIDC
Total number of contacts3

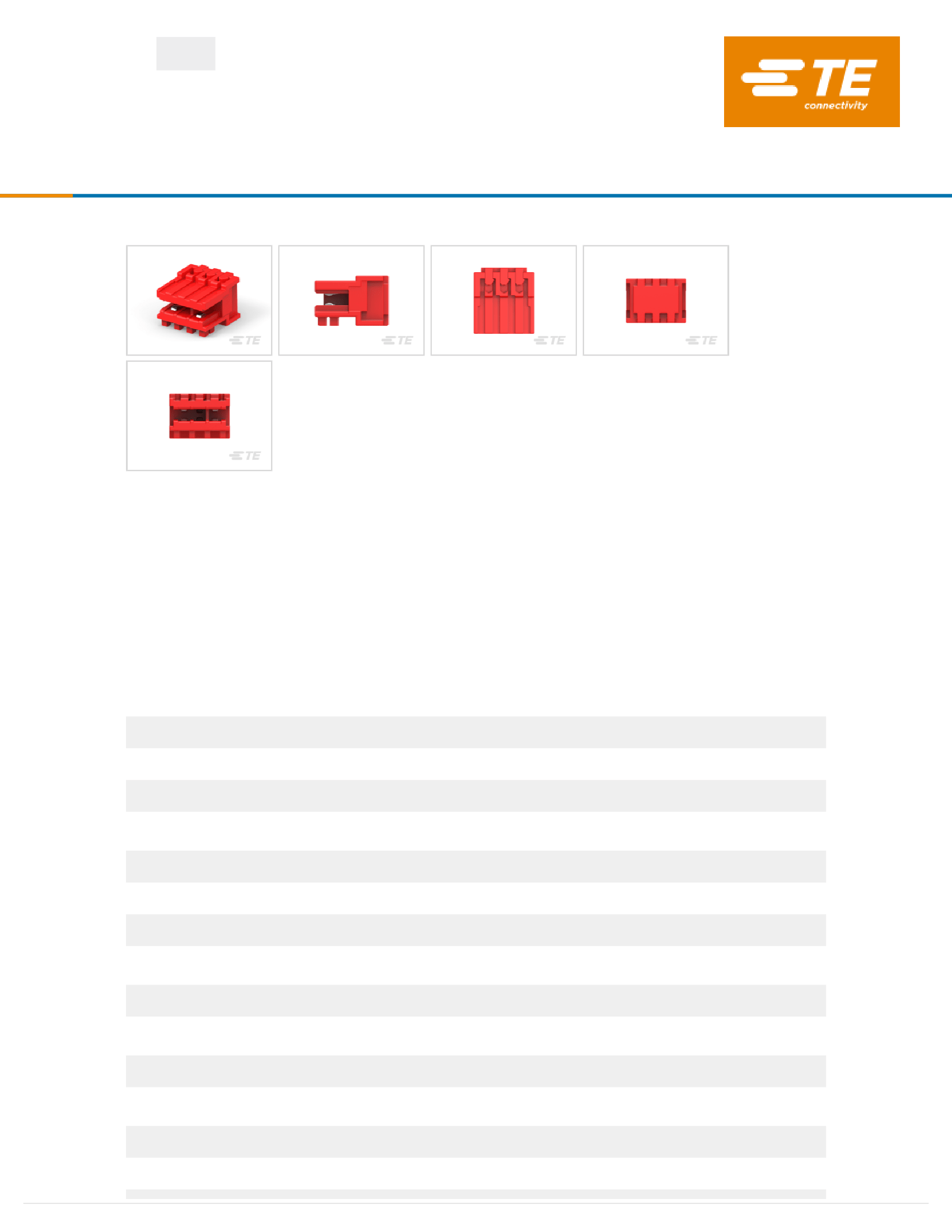

5-284931-3
Standard Edge Connectors, Wire-to-Board, 3 Position, .098 in [2.5 mm] Centerline,
Insulation Displacement (IDC), 1 Row, Natural, PBT GF
5-284931-3
ACTIVE
TE Internal #: 5-284931-3
Standard Edge Connectors, Wire-to-Board, 3 Position, .098 in [2.5
mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PBT
GF
View on TE.com >
Connectors
>
PCB Connectors
>
Card Edge Connectors
>
Standard Edge Connectors
Connector System:
Wire-to-Board
Number of Positions:
3
Centerline (Pitch):
2.5 mm [ .098 in ]
Termination Method to Wire & Cable:
Insulation Displacement (IDC)
Number of Rows:
1
Features
Product Type Features
Connector System
Connector & Housing Type
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Connector Contact Load Condition
Contact Features
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Housing Features
Centerline (Pitch)
Housing Color
For support call+1 800 522 6752
Wire-to-Board
Plug
Wire & Cable
3
1
Selectively Loaded
2A
Insulation Displacement (IDC)
2.5 mm[.098 in]
Natural
PBT GF
05/26/2022 12:01PM | Page 1
Housing Material
