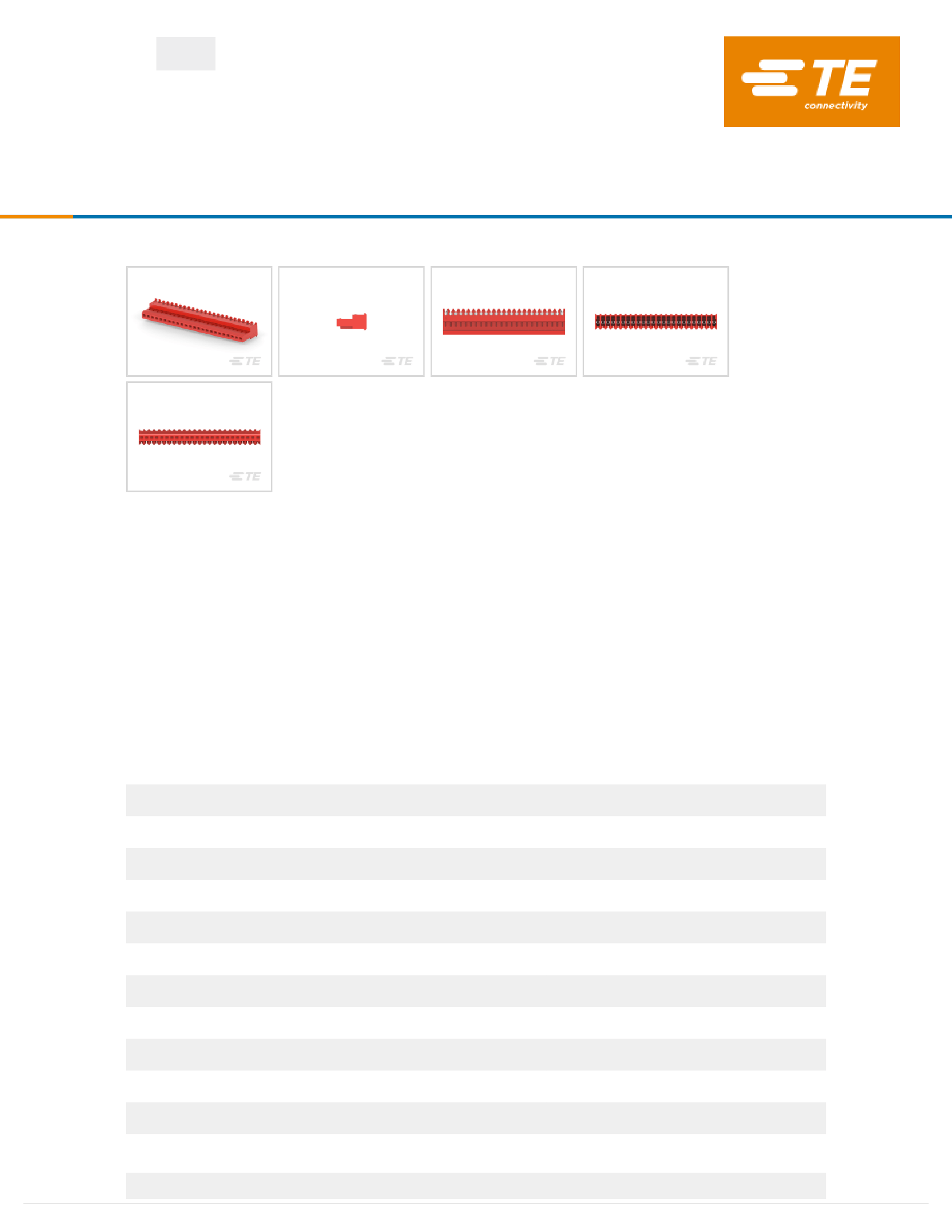

5-641198-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board
5-641198-4
MTA
|
MTA 100
ACTIVE
TE Internal #: 5-641198-4
MTA 100, Standard Rectangular Connectors, Connector Assembly,
Receptacle, Mating Retention, Insulation Displacement (IDC), Wire-
to-Board
View on TE.com >
Connectors
>
Rectangular Connectors
>
Standard Rectangular Connectors
>
Nylon Gold Plated Receptacle: 2.54mm, No Mating Alignment, MTA 100
Connector Product Type:
Connector Assembly
Connector & Housing Type:
Receptacle
Mating Alignment:
Without
Mating Retention:
With
Mating Retention Type:
Locking Ramp
All Nylon Gold Plated Receptacle: 2.54mm, No Mating Alignment, MTA 100 (479)
Features
Product Type Features
Product Style
Shape
Wire/Cable Type
Connector Type
Housing Type
Connector Product Type
Connector & Housing Type
Connector System
Insertion Force Type
Sealable
Connector & Contact Terminates To
Configuration Features
Number of Cavities
Assembly
Rectangular
Stranded
Connector Assembly
Receptacle
Connector Assembly
Receptacle
Wire-to-Board
Normal
No
Wire & Cable
24
05/26/2022 11:43AM | Page 1
For support call+1 800 522 6752
5-641198-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board
Number of Cavities
Number of Positions
Number of Rows
Panel Gasket
Electrical Characteristics
Operating Voltage
Contact Features
Contact Layout
Contact Type
Wire Contact Termination Area Plating Material
Contact Underplating Material
Contact Mating Area Plating Material
Contact Retention Within Housing
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Panel Mount
Panel Mount Feature
Mating Alignment
Mating Retention
Mating Retention Type
Connector Mounting Type
Housing Features
Housing Color
Housing Material
Centerline (Pitch)
Dimensions
Width
Height
Length
Wire Size
Usage Conditions
24
24
1
Without
250 VAC
In-line
Female
Tin
Nickel
Gold, Gold Flash over Palladium Nickel
With
5A
Insulation Displacement (IDC)
No
Without
Without
With
Locking Ramp
Cable Mount (Free-Hanging)
Red
Nylon
2.54 mm[.1 in]
7.75 mm[.305 in]
13.21 mm[.52 in]
60.96 mm[2.4 in]
.3 – .4 mm²
For support call+1 800 522 6752
05/26/2022 11:43AM | Page 2
5-641198-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board
Usage Conditions
Operating Temperature Range
Operation/Application
Shielded
Circuit Application
Industry Standards
CSA Rating
Agency/Standard
UL Rating
CSA File Number
UL File Number
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Method
250
Bag/Box
Certified
CSA, UL
Recognized
LR 7189
E28476
UL 94V-0
No
Signal
-55 – 105 °C[-67 – 221 °F]
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability
Not applicable for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
For support call+1 800 522 6752
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
05/26/2022 11:43AM | Page 3
5-641198-4
MTA 100, Standard Rectangular Connectors, Connector Assembly, Receptacle,
Mating Retention, Insulation Displacement (IDC), Wire-to-Board
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

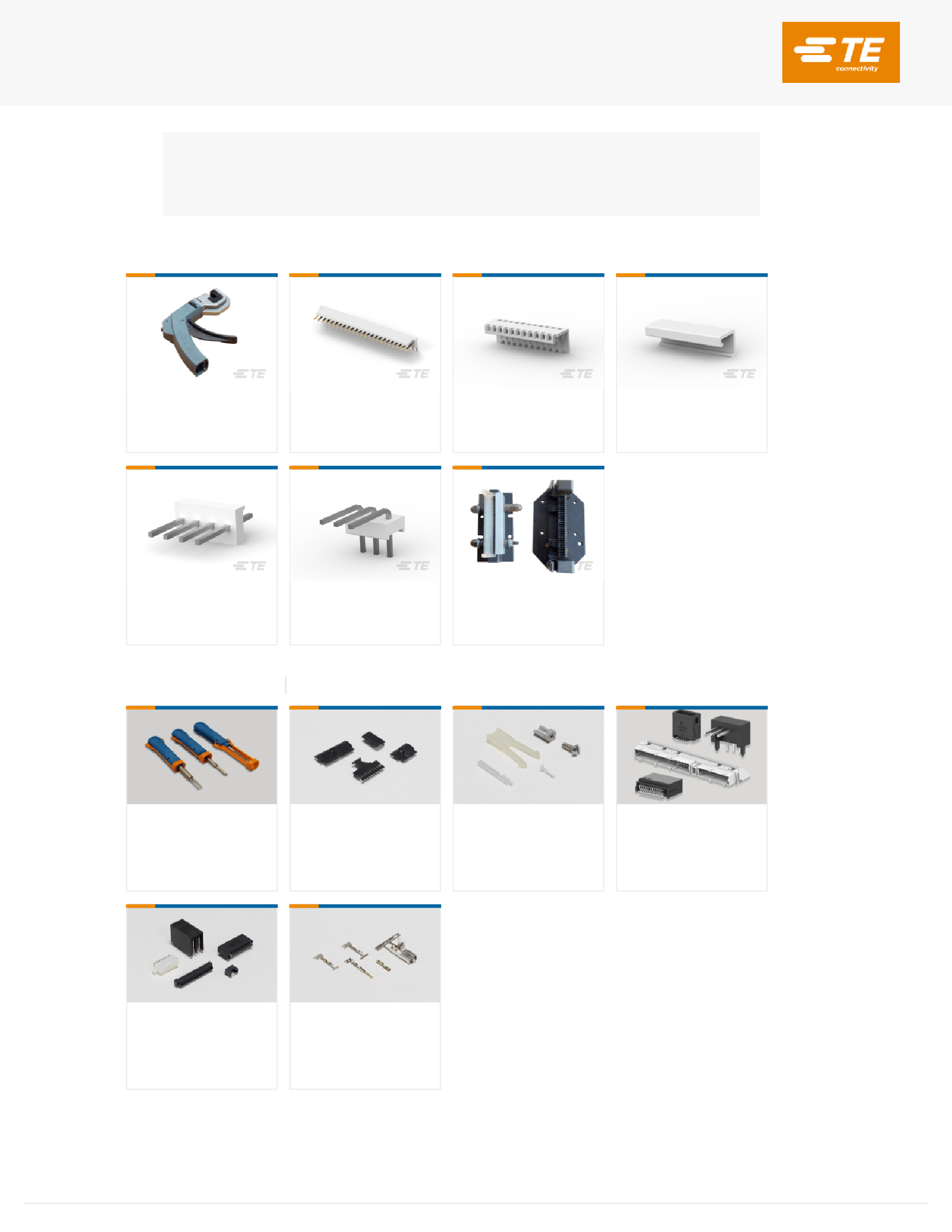

Compatible Parts
TE Part # 58074-1
MTA 50/100/156 MANUAL TOOL
FRAME
TE Part # 5-641125-4
24P MTA100 ASSY P/RA SQ LF
TE Part # CAT-104MTA-NYLCC
Nylon PCB Connector Covers: 2.54
mm, MTA 100
TE Part # CAT-104MTA-PLSCC
Polyester PCB Connector Covers: 2.54
mm, MTA 100
TE Part # CAT-104MTA-PVUNH
Polyester Vertical PCB Header: 2.54
mm, Unshrouded, No Mating
Alignment
TE Part # CAT-104MTA-PRUSH
Polyester Right Angle PCB Header:
2.54mm, Unshrouded, MTA 100
TE Part # 58039-1
MTA 100 ARBOR FIXTURE DISCRETE
RBN CABLE
Also in the Series
MTA 100
Insertion & Extraction Tools(2)
PCB Connector Covers(107)
PCB Connector Keying(1)
PCB Headers & Receptacles(1182)
Standard Rectangular Connectors
(1718)
Wire-to-Board Connector Contacts(18)

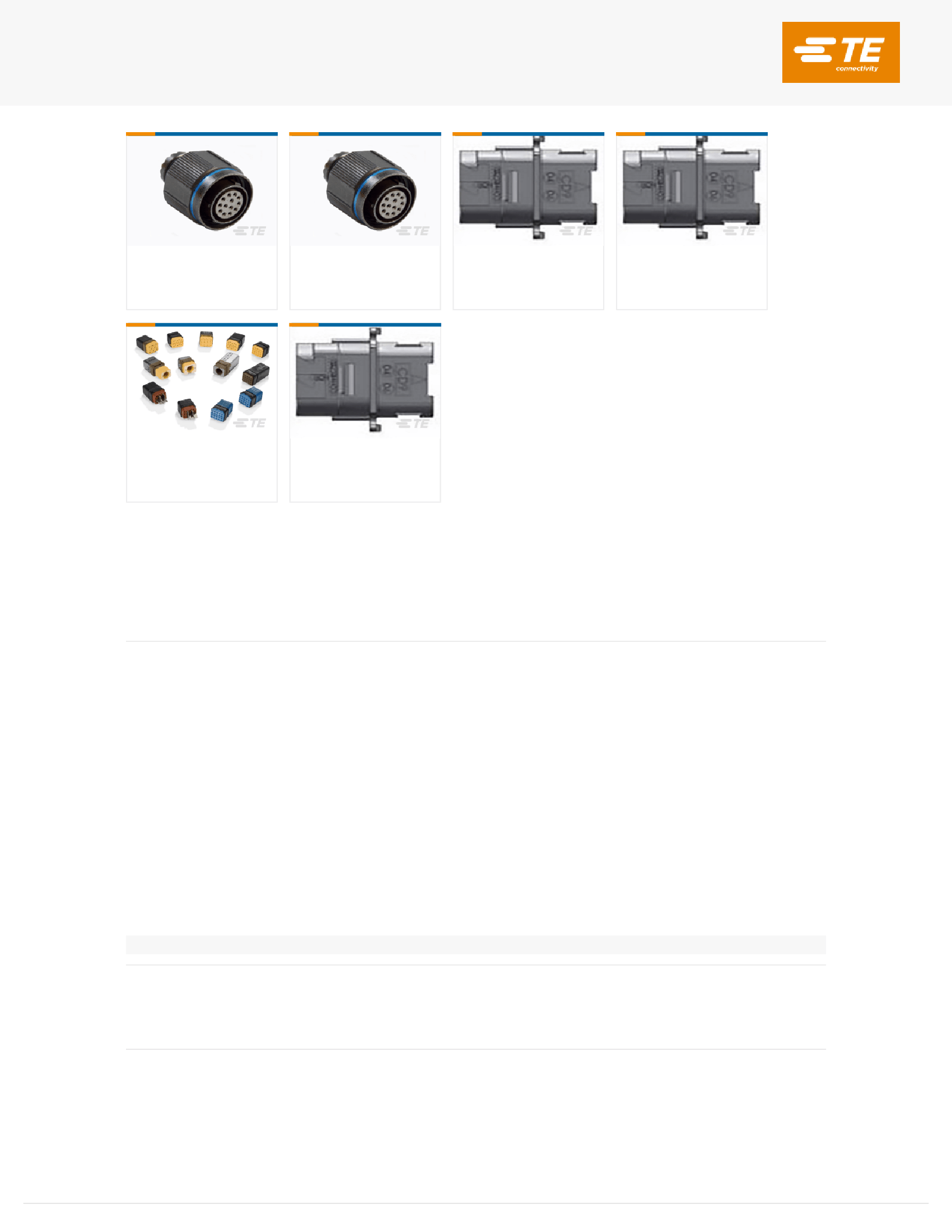

Customers Also Bought
