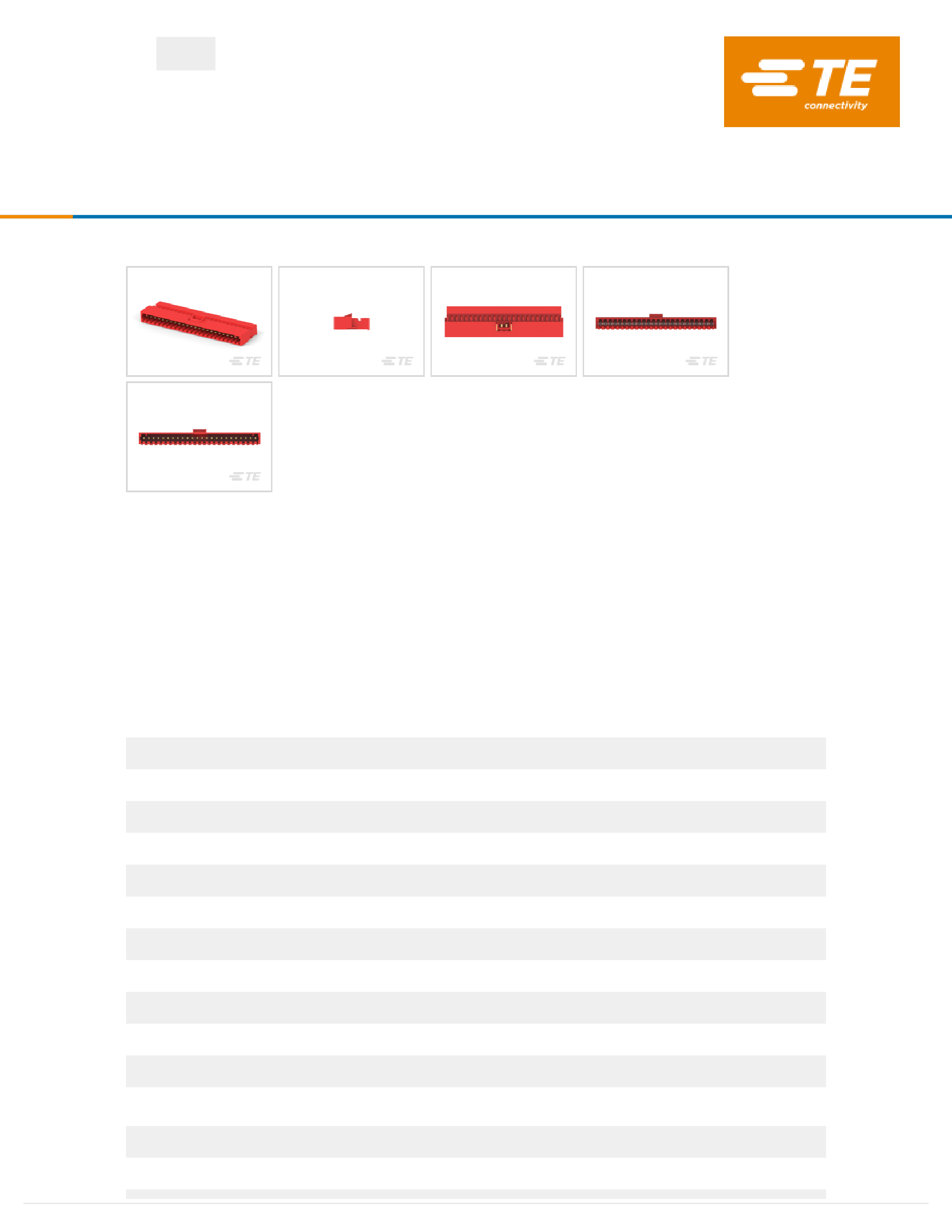

5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly, Plug, Mating
Alignment, Polarization Mating Alignment Type, Mating Retention
5-644809-4
MTA
|
MTA 156
ACTIVE
TE Internal #: 5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly,
Plug, Mating Alignment, Polarization Mating Alignment Type,
Mating Retention
View on TE.com >
Connectors
>
Rectangular Connectors
>
Standard Rectangular Connectors
Connector Product Type:
Connector Assembly
Connector & Housing Type:
Plug
Mating Alignment:
With
Mating Alignment Type:
Polarization
Mating Retention:
With
Features
Product Type Features
Product Style
Shape
Wire/Cable Type
Connector Type
Housing Type
Connector Product Type
Connector & Housing Type
Connector System
Insertion Force Type
Sealable
Connector & Contact Terminates To
Configuration Features
Number of Cavities
Number of Positions
For support call+1 800 522 6752
Assembly
Rectangular
Stranded
Connector Assembly
Tab Housing
Connector Assembly
Plug
Wire-to-Wire
Normal
No
Wire & Cable
24
24
1
05/26/2022 05:17PM | Page 1
Number of Rows
5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly, Plug, Mating
Alignment, Polarization Mating Alignment Type, Mating Retention
Number of Rows
Panel Gasket
Electrical Characteristics
Operating Voltage
Contact Features
Contact Layout
Contact Type
Wire Contact Termination Area Plating Material
Contact Underplating Material
Contact Mating Area Plating Material
Contact Retention Within Housing
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Panel Mount
Contact Retention Type Within Housing
Panel Mount Feature
Mating Alignment
Mating Alignment Type
Mating Retention
Mating Retention Type
Connector Mounting Type
Housing Features
Housing Color
Housing Material
Centerline (Pitch)
Dimensions
Width
Height
Length
Wire Size
For support call+1 800 522 6752
1
Without
600 VAC
In-line
Tab
Tin
Nickel
Gold, Gold Flash over Palladium Nickel
With
7A
Insulation Displacement (IDC)
No
Locking Lance
Without
With
Polarization
With
Latch
Cable Mount (Free-Hanging)
Red
Nylon 6/6
3.96 mm[.156 in]
25.65 mm[1.01 in]
12.37 mm[.487 in]
99.06 mm[3.9 in]
.3 – .4 mm²
05/26/2022 05:17PM | Page 2
Usage Conditions
5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly, Plug, Mating
Alignment, Polarization Mating Alignment Type, Mating Retention
Usage Conditions
Operating Temperature Range
Operation/Application
Shielded
Circuit Application
Industry Standards
Agency/Standard
UL Rating
CSA File Number
UL File Number
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Method
250
Package
CSA, UL
Recognized
LR 7189
E28476
UL 94V-2
No
Signal
-55 – 105 °C[-67 – 221 °F]
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not applicable for solder process capability
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
For support call+1 800 522 6752
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
05/26/2022 05:17PM | Page 3
5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly, Plug, Mating
Alignment, Polarization Mating Alignment Type, Mating Retention
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

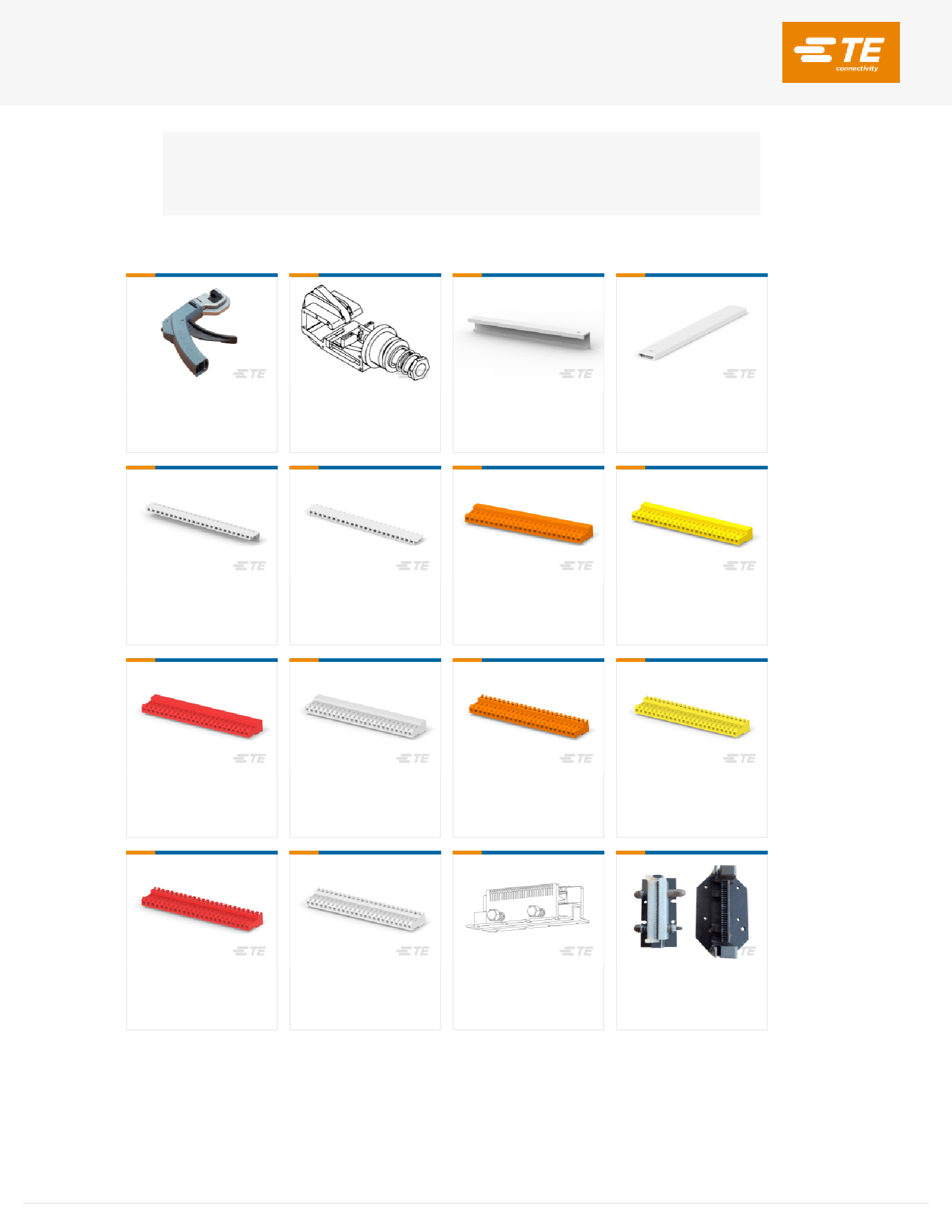

Compatible Parts
TE Part # 58074-1
MTA 50/100/156 MANUAL TOOL
FRAME
TE Part # 58082-1
MTA 156 CRIMP HEAD PRODUCTION
POSTED
TE Part # 2-640551-4
24P MTA156 COVER
TE Part # 2-640643-4
24P MTA156 COVER F/T
TE Part # 2-643067-4
24P MTA156 MOLDED COVER
TE Part # 2-643071-4
24P MTA156 FD-THRU COVER
TE Part # 5-641217-4
24P MTA156 CONN ASSY 18AWG
ORA
TE Part # 5-641218-4
24P MTA156 CONN ASSY 20AWG LF
TE Part # 5-641219-4
24P MTA156 CONN ASSY 22AWG LF
TE Part # 5-641220-4
24P MTA156 CONN ASSY 24AWG LF
TE Part # 5-641227-4
24P MTA156 CONN ASSY 18AWG LF
TE Part # 5-641228-4
24P MTA156 CONN ASSY 20AWG LF
TE Part # 5-641229-4
24P MTA156 CONN ASSY 22AWG LF
TE Part # 5-641230-4
24P MTA156 CONN ASSY 24AWG LF
TE Part # 58009-2
MTA 156 BOARD FIXTURE CLOSED
END POSTED
TE Part # 58040-1
MTA 156 ARBOR FIXTURE DISCRETE
RBN CABLE
For support call+1 800 522 6752
05/26/2022 05:17PM | Page 4
5-644809-4
MTA 156, Standard Rectangular Connectors, Connector Assembly, Plug, Mating
Alignment, Polarization Mating Alignment Type, Mating Retention

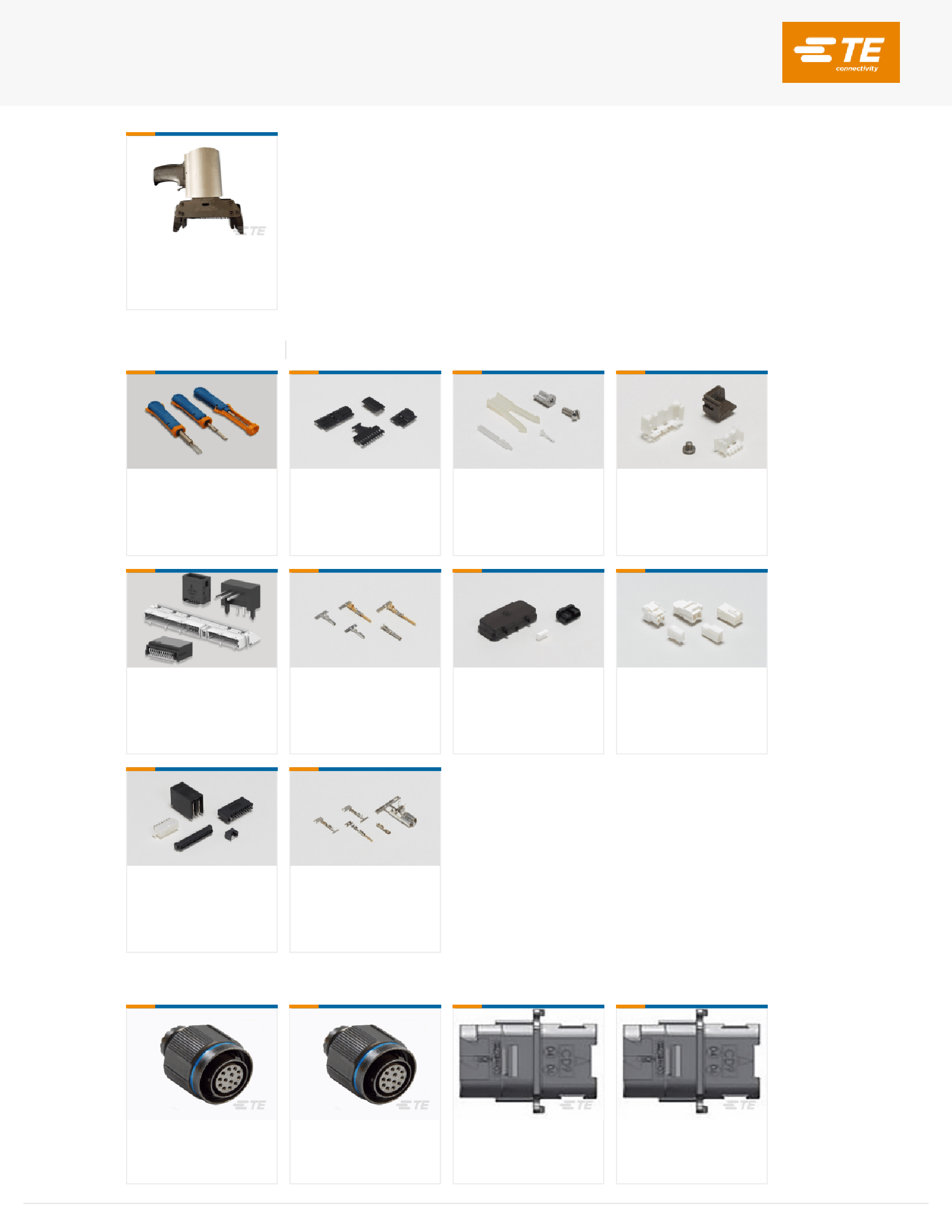

TE Part # 58576-1
MTA 156 PNEUMATIC TOOL FOR
BOARD FIXTURE
Also in the Series
MTA 156
Insertion & Extraction Tools(1)
PCB Connector Covers(92)
PCB Connector Keying(2)
PCB Connector Mounting(1)
PCB Headers & Receptacles(729)
Power Contacts(3)
Rectangular Caps & Covers(1)
Rectangular Power Connectors(748)
Standard Rectangular Connectors
(1309)
Wire-to-Board Connector Contacts(12)
Customers Also Bought
TE Part #YACT26MA98SEV00100
STRAIGHT PLUG
TE Part #YACT26MG35SCV00100
STRAIGHT PLUG
TE Part #ZPF000000000146309
DMC-MD 26 G-K-T
TE Part #ZPF000000000148912
DMC-MD 26 A-T
