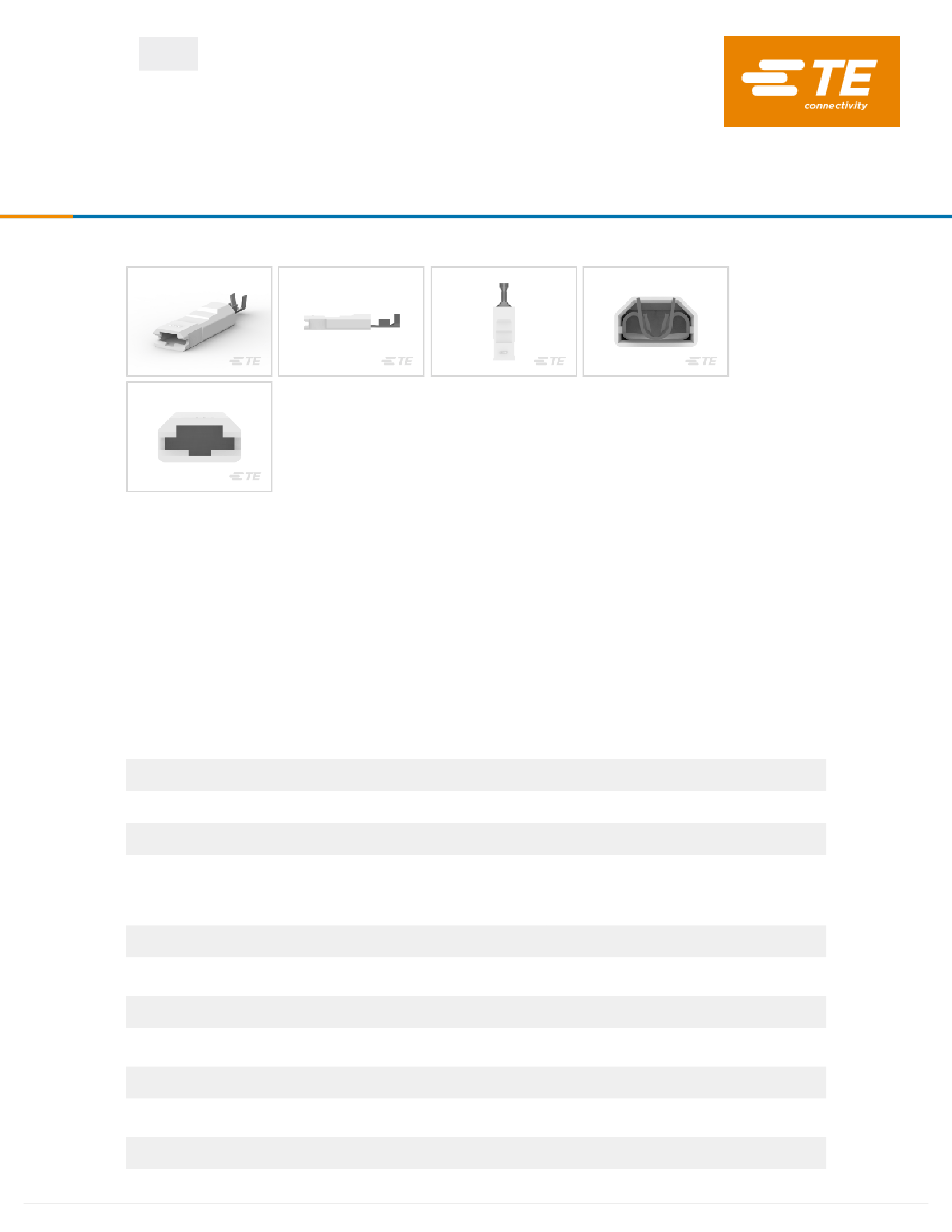

521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire Size, .32 – .82 mm²
Wire Size, Mating Tab Width .25 in [6.35 mm], Straight, Brass
521368-2
ACTIVE
Ultra-Pod
|
Ultra-Pod 250
TE Internal #: 521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire
Size, .32 – .82 mm² Wire Size, Mating Tab Width .25 in [6.35 mm],
Straight, Brass
View on TE.com >
Terminals & Splices
>
Quick Disconnects
>
ULTRA POD: Straight, Receptacle Assembly, Tin Plated, 0.25 inch
Quick Disconnect Terminal Type:
Receptacle
Wire Size:
.32 – .82 mm²
Mating Tab Width:
6.35 mm [ .25 in ]
Mating Tab Thickness:
.81 mm [ .032 in ]
All ULTRA POD: Straight, Receptacle Assembly, Tin Plated, 0.25 inch (15)
Features
Product Type Features
Terminates To
Wire/Cable Type
Insertion Force
Sealable
Configuration Features
Connection Capacity
Electrical Characteristics
Voltage (Max)
Body Features
Insulation Material
Contact Features
Quick Disconnect Terminal Type
Mating Tab Width
Wire & Cable
Regular Wire
Low
No
Single
600 V
Nylon
Receptacle
6.35 mm[.25 in]
.81 mm[.032 in]
05/26/2022 11:55AM | Page 1
Mating Tab Thickness
For support call+1 800 522 6752
521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire Size, .32 – .82 mm²
Wire Size, Mating Tab Width .25 in [6.35 mm], Straight, Brass
Mating Tab Width
Mating Tab Thickness
Terminal Orientation
Contact Base Material
Terminal Plating Material
Crimp Type
Barrel Type
Mechanical Attachment
Wire Insulation Support
Dimensions
Accepts Wire Insulation Diameter Range
Receptacle Terminal Stock Thickness
Overall Length
Wire Size
Usage Conditions
Insulation Option
Operating Temperature Range
Industry Standards
UL File Number
UL Flammability Rating
CSA Certified
UL Rating
Packaging Features
Packaging Quantity
Packaging Method
Other
Barrel Color
6.35 mm[.25 in]
.81 mm[.032 in]
Straight
Brass
Tin
F-Crimp
Open
With
2.29 – 3.3 mm[.09 – .13 in]
.41 mm[.016 in]
34.67 mm[1.365 in]
.32 – .82 mm²
Uninsulated
-40 – 150 °C[-40 – 302 °F]
E66717
UL 94V-0
Yes
Listed
2000
Strip/Reel
Natural
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
11:55AM | Page 2
05/26/2022
For support call+1 800 522 6752
EU REACH Regulation (EC) No. 1907/2006
521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire Size, .32 – .82 mm²
Wire Size, Mating Tab Width .25 in [6.35 mm], Straight, Brass
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not applicable for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

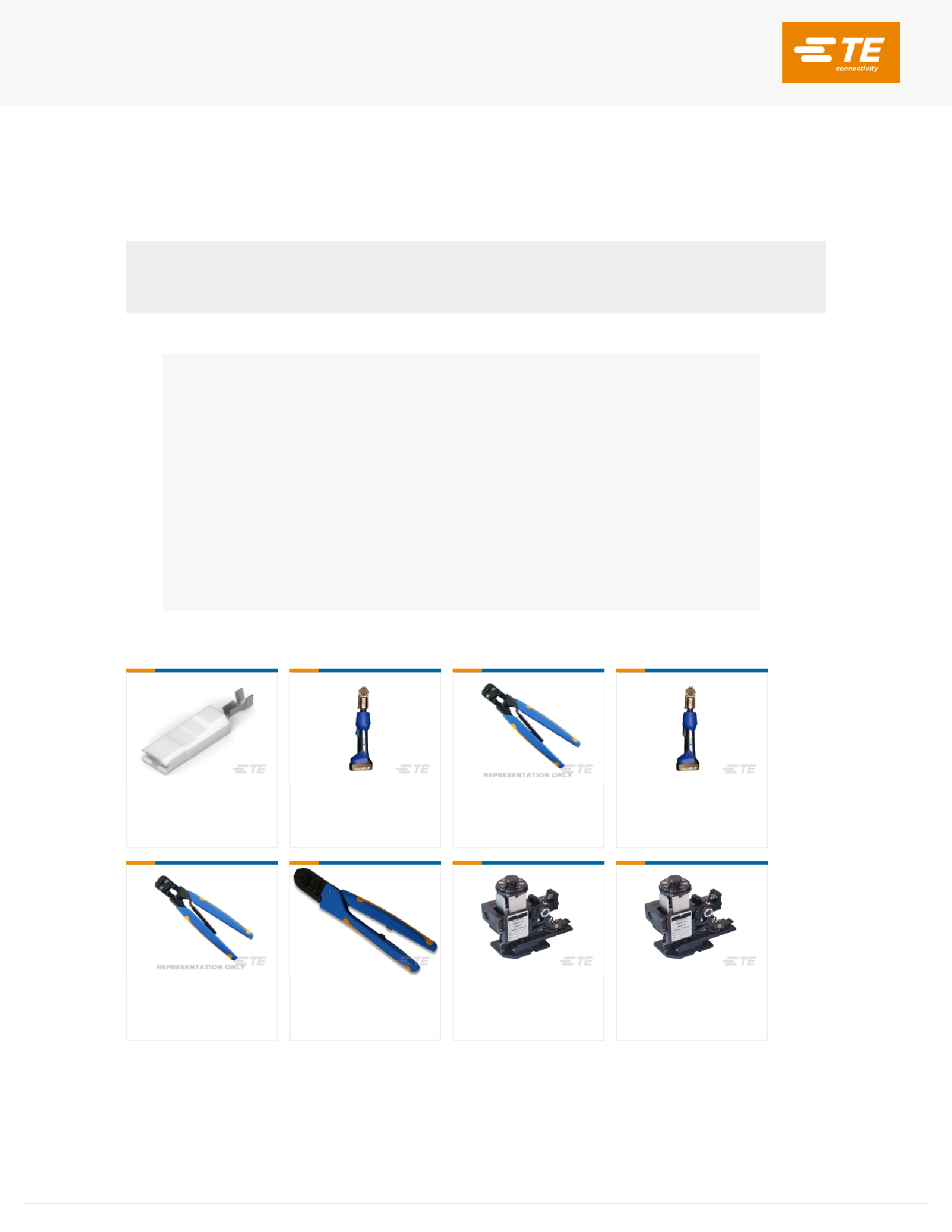

Compatible Parts
TE Part # 1969161-5
ULTRA-POD 250 ASY REC 0.3-0.8
MM2 TPBR
TE Part # 2217483-2
KIT, BTLI, DOUBLE ACTION HEAD
TE Part # 90166-1
DAHT 250 FASTON REC 22-18 ASSY
TE Part # 2217483-1
KIT, BTLI, DOUBLE ACTION HEAD
TE Part # 90165-1
DAHT 250 FASTON REC 18-14 ASSY
TE Part # 91514-1
CCII FASTON 250 REC 22-18 ASSY
TE Part # 1852889-1
MACH,U-POD.250 SAPR090F130F LM
TE Part # 1855530-3
ULTRA POD/FA SAPR090F140F
BENCH G
For support call+1 800 522 6752
05/26/2022 11:55AM | Page 3
521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire Size, .32 – .82 mm²
Wire Size, Mating Tab Width .25 in [6.35 mm], Straight, Brass
TE Part # 1852889-4
U-POD 250 SAPR090F140F LM
TE Part # 1855530-1
ULTRA POD/FA SAPR090F140F LM
CUT

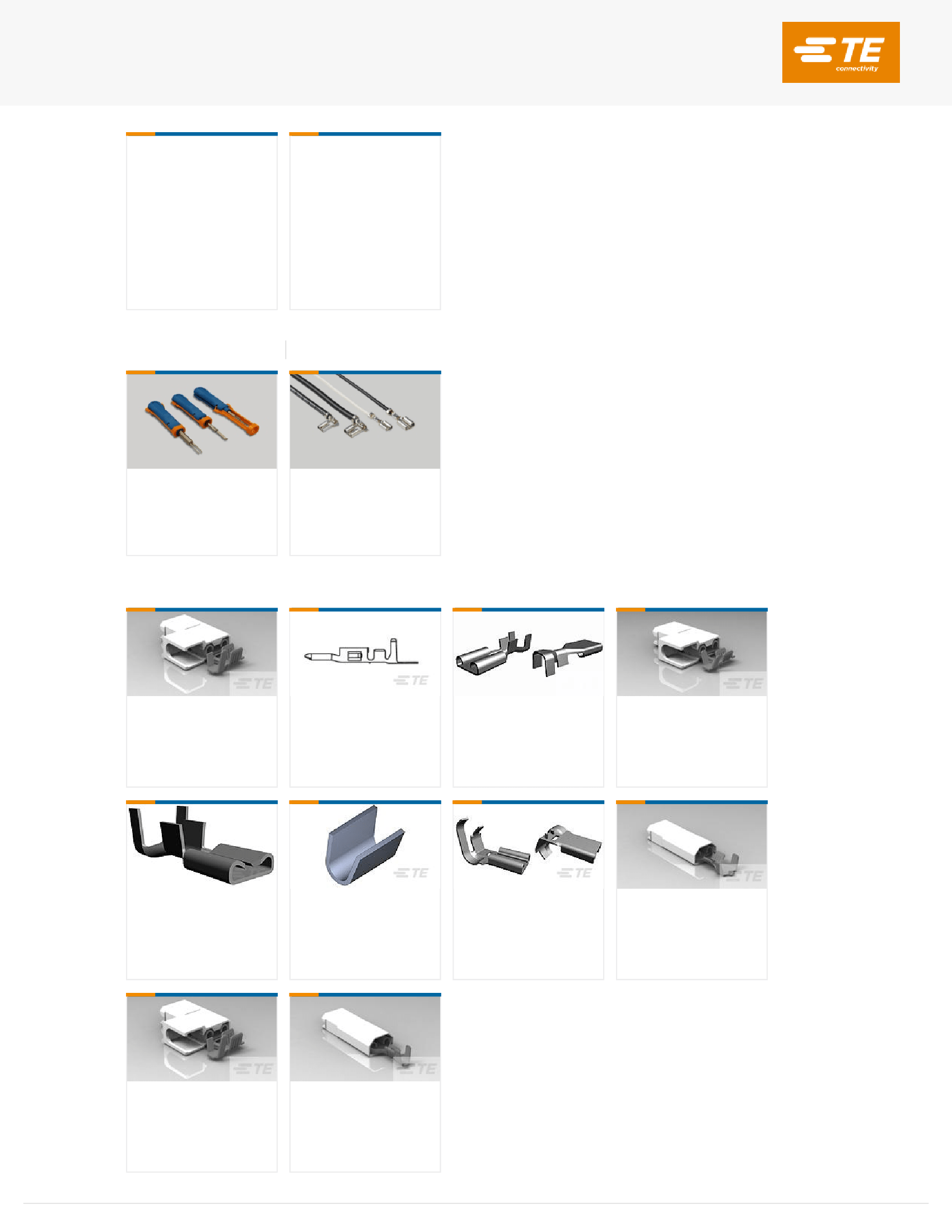

Also in the Series
Ultra-Pod 250
Insertion & Extraction Tools(2)
Quick Disconnects(54)
Customers Also Bought
TE Part #520971-1
ULTRA-POD 250 ASY REC 18-14 AWG
BR
TE Part #2238016-1
VAL-U-LOK PIN BR SN 18-22AWG
TE Part #61399-1
312 FASTON REC 16-12 AWG TPBR
TE Part #521411-1
ULTRA-POD 250 ASY REC 22-18 AWG
BR
TE Part #42660-1
250 FASTON REC 18-14 AWG BR
TE Part #61769-1
SPLICE 1200-2600 .020 BR
TE Part #42800-1
187 FASTON REC 20-16 AWG BR
TE Part #521632-2
ULTRA-POD 250 ASSY REC 18-14
AWG TPBR
TE Part #521282-2
ULTRA-POD 250 ASSY REC 18-14
AWG TPBR
TE Part #520988-1
ULTRA-POD 250 ASSY REC 22-18
AWG BR
Documents
For support call+1 800 522 6752
05/26/2022 11:55AM | Page 4
521368-2
Ultra-Pod 250, Quick Disconnects, Receptacle, 22 – 18 AWG Wire Size, .32 – .82 mm²
Wire Size, Mating Tab Width .25 in [6.35 mm], Straight, Brass
Documents
Product Drawings
ULTRA-POD 250 ASSY REC 22-18 AWG TPBR
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_521368-2_A.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_521368-2_A.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_521368-2_A.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
Ultra-Fast and Ultra Fast Plus
English
Product Specifications
Application Specification
English
Product Environmental Compliance
TE Material Declaration
English
