5406533-1

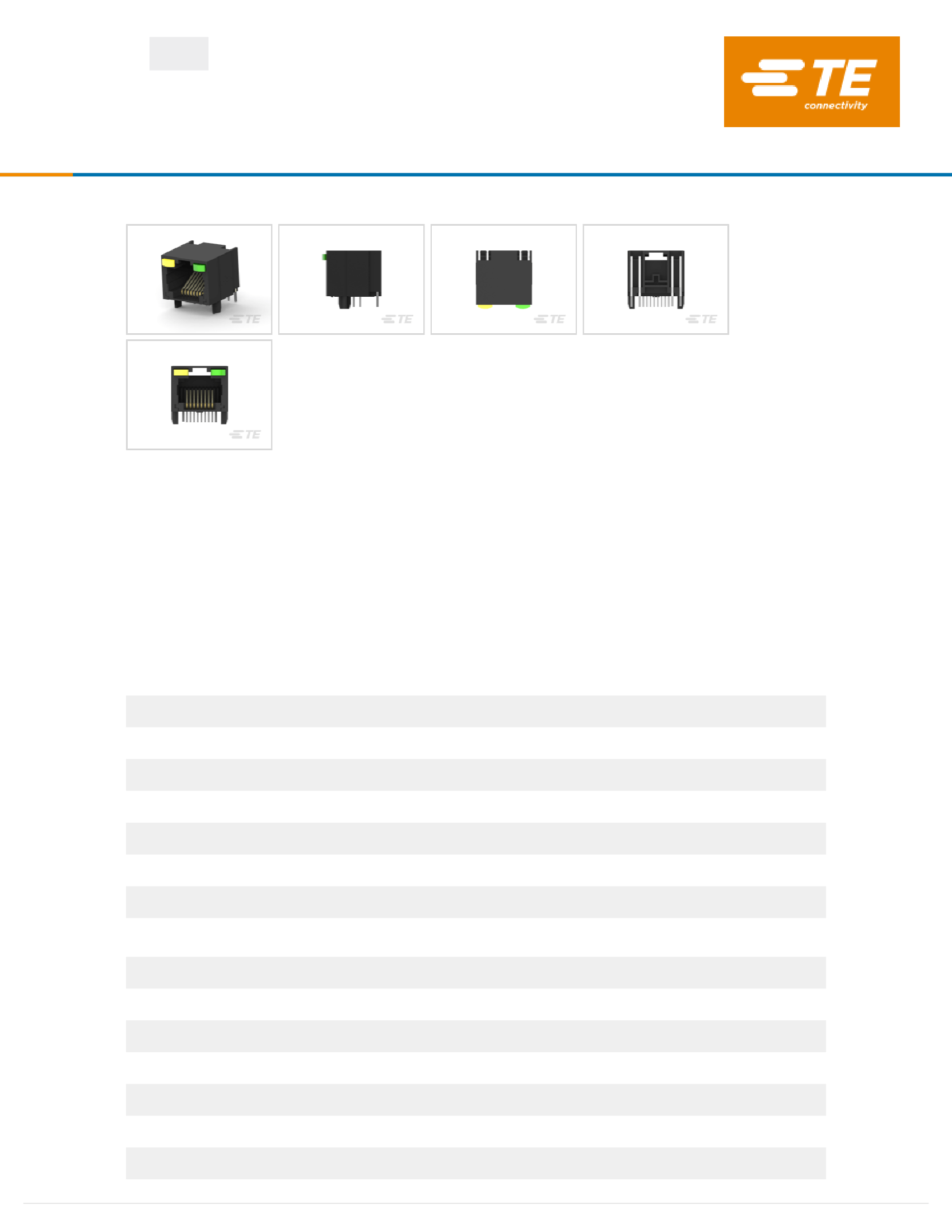

RJ45 Connectors, RJ45, Single Port, 1 x 1, RJ Type Jacks & Plugs, Jack, Cat 5,
Inverted - Latch Up, LED Status Indicator, 8 Position
5406533-1
ACTIVE
TE Internal #: 5406533-1
RJ45 Connectors, RJ45, Single Port, 1 x 1, RJ Type Jacks & Plugs,
Jack, Cat 5, Inverted - Latch Up, LED Status Indicator, 8 Position
View on TE.com >
Connectors
>
Modular Jacks & Plugs
>
RJ45 Connectors
Modular Jack & Plug Interface Type:
RJ45
Port Configuration:
Single Port
Port Matrix Configuration:
1 x 1
Modular Jacks & Plugs Products:
RJ Type Jacks & Plugs
Connector Contact Density:
Standard
Features
Product Type Features
Connectors & Connector Components Type
Connector Product Type
Modular Jack & Plug Interface Type
Modular Jacks & Plugs Products
Modular Connector Style
Grounding Options
Connector & Contact Terminates To
Configuration Features
Port Configuration
Port Matrix Configuration
Connector Contact Density
Status Indicator Type
Number of Positions
Number of Loaded Positions
PCB Mount Orientation
Body Features
Single Port
1x1
Standard
LED
8
8
Right Angle
Connector
Connector Assembly
RJ45
RJ Type Jacks & Plugs
Jack
None
Printed Circuit Board
For support call+1 800 522 6752
05/26/2022 08:09PM | Page 1
5406533-1
RJ45 Connectors, RJ45, Single Port, 1 x 1, RJ Type Jacks & Plugs, Jack, Cat 5,
Inverted - Latch Up, LED Status Indicator, 8 Position
Body Features
Modular Jack Latch Orientation
Connector Profile
LED Color (Top Left)
LED Color (Top Right)
Contact Features
Contact Underplating Material
PCB Contact Termination Area Plating Material
Contact Current Rating (Max)
Contact Mating Area Plating Material
Contact Base Material
Contact Mating Area Plating Material Thickness
Termination Features
Termination Method to Printed Circuit Board
Termination Post & Tail Length
Mechanical Attachment
Panel Mount Feature
Connector Mounting Type
Housing Features
Mating Entry Location
Centerline (Pitch)
Housing Color
Housing Material
Dimensions
PCB Thickness (Recommended)
Connector Height
Usage Conditions
Operating Temperature Range
Operation/Application
Shielded
Circuit Application
Industry Standards
Inverted - Latch Up
Standard
Yellow
Green
Nickel
Tin
1.5 A
Gold
Phosphor Bronze
1.27 µm
Through Hole - Solder
2.54 mm[.1 in]
With
Board Mount
Side
1.02 mm[.04 in]
Black
High Temperature Thermoplastic
1.57 mm[.062 in]
12.83 mm[.505 in]
-40 – 85 °C[-40 – 185 °F]
No
Signal
For support call+1 800 522 6752
05/26/2022 08:09PM | Page 2
5406533-1
RJ45 Connectors, RJ45, Single Port, 1 x 1, RJ Type Jacks & Plugs, Jack, Cat 5,
Inverted - Latch Up, LED Status Indicator, 8 Position
Industry Standards
UL Flammability Rating
Performance Category
Packaging Features
Packaging Quantity
Packaging Method
Other
Comment
Recommended applications: Fast Ethernet,
10Base-T Ethernet, and 10/100 Base-T
Ethernet (Cat 5 on two pair 1/2, 3/6).
152
Box & Tray, Tray
UL 94V-0
Cat 5
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Wave solder capable to 265°C
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

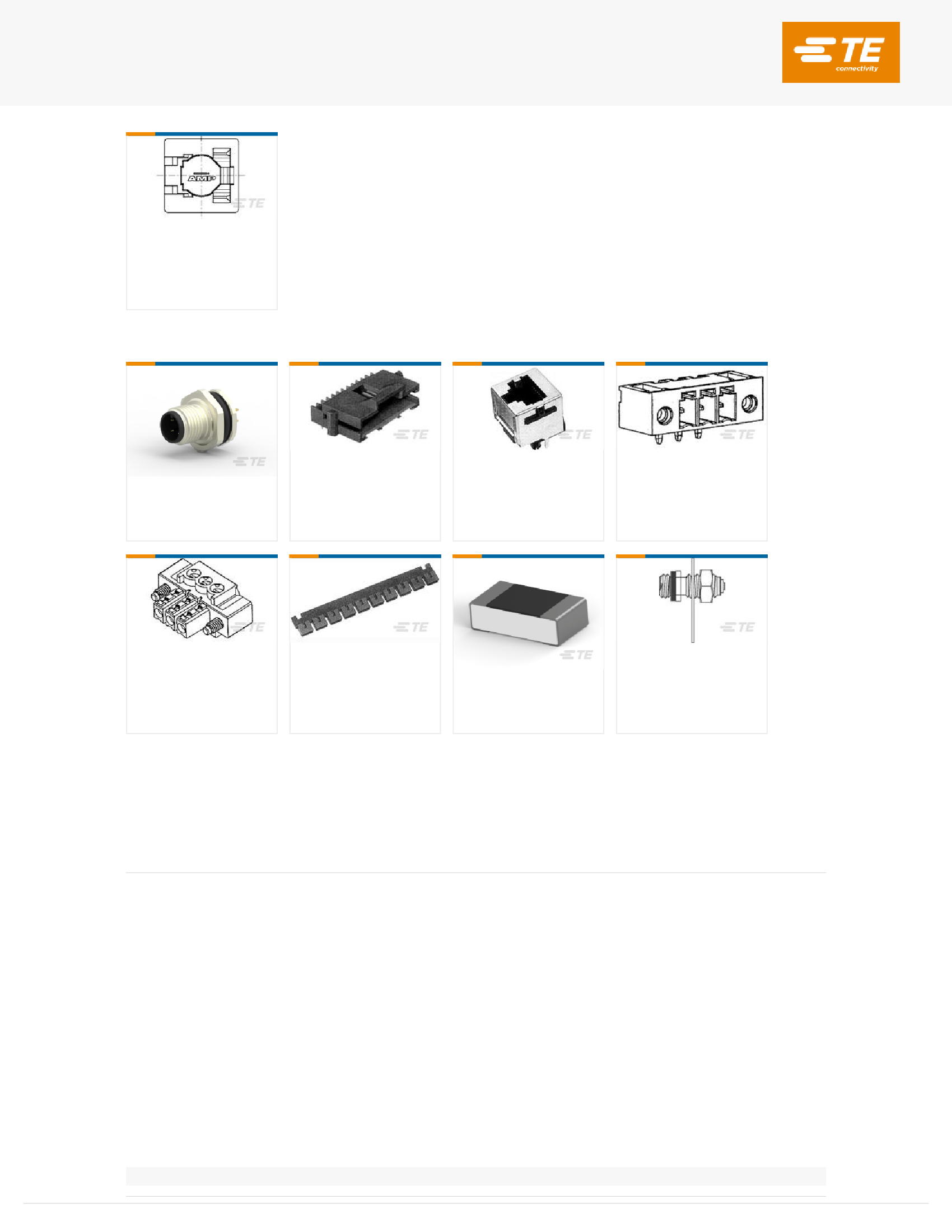

Compatible Parts
