6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 7
Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Blue
6-353908-7
AMP Mini CT
ACTIVE
TE Internal #: 6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board
/ Wire-to-Wire, 7 Position, 1.5 mm [.059 in] Centerline, Crimp, 1
Row, Blue
View on TE.com >
Connectors
>
PCB Connectors
>
Wire-to-Board Connectors
>
Wire-to-Board Connector Assemblies & Housings
>
Mini Common Termination (CT) Housings
Connector Product Type:
Housing
Connector & Housing Type:
Receptacle
Connector System:
Wire-to-Board, Wire-to-Panel, Wire-to-Wire
Number of Positions:
7
Centerline (Pitch):
1.5 mm [ .059 in ]
All Mini Common Termination (CT) Housings (38)
Features
Product Type Features
Connector Product Type
Connector & Housing Type
Connector System
Sealable
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Electrical Characteristics
Insulation Resistance
Operating Voltage
Contact Features
Contact Layout
Contact Type
Contact Current Rating (Max)
Termination Features
Housing
Receptacle
Wire-to-Board, Wire-to-Panel, Wire-to-Wire
No
Wire & Cable
7
1
500 MΩ
50 VAC
Inline
Socket
3A
For support call+1 800 522 6752
05/26/2022 12:20PM | Page 1
6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 7
Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Blue
Termination Features
Termination Method to Wire & Cable
Mechanical Attachment
Strain Relief
Panel Mount Feature
PCB Mount Retention
Mating Retention Type
Mating Retention
Connector Mounting Type
Housing Features
Housing Entry Configuration
Housing Material
Centerline (Pitch)
Housing Color
Dimensions
Connector Length
Connector Height
Connector Width
Accepts Wire Insulation Diameter Range
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
Glow Wire Rating
UL Flammability Rating
UL File Number
Agency/Standard
CSA File Number
Packaging Features
Packaging Quantity
Packaging Method
Crimp
Without
Without
Without
Detent
With
Cable Mount (Free-Hanging)
Both Ends Closed
Nylon 66
1.5 mm[.059 in]
Blue
12 mm[.472 in]
6 mm[.236 in]
3.6 mm[.141 in]
.85 – 1.05 mm[.033 – .041 in]
.05 – .22 mm²
-30 – 105 °C[-22 – 221 °F]
Power & Signal
Standard Part - Not Glow Wire
UL 94V-0
E28476
CSA, UL
LR 7189-133
2500
Bag
05/26/2022 12:20PM | Page 2
For support call+1 800 522 6752
6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 7
Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Blue
Packaging Method
Bag
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Yet Reviewed
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Not Yet Reviewed
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Halogen Content
Solder Process Capability
Not applicable for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.

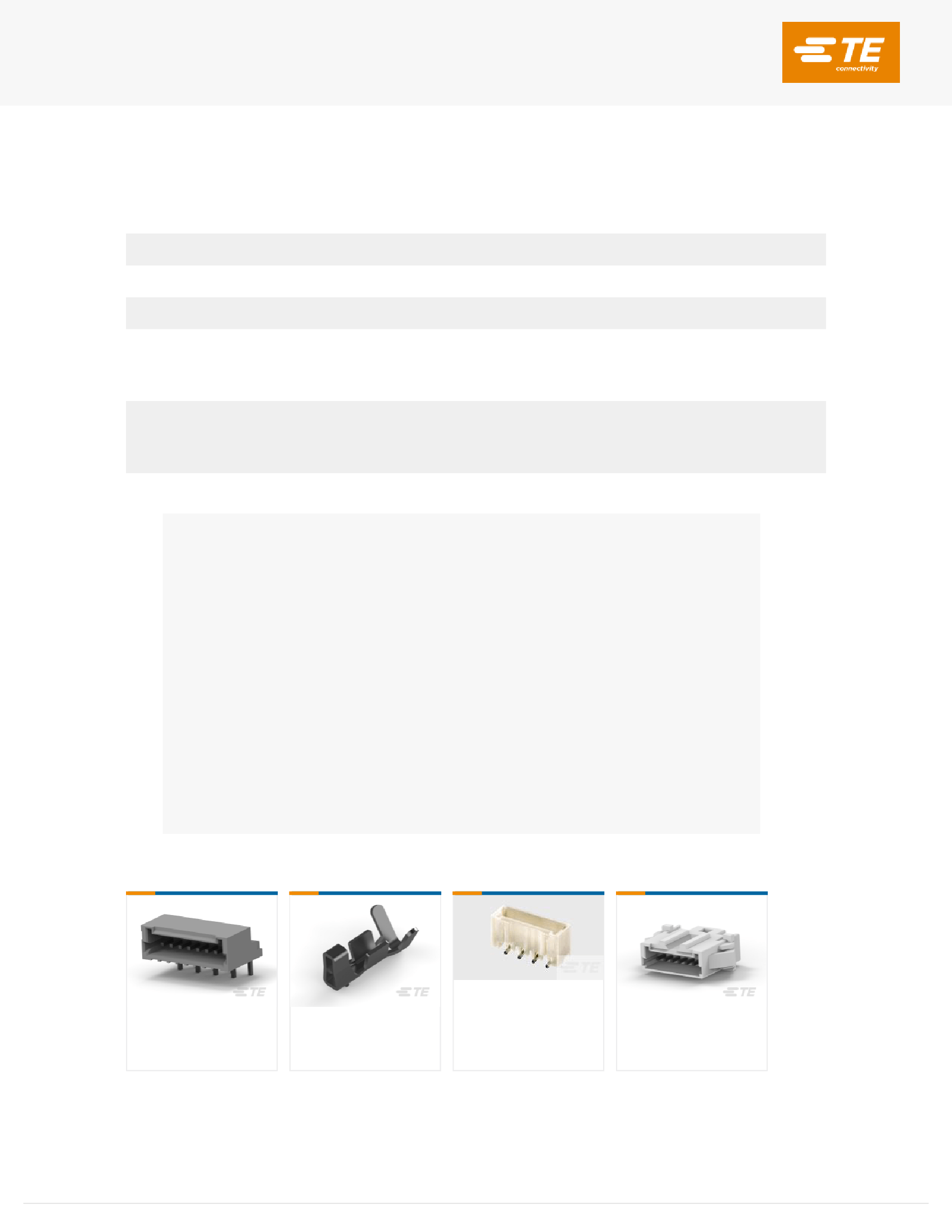

Compatible Parts
TE Part # CAT-AM7053-H342
MINI COMMON TERMINATION
HEADERS
TE Part # CAT-AM7053-C7671
MINI COMMON TERMINATION
CONTACTS
TE Part # 292230-7
1.5 MINI CT SGL V SMT W/BOSS 7
TE Part # 292215-7
MINI CT SGL RELAY 7P NAT
For support call+1 800 522 6752
05/26/2022 12:20PM | Page 3
6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 7
Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Blue
TE Part # 292207-7
MINI CT SGL DIP V 7P NAT
TE Part # 292228-7
1.5 MINI CT SGL H SMT W/O BOSS
TE Part # 6-292207-7
MINI CT SGL DIP V 17P BLUE
TE Part # 6-292228-7
1.5 MINI CT SGL H SMT W/O BOSS

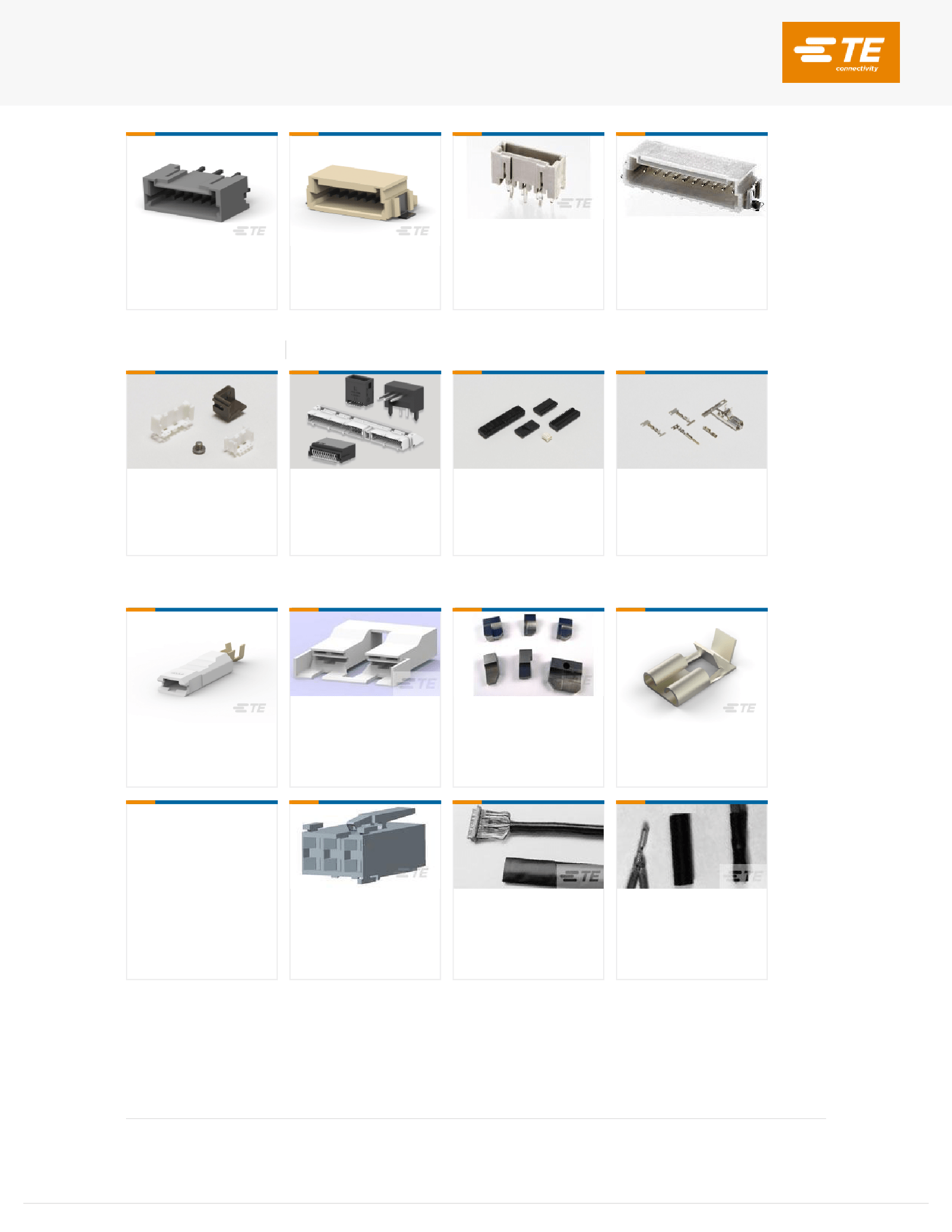

Also in the Series
AMP Mini CT
PCB Connector Mounting(10)
PCB Headers & Receptacles(332)
Wire-to-Board Connector Assemblies
& Housings(172)
Wire-to-Board Connector Contacts(4)
Customers Also Bought
TE Part #1969104-1
ULTRA POD: Straight, Receptacle
Assembly, Unplated, .250 inch
TE Part #1-521253-3
PL MKIII & FASTON 250 HSG 2P
NYL0N GREEN
TE Part #1-853088-0
ANVIL
TE Part #1217972-2
250 FASTON,FLAG,REC.,18-14 AWG,
NPST
TE Part #1385719-1
UP.250 STRAIGHT SA110F220F LM
TE Part #2-1241817-3
STD TIM HOUSING MKII 3POS
TE Part #530219P009
RNF-150-1/4-0-1.25IN
TE Part #440452-000
RT-3-NO.1-0-2.25IN
Documents
Product Drawings
CT REC HSG 7P CRIMP TYPE BLUE
English
CAD Files
Customer View Model
ENG_CVM_CVM_6-353908-7_P.2d_dxf.zip
For support call+1 800 522 6752
English
05/26/2022 12:20PM | Page 4
6-353908-7
AMP Mini CT, Housing, Receptacle, Wire-to-Panel / Wire-to-Board / Wire-to-Wire, 7
Position, 1.5 mm [.059 in] Centerline, Crimp, 1 Row, Blue
English
3D PDF
3D
Customer View Model
ENG_CVM_CVM_6-353908-7_P.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_6-353908-7_P.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
6-1773454-5_AMP_Mini_CT_Connector_Series_QRG
English
Product Specifications
Application Specification
English
Instruction Sheets
Instruction Sheet for Mini CT DC Drawer Connector SF Type
Japanese
Instruction Sheet (non U.S.)
English
1.5mm Pitch Mini CT DC Drawer Connector SF Type
Japanese
Instruction Sheet (non U.S.)
Japanese
1.5mm Pitch Mini CT Hybrid Drawer Connector SF Type
Japanese
Instruction Sheet (non U.S.)
Japanese
1.5mm Pitch Mini CT Hybrid Drawer Connector Slim Type
Japanese
Instruction Sheet (non U.S.)
Japanese
For support call+1 800 522 6752
