Part Number

Search

822136-3

Description
SIMM/DIMM SOCKET,72 CONTACTS,1
CategoryThe connector    The connector
File Size168KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

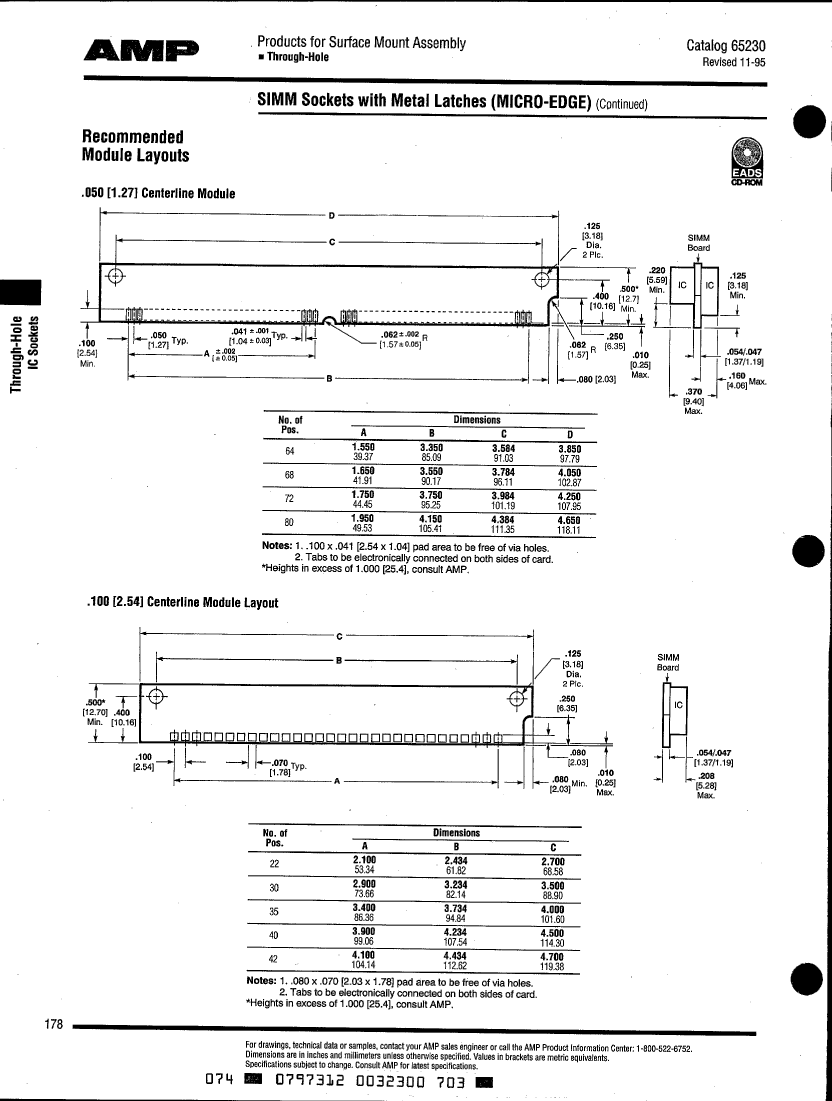

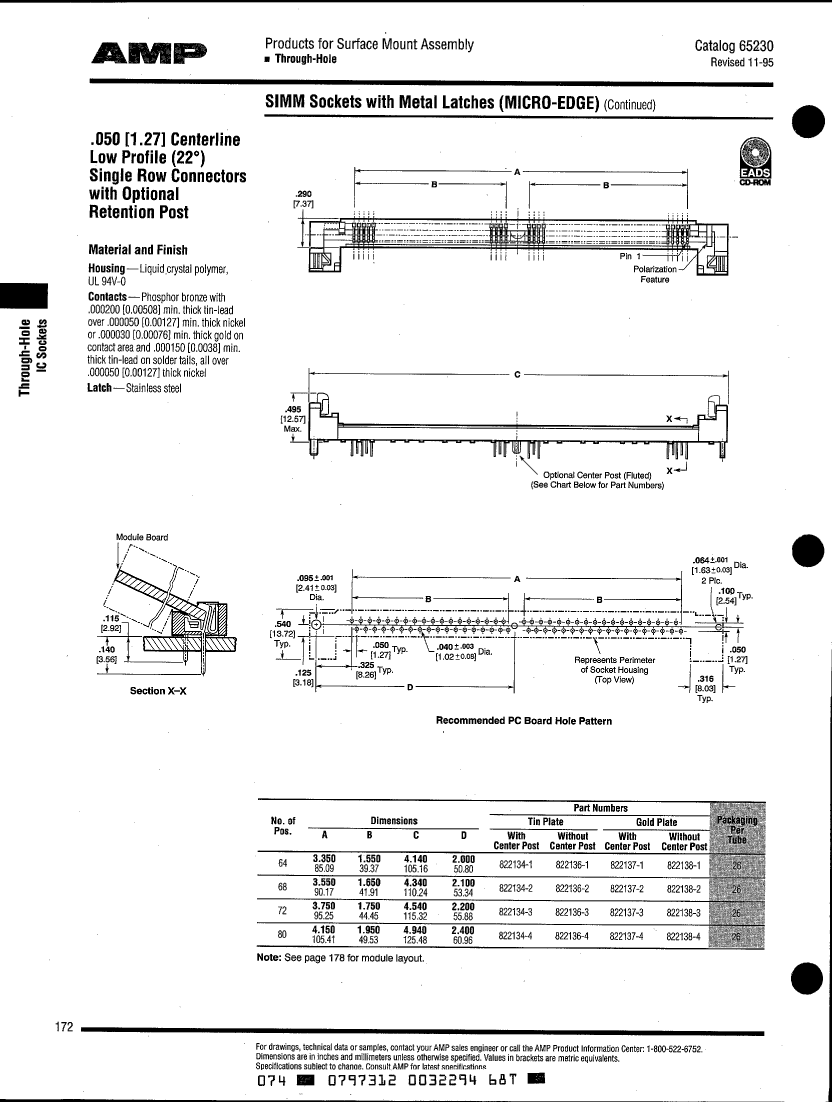

822136-3 Overview

SIMM/DIMM SOCKET,72 CONTACTS,1

822136-3 Parametric

Parameter NameAttribute value
Objectid302499510
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITHOUT CENTER POST
Board mount optionsPOLARIZATION POST
body width0.29 inch
subject depth0.495 inch
body length4.54 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact completed and terminatedGOLD
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1500VAC V
Durability25 Cycles
maximum insertion forceLIF N
Insulation resistance10000000000 Ω
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number822136
Plug contact pitch0.05 inch
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing0.1 mm
Plating thickness200u inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts72

822136-3 Related Products

822136-3 822136-1 822137-3 822138-1 822138-3
Description SIMM/DIMM SOCKET,72 CONTACTS,1 SIMM/DIMM SOCKET,64 CONTACTS,1 SIMM/DIMM SOCKET,72 CONTACTS,1 SIMM/DIMM SOCKET,64 CONTACTS,1 SIMM/DIMM SOCKET,72 CONTACTS,1
Objectid 302499510 302499508 302499514 302499516 302499518
Reach Compliance Code unknown unknown compliant unknown compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features WITHOUT CENTER POST WITHOUT CENTER POST WITH CENTER POST WITHOUT CENTER POST WITHOUT CENTER POST
Board mount options POLARIZATION POST POLARIZATION POST POLARIZATION POST POLARIZATION POST POLARIZATION POST
subject depth 0.495 inch 0.495 inch 0.495 inch 0.495 inch 0.495 inch
body length 4.54 inch 4.14 inch 4.54 inch 4.14 inch 4.54 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact to complete cooperation SN-PB ON NI SN-PB ON NI AU AU AU
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
Contact resistance 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Durability 25 Cycles 25 Cycles 25 Cycles 25 Cycles 25 Cycles
maximum insertion force LIF N LIF N LIF N LIF N LIF N
Insulation resistance 10000000000 Ω 10000000000 Ω 10000000000 Ω 10000000000 Ω 10000000000 Ω
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number 822136 822136 822137 822138 822138
Plug contact pitch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch
Installation option 1 LATCH LATCH LATCH LATCH LATCH
Installation option 2 LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2
Number of rows loaded 1 1 1 1 1
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
PCB contact pattern STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
PCB contact row spacing 0.1 mm 0.1 mm 0.1 mm 0.1 mm 0.1 mm
Plating thickness 200u inch 200u inch 30u inch 30u inch 30u inch
Rated current (signal) 1 A 1 A 1 A 1 A 1 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.12 inch 0.12 inch 0.12 inch 0.12 inch 0.12 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 72 64 72 64 72
body width 0.29 inch - 0.29 inch 0.29 inch 0.29 inch
Contact completed and terminated GOLD GOLD - GOLD -
