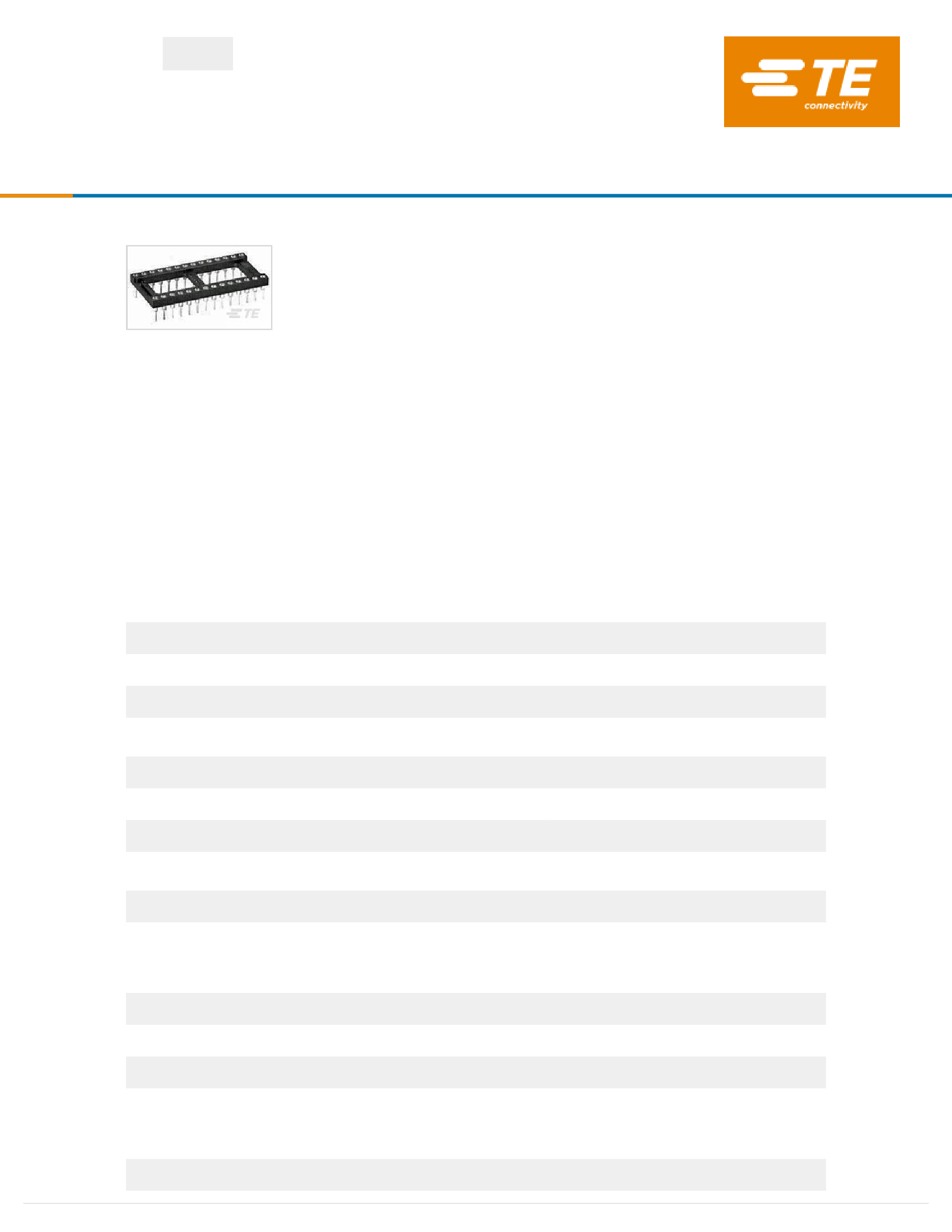

824-AG11D
824-AG11D=SOCKET ASSY
824-AG11D
DIPLOMATE
OBSOLETE
TE Internal #: 8-1437537-2
TE Internal Description: 824-AG11D=SOCKET ASSY
DIP Socket: Standard, Screw Machine, Open, Gold
View on TE.com >
Connectors
>
Socket Connectors
>
IC Sockets
>
DIP Sockets
>
DIP Socket: Standard, Screw Machine, Open, Gold
Contact Fabrication:
Screw Machine
Number of Positions:
24
Connector Profile:
Standard
Row-to-Row Spacing:
15.24 mm [ .6 in ]
PCB Mount Orientation:
Vertical
All DIP Socket: Standard, Screw Machine, Open, Gold (0)
Features
Product Type Features
Leg Style
Connector & Contact Terminates To
Product Type
Configuration Features
Number of Positions
PCB Mount Orientation
Number of Rows
Electrical Characteristics
Contact Resistance
Insulation Resistance
Body Features
Sleeve Material
Sleeve Plating Material
Frame Style
Connector Profile
Contact Features
Socket Style
Straight
Printed Circuit Board
Socket
24
Vertical
2
10 mΩ
5000 MΩ
Brass
Tin-Lead
Ladder, Open
Standard
Standard
Four-Fingered
05/26/2022 11:57AM | Page 1
For support call+1 800 522 6752
Mating Contact Type
824-AG11D
824-AG11D=SOCKET ASSY
Mating Contact Type
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Fabrication
Contact Mating Area Plating Material
Four-Fingered
Tin-Lead
Beryllium Copper
Screw Machine
Gold
25 µin
Contact Current Rating (Max)
Socket Type
Contact Type
Termination Features
Termination Method to Printed Circuit Board
Termination Post Length
Mechanical Attachment
PCB Mount Retention
Connector Mounting Type
Mating Alignment Type
Mating Alignment
Housing Features
Centerline (Pitch)
Housing Material
Dimensions
Profile Height from PCB
Row-to-Row Spacing
3A
DIP
Pin
Through Hole - Solder
3.18 mm[.125 in]
Without
Board Mount
Polarization
With
2.54 mm[.1 in]
Polyester
2.67 mm[.105 in]
15.24 mm[.6 in]
.7 in
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Method
-55 – 125 °C[-67 – 257 °F]
Signal
UL 94V-0
Box & Tube, Tube
20
05/26/2022 11:57AM | Page 2
Packaging Quantity
For support call+1 800 522 6752
824-AG11D
824-AG11D=SOCKET ASSY
Packaging Method
Packaging Quantity
Box & Tube, Tube
20
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Compliant
Not Compliant
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2020
(205)
SVHC > Threshold:
Not Yet Reviewed
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Wave solder capable to 265°C
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

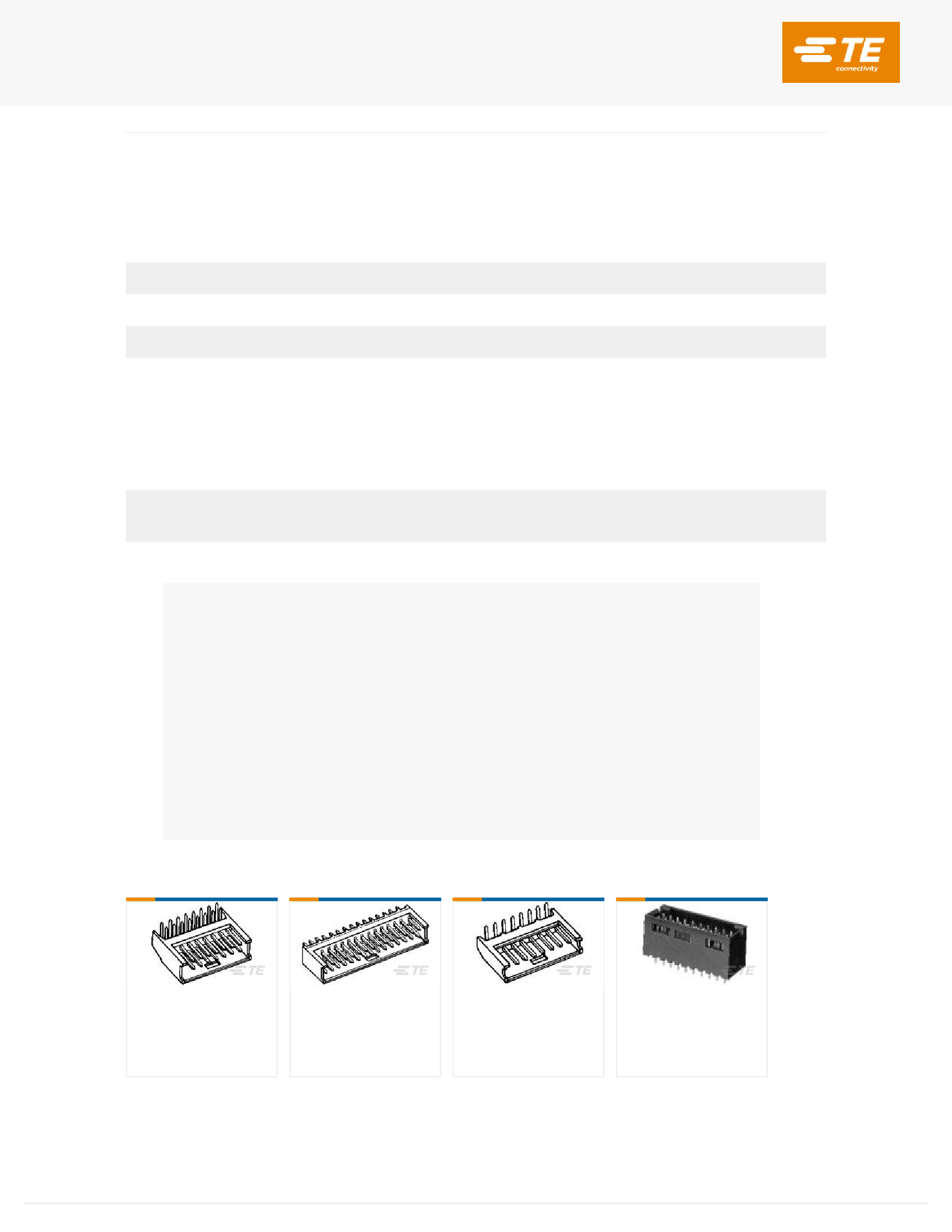

Customers Also Bought
TE Part #280390-1
2X8P MODU II SHRD HDR, RT ANG,
TIN
TE Part #280384-1
2X4P AMPMODU II SHRD HDR, ST,
TIN
TE Part #280380-1
8P AMPMODU II SHRD HDR, RT ANG,
TIN
TE Part #5-103168-6
16 MODII HDR DRST SHRD .100CL
For support call+1 800 522 6752
05/26/2022 11:57AM | Page 3
824-AG11D
824-AG11D=SOCKET ASSY
TE Part #280611-1
6P MOD 1 SHROUDED HEADER, ST,
TIN PLTD
TE Part #2-1571552-9
DIP Socket: Standard, Stamped &
Formed, Open, Gold
TE Part #8709614001
GPO-135-2.4/1.2-0-SP
TE Part #4431574001
GPO-135-4.8/2.4-0-SP

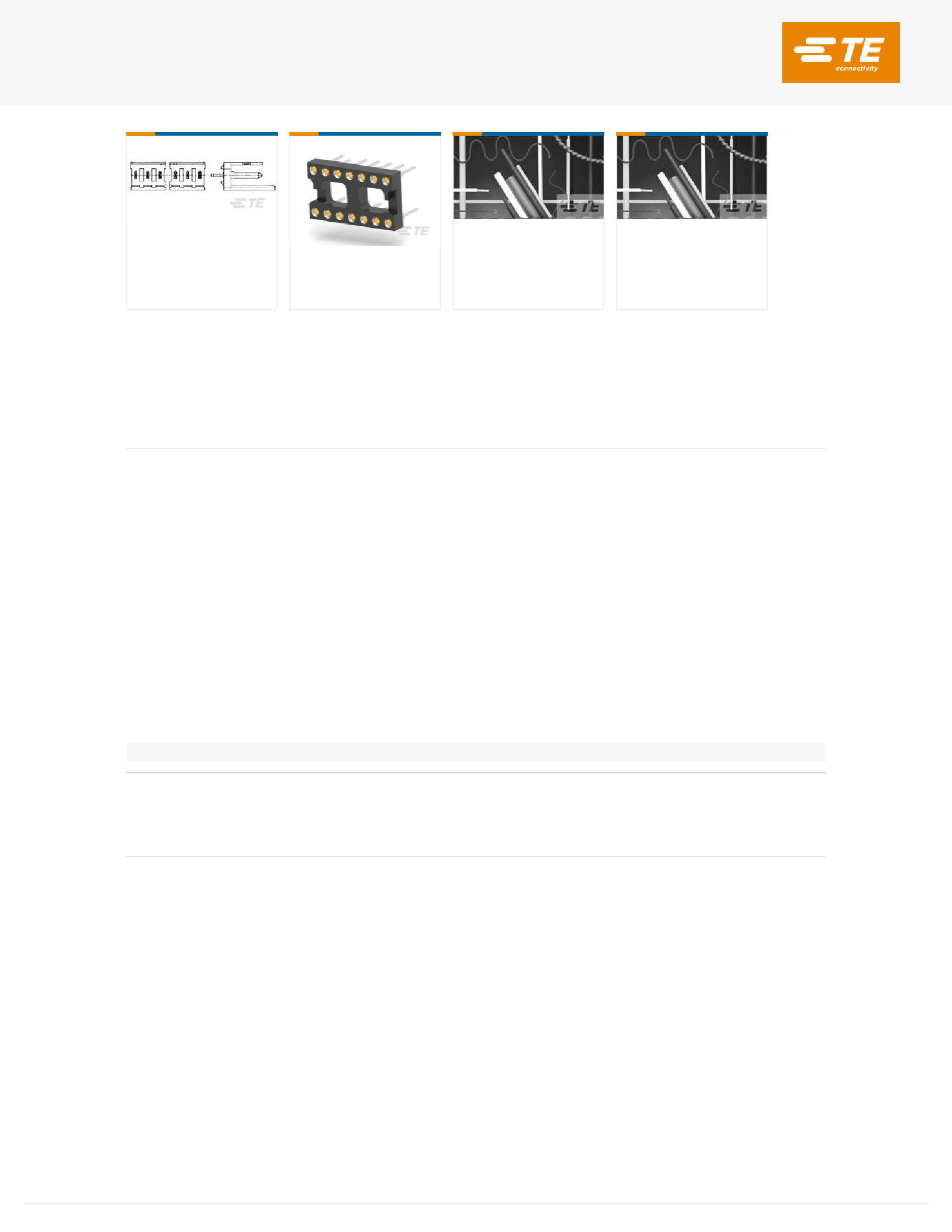

Documents
Product Drawings
824-AG11D=SOCKET ASSY
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_8-1437537-2_E.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_8-1437537-2_E.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_8-1437537-2_E.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
DIP Sockets Quick Reference Guide (EN)
English
Product Environmental Compliance
Product Compliance
English
Product Compliance
English
