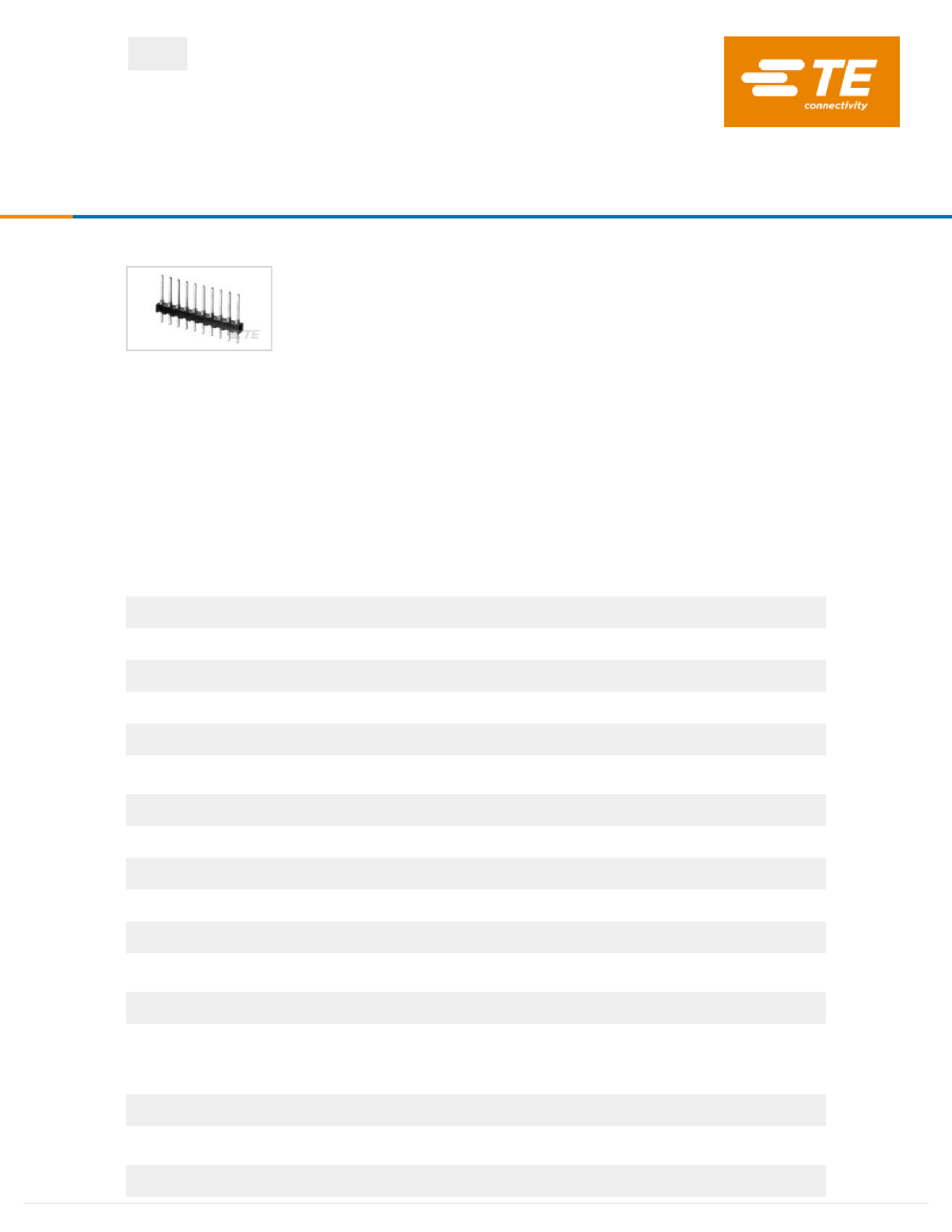

87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 2 Position, .1 in
[2.54 mm] Centerline, Unshrouded, Gold, Through Hole - Solder, Signal
87224-2
ACTIVE
AMPMODU
|
AMPMODU Headers
TE Internal #: 87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-
Board, 2 Position, .1 in [2.54 mm] Centerline, Unshrouded, Gold,
Through Hole - Solder, Signal
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
PCB Connector Assembly Type:
PCB Mount Header
PCB Mount Orientation:
Vertical
Connector System:
Board-to-Board
Number of Positions:
2
Number of Rows:
1
Features
Product Type Features
PCB Connector Assembly Type
Connector System
Header Type
Sealable
Connector & Contact Terminates To
Configuration Features
Connector Contact Load Condition
PCB Mount Orientation
Number of Positions
Number of Rows
Board-to-Board Configuration
Electrical Characteristics
Insulation Resistance
Dielectric Withstanding Voltage (Max)
Body Features
Primary Product Color
Contact Features
Mating Square Post Dimension
PCB Mount Header
Board-to-Board
Unshrouded
No
Printed Circuit Board
Fully Loaded
Vertical
2
1
Parallel
5000 MΩ
750 Vrms
Black
.64 mm[.025 in]
Square
05/26/2022 12:09PM | Page 1
Contact
6752
For support call+1 800 522
Shape & Form
87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 2 Position, .1 in
[2.54 mm] Centerline, Unshrouded, Gold, Through Hole - Solder, Signal
Mating Square Post Dimension
Contact Shape & Form
Contact Underplating Material
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Mating Area Plating Material
Contact Mating Area Plating Material Thickness
Contact Type
Contact Current Rating (Max)
Termination Features
Square Termination Post & Tail Dimension
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
Mating Alignment
PCB Mount Retention
PCB Mount Alignment
Connector Mounting Type
Housing Features
Centerline (Pitch)
Housing Material
Dimensions
PCB Thickness (Recommended)
Usage Conditions
Housing Temperature Rating
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
Agency/Standard
Approved Standards
UL Flammability Rating
Packaging Features
.64 mm[.025 in]
Square
Nickel
Gold Flash
Phosphor Bronze
Gold
.38 µm[15 µin]
Pin
3A
.64 mm[.025 in]
3.18 mm[.125 in]
Through Hole - Solder
Without
Without
Without
Board Mount
2.54 mm[.1 in]
Thermoplastic
1.4 mm[.055 in]
Standard
-55 – 125 °C[-67 – 257 °F]
Signal
CSA, UL
CSA LR7189, UL E28476
UL 94V-0
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 2
87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 2 Position, .1 in
[2.54 mm] Centerline, Unshrouded, Gold, Through Hole - Solder, Signal
Packaging Features
Packaging Quantity
Packaging Type
500
Carton
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
BFR/CFR/PVC Free, but Br/Cl >900 ppm in
other sources.
Wave solder capable to 240°C
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
TE Part # 5147721-1
02 MODII HORZ SR SFMNT 30AU
Also in the Series
AMPMODU Headers
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 3
87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 2 Position, .1 in
[2.54 mm] Centerline, Unshrouded, Gold, Through Hole - Solder, Signal

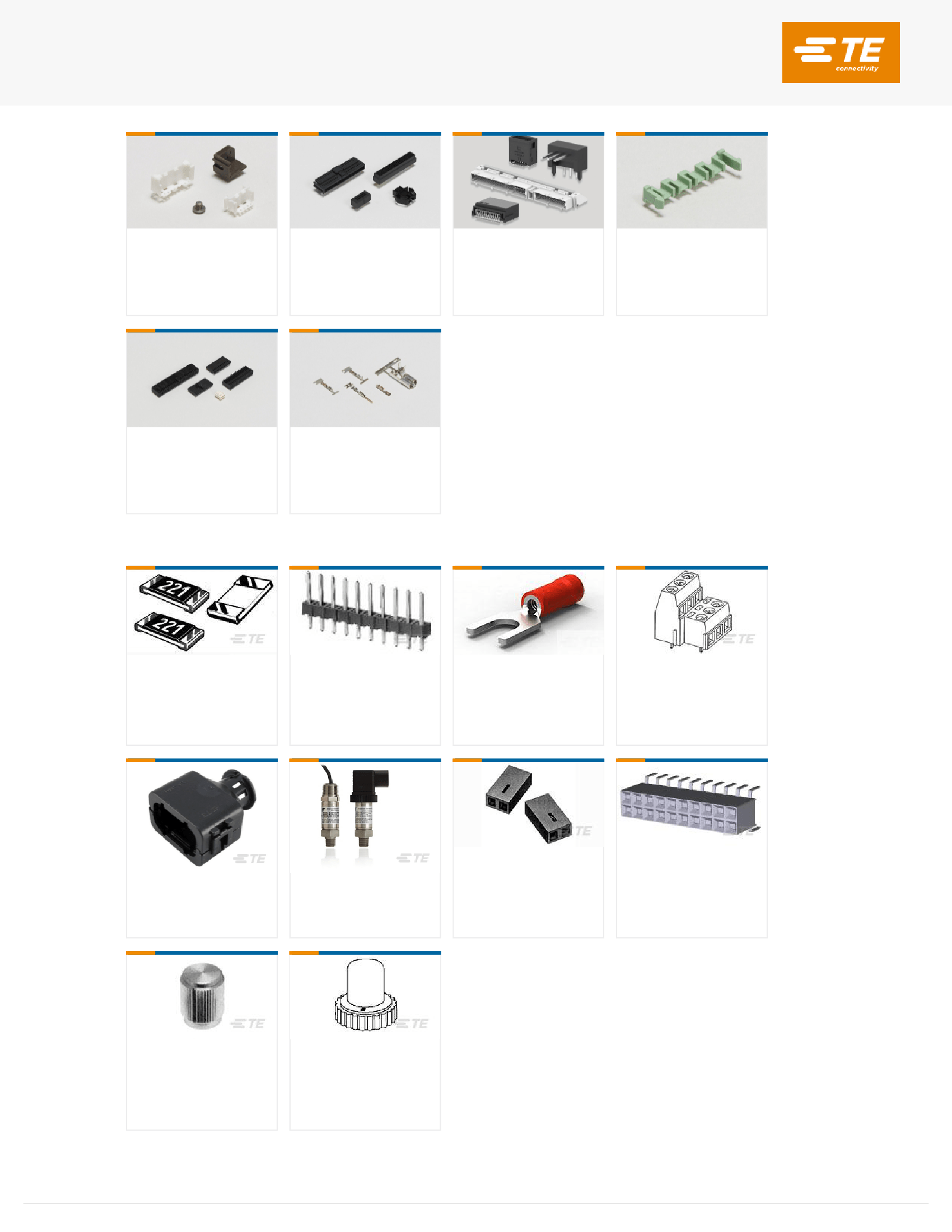

PCB Connector Mounting(1)
PCB Connector Shrouds(1)
PCB Headers & Receptacles(7070)
PCB Latches, Locks & Retainers(2)
Wire-to-Board Connector Assemblies
& Housings(5)
Wire-to-Board Connector Contacts(66)
Customers Also Bought
TE Part #5-2176231-2
3522 1K3 1% 3W
TE Part #5-146281-8
08 MODII HDR SRST B/A .100CL
TE Part #2-165008-1
P.G. SPADE
TE Part #796692-4
TERMI-BLOK PCB MOUNT 1&2 4P.5
TE Part #2292861-1
AS16 BACKSHELL, 3P CAP, SMOOTH
EXIT, MC
TE Part #11106895-00
AST43LPA00069H4N1000:CTO-
13000000-03
TE Part #2-530153-2
TDM SPRING, SHUNT ASY 2 POS
TE Part #5-534267-2
20 MODIV VRT DR DE 100/125
TE Part #5-1437622-8
KN700A1/4=KNOB ALUM KNURL 1/4
TE Part #1825617-2
BP201004=Boot,Pushbutton
Documents
For support call+1 800 522 6752
Product Drawings
05/26/2022 12:09PM | Page 4
87224-2
AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 2 Position, .1 in
[2.54 mm] Centerline, Unshrouded, Gold, Through Hole - Solder, Signal
Product Drawings
02 MODII HDR SRST UNSHRD .100
English
CAD Files
Customer View Model
ENG_CVM_87224-2_L.3d_igs.zip
English
Customer View Model
ENG_CVM_87224-2_L.2d_dxf.zip
English
3D PDF
English
Customer View Model
ENG_CVM_87224-2_L.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
AMPMODU_INTERCONNECTION_SYSTEM_SECTION5
English
Product Environmental Compliance
MD_87224-2_1127201709_dmtec
English
MD_87224-2_1127201709_dmtec
English
For support call+1 800 522 6752
05/26/2022 12:09PM | Page 5
