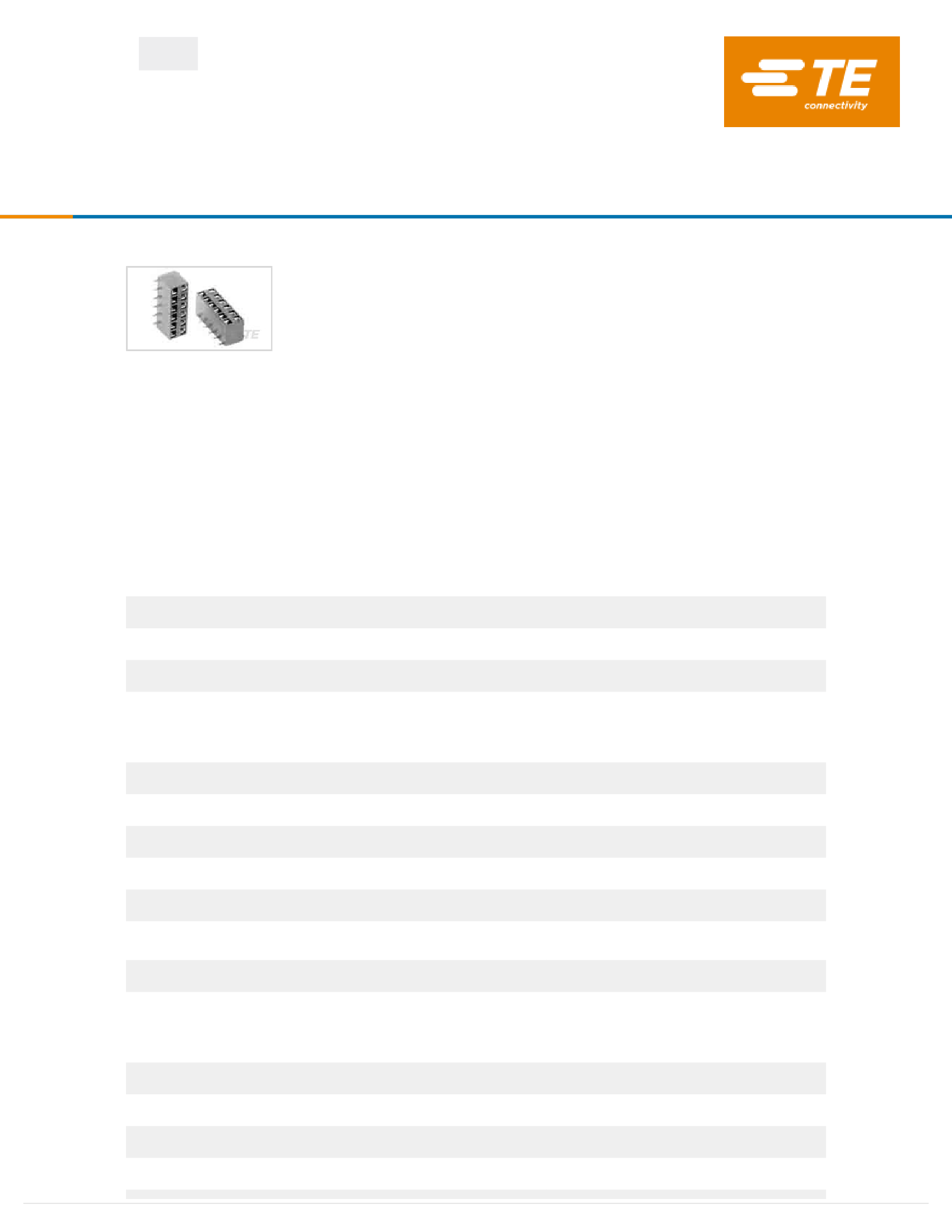

966645-3
AMPMODU HV-100/HV-190, PCB Mount Receptacle, Vertical, Board-to-Board, 6
Position, .1 in [2.54 mm] Centerline, Gold, Surface Mount, Signal, Black
966645-3
ACTIVE
AMPMODU
|
AMPMODU HV-100/HV-190
TE Internal #: 966645-3
AMPMODU HV-100/HV-190, PCB Mount Receptacle, Vertical,
Board-to-Board, 6 Position, .1 in [2.54 mm] Centerline, Gold,
Surface Mount, Signal, Black
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
PCB Connector Assembly Type:
PCB Mount Receptacle
PCB Mount Orientation:
Vertical
Connector System:
Board-to-Board
Number of Positions:
6
Number of Rows:
2
Features
Product Type Features
PCB Connector Assembly Type
Connector System
Sealable
Connector & Contact Terminates To
Configuration Features
Stackable
PCB Mount Orientation
Number of Positions
Number of Rows
Board-to-Board Configuration
Body Features
Connector Profile
Primary Product Color
Contact Features
Mating Square Post Dimension
PCB Contact Termination Area Plating Material Thickness
Mating Pin Diameter
PCB Contact Termination Area Plating Material
For support call+1 800 522 6752
PCB Mount Receptacle
Board-to-Board
No
Printed Circuit Board
No
Vertical
6
2
Parallel
Standard
Black
.64 mm[.025 in]
2.5 µm
.63 mm[.025 in]
Tin
Copper Tin
05/26/2022 11:37AM | Page 1
Contact Base Material
966645-3
AMPMODU HV-100/HV-190, PCB Mount Receptacle, Vertical, Board-to-Board, 6
Position, .1 in [2.54 mm] Centerline, Gold, Surface Mount, Signal, Black
Contact Base Material
Contact Mating Area Plating Material
Contact Mating Area Plating Material Thickness
Contact Type
Contact Current Rating (Max)
Termination Features
Rectangular Termination Post & Tail Thickness
Rectangular Termination Post & Tail Width
Termination Method to Printed Circuit Board
Mechanical Attachment
Mating Alignment
PCB Mount Retention
PCB Mount Alignment
Connector Mounting Type
Housing Features
Mating Entry Location
Centerline (Pitch)
Housing Material
Dimensions
Connector Height
Row-to-Row Spacing
Stack Height
PCB Thickness (Recommended)
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Type
Copper Tin
Gold
.762 µm[30 µin]
Socket
3A
.2 mm[.008 in]
.7 mm[.027 in]
Surface Mount
Without
Without
Without
Board Mount
Bottom
2.54 mm[.1 in]
PCT GF
7 mm[.276 in]
2.54 mm[.1 in]
6.35 mm[.25 in]
1.6 mm[.063 in]
-65 – 125 °C[-85 – 257 °F]
Signal
UL 94V-0
69
Box, Tube
05/26/2022 11:37AM | Page 2
For support call+1 800 522 6752
966645-3
AMPMODU HV-100/HV-190, PCB Mount Receptacle, Vertical, Board-to-Board, 6
Position, .1 in [2.54 mm] Centerline, Gold, Surface Mount, Signal, Black

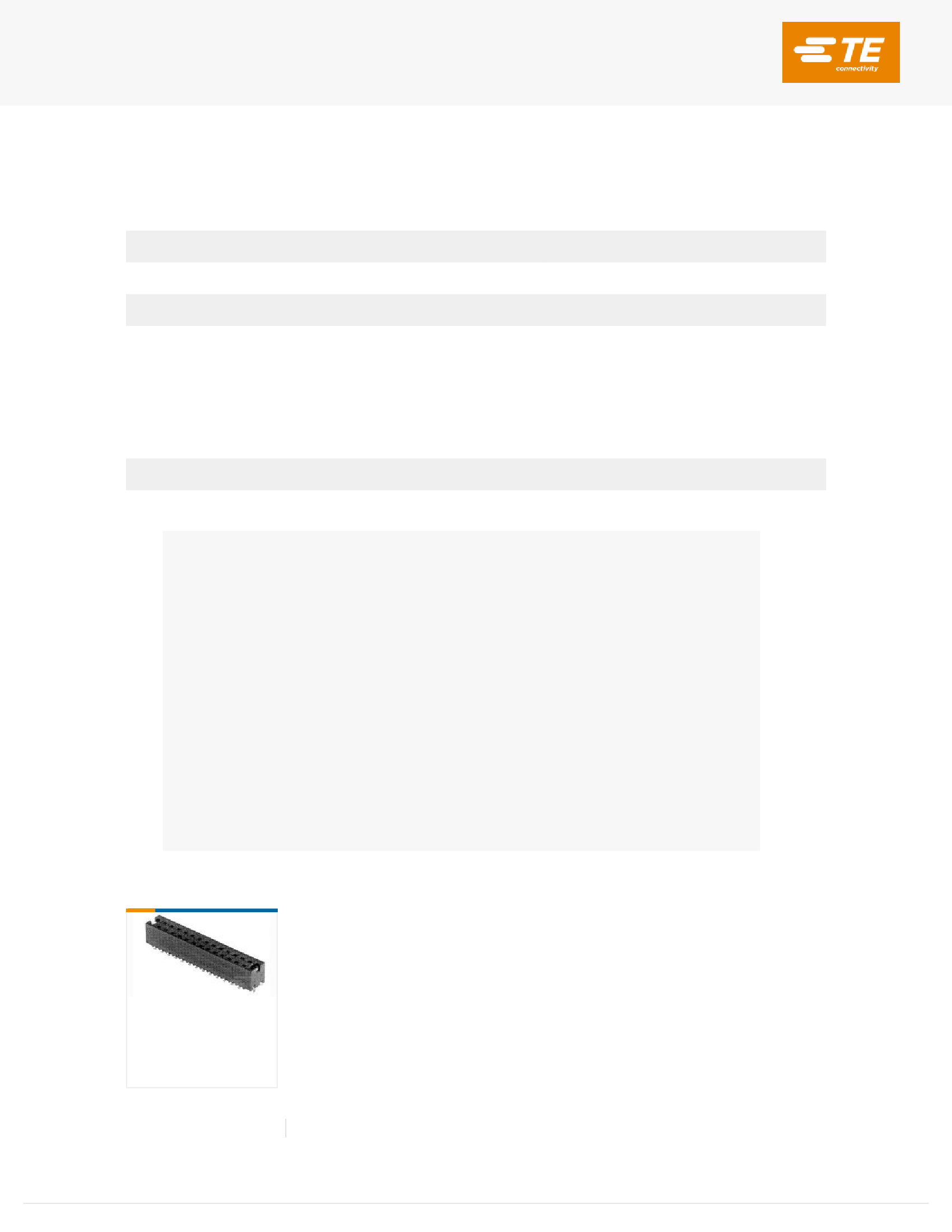

Packaging Type
Box, Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JUN 2016
(169)
SVHC > Threshold:
Not Yet Reviewed
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Wave solder capable to 240°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.
Compatible Parts
TE Part # 1355347-3
2x3P HV100 REC. CON, SMD, TIN,
BLISTER
