64ZFR250KTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 64ZFR250KTR

64ZFR250KTR: DescriptionPotentiometer, Cermet, 0.25W, 250000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 2516,; CategoryPassive components The resistor; File Size1MB，5 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

64ZFR250KTR Overview

Potentiometer, Cermet, 0.25W, 250000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 2516,

64ZFR250KTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	754339394
Reach Compliance Code	compliant

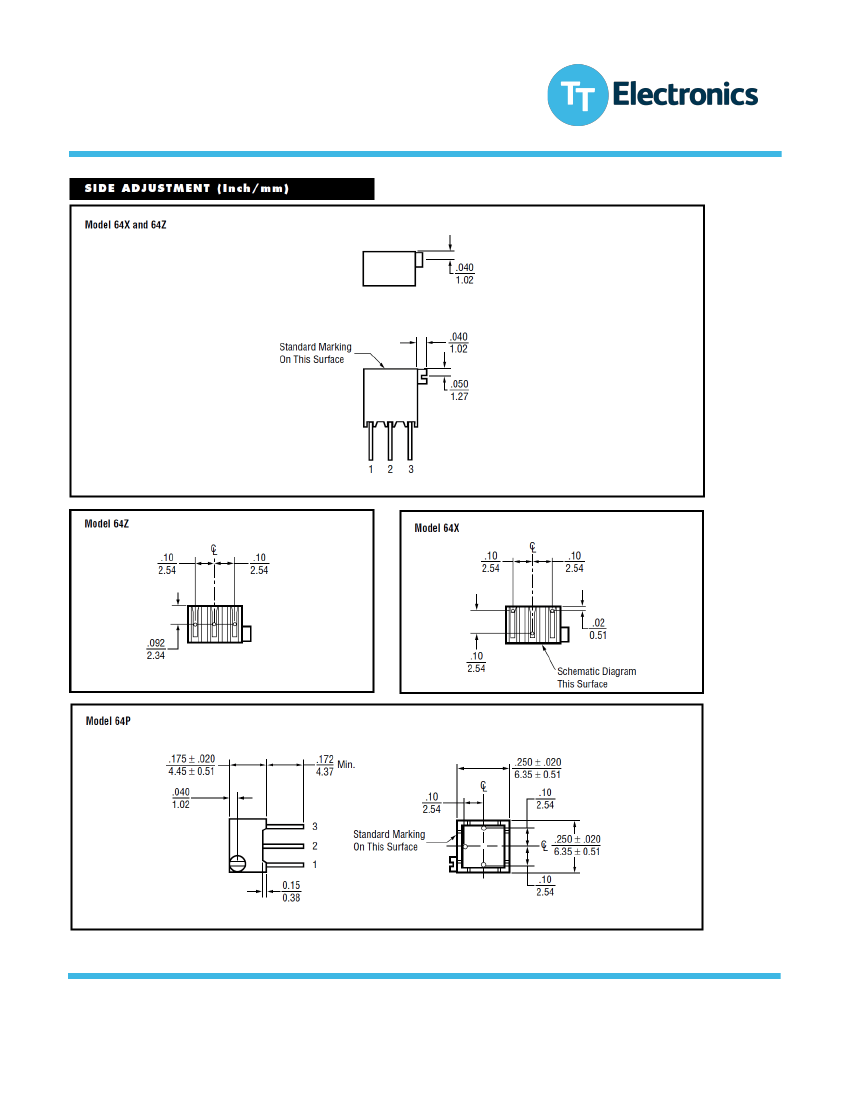

Actuator direction	HORIZONTAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Rectangular
gang number	1
Lead diameter	0.46 mm
Lead length	15.24 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	12
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C

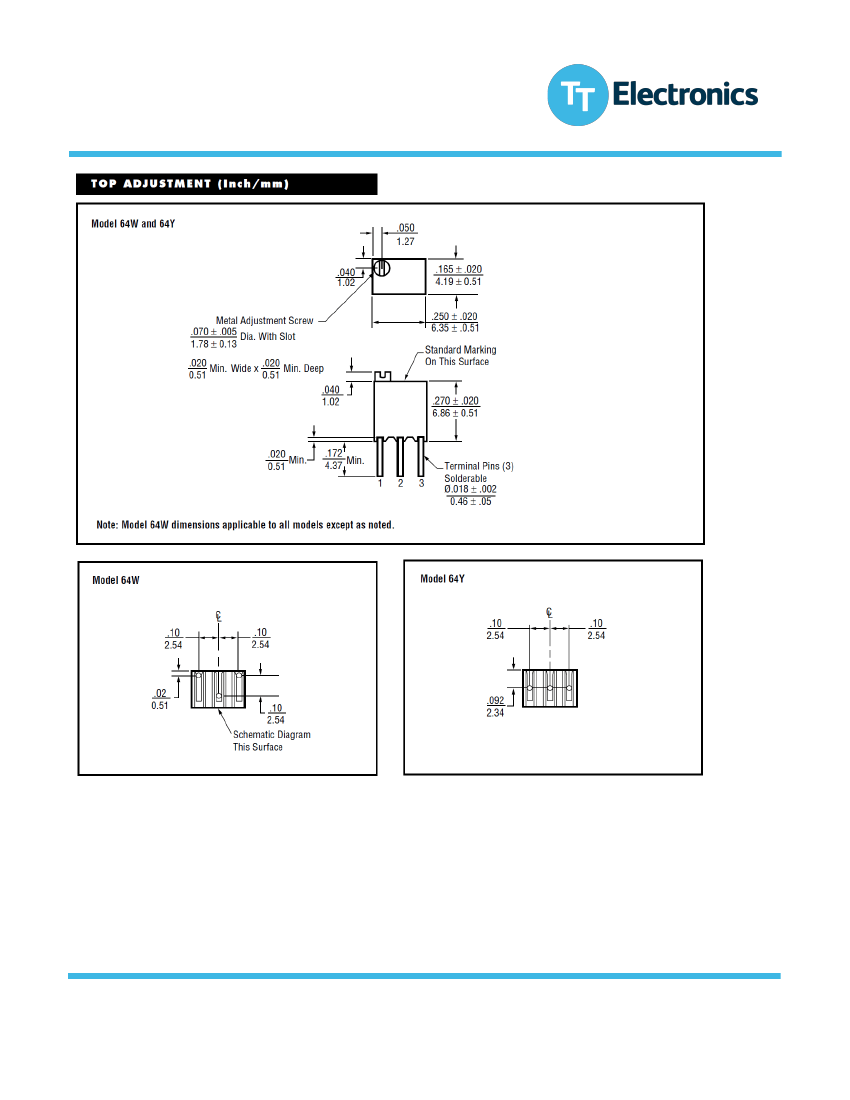

Package height	6.86 mm
Package length	6.35 mm
Package form	PCB Mount
Package width	4.19 mm

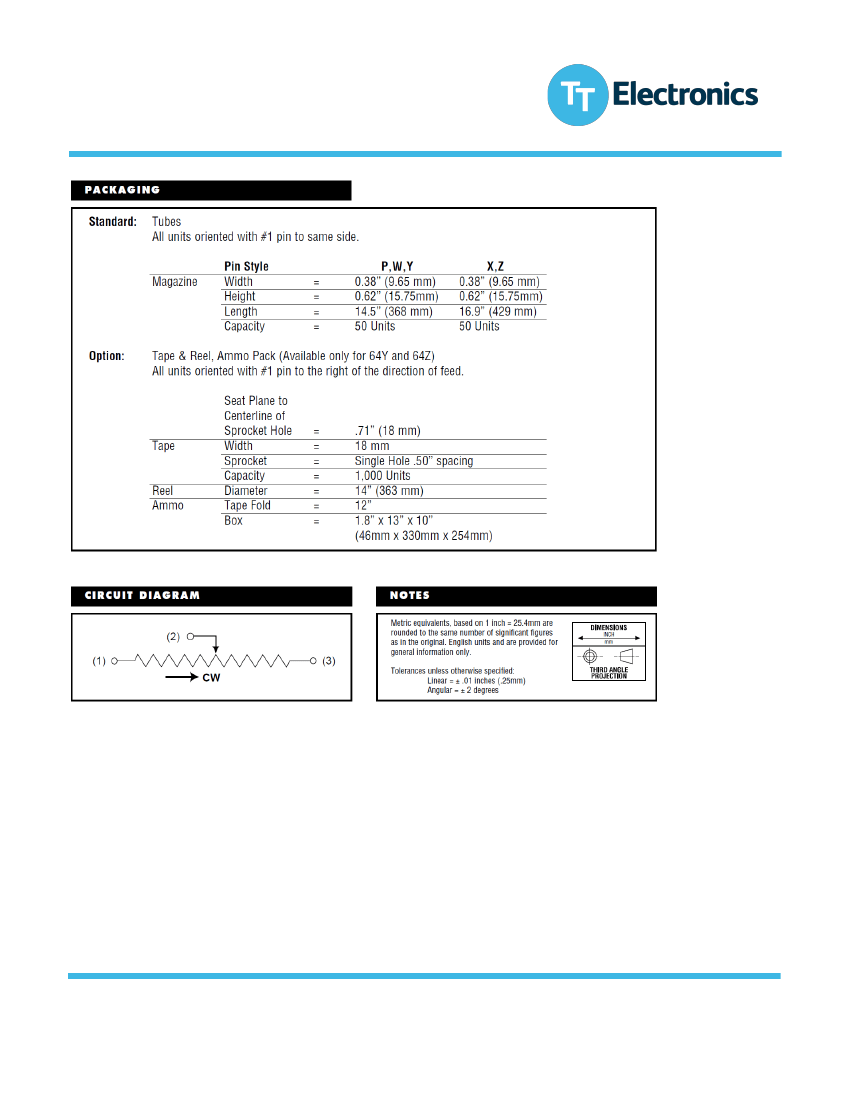

method of packing	TR, 14 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	250000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	4320 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

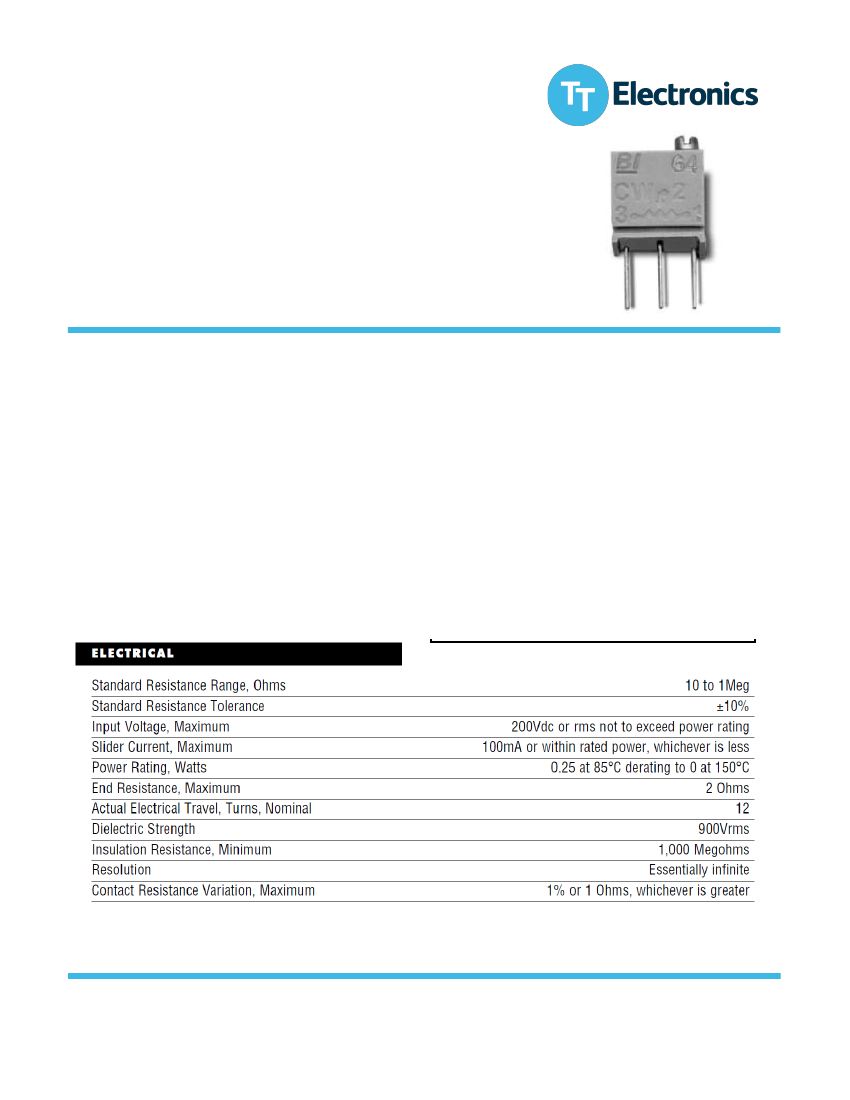

Multi-Turn Trimmer

64 Series

Features:

•

1/4”

square

•

Multi-turn

•

Cermet

Description:

We offer a wide variety of trimming potentiometers in top and side adjust, through hole, and SMD packaging. Our trimming

potentiometers are sealed to be compatible with aqueous PCB cleaning process. The cermet element printing technology

offers high-reliability and long life.

The multi-turn trimmers from the BI Technologies brand are sealed to withstand aggressive water wash and have a very

long life. These trimmers offer unmatched quality and reliability and feature package options that create efficient space

saving solutions.

Applications:

•

Any application requiring adjustability or calibration

Medical

Consumer electronics

Air conditioners

Food processors

Smoke detectors

Dishwaters

Computer monitors

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

413 Rood RD, Suite 7

Calexico, CA 92231

Ph: + 1 (714) 447-2345

www.ttelectronics.com/bi-technologies

Issue C 04/2019 Page 1
