STM8-SK/RAIS STM8-D/RAIS
ST7-SK/RAIS ST7-D/RAIS

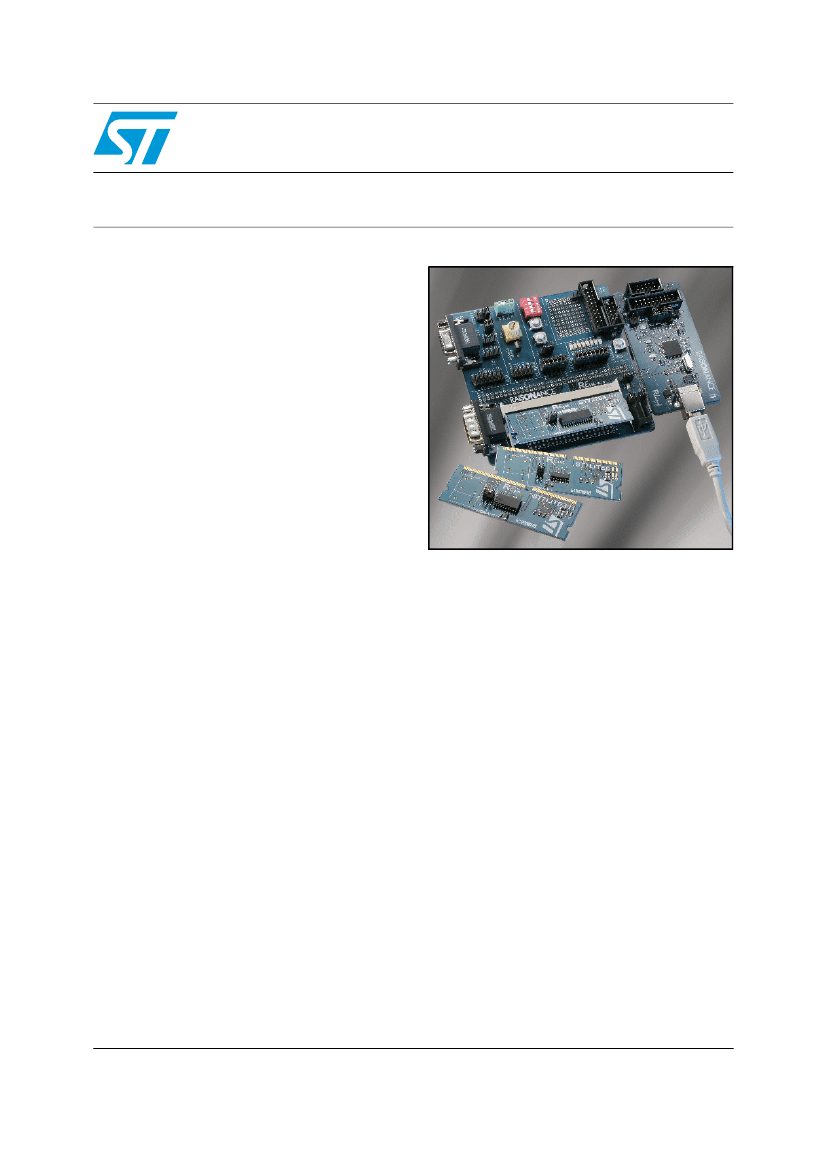

Raisonance’s complete, low-cost starter kits for STM8 and ST7
Data brief
Features
Embedded RLink
■
■
■
USB interface to host PC
In-circuit debugging and programming
Application board connection via ST SWIM,
ICC or JTAG
REva motherboard
■
■
1 standard SO-DIMM connector to plug in
daughterboards
Digital and analog I/O evaluation features,
including on-board LEDs, buttons, switches,
external analog connector, temperature sensor
and potentiometer
I²C EEPROM and bus
RS-232 driver and 2 DB9 connectors
Prototype area
VDD settings for 1.8 V, 3.3 V and 5 V
microcontrollers
USB powered, no external power required
■
■
■
■
■
Description
The REva starter kits are Raisonance’s complete,
cost-effective solutions for starting application
development and evaluating STM8x, ST7LITEx,
ST7Fox, ST7232x, ST7234x, ST7236x and
ST7263B microcontrollers.
Kits contain all the hardware and software
required to develop applications for
microcontrollers, including the REva evaluation
board, target STM8 and ST7 microcontrollers,
embedded RLink for in-circuit debugging and in-
circuit programming and the raisonance
integrated development environment (Ride7) with
application builder.
Interchangeable REva daughterboard
■
Features different STM8 and ST7 MCUs to
permit application development for a wide
range of devices and may include additional
device specific features
Raisonance software
■
Ride7: Editor, SIMICE simulator, Rbuilder, C
compiler, debugger, Project manager, and
CodeCompressor
RFlasher7 device programming interface
■
April 2013
Doc ID 11271 Rev 6
www.st.com
1/6
6
For further information contact your local STMicroelectronics sales office.
Architecture
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS
Architecture
Embedded RLink:
In-circuit debugging and programming tool that uses SWIM for the
STM8, in-circuit communication (ICC) for the ST7 and supports the JTAG protocol. It
interfaces with the host PC via a USB connection.
REva mother board:
Universal evaluation board designed for quick and easy evaluation of
a complete range of features (I/Os, ADC, SPI, CAN, I
2
C...) for a variety of STM8 and ST7s.
It is powered from the RLink’s USB connection to the host PC.
REva daughterboards:
Interchangeable boards featuring different STM8 and ST7
microcontrollers, make it easy to evaluate and develop applications for a complete range of
MCUs from a single evaluation platform. All boards have a clock source selection jumper,
and an oscillator footprint. See
Table 1
and
Table 2
for details.
Raisonance’s software:
RLink can be driven by Raisonance’s Ride7 or RFlasher7.
●
Ride7:
Drives the RLink and offers seamless control of software development tools
(project manager, editor, compiler, assembler, linker, debugger, etc.) from an intuitive
graphical interface. It offers full integration of the relevant C/C++ toolsets, project
management, code editor and SIMICE instruction set simulator. Ride7 includes:
–
RBuilder
allows users to rapidly configure device peripherals in a GUI and
generate the C source code for peripherals at the click of a button without writing a
single line of code
SIMICE
simulator
Raisonance STM8 and ST7 C compiler, free download version allows compiling
up to 2 Kbytes code (Effective Date: April 1st, 2013).
High-level language debugging
Project manager
Color syntax highlighting editor
Free downloads of evaluation versions with unlimited debugging from
www.raisonance.com
The optional
CodeCompressor
allows post-link optimization of the entire
applications code using optimizations like in-lining, factorizing and peepholing,
which can reduce application code by 5 to 15%.
–
–
–
–
–
–
–
●
RFlasher7:
Raisonance’s easy-to-use device programming interface drives RLink and
allows users to erase, program, view and verify microcontroller memory. RFlasher7
also includes automated mode for automatic execution of programming sequences for
mass programming and project mode that allows users to save their programming
configurations. In this operating mode, tasks become intuitive and can be achieved with
only a few clicks such as:
–
–
–
–
Flash memory erasing and programming,
Flash or RAM memory dumping,
blank check, programming verifications,
mass programming process.
2/6
Doc ID 11271 Rev 6
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS
REva starter kits
REva starter kits
REva boards can be purchased in the starter kit format, as shown in
Table 1.
REva standalone daughterboards are also available independently from
STMicroelectronics, as shown in
Table 2.
Table 1.
Raisonance starter kits for the STM8 and ST7
Daughterboard
ID marking
STM8S105
STM8/128-SK/RAIS STM8S208RB
STM8S903
ST7LITEU0
ST7LITE0
ST7FLITE-SK/RAIS
ST7LITE1B
ST7LITE3
ST72321B
ST7232X-SK/RAIS
ST72325
ST72345
ST72F34X-SK/RAIS
ST72264
ST2F36X-SK/RAIS
ST72361
ST7226x
ST72361
ST7256X
Clock source selection jumper
ST7260
USB mini-B connector
ST7263B
24 MHz oscillator
ST72F264G2
ST72F361AR9
S028
LQFP64
ST72324/5
ST7234x
ST72F325AR9
ST72F345C4
LQFP64
LQFP48
ST7FLIT1xB
ST7FLITE3
ST72321
ST7FLIT19BF1
ST7FLITE39F2
SO20
SO20
Additional features
(1)
MCU family
supported
STM8S103/5
STM8S207/8
STM8S903
ST7Ultralite0
ST7FLITE0
MCU device
STM8S105C6
STM8S208RB
STM8S903K3
ST7FLITEU0
ST7FLITE09Y0
MCU
package
LQFP48
LQFP64
LQFP32
DIP16
SO16
Starter kit
(order code)
ST72F321BAR9 LQFP64
ST2F63B-SK/RAIS
ST7263B
ST72F63BH6
LQFP48
1. All kits have a clock source selection jumper, and an oscillator footprint unless stated otherwise.
Doc ID 11271 Rev 6
3/6
Ordering information
Table 2.
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS
Raisonance standalone daughterboards for the STM8 and ST7
Daughterboard
ID marking
STM8S105
STM8S208RB
STM8S903
ST7LITE1B
Additional features
(1)
MCU family
supported
STM8S103/5
STM8S207/8
STM8S903
ST7FLIT1xB
ST7Ultralite0
ST7UltraliteS
ST7FLITE4
MCU device
STM8S105C6
STM8S208RB
STM8S903K3
ST7FLIT19BF1
ST7FLITEU0
ST7FLITEUS
ST7FLITE49K2
MCU
package
LQFP48
LQFP64
LQFP32
SO20
DIP16
DIP16
LQFP32
LQFP32
Standalone
daughterboard
(order code)
STM8S/32-D/RAIS
STM8/128-D/RAIS
STM8S/8-D/RAIS
ST7FLIT1B-D/RAIS
ST7FLITU0-D/RAIS ST7LITEU0
ST7FLITUS-D/RAIS ST7LITEUS5
ST7FLI49-D/RAIS
ST7FLI49
ST7FLI49M-D/RAIS ST7LITE4M
ST72321B-D/RAIS
ST72325-D/RAIS
ST72345-D/RAIS
ST7FOXA0-D/RAIS
ST7FOXK2-D/RAIS
ST72321B
ST72325
ST72345
ST7FOXA0
ST7FOXK2
ST7FLITE4M ST7FLI49MK1
ST72321
ST72324/25
ST7234x
ST7FOXA0
ST7FOXK2
ST72F321BAR9 LQFP64
ST72F325AR9
ST72F345C4
ST7FOXA0
ST7FOXK2
LQFP64
LQFP48
DIP16
LQFP32
1. All kits have a clock source selection jumper, and an oscillator footprint unless stated otherwise.
Ordering information
REva starter kits and Raisonance development tools can be ordered from Raisonance or
from your nearest ST Distributor or sales office.
The REva starter kits are available for a full range of 32-bit and 8-bit microcontrollers. For
more information refer to
www.st.com/mcu.
For more information, documentation and downloads, please refer to
www.raisonance.com.
For more information about which microcontrollers are supported, refer to
www.raisonance.com
or the STMicroelectronics microcontroller support site,
www.st.com.
4/6
Doc ID 11271 Rev 6
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS
Revision history
Revision history
Table 3.
Date
01-Mar-2005
24-Aug-2005
21-June-2006
Document revision history
Revision
1
2
3
Initial release.
Added part number ST7232x-SK/RAIS and ST7LITE1B daughterboard.
Added part number ST72F34X-SK/RAIS, ST72F36X-SK/RAIS and ST72F63B-
SK/RAIS.
Added daughterboard features to Table 1.
Added STM8 microcontroller family to supported devices.
Updated the Raisonance’s software paragraph, replaced Table 1 with Tables 1 and
2, and reformatted the document.
Added STM8S105 and STM8S903 daughterboards to
Table 1
and
Table 2.
Updated information on Raisonance STM8 and ST7 C compiler in
Architecture.
Modified
Ordering information.
Changes
21-Jul-2008
09-Apr-2010
22-Apr-2013
4
5
6
Doc ID 11271 Rev 6
5/6
