SX-SDMAN
802.11a/b/g/n Plus Bluetooth SDIO Module
Wireless LAN Module for Mobile Devices with Enterprise Reliability
The Silex SX-SDMAN is a dual-band 802.11a/b/g/n plus Bluetooth
SDIO module that is based on the SX-SDPAN (Qualcomm Atheros
AR6233). The SX-SDMAN brings 802.11n throughput, range and
power e ciency to portable devices including patient monitors,
printers, handheld terminals and more.
The SX-SDMAN integrates an external 5 GHz Front End Module
(FEM) and is pre-tuned for the most optimized dual-band WLAN
performance. The radio module design approach also saves cost as
the SX-SDMAN provides FCC/IC/ETSI/TELEC modular certi cation.
The SX-SDMAN provides superior product quality. Silex has
validated that our design meets IEEE standards and each module is
individually tested during the production process. This ensures that
each of our products will perform to our published speci cation.
In order to expedite your product development process, Silex
can provide both hardware and software engineering services
including custom driver development, as well as turnkey product
design and manufacturing.

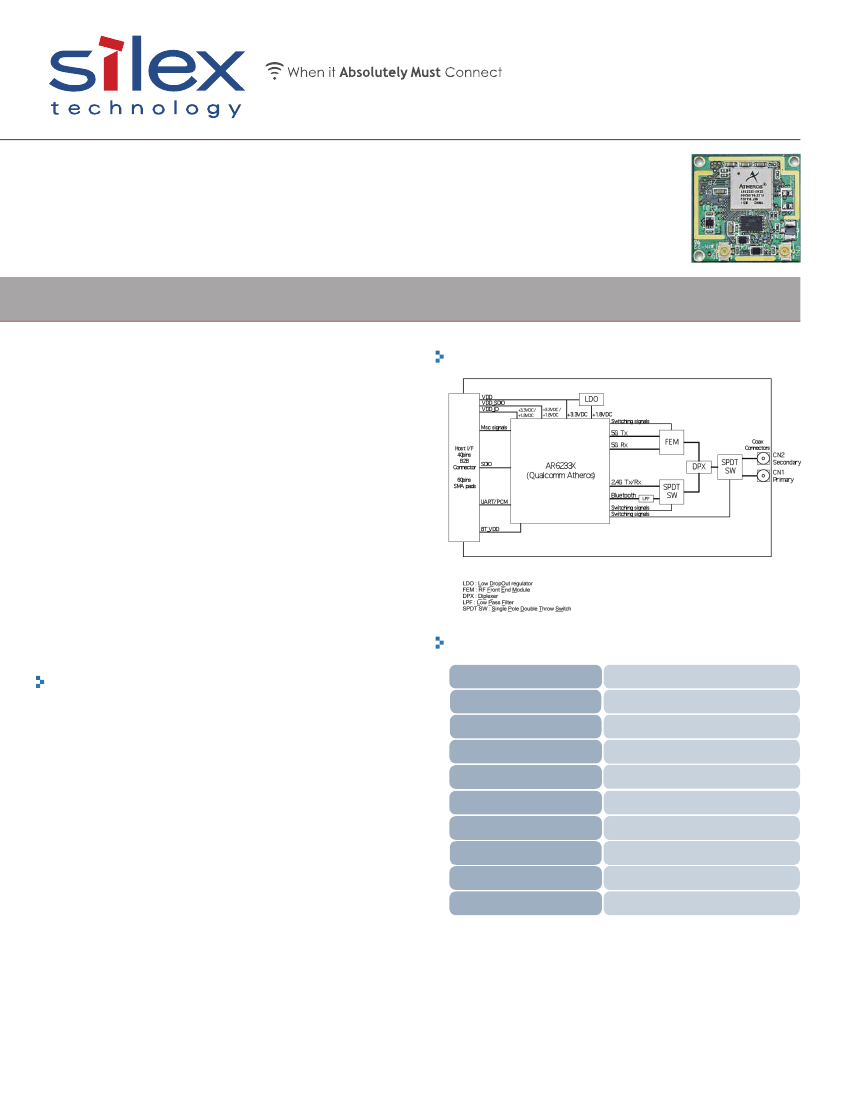

Diagram:
Speci cations:
Product Name
Chipset
Host Interface
Operating Voltage
Radio Speci cations
Baseband Speci cations
Bluetooth Speci cations
Operating Temperature
Connector Mount Dimensions
Surface Mount Dimensions
SX-SDMAN-2830C / SX-SDMAN-2830S
Qualcomm Atheros AR6233
SDIO V 2.0 (4-bit, 1-bit)
3.30 VDC +/- 5%
802.11b/g/n
802.11a/n
2.412 - 2.484 GHz
5.18 - 5.825 GHz
•
IEEE 802.11a/b/g/n conformity (2.4 GHz & 5 GHz)
stream 1
•
Single for 5 GHz x 1 SISO technology and 40 MHz bandwidth
mode
rates of - 54
•
Data6.5 - 135 1MbpsMbps for 802.11b/g, 6 - 54 Mbps for 802.11a
and
for 802.11n
•
Supports IEEE 802.11e, IEEE 802.11h and IEEE 802.11i
•
Supports SDIO 2.0 as host IF of wireless LAN
•
Optionally supports Tx/Rx software selection diversity for
wireless LAN mode
•
Supports Bluetooth 4.0 + LE dual mode
•
Supports TDMA Wi-Fi/Bluetooth coexistence
•
Supports UART and USB as the host IF of Bluetooth
•
Calibrated Tx Power per module
•
FCC/IC/ETSI/TELEC modular certi cation
•
Connector mount and surface mount versions
Key Features:
CSMA/CA media access; DSSS, OFDM
BT3.0+HS, BT4.0, Class 1.5
-10 to +70 degrees C
24.0 x 24.0 x 4.4 mm (W x H x D)
19.0 x 22.0 x 2.2 mm (W x H x D)
PN: 141-00207-130
REV B. 20121008
SX-SDMAN
802.11a/b/g/n Plus Bluetooth SDIO Module

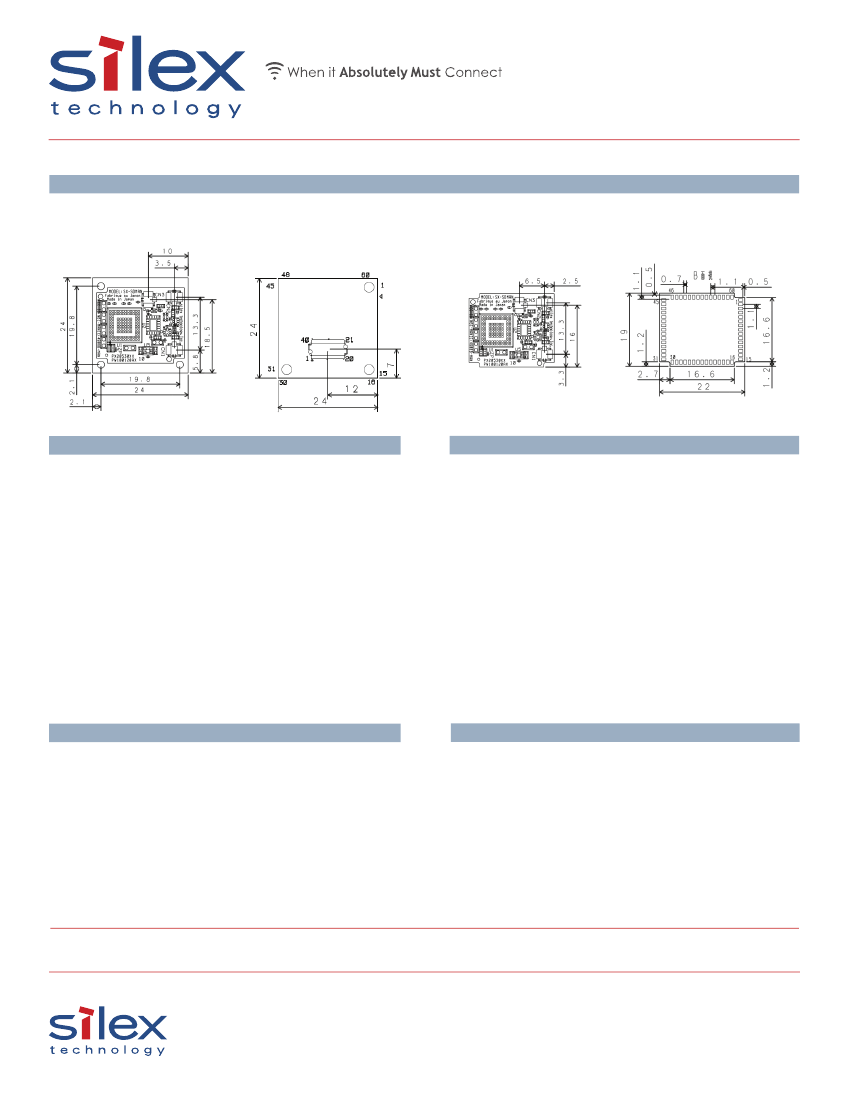

Dimensions and Architecture
Connector Mount
Top view
Bottom view
Top view
Surface Mount
Bottom view
General Speci cations
Interfaces
On-Chip Functionality:
Frequency Band:
Network Standard:
Modulation Modes:
Single-chip MAC/BB/RF/PA/LNA
2.4 GHz / 5 GHz
802.11a, 802.11b, 802.11g, 802.11n
(1-stream)
OFDM (64QAM, 16QAM, QPSK, BPSK),
DSSS (CCK, DQPSK, DBPSK), DSSS-OFDM
(64QAM, 16QAM, QPSK, BPSK)
WEP, WPA/WPA2 (TKIP/AES-CCMP), WAPI
Communications:
Supported Data Rates:
IEEE 802.11b
IEEE 802.11g
IEEE 802.11a
IEEE 802.11n HT20
IEEE 802.11n HT40
Bluetooth:
Physical Speci cations:
Connector Mount:
Surface Mount:
SDIO 2.0
1-11 Mbps
6-54 Mbps
6-54 Mbps
6.5 - 65.0 Mbps
13.5 - 135.0 Mbps
BDR/EDR/LE
24.0 x 24.0 x 4.4 mm (W x H x D)
19.0 x 22.0 x 2.2 mm (W x H x D)
Hardware Encryption:
Quality of Service (QoS): WMM, WMM-PS, 802.11e
Driver Support
Ordering Information
Reference Drivers:
- Linux
- Android
- Windows Embedded Compact 7
- QNX Neutrino
- Green Hills Intergrity
- Mentor Graphics Nucleus
SX-SDMAN-2830C:
SX-SDMAN-2830C-SP:
SX-SDMAN-2830S:
SX-SDMAN-2830S-SP:
SX-6K3-EVK-DB:
Connector Mount, Bulk Package
Connector Mount, Sample Pack
Surface Mount, Bulk Package
Surface Mount, 10 Unit Sample Pack
AR6003 Dual Band Evaluation Kit
(Includes SX-SDCAN-2830)
