SHEET 1 OF 1
4.70
[.185 in]
n
1.85
[.073 in]
12.70
[.500 in]
1.02
[.040 in]
4.83
[.190 in]

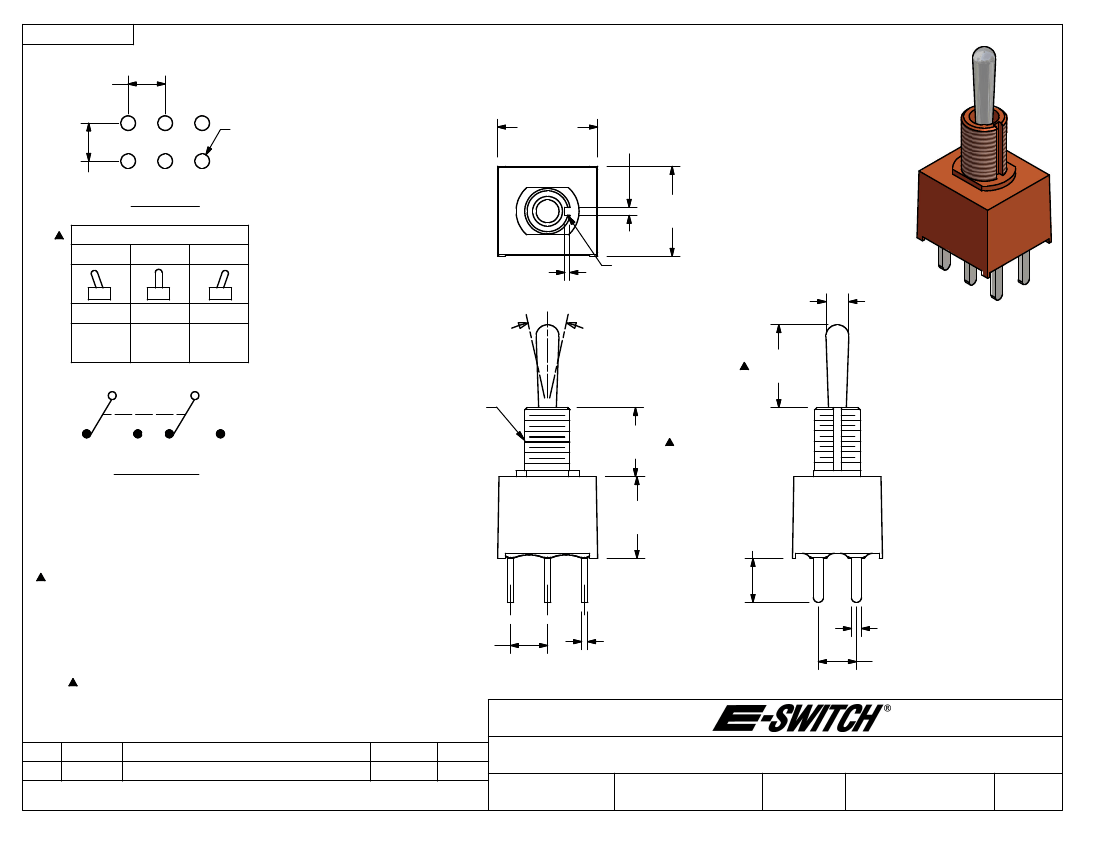

PCB LAYOUT
11.43
[.450 in]
POS. 3
SWITCH FUNCTION
POS. 1
POS. 2
.66
[.026 in]
POS. 1
25
~
POS. 2
POS. 3
KEYWAY
n
[.115 in]
2.92
ON
2-3, 5-6
OFF
OPEN
ON
2-1, 5-4
ISOMETRIC
10.55
[.415 in]
2
5
1/4-40 UNS-2A
THREADS
1
3
4
6
8.80
[.346 in]
CIRCUIT: DPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 5A @120VAC OR 28VDC
2A @250VAC
6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
10.40
[.409 in]
5.60
[.220 in]
1
2
3
.76
[.030 in]
3
1.27
[.050 in]
4.83
[.190 in]
4.70
[.185 in]
A
REV
14728
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
3/2/05
DATE
AR
BY
TITLE
SCALE
100AWDP3T1B1M2QE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
3/2/05
AR
T102271
A
