T530D477M2R5AE006: DescriptionCAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 470 uF, SURFACE MOUNT, 2917; CategoryPassive components; File Size220KB，3 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T530D477M2R5AE006 Overview

CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 470 uF, SURFACE MOUNT, 2917

T530D477M2R5AE006 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	6.3 V
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN
Installation features	SURFACE MOUNT
Manufacturer Series	T530
size code	2917
capacitance	470 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	SOLID POLYMER
Terminal shape	J BEND
polarity	POLARIZED
tangent angle	0.08
ripple current	6700mA@45Cel@100KHz
leakage current	296uA

Preview

Download Datasheet

View All

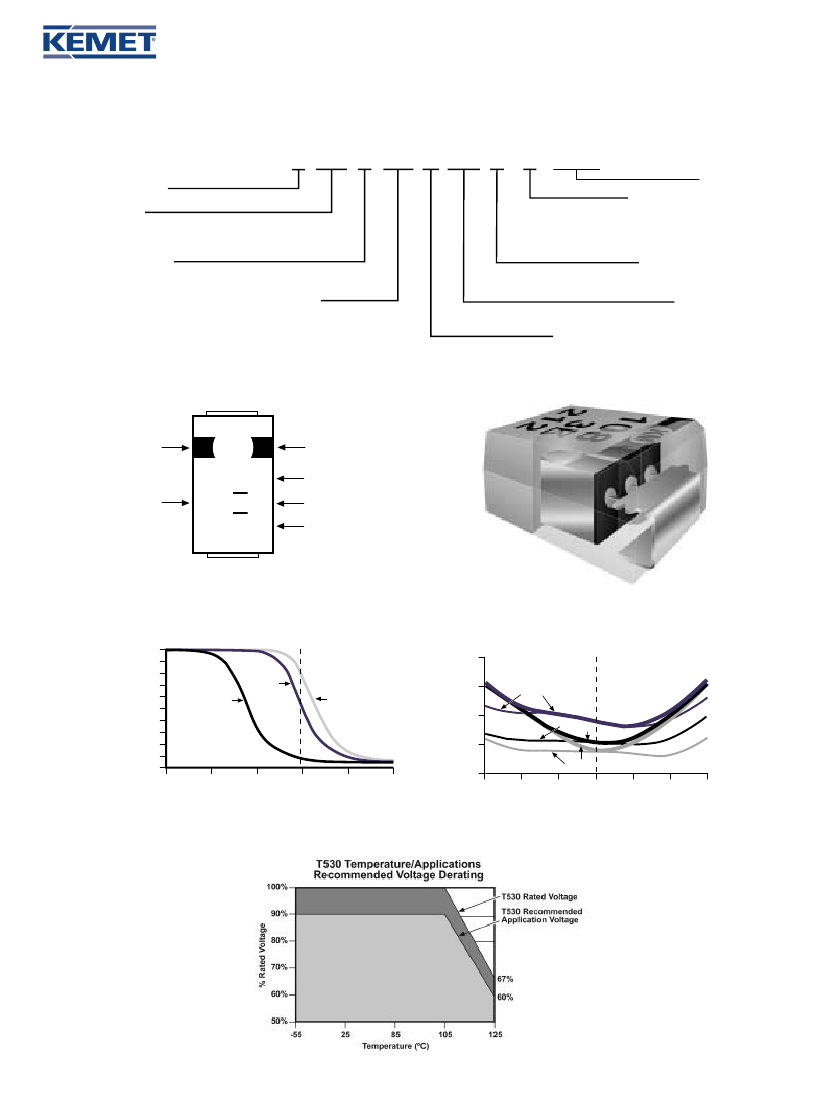

POLYMER TANTALUM CHIP CAPACITORS

T530 SERIES - Multiple Anode

FEATURES

•

Highest CV in Standard EIA Size

Extremely Low ESR

125 C Max, Temperature Capability

Polymer Cathode Technology

High Frequency Capacitance Retention

Non-Ignition Failure Mode

Capacitance: 220 to 1500 F

Voltage: 2.5V to 10V

Molded Case (pick-and-place precision)

100% Accelerated Steady State Aging

•

100% Surge Current Testing

Utilizes Multiple Tantalum Anode Technology

Volumetric Efficiency

Use Up to 90% of Rated Voltage (10% Derating)

Self-Healing Mechanism

True SMT Capability

OUTLINE DRAWINGS

CATHODE (-) END

VIEW

W

SIDE VIEW

B

H

K

X

S

T

G

S

A

L

E

F

ANODE (+) END

VIEW

BOTTOM VIEW

DIMENSIONS - MILLIMETERS (INCHES)

Case Size

KEMET EIA

D

7343-31

Y

7343-40

X

7343-43

L

7.3 ± 0.3

W

4.3 ± 0.3

H

2.8 ± 0.3

4.0 max

4.0 ± 0.3

K ±0.20

1.5

1.9

2.3

F ±0.1

2.4

S ±0.3

1.3

X(Ref)

0.10 ± 0.10

T(Ref)

0.13

A(Min)

3.8

G(ref)

3.5

E(ref)

3.5

T530 RATINGS & PART NUMBER REFERENCE

Capaci-

tance µF

Case Size

KEMET Part Number

DCL

V

R

DF %

120Hz

ESR mΩ

@100 kHz

25°C Max

Ripple Current

(Arms) @ 100 kHz

w/∆T= 20°C

@ -55°C to

105°C

w/∆T= 2°C

@ 125°C

470.0

560.0

680.0

1000.0

470.0

680.0

1000.0

1500.0

330.0

470.0

680.0

1000.0

220.0

330.0

470.0

150.0

220.0

330.0

D/7343-31

Y/7343-40

D/7343-31

X/7343-43

D/7343-31

X/7343-43

D/7343-31

X/7343-43

D/7343-31

Y/7343-40

D/7343-31

X/7343-43

D/7343/31

X/7343-43

2.5 Volt Rating at 105°C (1.7 Volt Rating at 125°C)

T530D477M2R5A(1)E006

118µA

8.0

T530D477M2R5A(1)E010

118µA

10.0

T530D567M2R5A(1)E005

140µA

8.0

T530Y687M2R5A(1)E006

170µA

8.0

T530D687M2R5A(1)E006

170µA

8.0

T530D687M2R5A(1)E010

170µA

8.0

T530X108M2R5A(1)E006

250µA

8.0

T530X158M2R5A(1)E005

375µA

8.0

3 Volt Rating at 105°C (2 Volt Rating at 125°C)

T530D477M003A(1)E010

141µA

8.0

T530D687M003A(1)E010

204µA

8.0

T530X108M003A(1)E010

300µA

8.0

T530X158M003A(1)E008

450µA

8.0

4 Volt Rating at 105°C (2.7 Volt Rating at 125°C)

T530D337M004A(1)E006

132µA

8.0

T530D477M004A(1)E010

188µA

8.0

T530X687M004A(1)E006

272µA

8.0

T530X687M004A(1)E010

272µA

8.0

T530X108M004A(1)E006

400µA

8.0

6.3 Volt Rating at 105°C (4.2 Volt Rating at 125°C)

T530D227M006A(1)E006

139µA

8.0

T530Y337M006A(1)E006

208µA

8.0

T530Y337M006A(1)E010

208µA

8.0

T530D337M006A(1)E010

208µA

8.0

T530X477M006A(1)E006

296µA

8.0

T530X477M006A(1)E010

296µA

8.0

10 Volt Rating at 105°C (6.6 Volt Rating at 125°C)

T530D157M010A(1)E006

150µA

8.0

T530D227M010A(1)E010

220µA

8.0

T530X337M010A(1)E006

330µA

8.0

T530X337M010A(1)E010

330µA

8.0

6.0

10.0

5.0

6.0

10.0

6.0

5.0

10.0

8.0

6.0

10.0

6.0

10.0

6.0

10.0

6.0

10.0

6.0

10.0

6.0

10.0

6.5

5.0

7.1

6.6

6.5

5.0

6.7

7.3

5.0

5.2

5.8

6.5

5.0

6.7

5.2

6.7

6.5

6.6

5.1

5.0

6.7

5.2

6.5

5.0

6.7

5.2

2.1

1.6

2.3

2.1

1.6

2.1

2.3

1.6

1.8

2.1

1.6

2.1

1.6

2.1

1.6

2.1

1.6

2.1

1.6

2.1

1.6

(1) To complete the KEMET part number, insert the lead material designator as shown on page 52.
