0.5 – 2.0 GHz 24dBm Amplifiers
FEATURES
P
-1
dB: 24dBm(min.)
Noise Figure: 2.7dB
Bias Condition: 180mA @ 12 V
Small Signal Gain: 13dB(min.)
ELECTRICAL SPECIFICATIONS (Specified at 25
C)
Symbol
FREQ
SSG
GOF
P
-1
dB
IP3
NF
VSWR, IN
VSWR, OUT
Vdc
Idc
OTR
Description
Frequency Range
Small Signal Gain
Small Signal Gain Flatness
Output Power at 1 dB Gain Compression
The 3
rd
intercept Point
Noise Figure
Input VSWR
Output VSWR
DC Supply Voltage(internal regulator included)
Min.
0.5
13
24
Typ.
14
0.4
34
2.7
2.0:1
2.0:1
12
180
Max.
2
0.5
Unit
GHz
dB
dB
dBm
dB
-
-
Volt
mA
C
11
-30
Current Supply
Operating Temperature Range
15
200
70

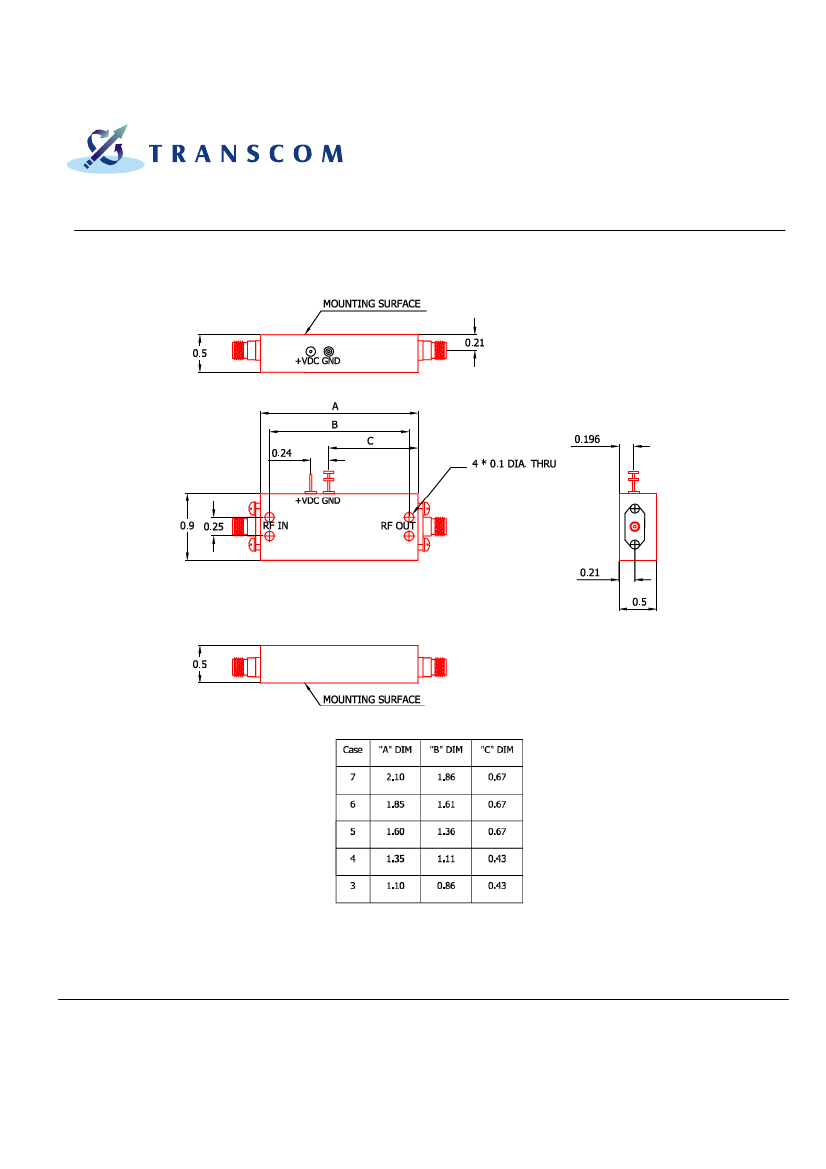

CASE: HS3, as shown attached, unit is in inch.
TRANSCOM, INC.,
90 Dasoong 7
th
Road, Tainan Science-Based Industrial Park, Shanhua Jen, Tainan County, Taiwan, R.O.C.
Web-Site: www.transcominc.com.tw
Phone: 886-6-5050086
Fax: 886-6-5051602
P1/2
TA005-002-13-24
REV.0_11/20/2008
TRANSCOM, INC.,
90 Dasoong 7
th
Road, Tainan Science-Based Industrial Park, Shanhua Jen, Tainan County, Taiwan, R.O.C.
Web-Site: www.transcominc.com.tw
Phone: 886-6-5050086
Fax: 886-6-5051602
P2/2
