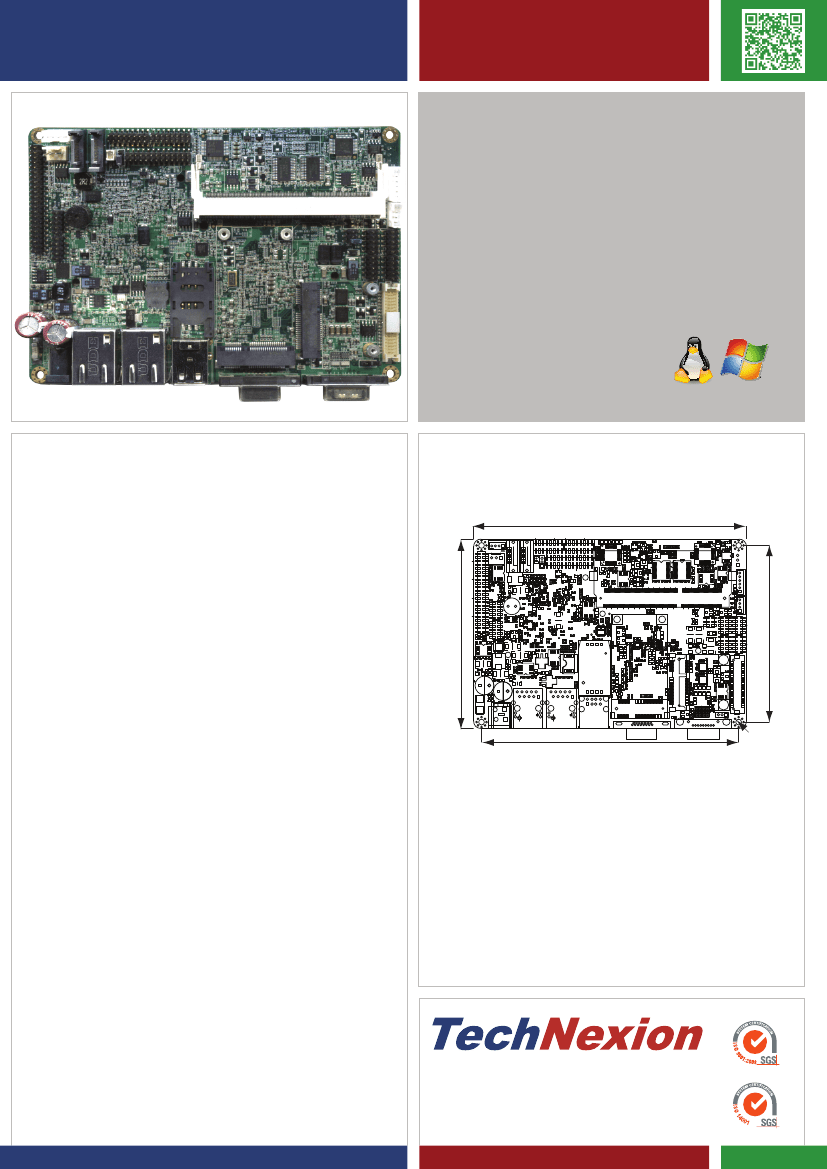

TIM-3525
4
1
3 3 5
2
27
25
25
26
6
7
8
9
10
11 12 15
13 14
22
24
23
23
21
20
19
18
Embedded
Mainboard
Intel Atom dual core D525 embedded board
with SO-DIMM DDR3 and 12 VDC power input
Two Mini-PCIe expansion slots with
SIM cardslot.
Various storage possibilities ranging
from IDE, SATA or onboard NAND Flash.
Dual LAN, 4 serial ports. (1 RS-232/422/
485), 6 USB and 8 GPIO's.
16
17
System
CPU
Memory
Chipset
Graphic interfaces
Audio Chipset
BIOS
Supported OS
Communication Interfaces
By connector
By pinheader
DC-in (24), Marvell Gigabit RJ-45
(2x)(23), USB 2.0 (2x) (21),
RS-232 (17), VGA (19)
LPT(7), digital IO(8x)(12), USB 2.0
(4x)(25), RS-232 (3x) (13,
14,15)
RS-232/422/485(switch select)(10)
138.5
M3
Expansion and Storage
Expansion slots
On board
TIM-3525
Dualcore Intel Atom D525
with DDR3 SO-DIMM
Options
On board storage
NAND 1GB/ 2GB/ 4GB
Power
Input power
12 VDC
Environmental and Mechanical
Temperature
Humidity
Dimensions
Weight
0° to 60° C
10-90%
147 x 102 mm (3.5” formfactor)
250 grams
Phone: +886-2-8227-3585
E-mail: sales@technexion.com
Web:
http://www.technexion.com
2012-01. All specifications are subject to change without notice.
mini-PCIe halfsize(full function)(18)
mini-PCIe fullsize (20) with
SIMcardslot for 3G module (22)
2x SATA (3),
1x IDE 44 pin interface (27)
Order Information
95.2
102
Intel Atom D525 dual core 1.8 Ghz
1x DDR3 SO-DIMM Max. 2GB (8)
ICH8M
VGA connector
single channel LVDS upto 18bit(16)
Realtek ALC888
2 channel audio, S/PDIF,
microphone, line in (6)
Insyde BIOS
Linux 2.6.x, Windows XP/Vista/7
Dimensions
units in mm
147
