Package Details
TLM364 Case

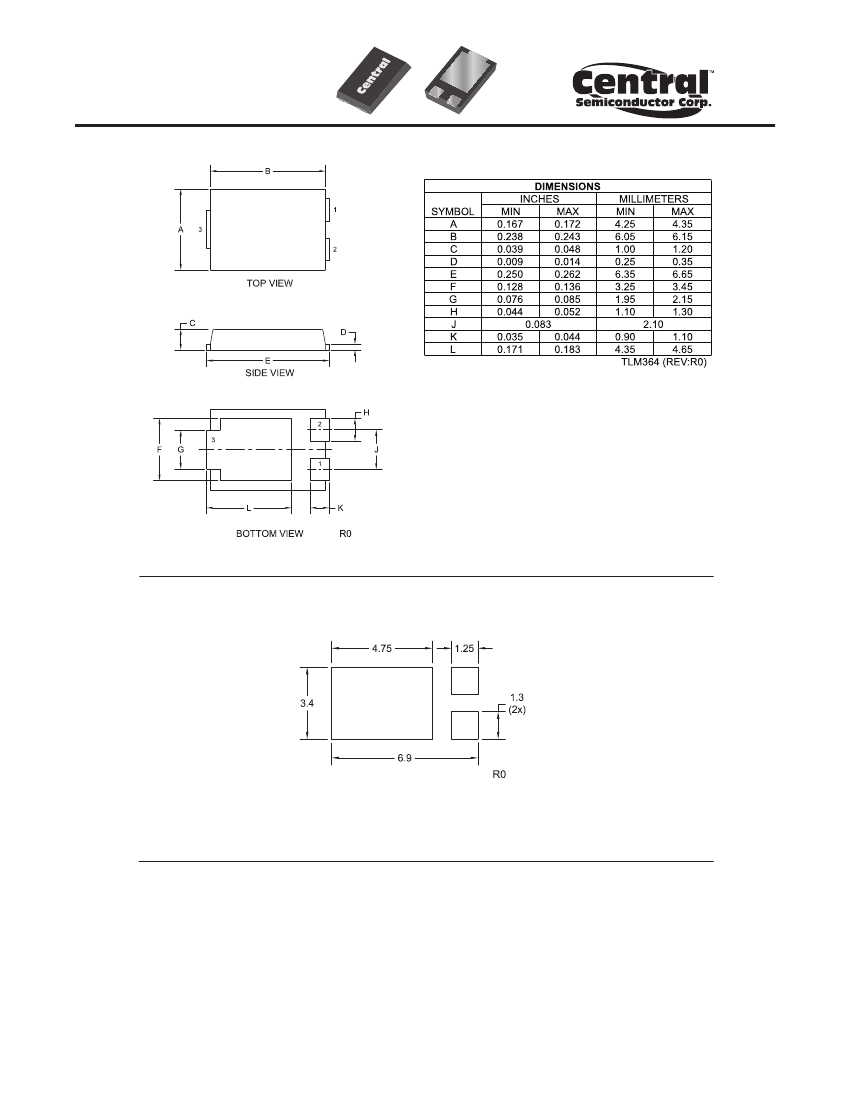

Mechanical Drawing
Part Marking:
7-8 Character Alpha/Numeric Code
Lead Code:
Reference individual device datasheet.
Mounting Pad Geometry
(Dimensions in mm)
R0 (27-March 2013)
w w w. c e n t r a l s e m i . c o m
Package Details
TLM364 Case
Tape Dimensions and Orientation
(Dimensions in mm)
Tape Width: 12mm
Devices are taped in
accordance with
Electronic Industries
Association Standard
EIA-481-D
Direction of Unreeling
Packaging Base
13” Reel =
5,000 pcs.
Reel Labeling Information
Each reel is labeled with the following information:
Central Part Number, Customer Part Number, Purchase Order Number,
Quantity, Lot Number, Date Code, Ship Date and Marking Code.
Reel Packing Information
Reel
Size
Reels per
Box
(Maximum)
5
13”
14
26
Parts per
Box
(Maximum)
25,000
70,000
130,000
Box Dimensions
INCH
15x4x15
15x15x9
15x15x18
CM
38x10x38
38x38x23
38x38x46
Shipping Weight (Max.)
LB
12
32
57
KG
6
15
26
Ordering Information
•
For devices taped and reeled on 13” reels, add TR13 suffix to part number.
•
All SMDs are available in small quantities for prototype and manual placement applications.
R0 (27-March 2013)
w w w. c e n t r a l s e m i . c o m
Material Composition Specification
TLM364 Case
Device average mass
. . . . . . . . . . . . . . . . . . . .
92 mg
Fluctuation margin
. . . . . . . . . . . . . . . . . . . . . .
+/-10%
Material
Component
active device
clip
Substance
Substance CAS No.
(%wt)
Si
Cu
7440-21-3
7440-50-8
7439-89-6
7440-50-8
7439-89-6
7439-92-1
7440-31-5
7440-22-4
60676-86-0
29690-82-2
9003-35-4
1333-86-4
1309-42-8
7440-31-5
10.41%
5.21%
0.15%
32.66%
0.05%
4.18%
0.23%
0.11%
36.17%
4.70%
4.55%
0.14%
1.41%
0.01%
Material
(%wt)
doped Si
Cu alloy
10.41%
5.36%
(mg)
9.58
4.93
Fe
Cu
(mg)
9.58
4.79
0.14
30.05
0.05
3.85
0.21
0.1
33.28
4.32
4.19
0.13
1.3
0.01
(ppm)
104,130
52,065
1,522
326,630
543
41,848
2,283
1,087
361,739
46,957
45,543
1,413
14,130
109
leadframe
Cu alloy
32.72%
30.1
Fe
Pb
die attach
high temperature
solder paste
4.52%
4.16
Sn
Ag
silica
epoxy resin
encapsulation*
EMC GREEN
46.98%
43.22
phenol resin
carbon black
metal
hydroxide
plating
matte tin
0.01%
0.01
Sn
*EMC GREEN molding compound is Halogen Free.
