TM3001 Overview

RF AMPLIFIER MODEL

TM3001 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	T4, TO-8, 4 PIN
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1200 MHz
Minimum operating frequency	400 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2

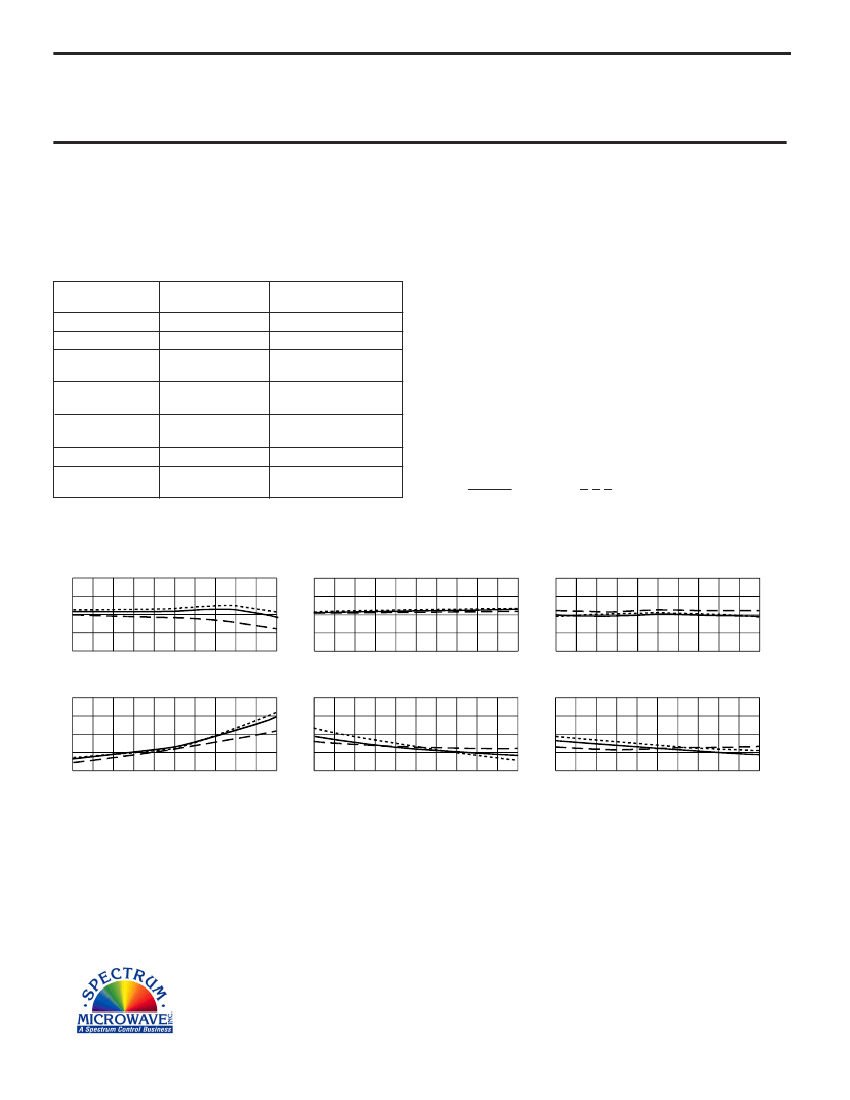

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM3001

Features

Low 5 Volt Operation

Output Power: +10 dBm Typical

Operating Temp. - 55 ºC to + 85 ºC

Environmental Screening Available

Available as:

TM3001, 4 Pin TO-8 (T4)

TN3001, 4 Pin Surface Mount (SM3)

FP3001, 4 Pin Flatpack (FP4)

BX3001, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +35 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +30 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

400 - 1200 MHz

+10

-16.5

<1.5:1

3.0

MIN/MAX

Ta = -55 ºC to +85 ºC

400 - 1200 MHz

14 Min.

+8.5 Min.

-16 Max.

2.0:1 Max.

4.0 Max.

25 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ....................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 400 MHz

Stop 1200 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 400 MHz

Stop 1200 MHz

Noise Figure (dB)

Start 400 MHz

Stop 1200 MHz

+12

+11

+10

+ 9

+ 8

1 dB Comp. (dBm)

Input VSWR

2.0

1.5

1.0

2.0

1.5

1.0

Start 400 MHz

Stop 1200 MHz

Start 400 MHz

Output VSWR

Start 400 MHz

Stop 1200 MHz

Linear S-Parameters

Freq.

MHz

----S11----

Mag Deg

----S21----

Mag Deg

----S12----

Mag Deg

----S22----

Mag Deg

======================================================================================

400

.17

170

5.82

128

.11

-2

102

.13

500

.16

169

5.77

115

.11

-4

.13

600

.15

172

5.76

102

.12

-6

.13

700

.15

176

5.72

.12

-8

.12

800

.14

177

5.68

.13

-11

.11

900

.14

180

5.68

.13

-14

.11

1000

.14

179

5.60

.14

-17

-11

.10

1100

.14

180

5.52

.14

-21

-25

.09

1200

.14

175

5.36

.15

-24

-33

.08

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

04/03/06

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
