TM3031 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TM3031

TM3031: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api; Environmental Compliance

Download Datasheet Parametric Compare View All

TM3031 Overview

RF AMPLIFIER MODEL

TM3031 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	API Technologies
package instruction	CAN4,.3
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	6 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Package body material	METAL
Encapsulate equivalent code	CAN4,.3
power supply	3.3 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM3031

Features



Low 3.3 Volt Operation



Low Noise Figure: 2.2 dB Typical



Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Vdc

TYPICAL

Ta= 25 ºC

100 - 500 MHz

+8.5

-19

1.85:1

1.75:1

2.2

+3.3

MIN/MAX

Ta = -10 ºC to +60 ºC

100 - 500 MHz

12.5 Min.

+7.0 Min.

-18.0 Max.

2.0:1 Max.

2.5 Max.

+3.3 Min.

35 Max.

Available as:

TM3031, 4 Pin TO-8 (T4)

TN3031, 4 Pin 0.450” Surface Mount (SM3)

FP3031, 4 Pin 0.500” Flatpack (FP4)

BX3031, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +35 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +29 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +20 dBm (Typ.)

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................... + 6 dBm

Short Term RF Input Power ...... 20 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.1 Watt (3

μsec

Max.)

Revision 11/28/2012

Noise Figure (dB)

VSWR

Note: Care should always be taken to effectively ground the case of each unit.

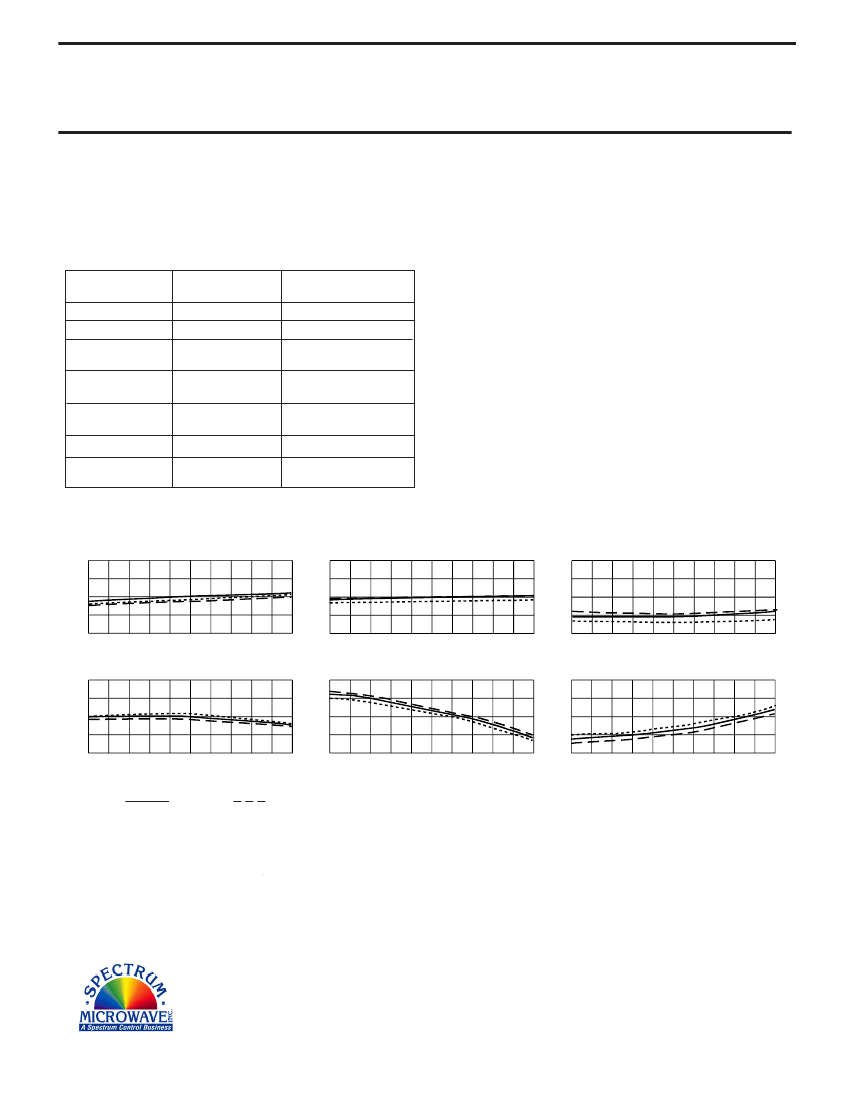

Typical Performance Data

Start 100 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 100 MHz

Stop 500 MHz

Start 100 MHz

Stop 500 MHz

+11

+10

+ 9

+ 8

+ 7

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 100 MHz

Stop 500 MHz

Start 100 MHz

Stop 500 MHz

Start 100 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 60 ºC - - - - - - -10 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

TM3031 Related Products

	TM3031	BX3031	FP3031	TN3031
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	6 dBm	6 dBm	6 dBm	6 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Is it Rohs certified?	conform to	-	conform to	conform to
Maker	API Technologies	-	API Technologies	API Technologies
package instruction	CAN4,.3	-	FP4, FLATPACK-4	SM3, SURFACE MOUNT PACKAGE-4
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	CAN4,.3	-	MODULE,4LEAD(UNSPEC)	MODULE,4LEAD,.45SQ
power supply	3.3 V	-	3.3 V	3.3 V
