1.8V Local Temperature
Sensor
®
TS3000GB0A0
Data Sheet
Description
The TS3000GB0A0 digital temperature sensor with accuracy up to
±0.5°C was designed to target applications demanding highest level of
temperature readout. The sensor is fully compliant with JEDEC JC42.4
Component Specification.
The digital temperature sensor comes with several user-programmable
registers to provide maximum flexibility for temperature-sensing
applications. The registers allow specifying critical, upper, and lower
temperature limits as well as hysteresis settings. Both the limits and
hysteresis values are used for communicating temperature events from
the chip to the system. This communication is done using the Event pin,
which has an open-drain configuration. The user has the option of setting
the Event pin polarity as either an active-low or active-high comparator
output for thermostat operation, or as a temperature event interrupt
output for microprocessor-based systems.
The sensor uses an industry standard 2-wire, I
2
C/SMBus serial
interface, and allows up to eight devices to be controlled on the bus.
Features
•
•
•
•
•
•
•
•
•
•
•
•
Temperature Sensor
Single Supply: 1.7V to 1.9V
Accurate timeout support
- Meets strict SMBus spec of 25ms (min) 35ms (max)
Timeout supported in all Modes
– Active mode
– Shutdown mode
Schmitt trigger and noise filtering on bus inputs
2-wire Serial Interface: 10-400 kHz I
2
C™ /SMBus™
Available Package: TDFN-8
Temperature Sensor Features
Temperature Converted to Digital Data
Sampling Rate of 100ms (max)
Selectable 0, 1.5°C, 3°C, 6°C Hysteresis
Programmable Resolution from 0.0625°C to 0.5°C
Accuracy:
– ±0.5°C/ ±1.0°C (typ/max)from +75°C to +95°C
– ±1.0°C/±2.0°C (typ/max) from +40°C to +125°C
– ±2.0°C/ ±3.0°C (typ/max) from -40°C to +125°C
Typical Server or Laptop Applications
EVENT
Thermal
Controller
Or
Board
management
Controller
Or
Any other
I2C/SMBus
Master Device
MCH
Total Number of
Sensors is Application
Dependent
SMBus
Local
Temperature
Sensor
Typical Applications
•
•
•
•
•
SSD Boards
Servers, Laptops, Ultra-portables, PC Boards
High end audio / video equipment
Portable devices
Hard Disk Drives and Other PC Peripherals
SMBus
EVENT
Local
Temperature
Sensor
IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc.
1 of 25
2014 Integrated Device Technology, Inc.
November 4, 2014
DSC 7332/8
IDT

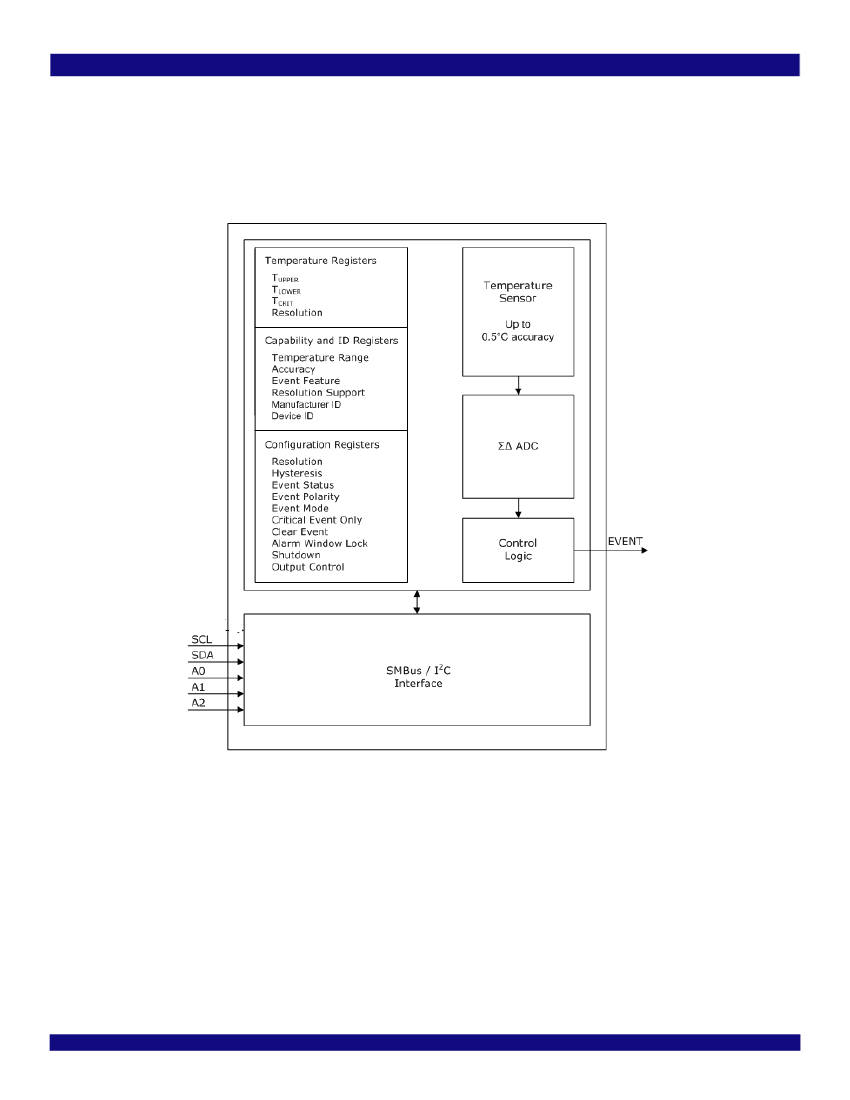

Maximum Ratings
Stressing the device above the rating listed in the Absolute Maximum Ratings table may cause permanent damage to the device. These are stress
ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not
implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.
Absolute Maximum Ratings
Symbol
T
STG
V
IO
Parameter
Storage Temperature
Input or output range, SA0
Input or output range, other pins
Min.
-65
-0.50
-0.50
-0.5
Max.
150
10
4.3
4.3
Units
C
V
V
V
V
DD
Supply Voltage
DC and AC Parameters
This section summarizes the operating and measurement conditions, and the DC and AC characteristics of the device. The parameters in the DC
and AC Characteristic tables that follow are derived from tests performed under the Measurement Conditions summarized in the relevant tables.
Designers should check that the operating conditions in their circuit match the measurement conditions when relying on the quoted parameters. DC
Characteristics
Operating Conditions
Symbol
V
DD
T
A
Parameter
Supply Voltage
Ambient operating temperature
Min.
1.7
-40
Max.
1.9
+125
Units
V
C
3 of 25
November 4, 2014
IDT
AC Measurement Conditions
Symbol
C
L
Parameter
Load capacitance
Input rise and fall times
Input levels
Input and output timing reference levels
Min.
100
Max.
50
Units
pF
ns
V
V
0.2*V
DD
to 0.8*V
DD
0.3*V
DD
to 0.7*V
DD

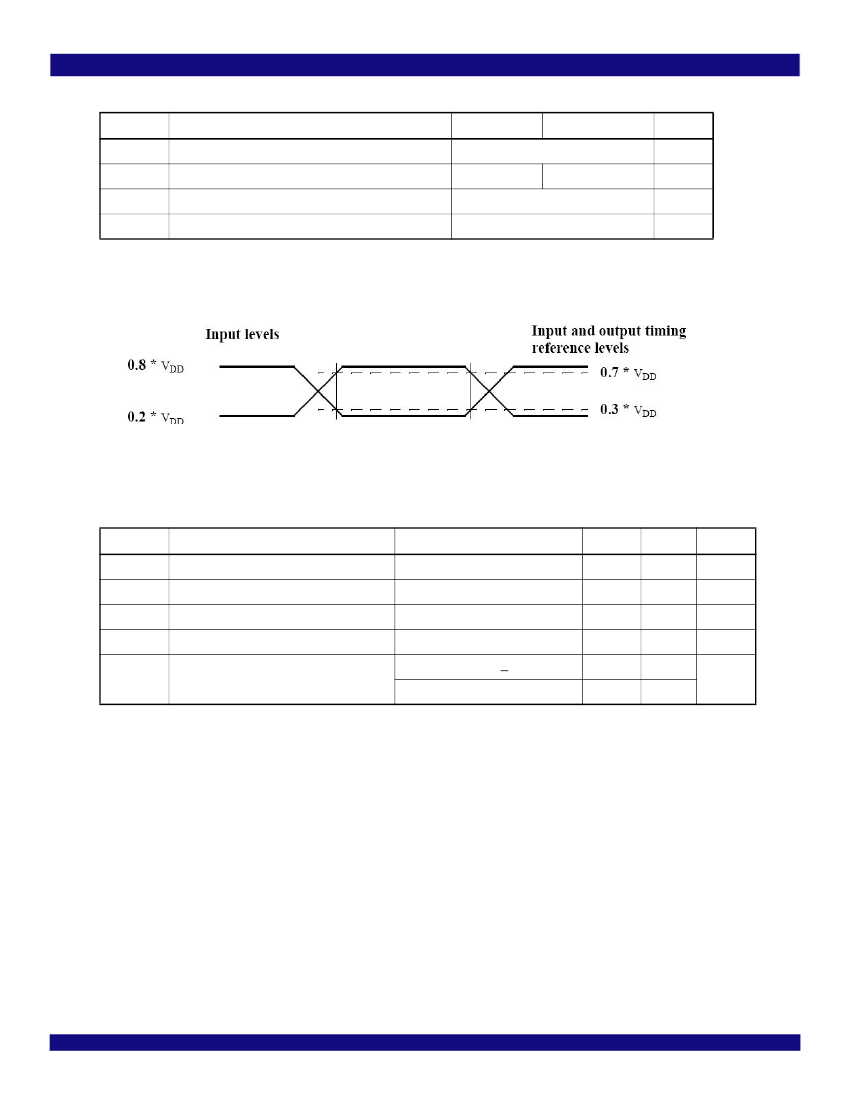

AC Measurement I/O Waveform
Input Parameters for the TS3000GB0A0
Symbol
C
IN
C
IN
Z
EIL
Z
EIH
t
SP
Parameter
1,2
Input capacitance (SDA)
Input rise and fall times
Ei (SA0,SA1,SA2) input impedance
Ei (SA0,SA1,SA2) input impedance
Pulse width ignored (input filter on
SCL and SDA)
Test Condition
Min.
Max.
8
6
Units
pF
ns
k
k
V
IN
< 0.3* V
DD
V
IN
> 0.7* V
DD
Single glitch, f < 100 KHz
Single glitch, f> 100 KHz
30
800
100
50
ns
1.T
A
=25°C, f=400 kHz
2.Verified by design and characterization not necessarily tested on all devices
