SKKT15/08E datasheet, PDF - EEWORLD Datasheet

SKKT15/08E: DescriptionThyristor / Diode Modules; CategoryAnalog mixed-signal IC Trigger device; File Size784KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT15/08E Overview

Thyristor / Diode Modules

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	TO-240
package instruction	FLANGE MOUNT, R-XUFM-X5
Contacts	3
Manufacturer packaging code	CASE A 1
Reach Compliance Code	compli
Other features	HIGH RELIABILITY, UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	A-K-AK
Description of screw terminals	0
Maximum holding current	150 mA
JESD-30 code	R-XUFM-X5
JESD-609 code	e3/e4
Maximum leakage current	8 mA
On-state non-repetitive peak current	320 A
Number of components	2
Number of terminals	5
Maximum on-state current	13500 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	24 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

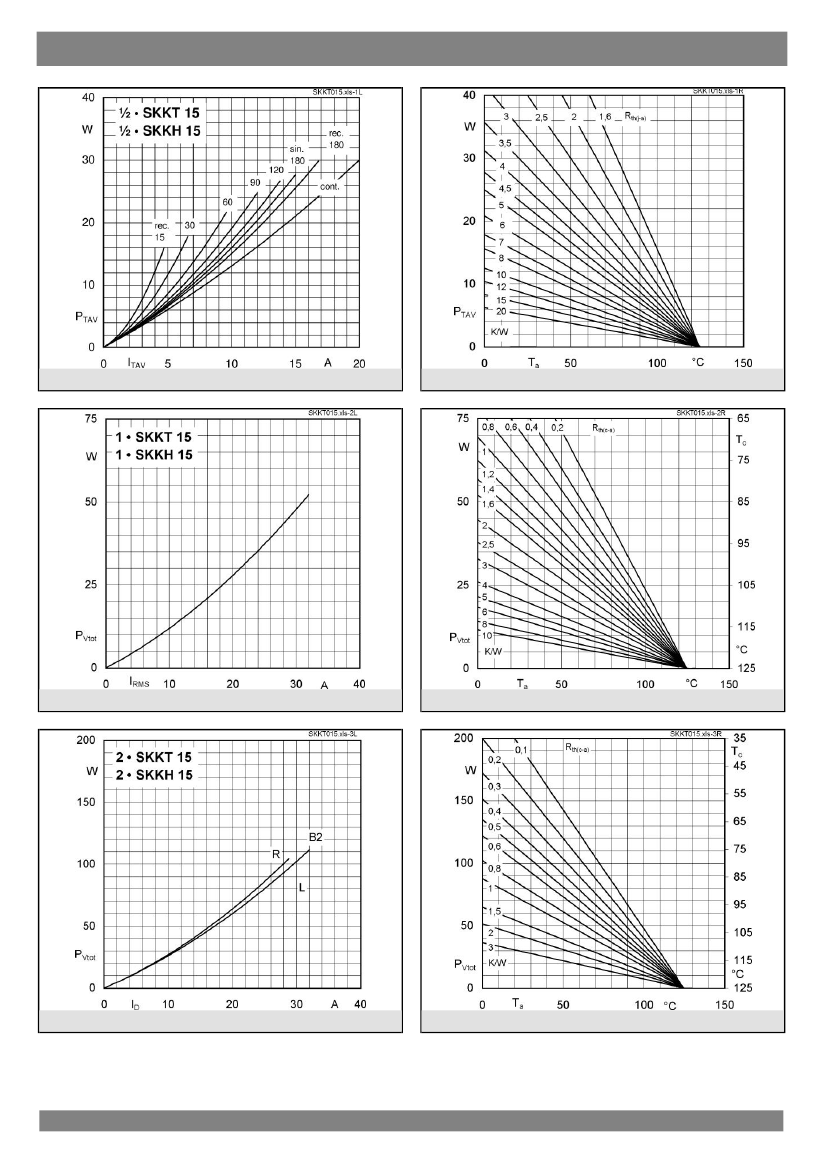

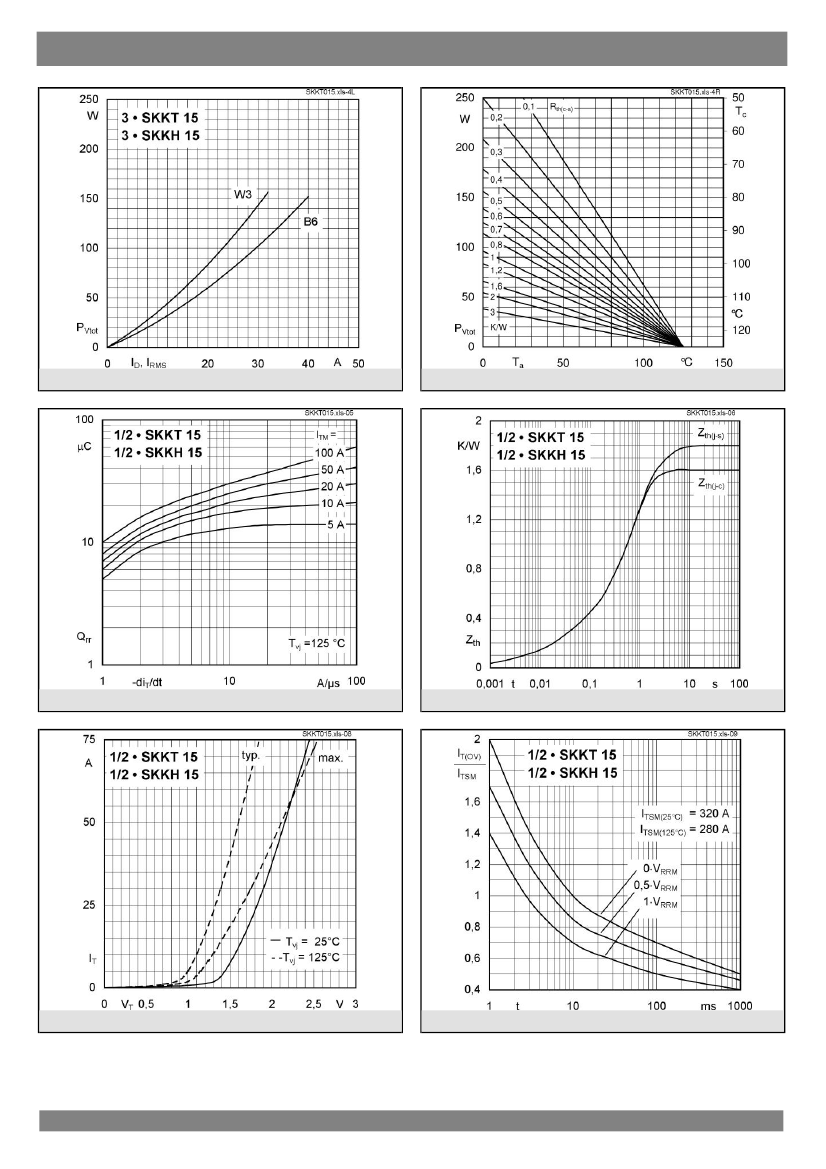

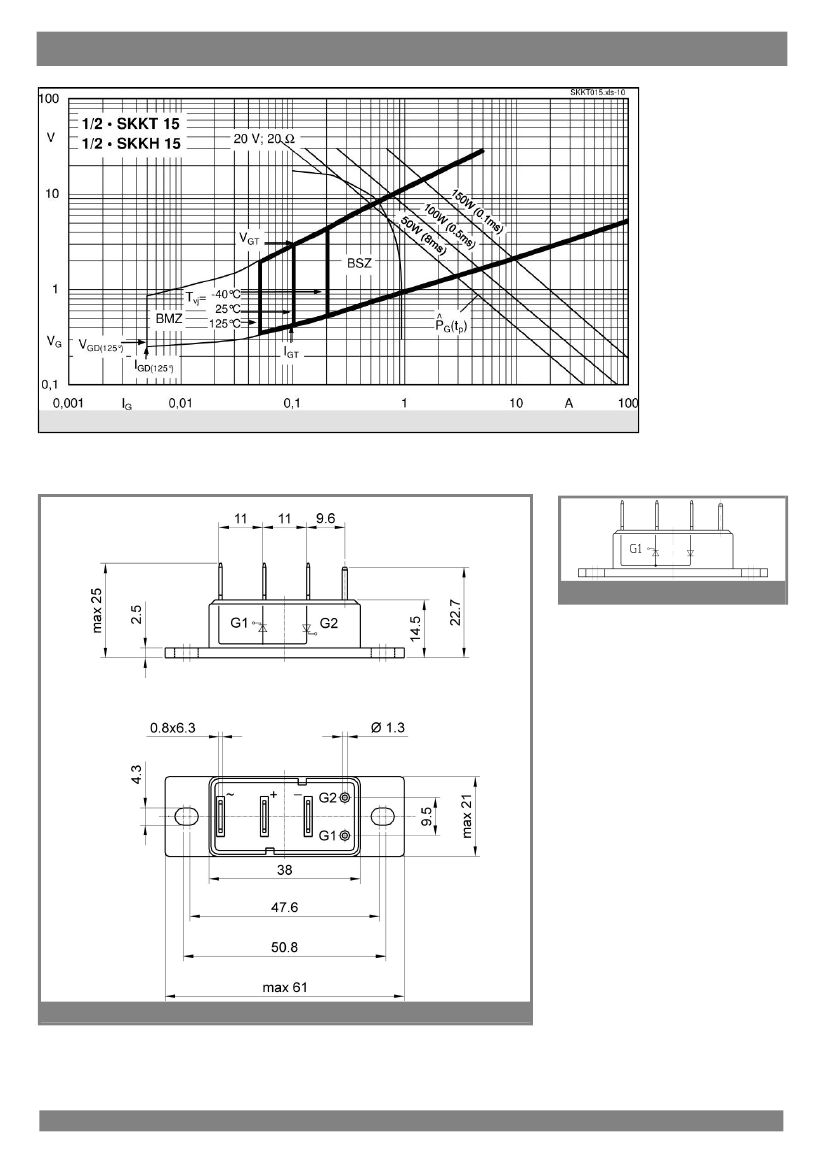

SKKT 15, SKKH 15

Symbol

Conditions

Values

Units

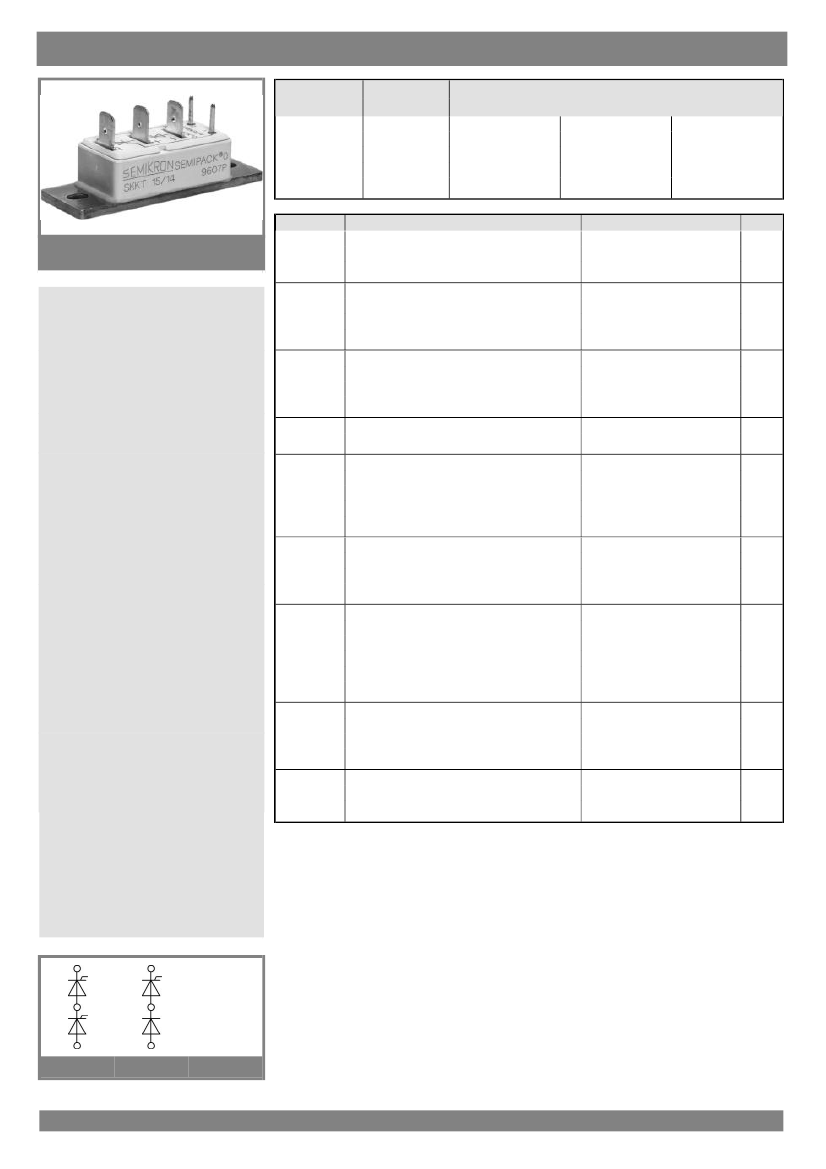

SEMIPACK

Thyristor / Diode Modules

SKKT 15

SKKH 15

Features

Typical Applications

SKKT

SKKH

21-10-2004 CAS

	SKKT15/08E	SKKT15/05E	SKKH15/05E	SKKH15/08E
Description	Thyristor / Diode Modules	Thyristor / Diode Modules	Thyristor / Diode Modules	Thyristor / Diode Modules
