TVS328 Overview

TVS DIODE

TVS328 Parametric

Parameter Name	Attribute value
state	ACTIVE
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE

Preview

Download Datasheet

View All

<3E.mi-L-onau.ctoi iJ-^ioaucti, One.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

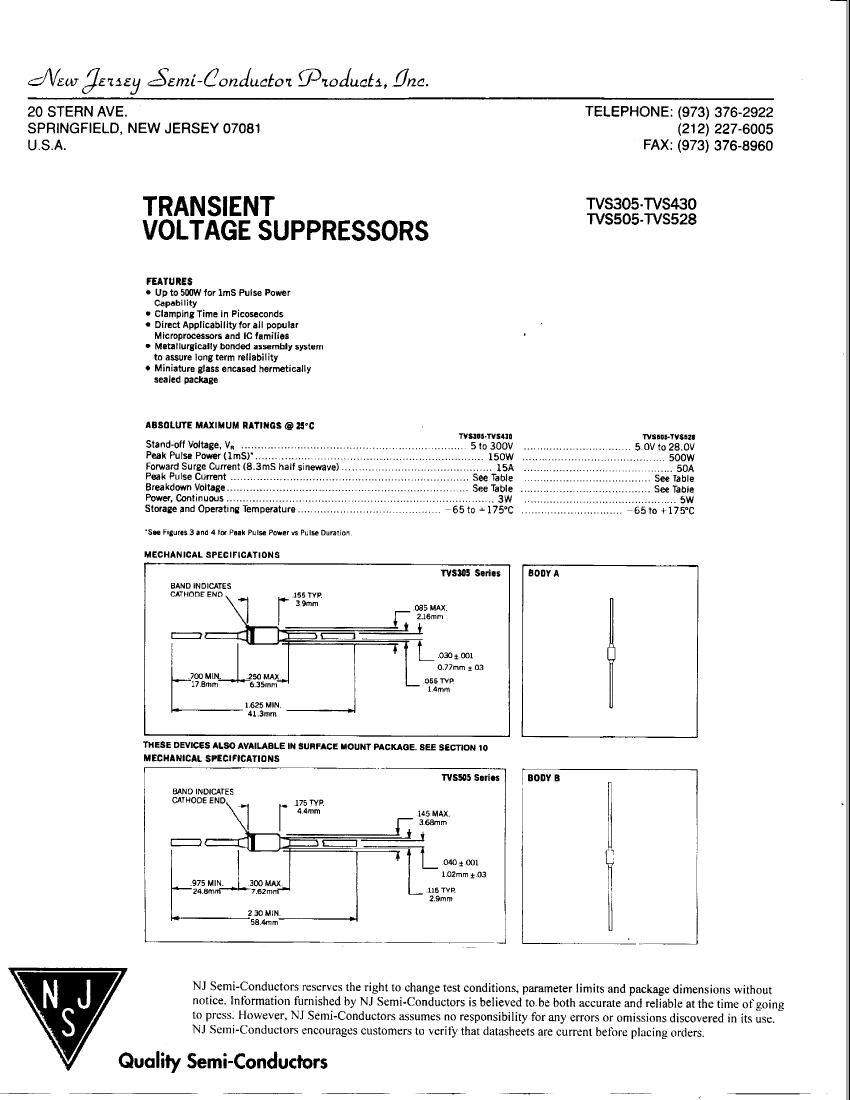

TRANSIENT

VOLTAGE SUPPRESSORS

FEATURES

• Up to 500W for ImS Pulse Power

Capability

• Clamping Time in Picoseconds

• Direct Applicability for all popular

Microprocessors and 1C families

• Metallurglcally bonded assembly system

to assure long term reliability

• Miniature glass encased hermetically

sealed package

TVS305-TVS430

TVS505-TVS528

ABSOLUTE MAXIMUM RATINGS @ 2J-C

TVS309-TVS4IO

Stand-off Voltage, V

........................................

.............................

5to300V

Peak Pulse Power (ImS)'

......................................................................

150W

Forward Surge Current (8. 3mS half si newave)

..............................................

15A

Peak Pulse Current

.........................................................................

See Table

Breakdown Voltage

..........................................................................

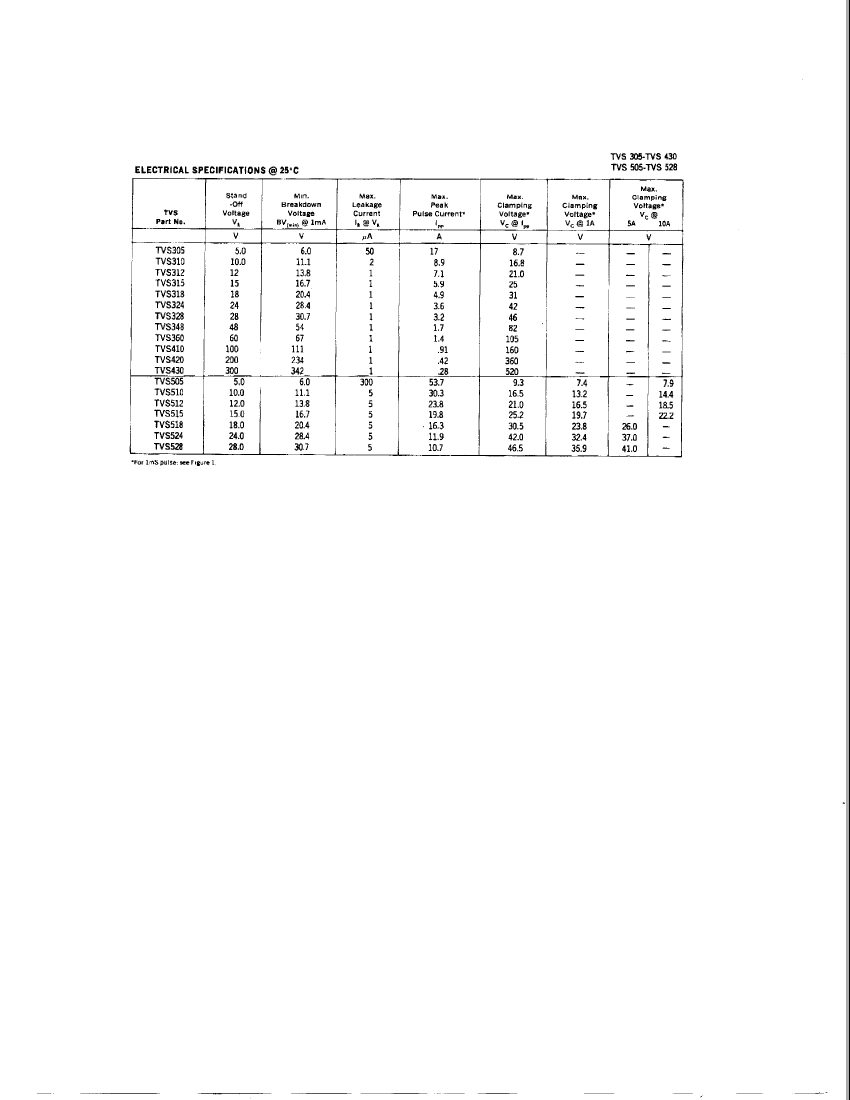

See Table

Power, Continuous

..................................................................................

Storage and Operating Temperature

-65 to -

'See Figures 3 and 4 tor Peak Pulse Power vs Pulse Duration.

MECHANICAL

SPECIFICATIONS

TVSM5 Series

BAND INDICATES

CATHODE END

.035 MAX.

TVSBOS-TVS5ZJ

.........................

5.0V to 28.0V

..........................

500W

.........................

50A

.........................

See Table

........................................

See Table

...............................................

-65 to +175°C

BODY A

2.16mm

1 t 1

THESE DEVICES ALSO AVAILABLE IN SURFACE MOUNT PACKAGE. SEE SECTION 10

MECHANICAL SPECIFICATIONS

TVS505 Series

BAND INDICATES

CATHODE END.

BODY 8

.115 TVP.

2.9mm

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to.be both accurate and reliable at the time of going

to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.

Quality Semi-Conductors
