LPC25164700UHA datasheet, PDF - EEWORLD Datasheet

LPC25164700UHA: DescriptionGeneral Fixed Inductor, 1 ELEMENT, 4700 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size131KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

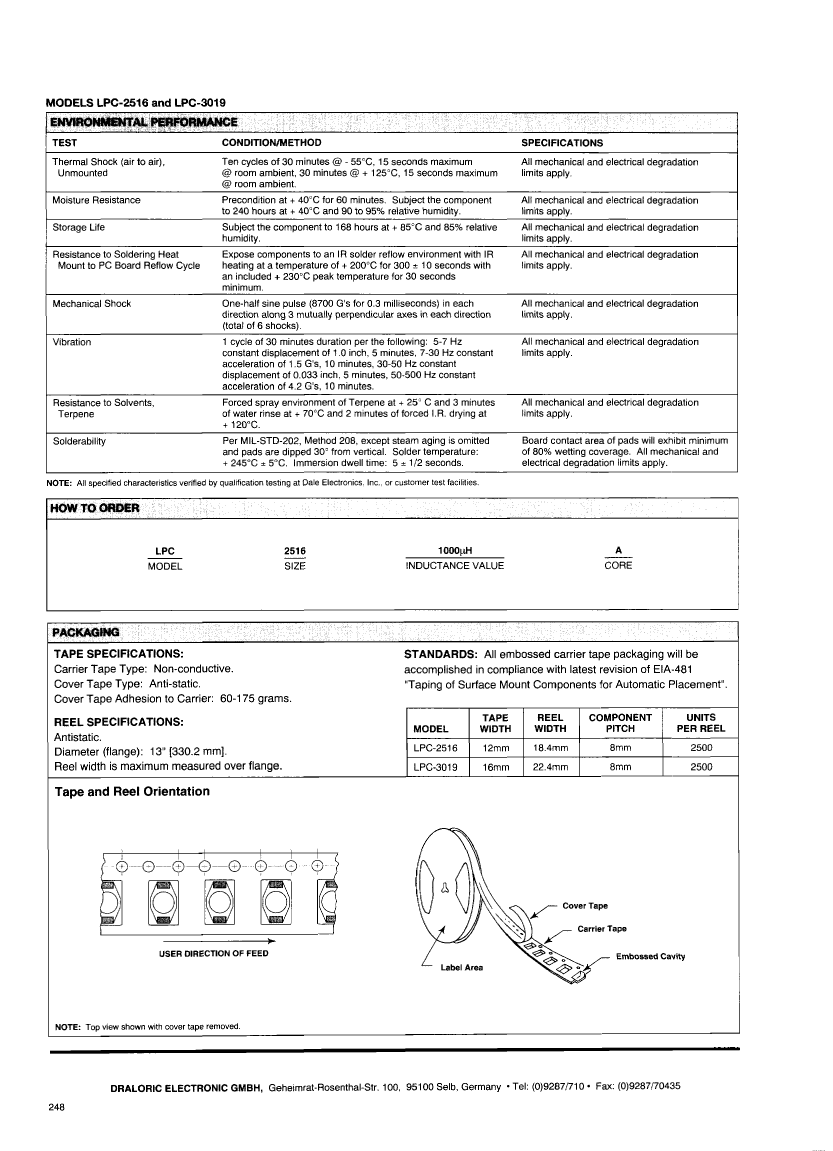

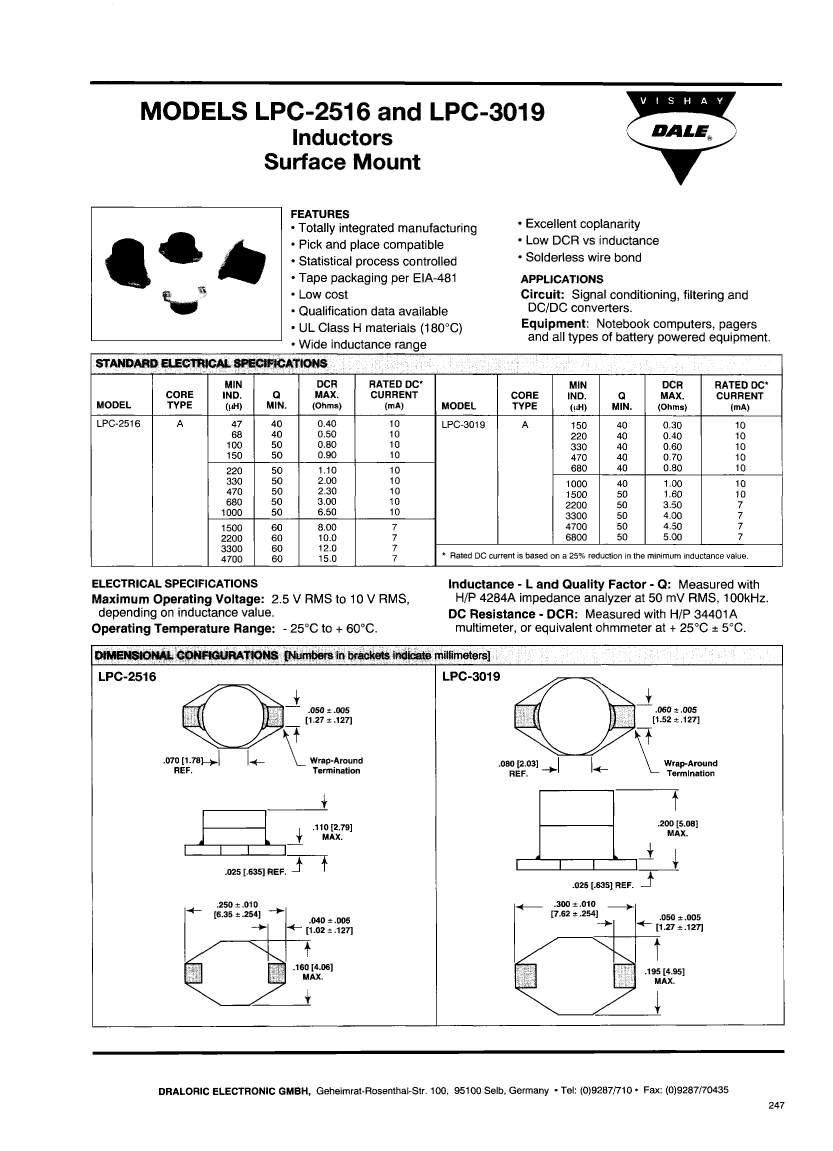

LPC25164700UHA Overview

General Fixed Inductor, 1 ELEMENT, 4700 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

Parameter Name	Attribute value
Objectid	1445128398
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	15 Ω
Nominal inductance(L)	4700 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPC-2516
Number of functions	1
Number of terminals	2
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	60
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
