UM1-1.5W-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> UM1-1.5W-K

UM1-1.5W-K: Description1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING); CategoryMechanical and electronic products relay; File Size403KB，9 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

UM1-1.5W-K Overview

1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)

UM1-1.5W-K Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
body width	11.5 mm
body height	10 mm
Body length or diameter	20.1 mm
Characteristic impedance	75 Ω
Maximum coil current (DC)	0.133 A
Coil operating voltage (DC)	1.05 V
Coil power	200 mW
Coil release voltage (DC)	0.08 V
Coil resistance	11.2 Ω
Maximum coil voltage (DC)	1.5 V
Coil/Input Power Type	DC
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	DC
Electrical life	300000 Cycle(s)
Maximum insertion loss	1 dB
Maximum isolation	60 dB
Manufacturer's serial number	UM1
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms
Maximum operating frequency	900 MHz
Minimum operating frequency
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
physical size	20.1mm X 11.5mm X 10mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	RF RELAY
release time	5 ms
surface mount	NO
switching time	11 ms
Termination type	SOLDER
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

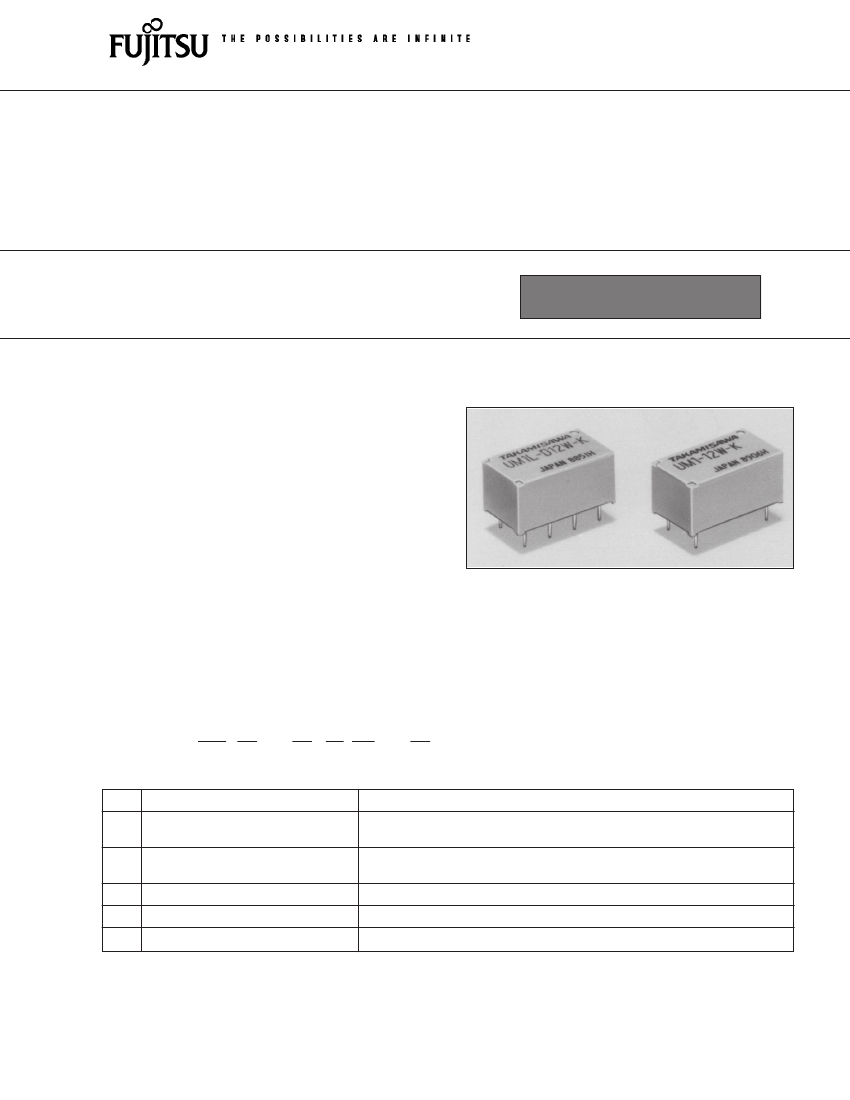

MINIATURE RELAY

1 POLE, 0.5A

(HIGH FREQUENCE SIGNAL SWITCHING)

UM1 SERIES

RoHS Compliant

Subminiature polarized relay

Excellent high frequency characteristics

at 900 MHz

—Isolation

: min. 60 dB

(Impedance of

—Insertion loss : max. 1 dB

the measuring

—V.S.W.R.

: max. 1.2

devices is 75Ω)

High reliability — Bifurcated contacts

— Movable contact: gold overlay

— Stationary contact: gold clad

Wide operating range

DIL pitch terminals

Plastic sealed type

Latching type available

RoHS compliant since date code: 0437T2

Please see page 7 for more information

FEATURES

}

UM1 L

(a) (b)

ORDERING INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

(f )

Series Name

Operation Function

Number of Coil

Nominal Voltage

Contact

Enclosure

–

(c)

12 W

(d) (e)

–

(f )

UM1 : UM1 Series

Nil : Standard type

L : Latching type

Nil : Single winding type

D : Double winding type

K : Plastic sealed type

IN 9

NT 00

O 2

SC CH

Refer to the COIL DATA CHART

W : Bifurcated type (cross bar)

)

UM1-1.5W-K Related Products

	UM1-1.5W-K	UM1-18W-K	UM1-24W-K	UM1-3W-K	UM1-4.5W-K	UM1-48W-K	UM1-5W-K	UM1-6W-K	UM1-9W-K
Description	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)	1 POLE, 0.5A (HIGH FREQUENCE SIGNAL SWITCHING)
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
body width	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm
body height	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Body length or diameter	20.1 mm	20.1 mm	20.1 mm	20.1 mm	20.1 mm	20.1 mm	20.1 mm	20.1 mm	20.1 mm
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Maximum coil current (DC)	0.133 A	0.011 A	0.008 A	0.067 A	0.044 A	0.005 A	0.04 A	0.033 A	0.022 A
Coil operating voltage (DC)	1.05 V	12.6 V	16.8 V	2.1 V	3.15 V	33.6 V	3.5 V	4.2 V	6.3 V
Coil power	200 mW	200 mW	200 mW	200 mW	200 mW	220 mW	200 mW	200 mW	200 mW
Coil release voltage (DC)	0.08 V	0.9 V	1.2 V	0.15 V	0.23 V	2.4 V	0.25 V	0.3 V	0.45 V
Coil resistance	11.2 Ω	1620 Ω	2880 Ω	45 Ω	101 Ω	10472 Ω	125 Ω	180 Ω	405 Ω
Maximum coil voltage (DC)	1.5 V	18 V	24 V	3 V	4.5 V	48 V	5 V	6 V	9 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC	.1A@30VDC
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Contact/Output Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC
Electrical life	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)	300000 Cycle(s)
Maximum insertion loss	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB	1 dB
Maximum isolation	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms
Maximum operating frequency	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz	900 MHz
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
physical size	20.1mm X 11.5mm X 10mm	20.1mm X 11.5mm X 10mm	20.1mm x 11.5mm x 10mm	20.1mm X 11.5mm X 10mm	20.1mm X 11.5mm X 10mm	20.1mm X 11.5mm X 10mm	20.1mm x 11.5mm x 10mm	20.1mm X 11.5mm X 10mm	20.1mm x 11.5mm x 10mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY
release time	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
switching time	11 ms	11 ms	11 ms	11 ms	11 ms	11 ms	11 ms	11 ms	11 ms
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Base Number Matches	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Manufacturer's serial number	UM1	UM1	UM1	UM1	UM1	UM1	-	UM1	UM1

Recommended Resources

Precision current detection amplifier design based on lithium battery detection

How to design a switching power supply?

Real-time speech recognition system application circuit diagram in home monitoring robot

Multifunctional motor protection circuit

Jinling brand luxury louver fan wind pressure ventilation fan circuit diagram

Low frequency amplifier circuit diagram for car radio
