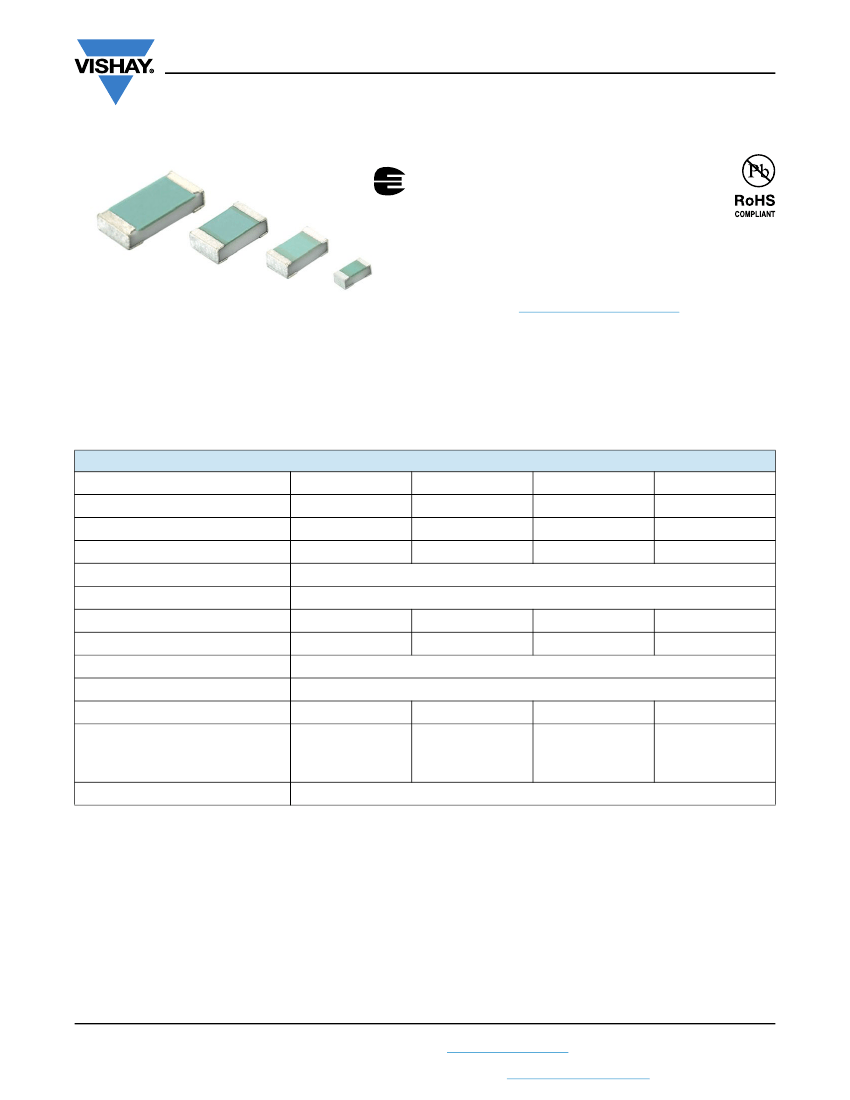

MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
Vishay Beyschlag
Precision Thin Film Chip Resistors
FEATURES
• IECQ-CECC approved to EN 140401-801
• Low TCR: ± 10 ppm/K to ± 25 ppm/K
• Precision tolerance of resistance:
± 0.1 % and ± 0.25 %
• Superior overall stability: class 0.1 and 0.25
• Sulfur resistance verified according to ASTM B 809
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Thin film flat chip resistors combine the proven reliability of
the professional products with an advanced level of
precision and stability. Therefore they are perfectly suited
for applications in the fields of test and measurement
equipment together with industrial and medical electronics.
APPLICATIONS
• Automotive
• Test and measuring equipment
• Medical equipment
• Industrial equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
ϑ
F max. (1)
Operating temperature range
Internal thermal resistance
(1)
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below
75 V
100 V
≤
0.1 x 10
-9
/h
200 V
300 V
90 K/W
63 K/W
0.063 W
50 V
MCS 0402
0402
RR1005M
100
Ω
to 221 kΩ
MCT 0603
0603
RR1608M
39
Ω
to 511 kΩ
MCU 0805
0805
RR2012M
39
Ω
to 1.5 MΩ
MCA 1206
1206
RR3216M
39
Ω
to 2 MΩ
± 0.25 %; ± 0.1 %
± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K
0.100 W
75 V
125 °C
-55 °C to 125 °C
38 K/W
32 K/W
0.125 W
150 V
0.250 W
200 V
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 10-Nov-2021
Document Number: 28700
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
Vishay Beyschlag
PRECISION
0.016 W
0.032 W
0.050 W
0.100 W
12.5 V
25 V
35 V
50 V
-10 °C to 85 °C
85 °C
100
Ω
to 221 kΩ
39
Ω
to 511 kΩ
39
Ω
to 1.5 MΩ
39
Ω
to 2 MΩ
≤
0.05 %
≤
0.1 %
≤
0.25 %
STANDARD
0.063 W
0.100 W
0.125 W
0.250 W
50 V
75 V
150 V
200 V
-55 °C to 125 °C
125 °C
100
Ω
to 221 kΩ
39
Ω
to 511 kΩ
39
Ω
to 1.5 MΩ
39
Ω
to 2 MΩ
≤
0.1 %
≤
0.25 %
≤
0.5 %
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
MCS 0402
MCT 0603
MCU 0805
MCA 1206
MCS 0402
MCT 0603
MCU 0805
MCA 1206
Rated dissipation,
P
70
Operating voltage,
U
max.
AC
RMS
/DC
Operating temperature range
Permissible film temperature,
ϑ
F max.
MCS 0402
MCT 0603
MCU 0805
MCA 1206
1000 h
8000 h
225 000 h
Max. resistance change at
P
70
for resistance range,
|ΔR/R| after:
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 25 ppm/K
MCS 0402
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCT 0603
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCU 0805
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCA 1206
± 15 ppm/K
± 10 ppm/K
TOLERANCE
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
(1)
RESISTANCE
100
Ω
to 221 kΩ
100
Ω
to 221 kΩ
100
Ω
to 150 kΩ
100
Ω
to 150 kΩ
100
Ω
to 130 kΩ
100
Ω
to 130 kΩ
39
Ω
to 511 kΩ
47
Ω
to 511 kΩ
39
Ω
to 332 kΩ
47
Ω
to 332 kΩ
39
Ω
to 221 kΩ
47
Ω
to 221 kΩ
39
Ω
to 1.5 MΩ
47
Ω
to 1.5 MΩ
39
Ω
to 1 MΩ
47
Ω
to 1 MΩ
39
Ω
to 511 kΩ
47
Ω
to 511 kΩ
39
Ω
to 2 MΩ
47
Ω
to 2 MΩ
39
Ω
to 1.5 MΩ
47
Ω
to 1.5 MΩ
39
Ω
to 1 MΩ
47
Ω
to 1 MΩ
E-SERIES
E24; E192
Notes
• Resistance ranges printed in bold are preferred TCR / tolerance combinations with optimized availability
(1)
For the approved IECQ-CECC resistance range, please refer to
www.vishay.com/doc?28945
Revision: 10-Nov-2021
Document Number: 28700
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade ceramic substrate (Al
2
O
3
) and conditioned to achieve
the desired temperature coefficient. Specially designed
inner contacts are deposited on both sides. A special laser
is used to achieve the target value by smoothly fine trimming
the resistive layer without damaging the ceramics. A further
conditioning is applied in order to stabilize the trimming
result. The resistor elements are covered by a protective
coating designed for electrical, mechanical and climatic
protection. The terminations receive a final pure matte tin on
nickel plating.
The result of the determined production is verified by an
extensive testing procedure and optical inspection
performed on 100 % of the individual chip resistors. This
includes full screening for the elimination of products with
potential risk of early field failures. Only accepted products
are laid directly into the paper tape in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay Beyschlag
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
APPROVALS
Where applicable, the resistors are approved within the
IECQ-CECC Quality Assessment System for Electronic
Components to the detail specification
EN 140401-801
which refers to
EN 60115-1, EN 60115-8
and the variety of
environmental test procedures of the
IEC 60068
(1)
series.
Conformity is attested by the use of the
CECC
logo (
the mark of conformity on the package label.
) as
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems and for automatic soldering using wave,
reflow or vapor phase. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant, the pure matte tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
Vishay
Beyschlag
has
achieved
“Approval
of
Manufacturer”
in accordance with
IECQ 03-1.
The release
certificate for
“Technology Approval Schedule”
in
accordance with
CECC 240001
based on
IECQ 03-3-1
is
granted for the Vishay Beyschlag manufacturing process.
RELATED PRODUCTS
Resistors are available with established reliability in
accordance with EN 140401-801 version E. Please refer to
the special datasheet (www.vishay.com/doc?28744) for
information on failure rate level, available resistance ranges
and order codes.
For more information about products with higher rated
power and higher operation temperature please refer to the
Professional Thin Film Chip Resistor datasheet
(www.vishay.com/doc?28705).
Precision chip resistor arrays may be used in voltage
divider applications or precision amplifiers where close
matching between multiple resistors is necessary.
Please refer to the ACAS 0612 - Precision datasheet
(www.vishay.com/doc?28751).
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table
Revision: 10-Nov-2021
Document Number: 28700
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
