Datasheet

Vinculum-II Embedded Dual USB Host Controller IC

Version 1.5

Document No.: FT_000138

Clearance No.: FTDI# 143

Future Technology

Devices International Ltd

Vinculum-II

Embedded Dual USB Host

Controller IC

Vinculum-II is FTDI‟s 2nd generation of USB Host

device. The CPU has been upgraded from the

previous VNC1L device, dramatically increasing the

processing power. The IC architecture has been

designed to take care of most of the general USB

data transfers, thus freeing up processing power

for user applications. Flash and RAM memory have

been increased providing larger user areas of

memory for the designer to incorporate his own

code. The designers also have the ability to create

their own firmware using the new suite of software

development tools.

VNC2 has the following advanced features:



Embedded processor core

16 bit Harvard architecture

Two full-speed or low-speed USB 2.0

interfaces capable of host or slave

functions

256kbytes on-chip E-Flash Memory

(128k x 16-bits)

16kbytes on-chip Data RAM (4k x 32-

bits

Programmable UART up to 6Mbaud

Two SPI (Serial Peripheral) slave

interfaces and one SPI master

interface

Reduced power modes capability

Variable instruction length

Native support for 8, 16 and 32 bit

data types



Eight bit wide FIFO Interface

Firmware upgrades via UART, SPI, and

FIFO interface

12MHz oscillator using external crystal

General-purpose timers

+3.3V single supply operation with 5V

safe inputs

Software development suite of tools to

create customised firmware. Compiler

Linker – Debugger – IDE

Available in six RoHS compliant

packages - 32 LQFP, 32 QFN, 48 LQFP,

48 QFN, 64 LQFP and 64 QFN

VNC2-48L1 package option compatible

with VNC1L-1A

44 configurable I/O pins on the 64 pin

device, 28 I/O pins on the 48 pin

device and 12 I/O on the 32 pin device

using the I/O multiplexer

-40°C to +85°C extended operating

temperature range

Simultaneous multiple file access on

BOMS devices

Eight Pulse Width Modulation outputs

to allow connectivity with motor

control applications

Debugger interface module

System Suspend Modes



Use of FTDI devices in life support and/or safety applications is entirely at the user‟s risk, and the user agrees to

defend, indemnify and hold harmless FTDI from any and all damages, claims, suits or expense resulting from such

use.

Datasheet

Vinculum-II Embedded Dual USB Host Controller IC

Version 1.5

Document No.: FT_000138

Clearance No.: FTDI# 143

Table of Contents

1.1

1.2

Typical Applications ...................................................................... 2

Part Numbers...................................................................................... 2

USB Compliant .................................................................................... 2

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

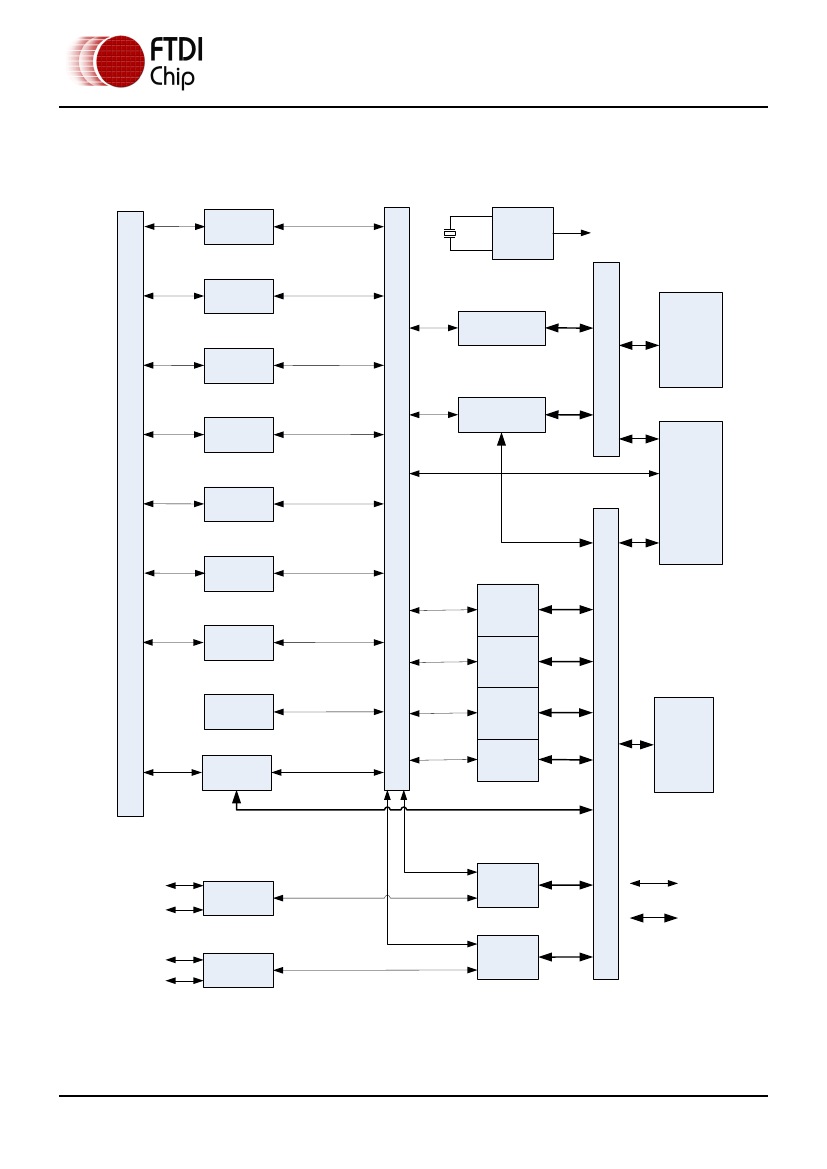

VNC2 Block Diagram ..................................................................... 3

Device Pin Out and Signal Description Summary .......................... 7

Pin Out - 32 pin LQFP ......................................................................... 7

Pin Out - 32 pin QFN .......................................................................... 8

Pin Out - 48 pin LQFP .......................................................................... 9

Pin Out - 48 pin QFN .......................................................................... 9

Pin Out - 64 pin LQFP ....................................................................... 10

Pin Out - 64 pin QFN ........................................................................ 12

VNC2 Schematic symbol 32 Pin ......................................................... 12

VNC2 Schematic symbol 48 Pin ......................................................... 14

VNC2 Schematic symbol 64 Pin ......................................................... 15

Pin Configuration USB and Power .................................................. 16

Miscellaneous Signals .................................................................... 17

Pin Configuration Input / Output ................................................... 18

Key Features ..................................................................................... 21

Functional Block Descriptions ........................................................... 21

Embedded CPU .......................................................................................................... 21

Flash Module ............................................................................................................. 21

Flash Programming Module ......................................................................................... 21

Input / Output Multiplexer Module ............................................................................... 22

Peripheral DMA Modules 0, 1, 2 & 3 ............................................................................. 23

RAM Module .............................................................................................................. 23

Peripheral Interface Modules ....................................................................................... 23

USB Transceivers 0 and 1 ........................................................................................... 23

USB Host / Device Controllers ..................................................................................... 23

12MHz Oscillator .................................................................................................... 23

Power Saving Modes and Standby mode.................................................................... 23

3.10

3.11

3.12

4.1

4.2

Function Description................................................................... 21

4.2.1

4.2.2

4.2.3

4.2.4

4.2.5

4.2.6

4.2.7

4.2.8

4.2.9

4.2.10

4.2.11

5.1

5.2

5.3

5.4

I/O Multiplexer .......................................................................... 24

I/O Peripherals Signal Names .......................................................... 29

I/O Multiplexer Configuration........................................................... 30

I/O Mux Group 0............................................................................... 30

I/O Mux Group 1............................................................................... 31

Datasheet

Vinculum-II Embedded Dual USB Host Controller IC

Version 1.5

Document No.: FT_000138

Clearance No.: FTDI# 143

5.5

5.6

5.7

I/O Mux Group 2............................................................................... 32

I/O Mux Group 3............................................................................... 34

I/O Mux Interface Configuration Example ........................................ 35

6.1

Peripheral Interfaces ................................................................. 36

UART Interface ................................................................................. 36

UART Mode Signal Descriptions ................................................................................... 37

6.1.1

6.2

6.2.1

Serial Peripheral Interface – SPI Modes ........................................... 39

SPI Clock Phase Modes ............................................................................................... 40

6.3

6.3.1

6.3.2

6.3.3

6.3.4

6.3.5

6.3.6

Serial Peripheral Interface – Slave ................................................... 41

SPI Slave Signal Descriptions ...................................................................................... 42

Full Duplex................................................................................................................ 43

Half Duplex, 4 pin ...................................................................................................... 45

Half Duplex, 3 pin ...................................................................................................... 46

Unmanaged Mode ...................................................................................................... 47

VNC1L Legacy Interface .............................................................................................. 48

6.4

6.4.1

Serial Peripheral Interface – SPI Master........................................... 53

SPI Master Signal Descriptions. ................................................................................... 53

6.5

6.5.1

Debugger Interface .......................................................................... 56

Debugger Interface Signal description .......................................................................... 56

6.6

6.6.1

6.6.2

Parallel FIFO – Asynchronous Mode .................................................. 57

FIFO Signal Descriptions ............................................................................................. 57

Read / Write Transaction Asynchronous FIFO Mode ........................................................ 59

6.7

6.7.1

Parallel FIFO – Synchronous Mode ................................................... 61

Read / Write Transaction Synchronous FIFO Mode ......................................................... 62

6.8

6.9

6.10

General Purpose Timers .................................................................... 63

Pulse Width Modulation .................................................................... 63

General Purpose Input Output ....................................................... 64

8.1

8.2

8.3

8.4

USB Interfaces ........................................................................... 65

Firmware .................................................................................... 66

RTOS ................................................................................................. 66

Device drivers ................................................................................... 66

Firmware – Software Development Toolchain ................................... 66

Precompiled Firmware ...................................................................... 67

9.1

9.2

9.3

Device Characteristics and Ratings ............................................. 68

Absolute Maximum Ratings............................................................... 68

DC Characteristics............................................................................. 69

ESD and Latch-up Specifications ....................................................... 71

Application Examples ................................................................. 72
