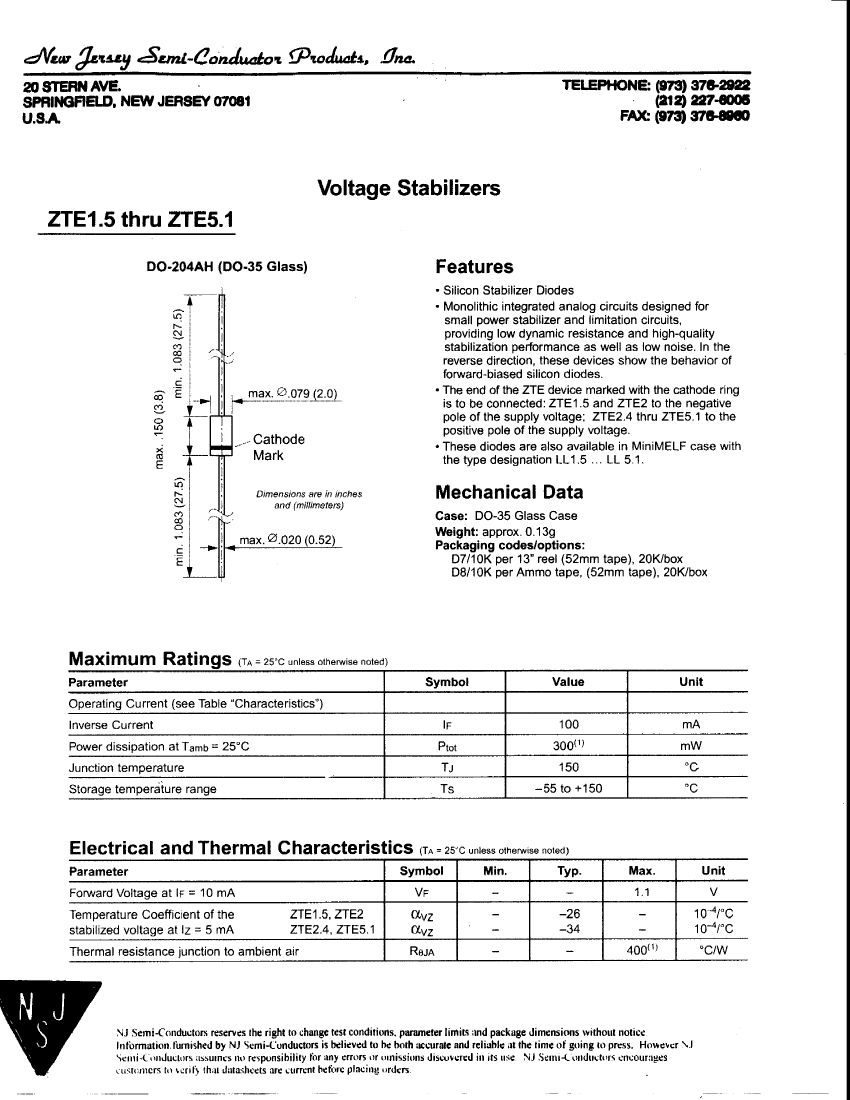

Voltage Stabilizers
ZTE1.5thruZTE5.1
DO-204AH (DO-35 Glass)
Features
• Silicon Stabilizer Diodes
• Monolithic integrated analog circuits designed for
small power stabilizer and limitation circuits,
providing low dynamic resistance and high-quality
stabilization performance as well as low noise. In the
reverse direction, these devices show the behavior of
forward-biased silicon diodes.
• The end of the ZTE device marked with the cathode ring
is to be connected: ZTE1.5 and ZTE2 to the negative
pole of the supply voltage; ZTE2.4 thru ZTE5.1 to the
positive pole of the supply voltage.
• These diodes are also available in MiniMELF case with
the type designation LL1.5 ... LL 5.1.
oo
o
03
m.
g
,
r
max. 0.079 (2.0)
"
x
ra
... Cathode
Mark
Dimensions
are
in inches
and (millimeters)
Mechanical Data
Case:
DO-35 Glass Case
Weight:
approx. 0.13g
Packaging codes/options:
D7/10K per 13" reel (52mm tape), 20K/box
D8/10K per Ammo tape, (52mm tape), 20K/box
max. 0.020 (0.52)
(TA = 25°C unless otherwise noted)
Parameter
Operating Current (see Table "Characteristics")
Inverse Current
Power dissipation at Tamb = 25°C
Junction temperature
Storage temperature range
Symbol
Value
Unit
IF
Plot
100
mA
mW
°G
°C
300<'>
150
-55 to +150
Tj
Ts

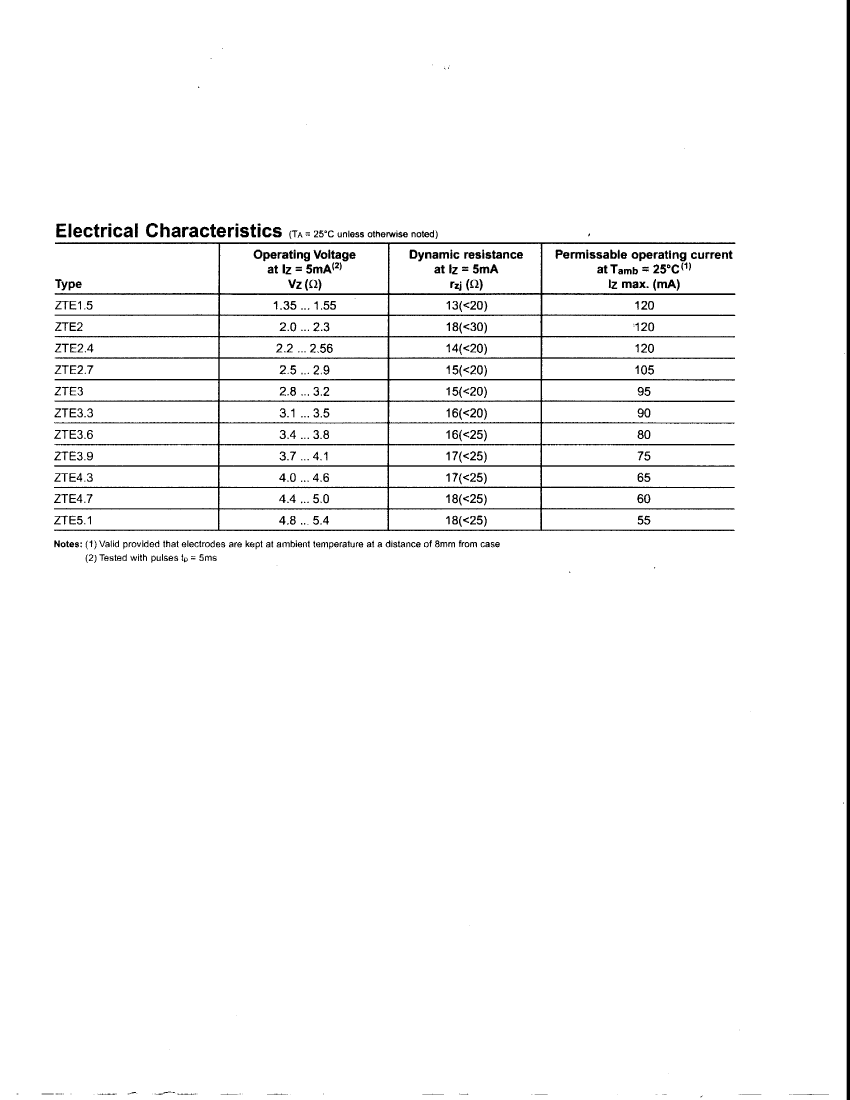

Electrical and Thermal Characteristics
Parameter
Forward Voltage at IF = 10 mA
Temperature Coefficient of the
stabilized voltage at Iz = 5 mA
ZTE1 .5, ZTE2
ZTE2.4, ZTE5.1
(TA = 25"C unless otherwise noted)
Symbol
Min.
_
_
-
Typ.
_
-26
-34
-
Max.
Unit
VF
1.1
-
400'
1
>
V
10^/°C
avz
«vz
RflJA
iQ-^rc
Thermal resistance junction to ambient air
°c/w
N.I Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without notice
Information, lumished by NJ Scmi-C'unductors is believed to he both accurate and reliable
M
the time of going to press. However N.I
Senii-C onJuclors assumes no responsibility tor any errors nr omissions discovered in its use NJ Seini-C ondiitturs encourages
customers to
\cii\\i datasheets are current before placing orders
