Green
ZVN2106G
60V N-CHANNEL ENHANCEMENT MODE VERTICAL MOSFET
Features and Benefits
•
•
•
•
•
•
V
(BR)DSS
> 60V
R
DS(ON)
≤
2 @ V
GS
= 10V
Maximum Continuous Drain Current I
D
= 0.71A
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•

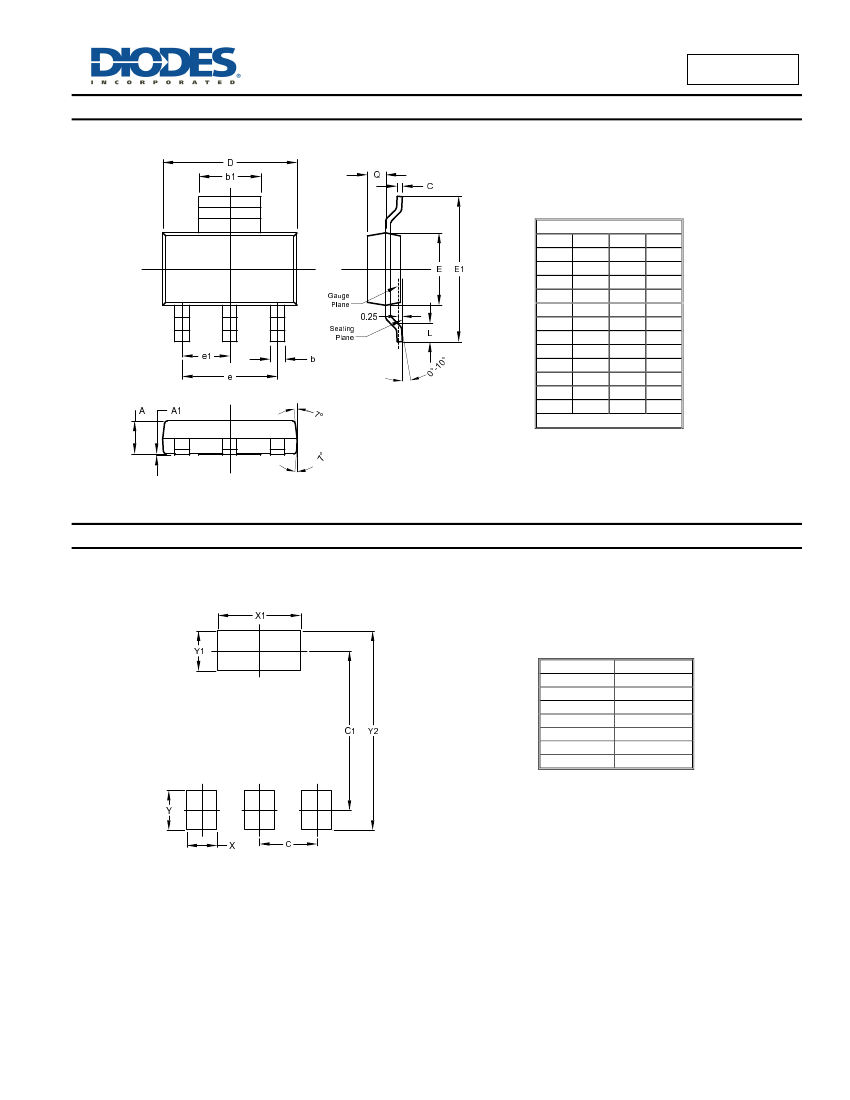

Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (Approximate)
Applications
•
•
DC-DC Converters
Solenoids / Relay Driver for Automotive
SOT223
D
G
S

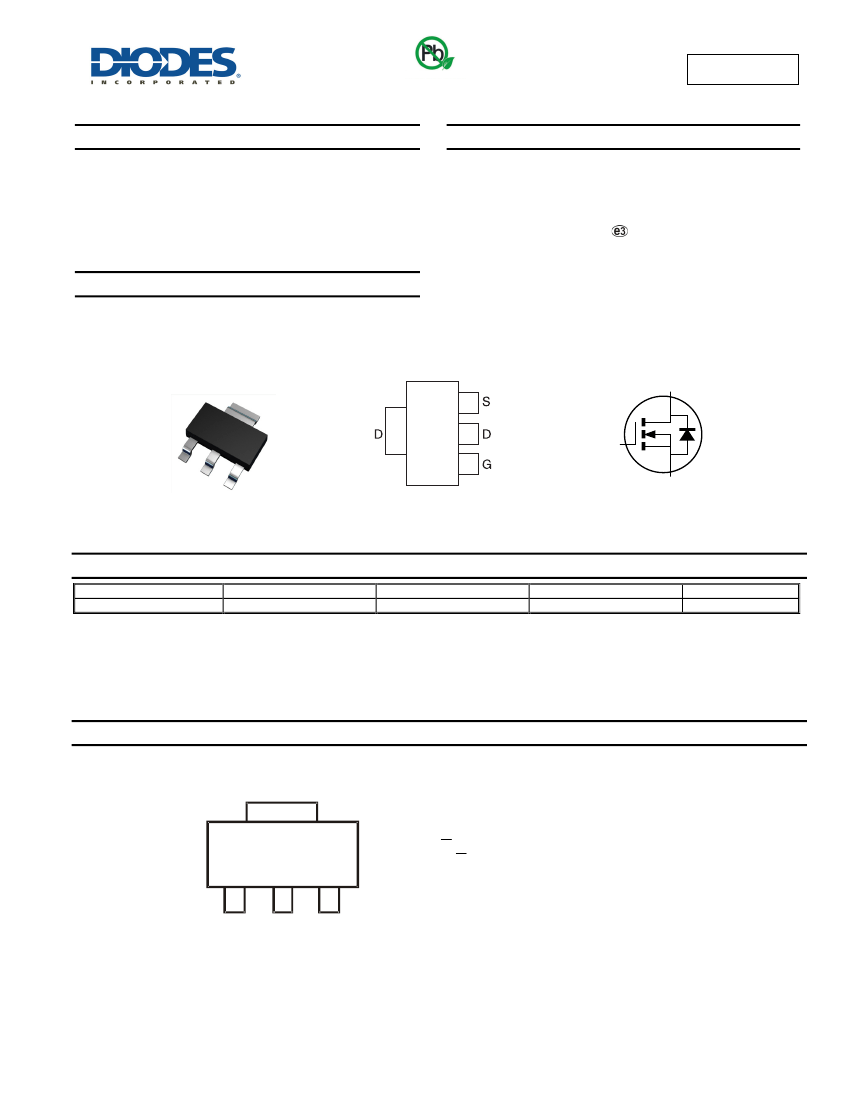

Top View
Pin Out - Top
View
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
ZVN2106GTA
Notes:
Marking
ZVN2106
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
1,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
ZVN
2106
YWW
ZVN2106 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
ZVN2106G
Document number: DS33347 Rev. 4 - 2
1 of 5
www.diodes.com
February 2015
© Diodes Incorporated
ZVN2106G
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain Current (Note 6)
Symbol
V
DSS
V
GSS
I
D
I
DM
Value
60
±20
0.71
8
Unit
V
V
A
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation (Note 5)
Operating and Storage Temperature Range
T
A
=+25°
C
Symbol
P
D
T
J
,
T
STG
Value
2
-55 to +150
Unit
W
°
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS (Note 7)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current T
J
= +25°
C
Gate-Source Leakage
On-State Drain Current
ON CHARACTERISTICS (Note 7)
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transconductance
DYNAMIC CHARACTERISTICS (Note 8)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Notes:
Symbol
BV
DSS
I
DSS
I
GSS
I
D(ON)
V
GS(TH)
R
DS(ON)
g
fs
C
iss
C
oss
C
rss
t
D(ON)
t
R
t
D(OFF)
t
F
Min
60
-
-
2
0.8
-
0.3
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max
-
500
100
±20
-
2.4
2
-
75
45
20
7
8
12
15
Unit
V
nA
µA
nA
A
V
S
pF
pF
pF
ns
ns
ns
ns
Test Condition
V
GS
= 0V, I
D
= 1mA
V
DS
= 60V, V
GS
= 0V
V
DS
= 48V, V
GS
= 0V, T
A
= +125°
C
V
GS
= ±20V, V
DS
= 0V
V
GS
= 10V, V
DS
= 18V
V
DS
= V
GS
, I
D
= 1mA
V
GS
= 10V, I
D
= 1.0A
V
DS
= 18V, I
D
= 1.0A
V
DS
= 18V, V
GS
= 0V,
f = 1.0MHz
V
DD
= 18V, I
D
= 1A, V
GEN
= 10V,
R
GS
= 50
5. For a device mounted on 50mm x 50mm x 1.6mm FR-4 PCB with high coverage of single sided 2oz copper, in still air condition.
6. Device mounted on minimum recommended pad layout test board, 10µs pulse duty cycle = 1%.
7. Short duration pulse test used to minimize self-heating effect.
8. Guaranteed by design. Not subject to production testing.
ZVN2106G
Document number: DS33347 Rev. 4 - 2
2 of 5
www.diodes.com
February 2015
© Diodes Incorporated

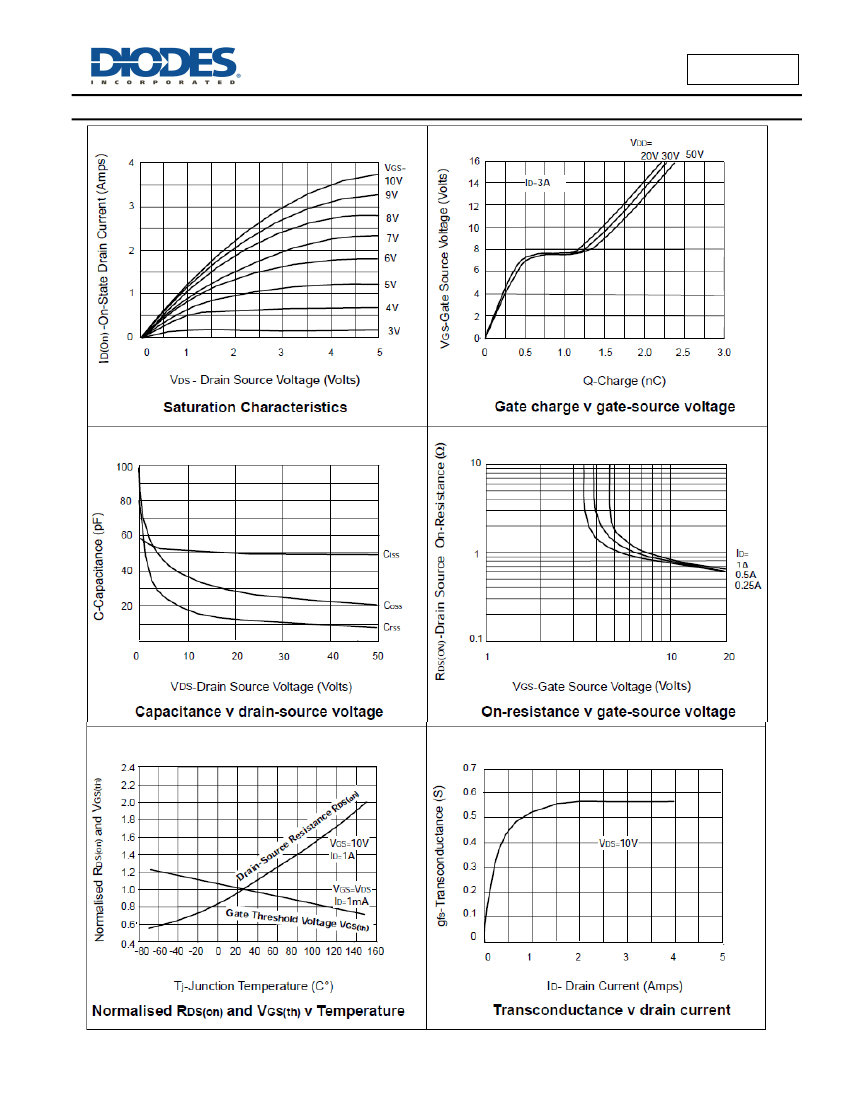

ZVN2106G
