LH100M2700BPF-2245 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LH100M2700BPF-2245

LH100M2700BPF-2245: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2700uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size115KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LH100M2700BPF-2245 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2700uF, Through Hole Mount, RADIAL LEADED

LH100M2700BPF-2245 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1650333559
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	3 mA
Manufacturer's serial number	LH
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	4100 mA
surface mount	NO
Delta tangent	0.19
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

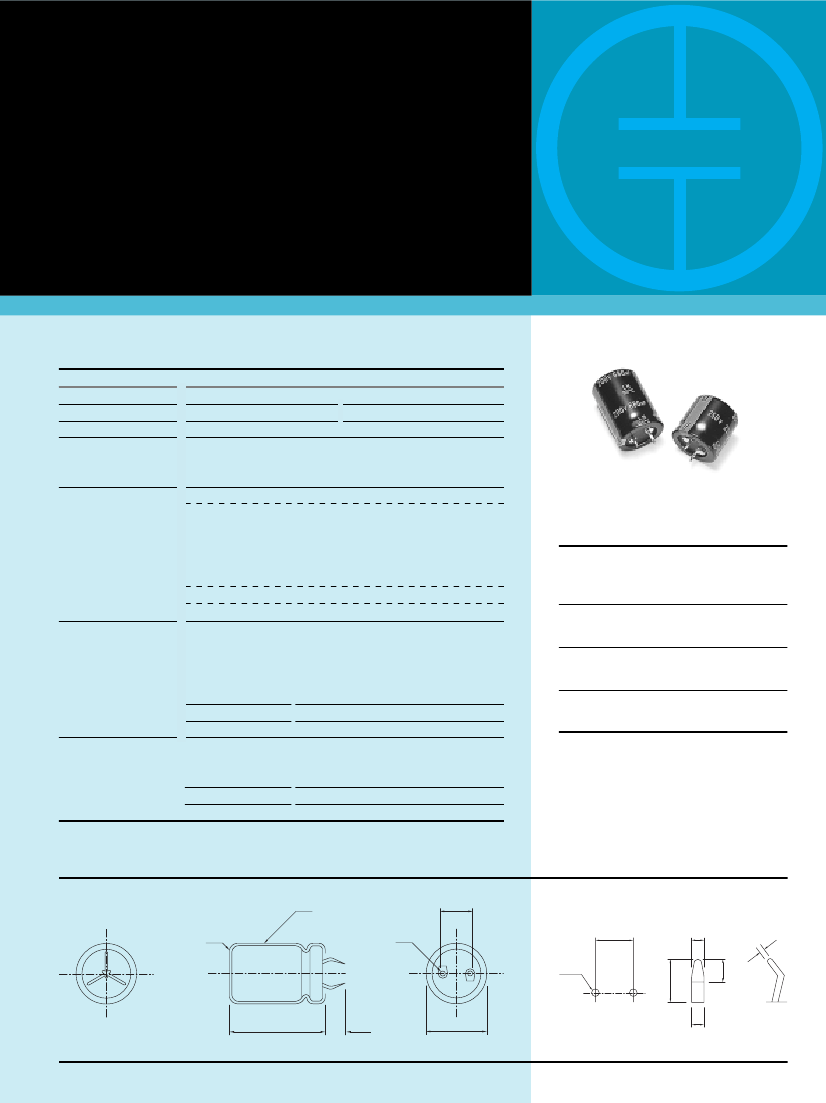

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

[For 85ºC, 2000 Hours Miniature ]

For Printed Circuit Board High-Performance Aluminum Electrolytic Power

Supply Input and Output Filter Capacitors

Miniature Size Aluminum

Electrolytic Capacitors

SPECIFICATIONS

ITEMS

Rated Voltage Range

Operating Temperature Range

Capacitance Tolerance

Leakage Current

SPECIFICATIONS

6.3 to 100VDC

-40 to+85ºC

20% (at 25ºC,120Hz)

I = 0.02CV or 3mA Whichever is smaller. (At 25ºC, After 5 Minutes Application of

DC Working Voltage at 25°C)

Where, I; Leakage Current (µA) C: Nominal Capacitance (µF) V; Rated Voltage (V)

160 to 450VDC

-25 to+85ºC

Dissipation Factor

Rate Voltage (V) 6.3

D.F (%)

35 50~80 100 160~250 315~450

10 *

Note: * (15%) For Case Size D = 35m/m or L = 20m/m (At 120Hz, 25ºC)

(W V = 6.3 ~ 100V For Capacitor Whose Capacitance Exceeds 1000µF

The value of D.F(%) is increased by 2% for every addition of 1000µF.

Rated Voltage(v)

Z(-25ºC) / Z(20ºC)

Z(-40ºC) / Z(20ºC)

Load Life

6.3~16

50~63

80~100

160~400

–

450

–

DESCRIPTION

LH type capacitiors, size are combined with

snap-lock terminals for easy to mount on P.C.

Board.

They are ideally suitable to be used in

switching.

Power Supplies and Orther Industrial or

Commercial Applications

For Detail Specifications, Please Refer to

Engineering Bulletin No. 2061

After the capacitors are subjected to DC with the full rated ripple current applied at

85ºC for 2000 hours. The following specifications shall be satisfied when the

capacitors are restored to 25ºC the sum of DC voltage and peak AC voltage must

not exceed their full rated voltage.

Capacitance Change

D.F (tan∂)

Leakage Current

≤

20% of the Inital Value

≤

200% of the Initial Specified Value

≤

the Initial Specified Value

Shelf Life

The following specifications shall be satisfied when the capacitor are restored to 25ºC

after exposing them for 1000 hours at 85ºC without voltage applied.

Capacitance Change

D.F (%)

Leakage Current

≤

20% of the Inital Value

≤

150% of the Intial Specitied Value

≤

150% of the Initial Speciffied Value

DIAGRAM OF DIMENSIONS

Unit : mm

Location of P.C.B. Holes

Vinyl Sleeve

10±0.5

Botton Plate

Negative

0.8

10±0.5

0.9

3.0

2m/m x 2

5.8±1.0

Safety Device

L+2 Max.

5.8±1

D±1

1.5

LH100M2700BPF-2245 Related Products

	LH100M2700BPF-2245	LH016M10K0BPF-2225	LH016M22K0BPF-2240	LH016M56K0BPF-3050	LH016M18K0BPF-3025	LH400M0068BPF-2220	LH016M27K0BPF-2250	LH016M27K0BPF-2540	LH016M27K0BPF-3030	LH016M27K0BPF-3525
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2700uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 10000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 22000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 56000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 18000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2700 µF	10000 µF	22000 µF	56000 µF	18000 µF	68 µF	27000 µF	27000 µF	27000 µF	27000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	3 mA	3 mA	3 mA	3 mA	3 mA	0.544 mA	3 mA	3 mA	3 mA	3 mA
Manufacturer's serial number	LH	LH	LH	LH	LH	LH	LH	LH	LH	LH
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-25 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	100 V	16 V	16 V	16 V	16 V	400 V	16 V	16 V	16 V	16 V
ripple current	4100 mA	2600 mA	3700 mA	6800 mA	3500 mA	600 mA	4350 mA	4300 mA	4250 mA	4200 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.19	0.58	1.24	2.62	0.74	0.15	1.44	1.44	1.44	1.44
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
Objectid	1650333559	-	-	-	-	1650333560	1650333544	1650333545	1650333546	1650333547
