ZXBM1015ST20TC: DescriptionBRUSHLESS DC MOTOR CONTROLLER, 0.145 A, PDSO20; Categorysemiconductor Analog mixed-signal IC; File Size1MB，11 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

ZXBM1015ST20TC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXBM1015ST20TC	-	-	View	Buy Now

BRUSHLESS DC MOTOR CONTROLLER, 0.145 A, PDSO20

Parameter Name	Attribute value
Number of functions	1
Number of terminals	20
Maximum operating temperature	110 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	18 V
Minimum supply/operating voltage	4.7 V
Rated supply voltage	12 V
Processing package description	LEAD FREE, MO-153AC, TSSOP-20
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.6500 mm
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Maximum output current	0.1450 A
Analog IC other types	BRUSHLESS DC MOTOR CONTROLLER

PART OBSOLETE - USE

ZXBM1021

ZXBM1015

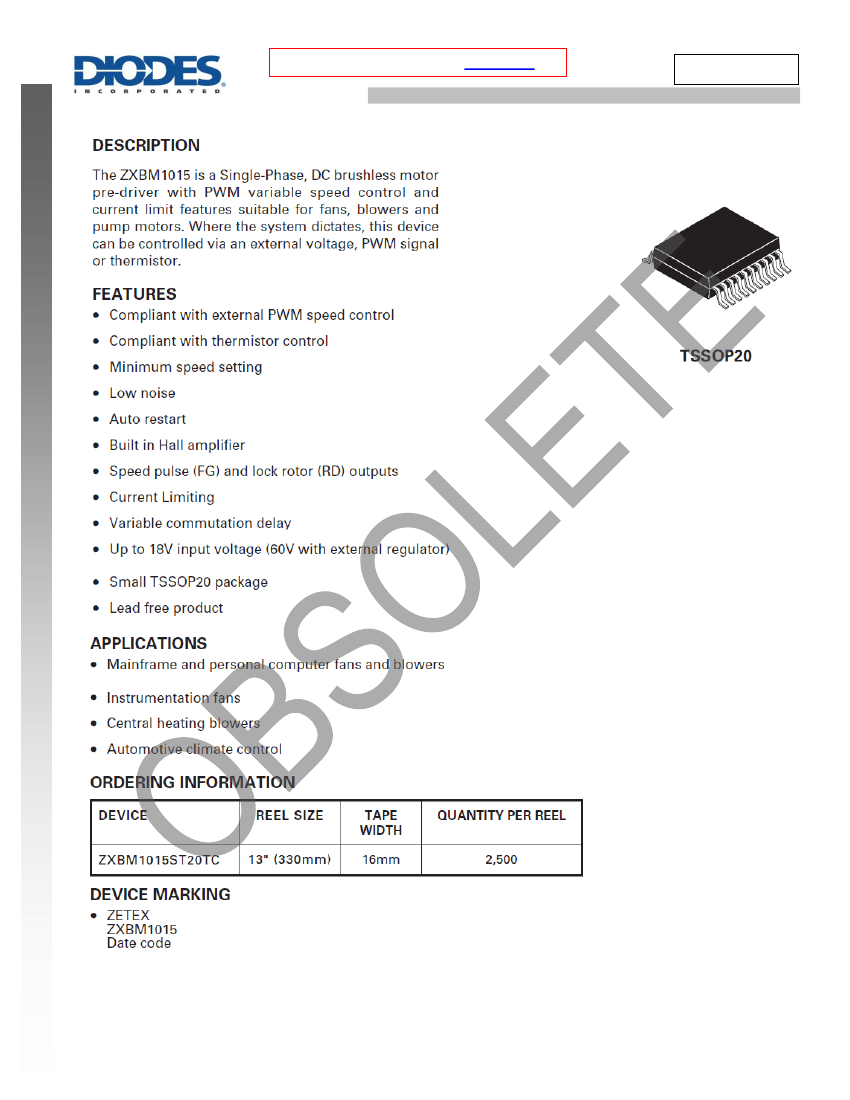

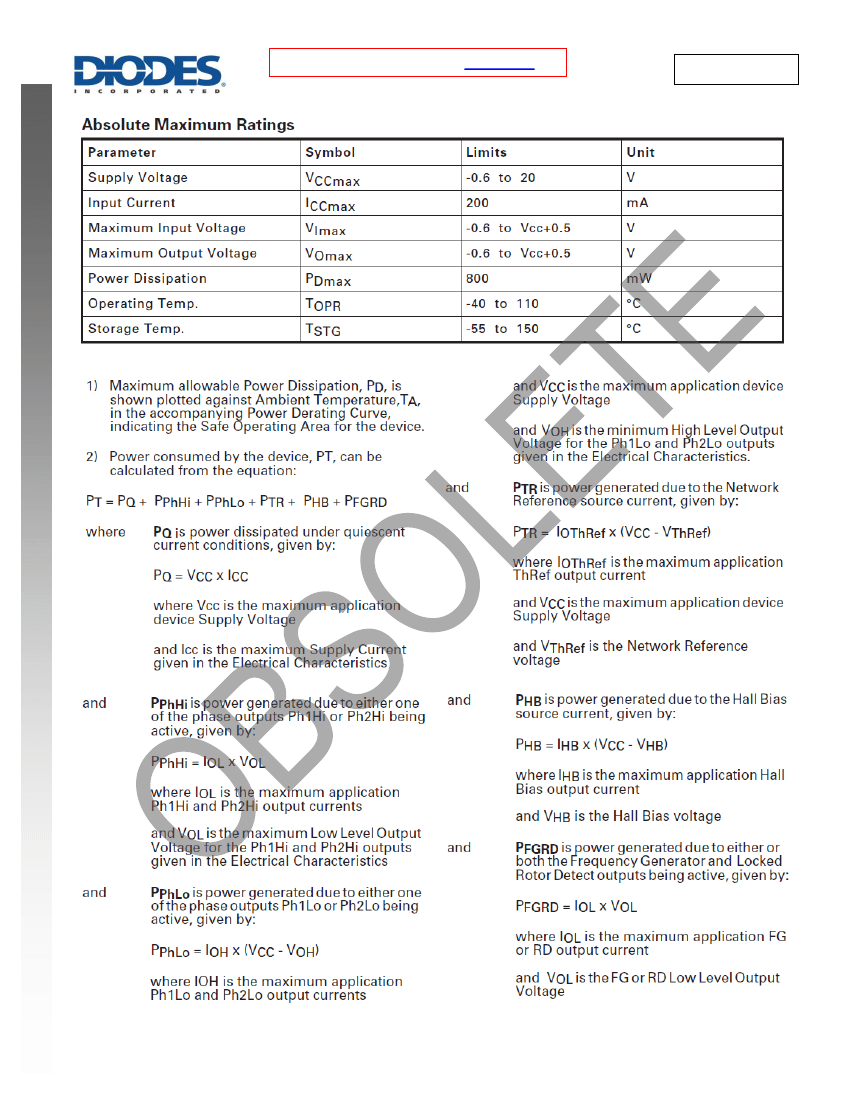

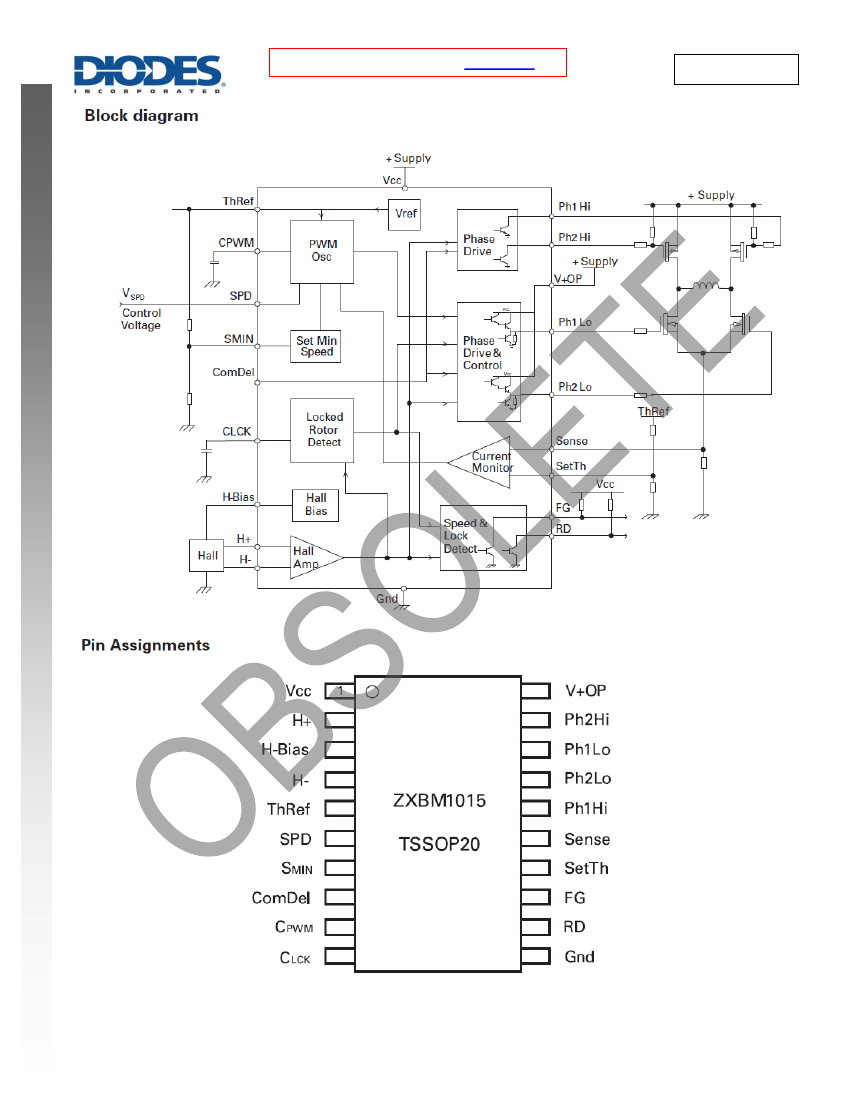

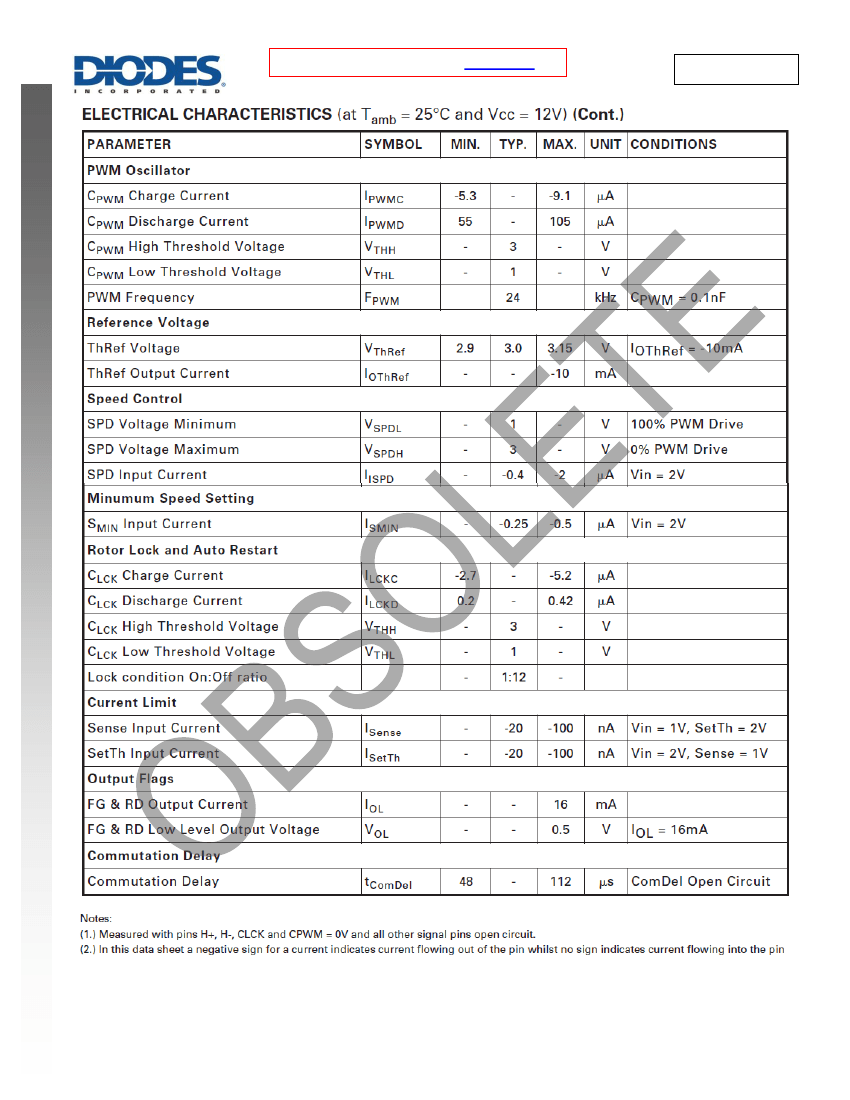

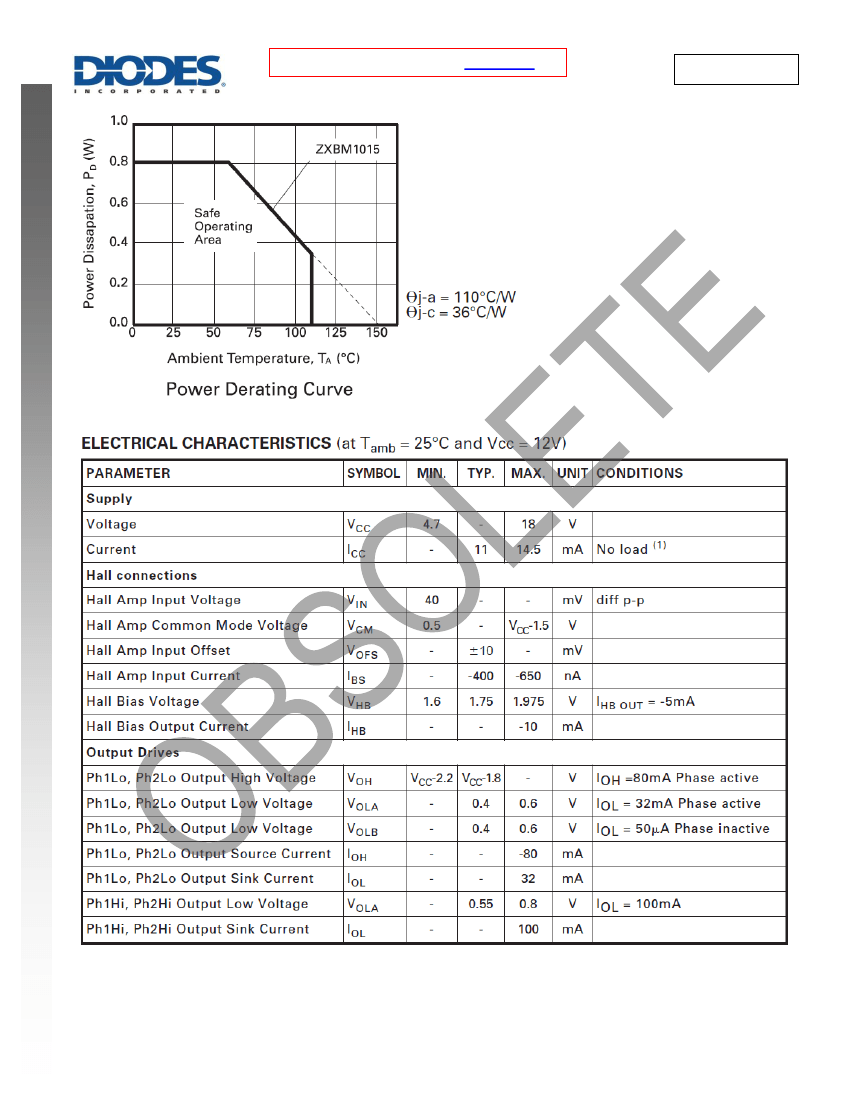

VARIABLE SPEED SINGLE- PHASE BLDC MOTOR CONTROLLER

OBSOLETE – PART DISCONTINUED

ZXBM1015

Document number: DS33429 Rev. 4 - 4

1 of 10

www.diodes.com

December 2017

	ZXBM1015ST20TC	ZXBM1015
Description	BRUSHLESS DC MOTOR CONTROLLER, 0.145 A, PDSO20	BRUSHLESS DC MOTOR CONTROLLER, 0.145 A, PDSO20
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	110 Cel	110 Cel
Minimum operating temperature	-40 Cel	-40 Cel
Maximum supply/operating voltage	18 V	18 V
Minimum supply/operating voltage	4.7 V	4.7 V
Rated supply voltage	12 V	12 V
Processing package description	LEAD FREE, MO-153AC, TSSOP-20	LEAD FREE, MO-153AC, TSSOP-20
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR
Package Size	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mount	Yes	Yes
Terminal form	GULL WING	GULL WING
Terminal spacing	0.6500 mm	0.6500 mm
terminal coating	MATTE TIN	MATTE TIN
Terminal location	DUAL	DUAL
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY
Temperature level	INDUSTRIAL	INDUSTRIAL
Maximum output current	0.1450 A	0.1450 A
Analog IC other types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
