ZXM66P02N8_15: Description20V P-CHANNEL ENHANCEMENT MODE MOSFET; File Size619KB，6 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet View All

ZXM66P02N8_15 Overview

20V P-CHANNEL ENHANCEMENT MODE MOSFET

Preview

Download Datasheet

View All

A Product Line of

Diodes Incorporated

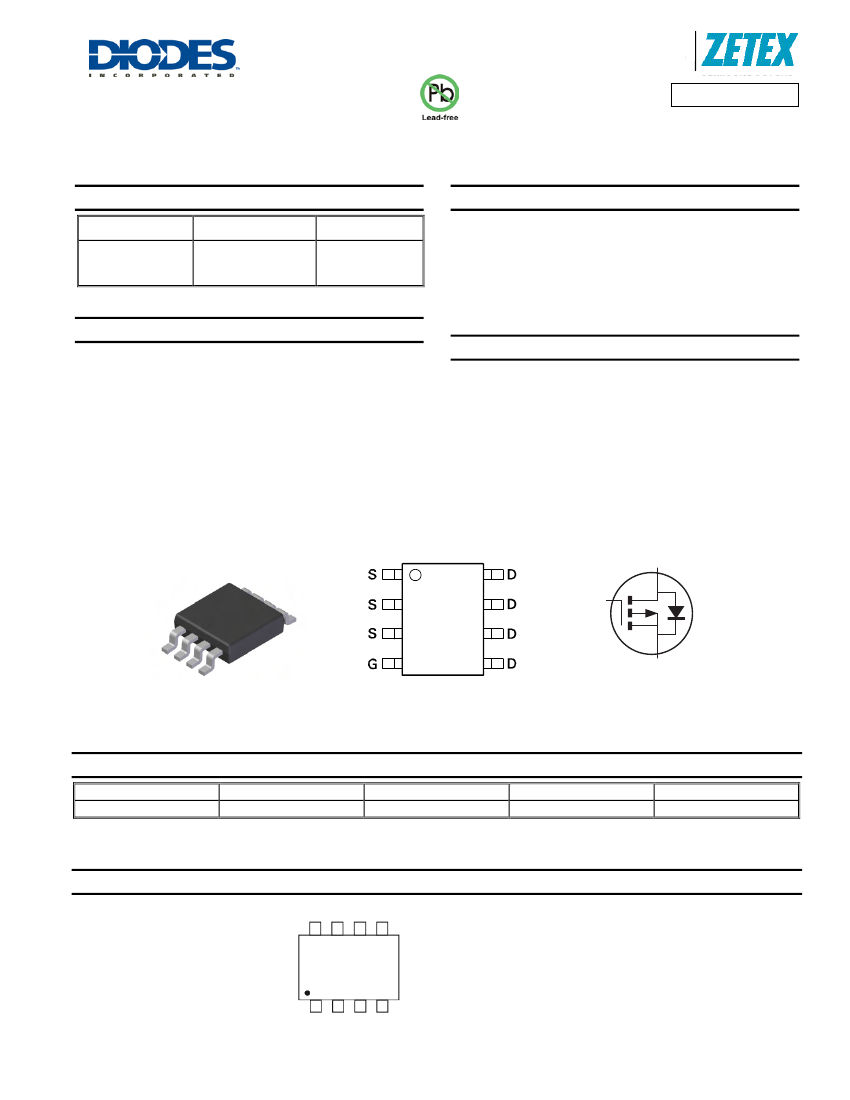

ZXM66P02N8

20V P-CHANNEL ENHANCEMENT MODE MOSFET

Please click here to visit our online spice models database.

Product Summary

(BR)DSS

-20V

DS(on)

0.025Ω

-8.0A

Features and Benefits

•

High pulse current handling in linear mode

Low on-resistance

Fast switching speed

Low gate drive

Low profile SOIC package

Description and Applications

This high density MOSFET utilizes a unique structure that combines

the benefits of a low on-resistance with fast switching speed. This

makes it ideal for high efficiency, low voltage power management

applications. Compared to trenchFET technology, this MOSFET

structure has an intrinsically higher pulse current handling capability

in linear mode.

•

Inrush protection circuits

DC-DC Converters

Power management functions

Disconnect switches

Motor control

Mechanical Data

•

Case: SO-8

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals Connections: See diagram below

Terminals: Finish - Matte Tin annealed over Copper lead frame.

Solderable per MIL-STD-202, Method 208

Weight: 0.074 grams (approximate)

SO-8

Top View

Equivalent Circuit

Ordering Information

Product

ZXM66P02N8TA

Notes:

(Note 1)

Marking

See below

Reel size (inches)

Tape width (mm)

Quantity per reel

500

1. For packaging details, go to our website.

Marking Information

ZXM

66P02

YYWW

ZXM = Product Type Marking Code, Line 1

66P02 = Product Type Marking Code, Line 2

YYWW = Date Code Marking

YY = Year (ex: 09 = 2009)

WW = Week (01-52)

ZXM66P02N8

Document Number DS31965 Rev. 2 - 2

1 of 5

www.diodes.com

October 2009

A Product Line of

Diodes Incorporated

ZXM66P02N8

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

Life support devices or systems are devices or systems which:

are intended to implant into the body, or

support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

ZXM66P02N8

Document Number DS31965 Rev. 2 - 2

5 of 5

www.diodes.com

October 2009
