Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
-200V
Description
This new generation trench MOSFET features a unique structure
combining the benefits of low on-resistance and fast switching,
making it ideal for high efficiency power management applications.
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (Approximate)
Applications
Active clamping of primary aide MOSFETs in 48 Volt DC-DC
converters
D

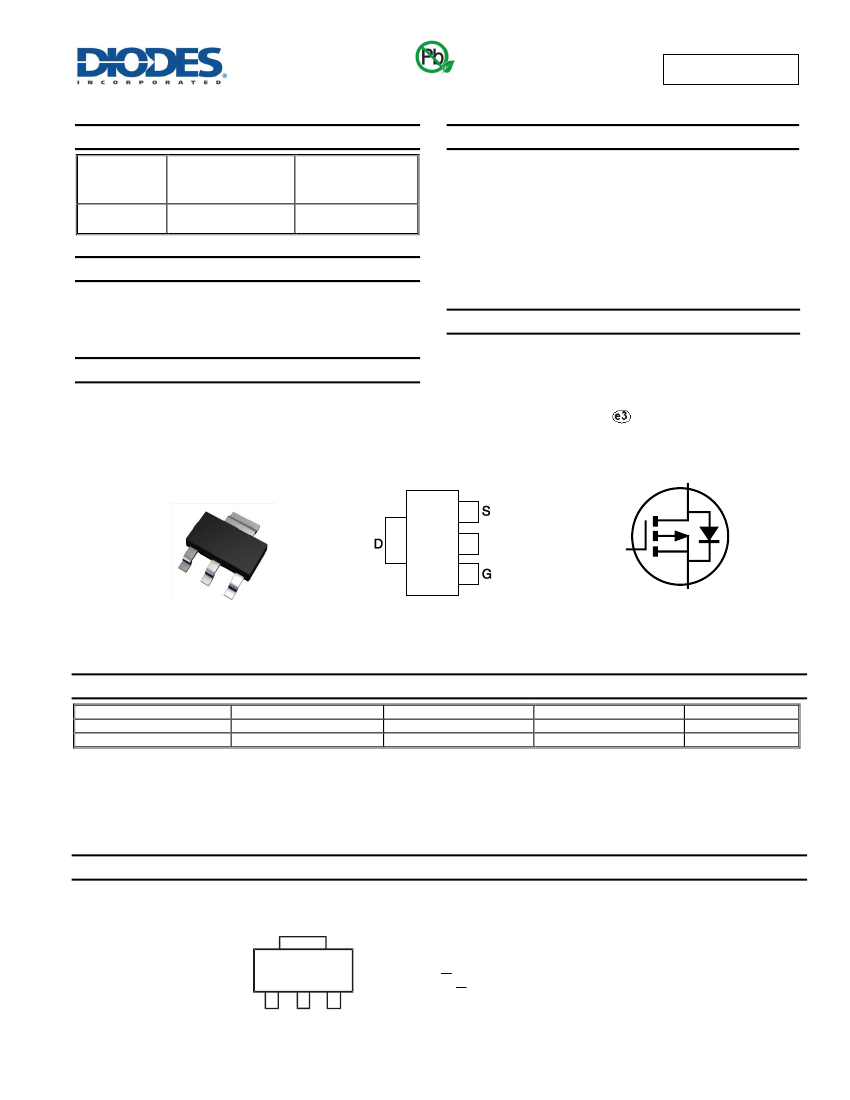

SOT223
N/C
G
S
Top View
Pin Out - Top
View
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
ZXMP2120G4TA
ZXMP2120G4TC
Notes:
Marking
ZXMP2120
ZXMP2120
Reel size (inches)
7
13
Tape width (mm)
12
12
Quantity per reel
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
