ZXMP6A17GQ

Description
POWER, FET
Categorysemiconductor    Discrete semiconductor
File Size511KB,9 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

ZXMP6A17GQ Overview

POWER, FET

ZXMP6A17GQ Parametric

Parameter NameAttribute value
stateActive
structureSingle
drain_current_max__abs___id_4.3 A
field effect transistor technologyMETAL-OXIDE SEMICONDUCTOR
Maximum operating temperature150 Cel
larity_channel_typeP-CHANNEL
wer_dissipation_max__abs_3.9 W
sub_categoryOther Transistors
surface mountYES
Green

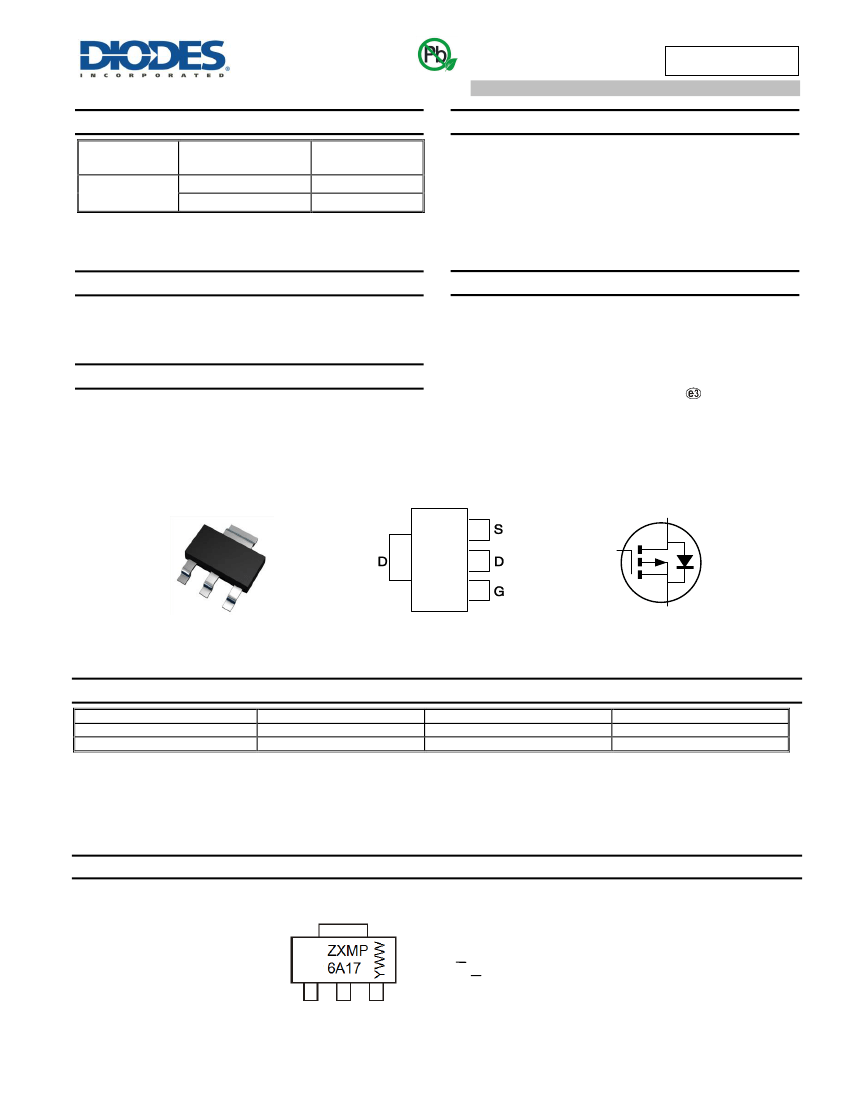

ZXMP6A17GQ
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
ADVANCE INFORMATION
BV
DSS
-60V
R
DS(on)
125mΩ @ V
GS
= -10V
190mΩ @ V
GS
= -4.5V
I
D
T
A
= +25°C
-4.3A
-3.5A
Features and Benefits
Fast Switching Speed
Low Gate Drive
Low Input Capacitance
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description
This MOSFET is designed to minimize the on-state resistance yet
maintain superior switching performance, which makes it ideal for
high-efficiency power management applications.
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish—Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
Motor Control
DC-DC Converters
Power Management Functions
Uninterrupted Power Supply
SOT223
D
G
S
Top View
Pin Out—Top View
Equivalent Circuit
Ordering Information
(Notes 4 & 5)
Part Number
ZXMP6A17GQTA
ZXMP6A17GQTC
Notes:
Compliance
Automotive
Automotive
Case
SOT223
SOT223
Packaging
1000/Tape & Reel
4000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/.
5. For packaging details, see http://www.diodes.com/products/packages.html.
Marking Information
SOT223
ZXMP6A17 = Product Type Marking Code
YWW = Date Code Marking
Y or Y= Year (ex: 8 = 2018)
WW or WW = Week (01 - 53)
ZXMP6A17GQ
Document Number DS36686 Rev. 4 - 2
1 of 8
www.diodes.com
June 2018
© Diodes Incorporated
