100% Unclamped Inductive Switch (UIS) Test in Production
Low On-Resistance
Fast Switching Speed
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Available (Note 4)
Description
This MOSFET is designed to minimize on-state resistance and yet
maintain superior switching performance, making it ideal for high
efficiency power management applications.
Mechanical Data

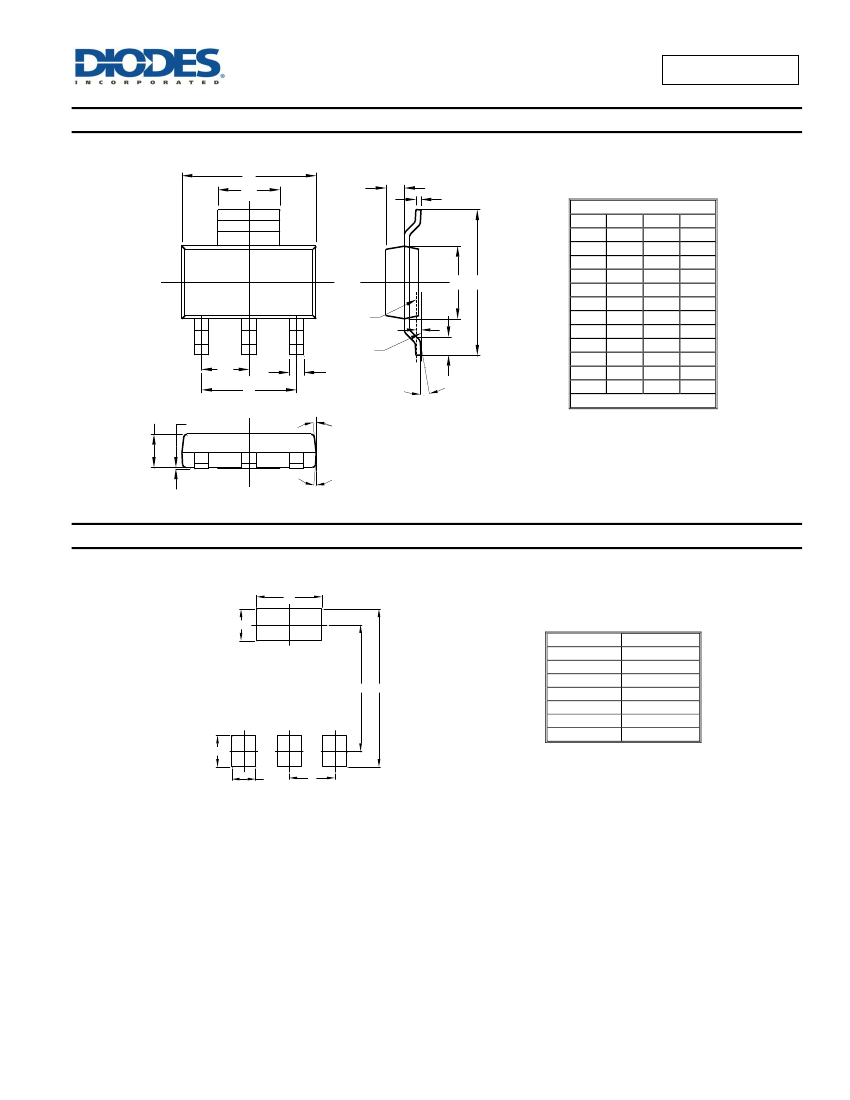

Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.112 grams (Approximate)
Applications
Motor Control
Transformer Driving Switch
DC-DC Converters
Power Management Functions
Uninterrupted Power Supply

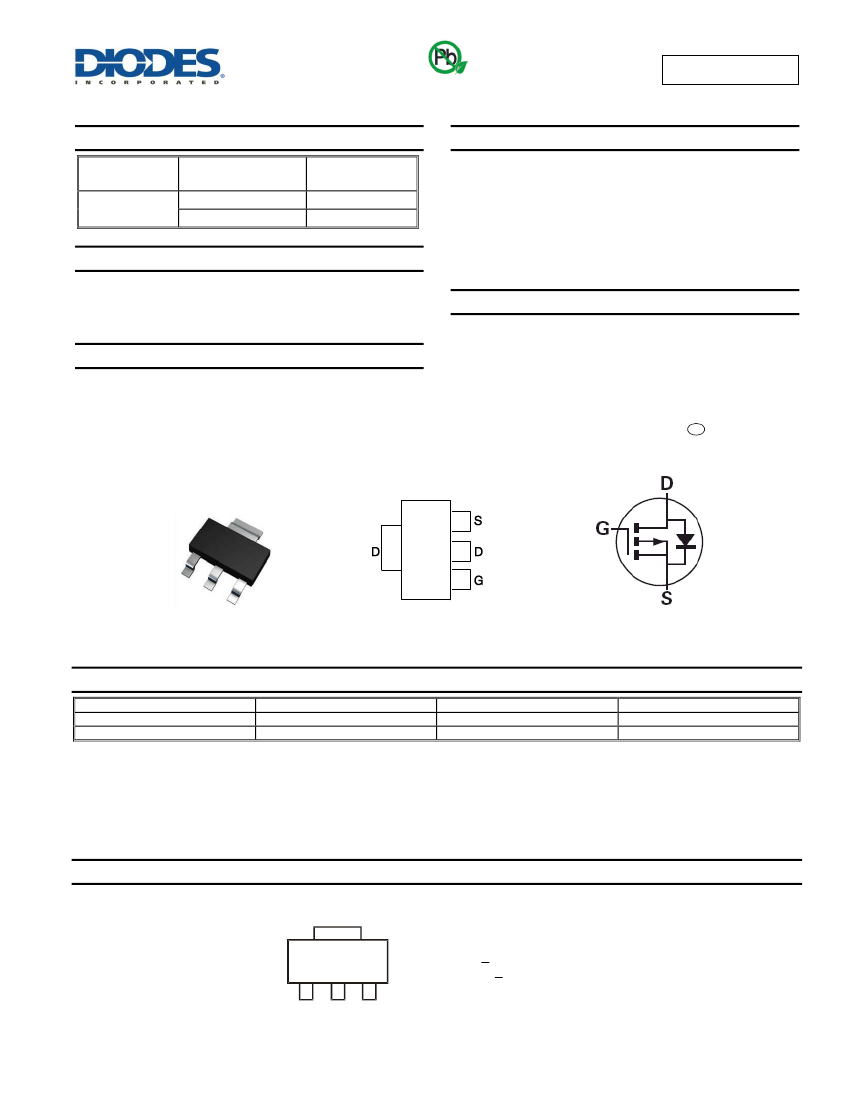

SOT223
Top View
Pin Out - Top
View
Equivalent Circuit
Ordering Information
(Notes 4 & 5)
Part Number
ZXMP7A17GQTA
ZXMP7A17GQTC
Notes:
Qualification
Automotive
Automotive
Case
SOT223
SOT223
Packaging
1,000/Tape & Reel
4,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
