24507704010861 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 24507704010861

24507704010861: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size190KB，6 Pages; ManufacturerAVX

Download Datasheet Parametric View All

24507704010861 Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,

24507704010861 Parametric

Parameter Name	Attribute value
Objectid	1861845506
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	5077
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

Fine Pitch SMT

Board to Board Connectors

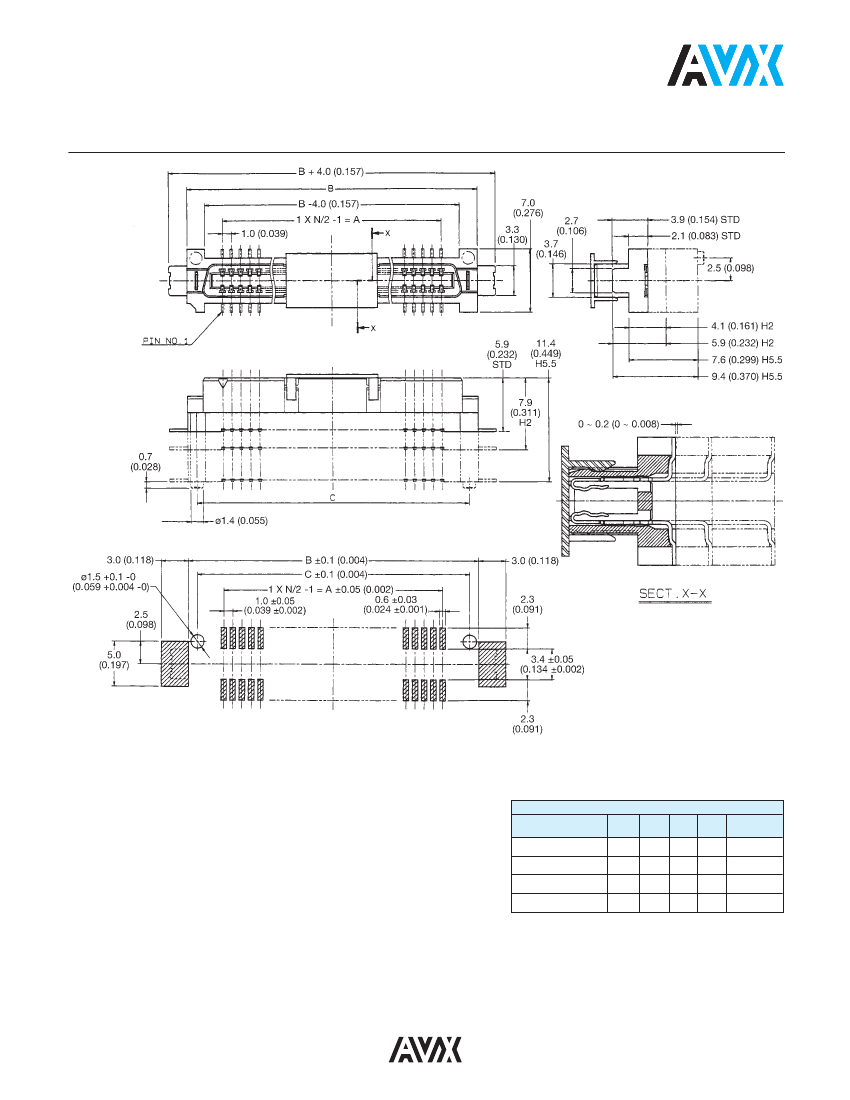

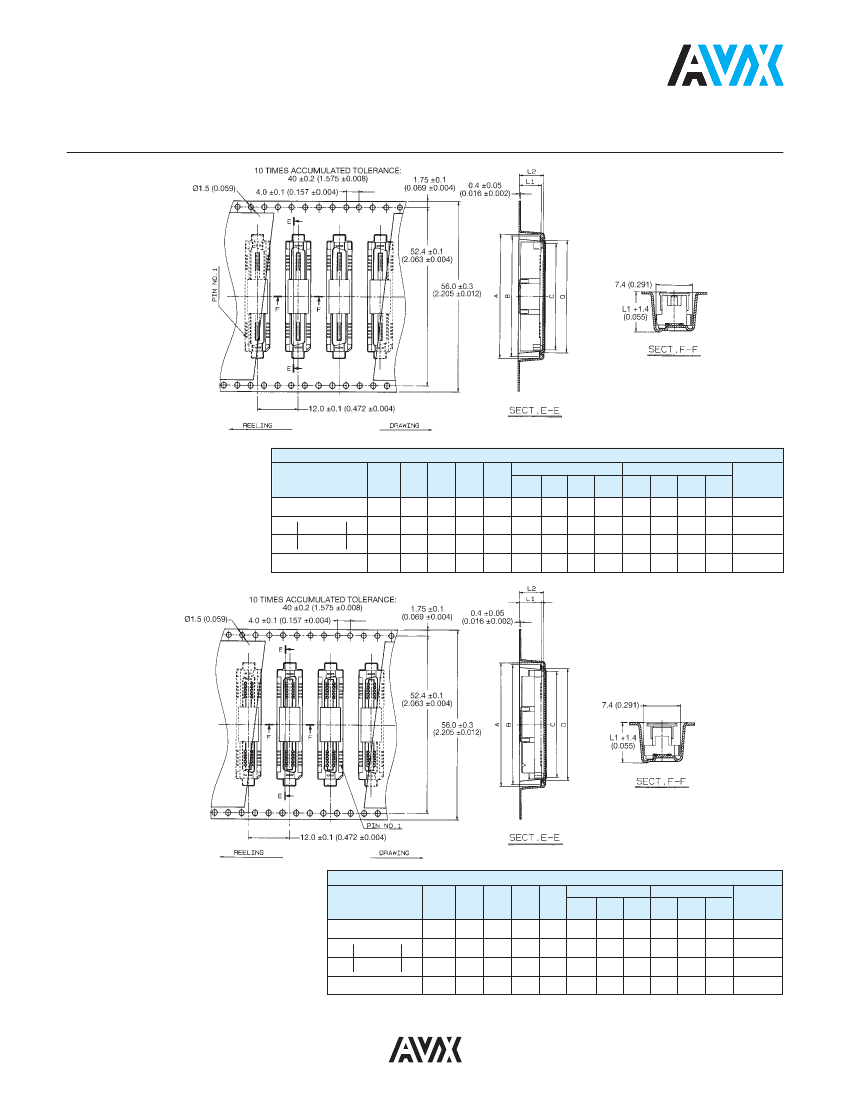

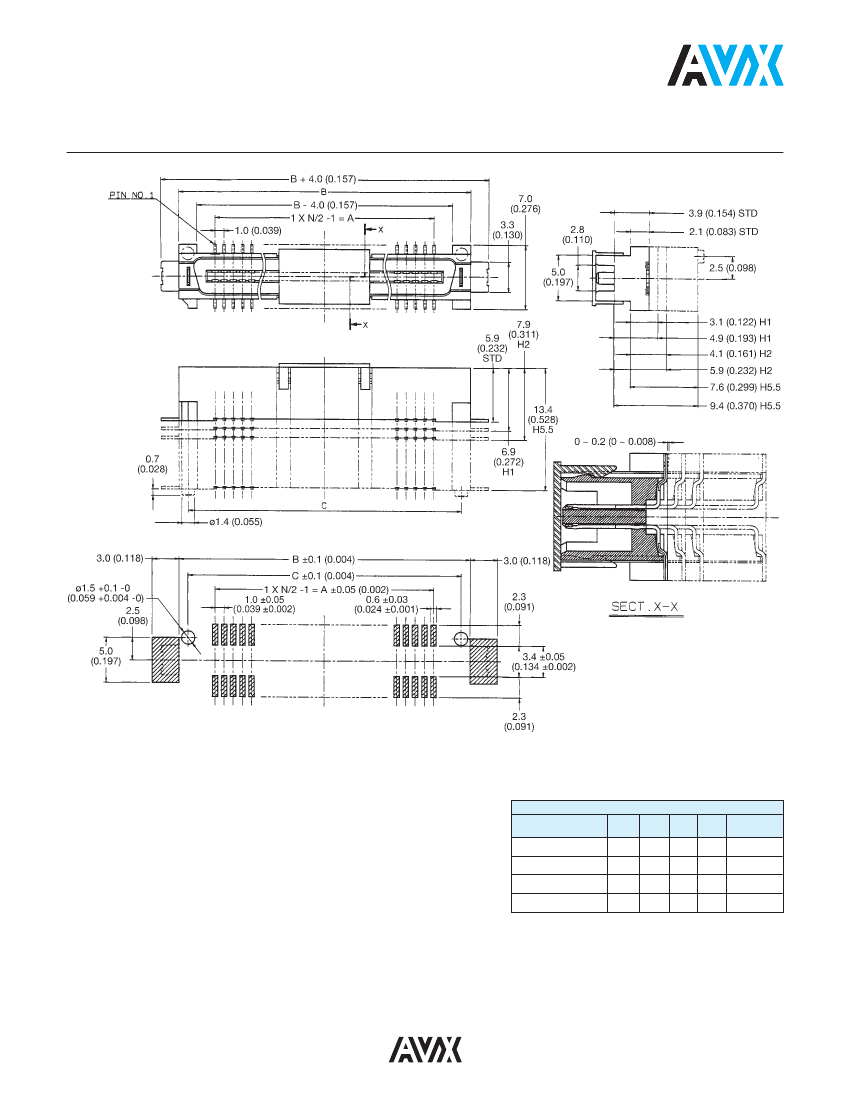

Series 5077

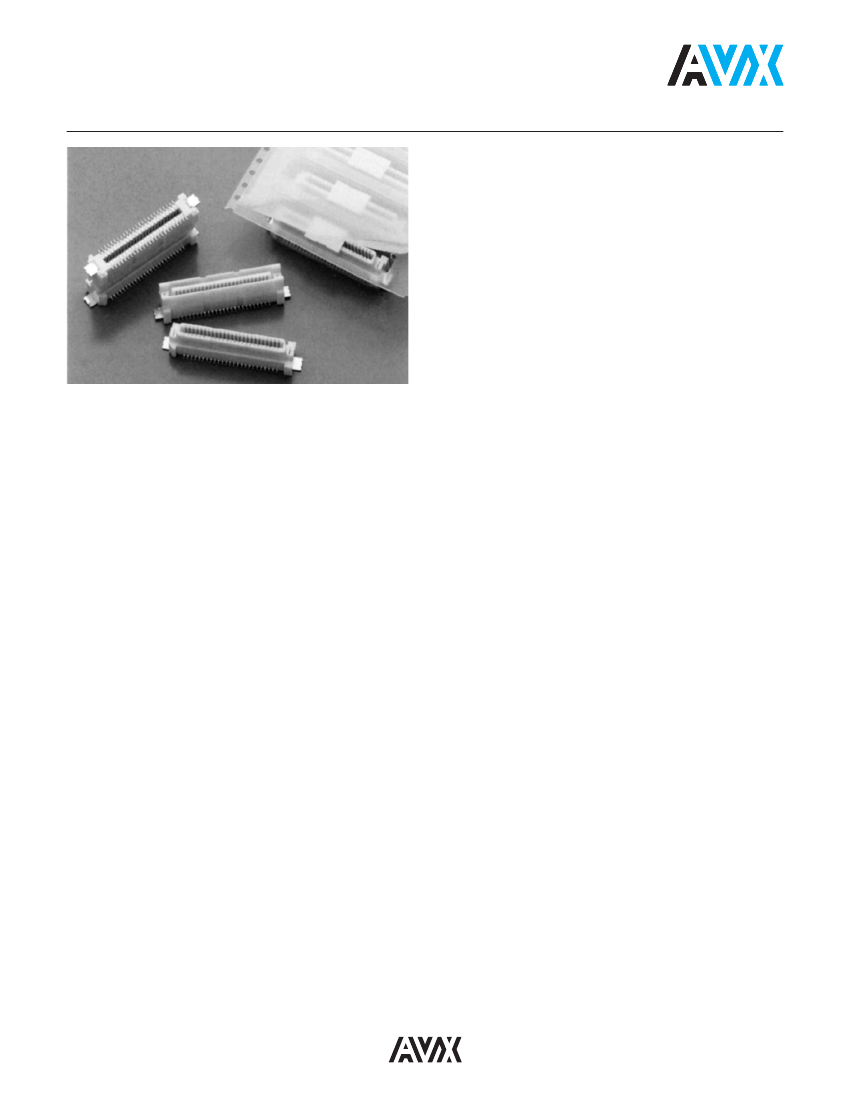

Series 5077 is the board to board, fine pitch and low-profile

connector designed for the demand of high density circuit in

the market.

FEATURES

1.0mm pitch, 2 pieces board to board, SMT type connector.

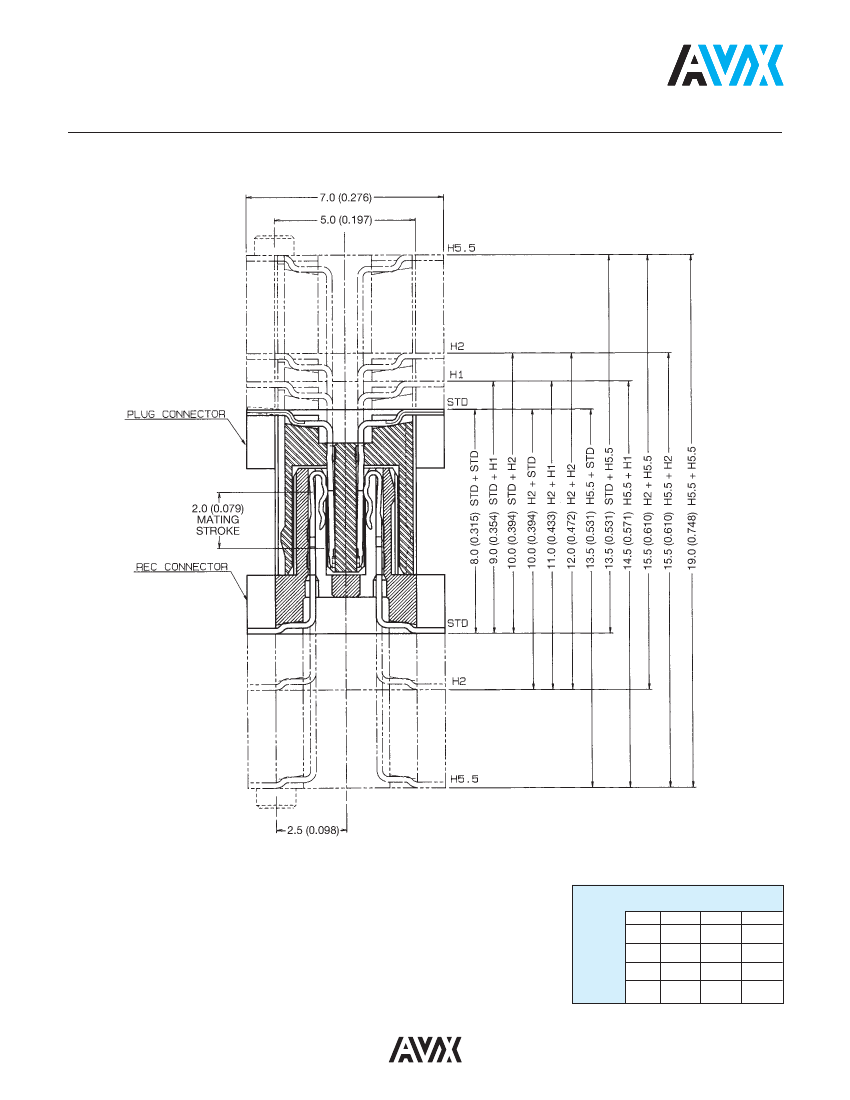

5077 series is designed to have 8.0mm-19.0mm of extended

mated height based on the same design concept with 5078

series.

The number of positions available for 5077 is 30, 40, 50 and 60.

SPECIFICATIONS

Series

Number of Contacts

Contact Spacing

Current Rating

Voltage Rating

D.W. Voltage

Insulator Material

Contact Material

Metal Tab

Mating Cycles

5077

30, 40, 50, 60

1.0mm

0.5A Max

100V Max

500V rms/min

PPS (UL94V-0)

Phosphor bronze, gold plating

(contact), solder plating (tail)

Phosphor bronze, solder plating

100
