9158 SOLO STACKER
GENERAL DESCRIPTION
The MOBO
®
series 9158 is a one-piece connector used to connect two PCBs
within mobile phones, pagers, PDAs, security, handheld scanners, etc. in a
cost-effective manner.
A standard range is available with 16, 20, 24 and 28 contacts to suit stack
heights of 1.90mm to 3.30mm. Other contact variants are also available up to
5.10mm, in custom housings. The SOLO STACKER can allow a spacing
tolerance of up to ±0.30mm and still provide reliable connections between the
PCBs, even if they are not parallel.
SOLO STACKER is designed for PCB surface mounting and is supplied in
tape and reel packaging. Gold plated pads on the mating PCB or suitable flex
circuits provide connection between the boards.
Whatever your requirements this SOLO STACKER can also be customized to
suit your applications.
APPLICATIONS
Suitable applications include:
• Mobile Phones
• PDA
• Medical
• PMR
• Industrial
• Security
• Handheld Scanner
KEY FEATURES AND BENEFITS
Single piece Connector – no mating half connector required to connect
two boards together which means:
• Reduced assembly time.
• Only one part to purchase and stock.
• Due to the unique contact design, the mating device does not have to
be parallel.
• Extremely robust when subjected to shock and vibration.
• Cost effective.
• Helps reduce tolerance accumulation within system.

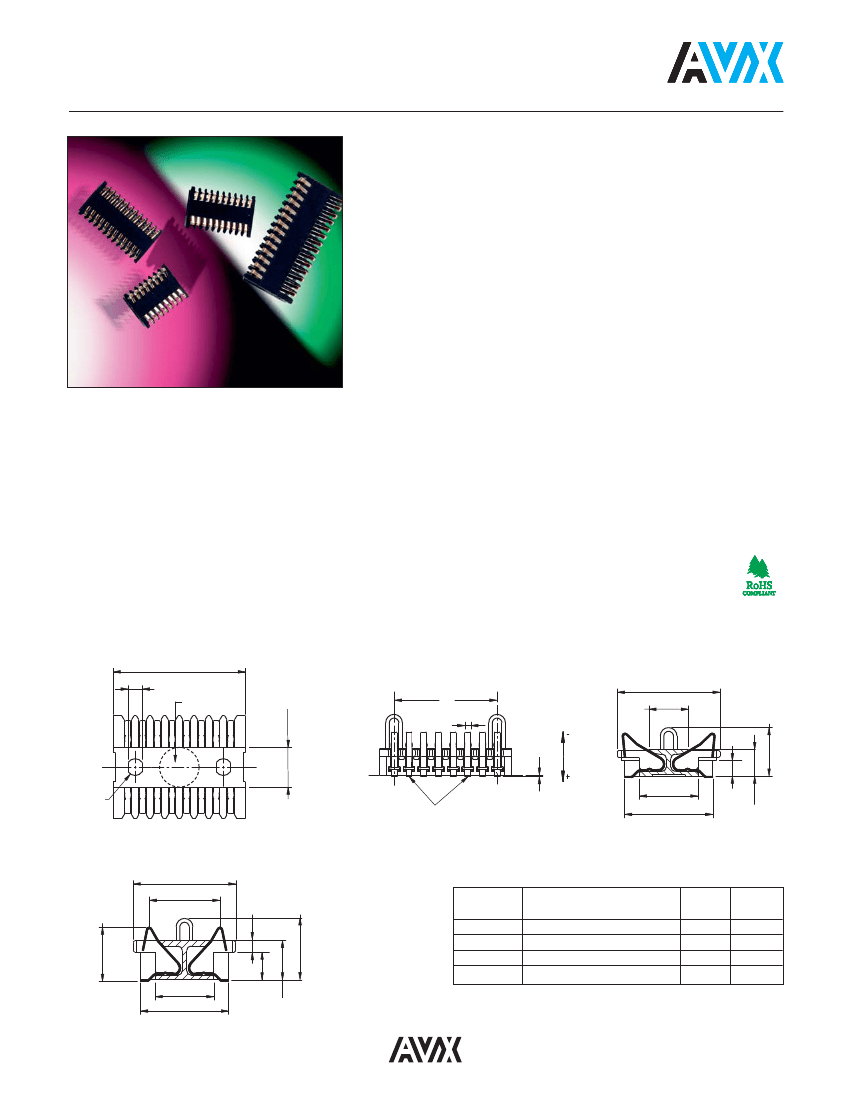

DRAWINGS AND DIMENSIONS
“B”
CONTACT PITCH 1.0 (0.039)
0.95 (0.037) REF
WEEK/YEAR
CODE
AVAILABLE VACUUM
PLACEMENT AREA
“A”
2.70
(0.106)
0.40 (0.016)
0/+0.20
(0/+0.008)
3.30
(0.130)
7.00 (0.276)
FOR VERSION STACK HEIGHT 020 & 025
4.00 (0.157)
Ø 1.15
(0.045)
TYP
2.70
(0.106)
MAX
ALL TAILS WITHIN 0.15 (0.006) MAX COPLANARITY TOLERANCE
1.05
(0.041)
1.80
(0.071)
6.00 (0.236)
FOR VERSION STACK HEIGHT 030
7.00 (0.276)
4.80 (0.189)
3.70 - 4.00
(0.146 - 0.157)
0.04
(0.002)
4.20
(0.165)
Number of
Positions
16
20
24
28
Part Number
00-9158-016-XXX-XXX
00-9158-020-XXX-XXX
00-9158-024-XXX-XXX
00-9158-028-XXX-XXX
A
7
9
11
13
B
9.00
11.00
13.00
15.00
4.00 (0.157)
6.00 (0.236)
1.90
(0.075)
2.70
(0.106)
A = Number of contact pitches at 1mm
B = Connector Length
25
9158 SOLO STACKER

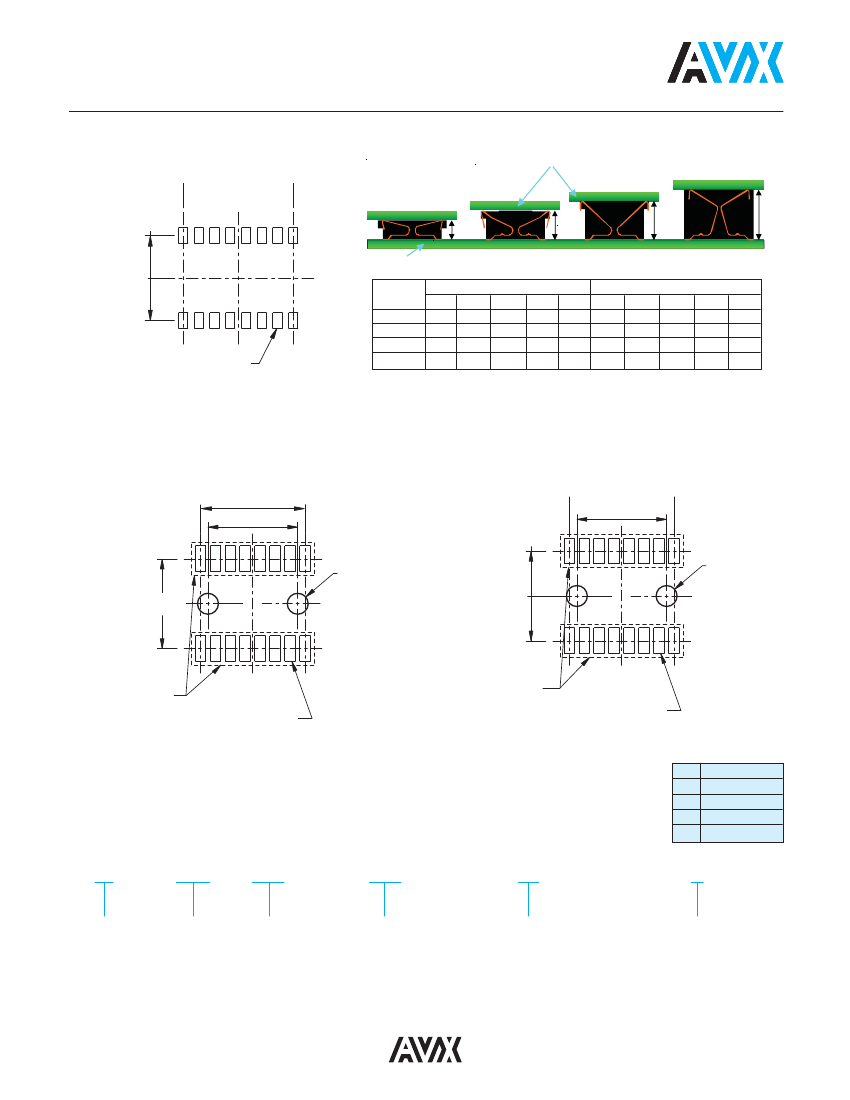

SMT PCB Footprint
Mating PCB Postions
CONTACT PITCH 1.0 (0.039)
5.40
(0.213)
2mm
(0.079)
3mm
(0.118)
4mm
(0.157)
5mm
(0.197)
SMT PCB
PAD 0.60 x 1.00
(0.024 x 0.039)
TIN PLATED
Mating
Height
2mm
3mm
4mm
5mm
Standard Positions
16
20
24
28
X
X
X
X
X
X
X
X
32
X
4
Special Positions
18
30
34
40
X
X
X
X
X
Other sizes available on request.
Mating PCB Footprint
for version stack height 020 & 030
CONTACT PITCH 1.0 (0.039)
“A”
“B”
Mating PCB Footprint
for version stack height 025
CONTACT PITCH 1.0 (0.039)
“B”
6.60
(0.260)
Ø 1.40
(0.055)
6.00
(0.236)
Ø 1.40
*
(0.055)
KEEP THESE AREAS
FREE FROM
SOLDER RESIST
KEEP THESE AREAS
FREE FROM
SOLDER RESIST
PAD 0.70 x 1.70
(0.028 x 0.067)
GOLD PLATED
PAD 0.70 x 1.70
(0.028 x 0.067)
GOLD PLATED
*
Used for Boss versions only.
B
16
20
24
28
Dim
6.00 (0.236)
8.00 (0.315)
10.00 (0.394)
12.00 (0.472)
HOW TO ORDER
00
9158
XXX
XXX
06
X
Prefix
00 = Standard
58 = Special
Series
No of
Ways
16 = 016
20 = 020
24 = 024
28 = 028
Stack Height
020 = 1.9mm to 2.1mm
025 = 2.1mm to 2.7mm
030 = 2.8mm to 3.3mm
Plating Variation
06 = Selective Gold
0.25µm
Gold Plated
Contact Nose,
Pure Tin Tail
PCB Location Bosses
1 = With PCB Location Bosses
2 = Without PCB Location Bosses
