Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
•
•
•
•
•
•
Case: TO252 (DPAK)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per MIL-
STD-202, Method 208
Weight: 0.34 grams (approximate)
Applications
•
•
•
•
•
•
DC - DC Converters
Power Switches
IGBT & MOSFET Gate Drivers
Motor Control
Automotive Circuits
Siren Drivers

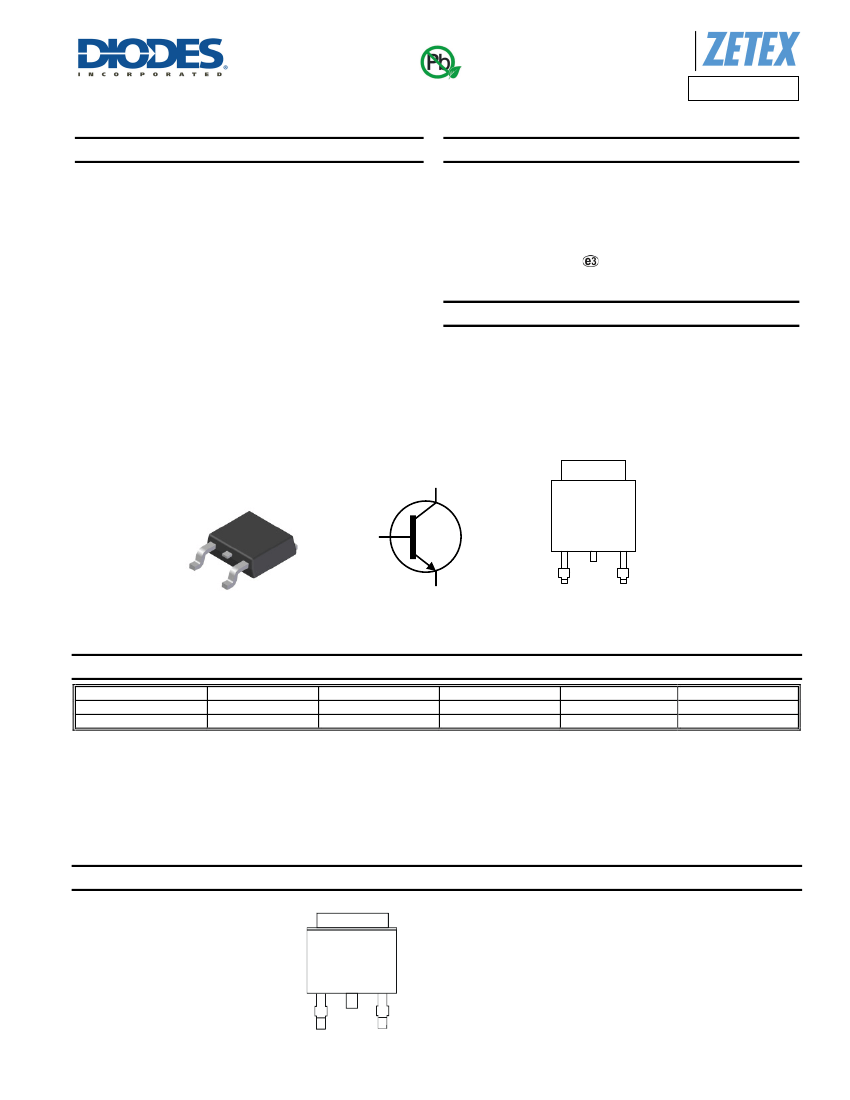

C
TO252
C
B
C
E
Top View
Equivalent Circuit
B
E
Package Pin
Configuration
Ordering Information
(Note 5)
Product
ZXT690BKTC
ZXT690BKQTC
Notes:
Compliance
AEC-Q101
Automotive
Marking
ZXT690B
ZXT690B
Reel size (inches)
13
13
Tape width (mm)
16
16
Quantity per reel
2,500
2,500
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
