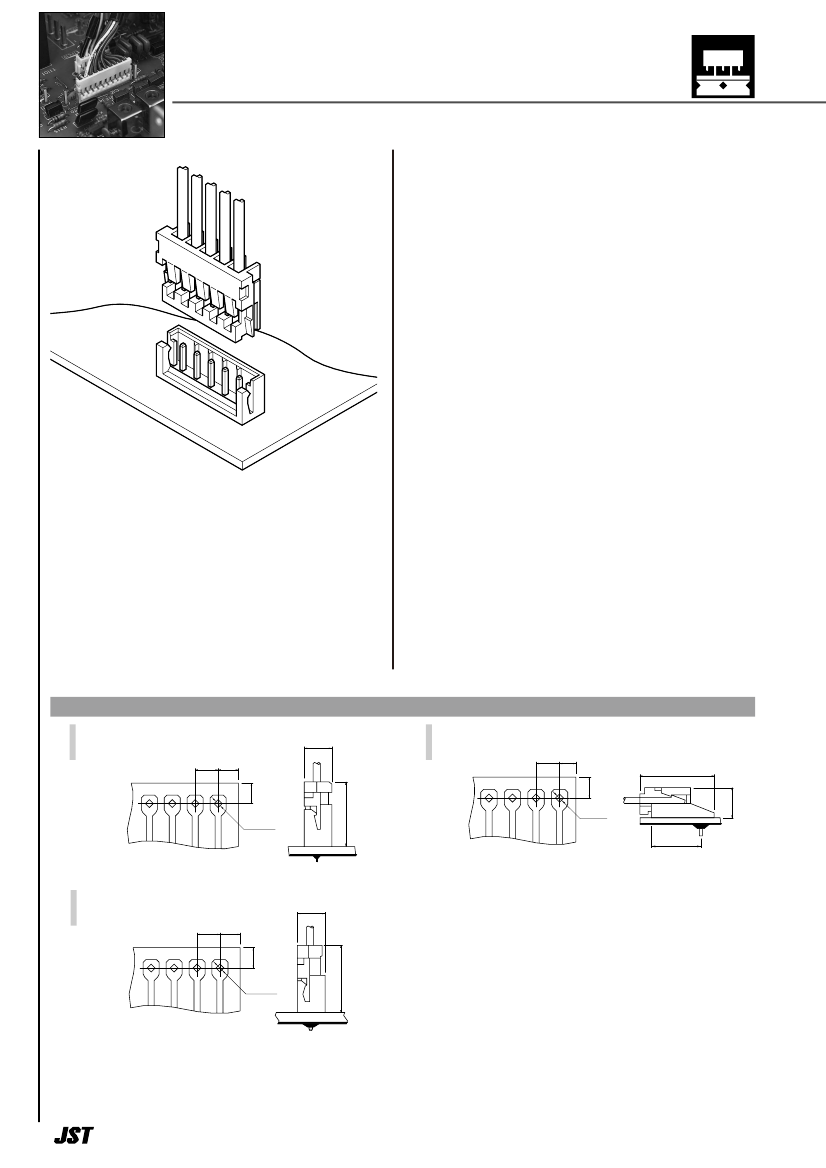

HR
CONNECTOR
Radial Tape
2.5mm pitch/Disconnectable Insulation displacement connectors
Specifications –––––––––––––––––––
JS
T5
This 2.5mm pitch connector for printed
circuit boards has a thin construction. The
in-line method provides high-density
capability to the end user.
• Twin U-slot insulation displacement section
• Thin design
• High reliability
• Strain relief
• Interchangeability
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: UL1007(Contact JST for details regarding other UL
styles.)
AWG #28, #26, #24
Conductor/7 strands, tin-coated
Insulation O.D./1.0 to 1.5mm
• Applicable PC board thickness: 0.8 to 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R50082349
Side entry type
0
Recognized E60389
PC board layout (viewed from soldering side) and Assembly layout
Top entry type
4.1
2.5
±0.05
2.5
min
2.2
min
2.5
±0.05
2.5
min
13.5
6.7
min
11.3
φ0.9
＋0.1
0
φ0.9
＋0.1
0
6.7
Top entry type on radial-tape
4.4
2.5
±0.05
2.5
min
2.2
min
φ0.9
＋0.1
0
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should be
larger. The dimensions above should serve as a guideline. Contact JST for details.
1
11.8
4.2
HR CONNECTOR
Socket
Model No.
Circuits
4.1
Dimensions (mm)
AWG #24
(black)
02HR-4K-P-N
03HR-4K-P-N
04HR-4K-P-N
05HR-4K-P-N
06HR-4K-P-N
07HR-4K-P-N
08HR-4K-P-N
09HR-4K-P-N
10HR-4K-P-N
11HR-4K-P-N
12HR-4K-P-N
13HR-4K-P-N
*15HR-4K-P-N
A
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
35.0
AWG #28
(green)
02HR-8M-P-N
03HR-8M-P-N
04HR-8M-P-N
05HR-8M-P-N
06HR-8M-P-N
07HR-8M-P-N
08HR-8M-P-N
09HR-8M-P-N
10HR-8M-P-N
11HR-8M-P-N
12HR-8M-P-N
13HR-8M-P-N
―
AWG #26
(natural/white)
02HR-6S-P-N
03HR-6S-P-N
04HR-6S-P-N
05HR-6S-P-N
06HR-6S-P-N
07HR-6S-P-N
08HR-6S-P-N
09HR-6S-P-N
10HR-6S-P-N
11HR-6S-P-N
12HR-6S-P-N
13HR-6S-P-N
*15HR-6S-P-N
B
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
40.0
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
2
3
4
5
10.3
6
7
8
9
10
3.6
2.5
2.5
A
B
11
12
13
15
Material and Finish
Contact: coppe alloy, tin-plated (reflow treatment)
Housing: PA 66, UL94V-0
¨
Note: 1. Not TU V approved.
2. *Marked products are not also UL/CSA approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
02HR-4K-P-N-
standard color AWG#28: M…green, AWG#26: S…natural (white)
AWG#24: K…black
R…red TR…tomato red Y…yellow L…lemon yellow
N…brown E…blue O…orange
Shrouded header
The shrouded headers are interchangeable with those of the EH and HR crimp style connectors.
