1206PC105KAT1A: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 250 V, X7R, 0.001 uF, SURFACE MOUNT, 1206; CategoryPassive components; File Size93KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

1206PC105KAT1A Overview

CAPACITOR, CERAMIC, MULTILAYER, 250 V, X7R, 0.001 uF, SURFACE MOUNT, 1206

1206PC105KAT1A Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	250 V
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE Tin OVER Nickel
Installation features	surface mount
Manufacturer Series	1206
size code	1206
capacitance	1.00E-3 uF
packaging shape	Rectangular PACKAGE
Capacitor type	ceramics
Terminal shape	WRAPAROUND
Temperature Coefficient	15%
Temperature characteristic code	×7R
multi-layer	Yes

Preview

Download Datasheet

View All

Tip & Ring

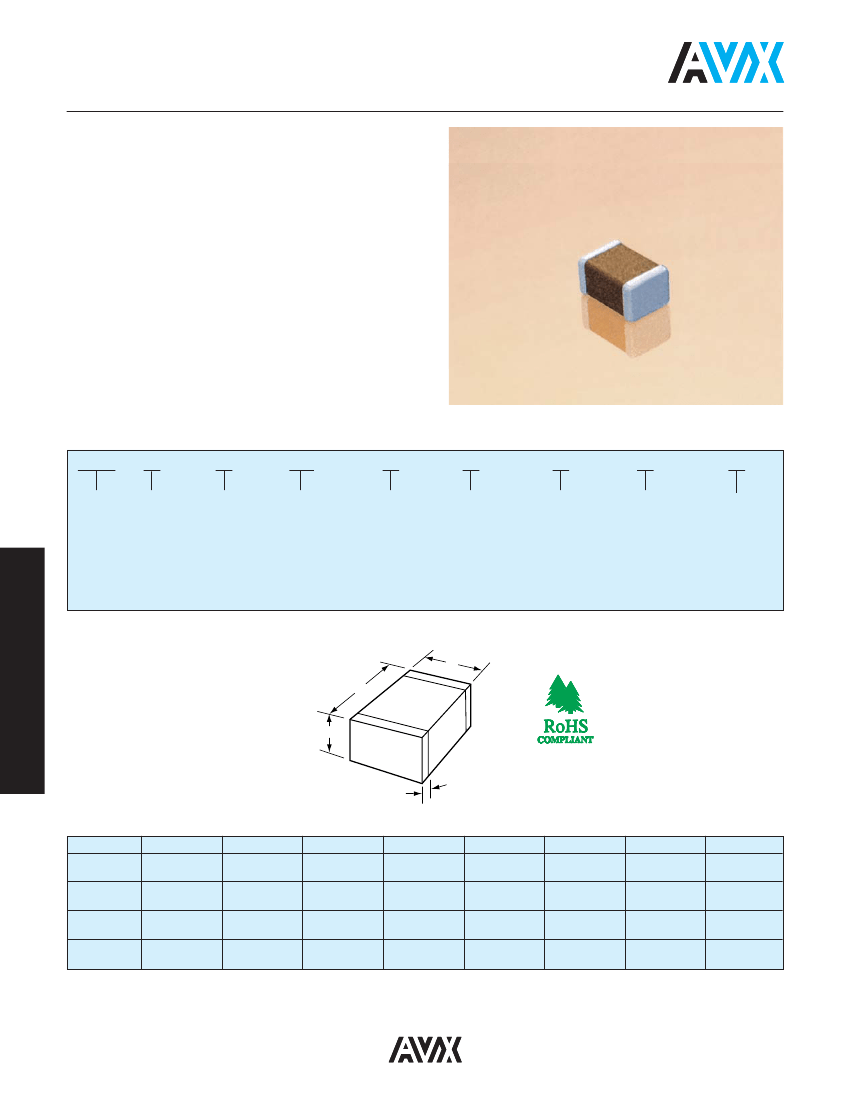

Multilayer Ceramic Chip Capacitors

AVX “Tip & Ring” or “ring detector” Multilayer Ceramic Chip

Capacitors are designed as a standard telecom filter

to block -48 Volts DC telephone line voltage and pass

subscriber’s AC signal pulse (16 to 25Hz, 70 to 90Vrms).

The typical ringing signal is seen on figure on page 101. The

ringer capacitors replace large leaded film capacitors and

are ideal for telecom/modem applications. Using AVX “Tip &

Ring” capacitors not only saves valuable real estate on the

board and reduces the weight of overall product, but also

features standard surface mounting capabilities, so critical to

new and compact designs.

The AVX “Tip & Ring” capacitors are offered in standard

EIA sizes and standard values. They offer excellent high

frequency performance, low ESR and improved temperature

performance over film capacitors.

HOW TO ORDER

1812

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

Voltage

250 VDC

Telco

Rating

Temp

Coefficient

X7R

104

Capacitance

Code

(2 significant

digits + no.

of zeros)

Examples:

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 μF = 105

Capacitance

Tolerance

K = ±10%

M = ±20%

Test

Level

A = Standard

Special

Code

A = Standard

Packaging

Termination

1 = 7" Reel

T = Plated

3 = 13" Reel

Ni and Sn

(RoHS Compliant) 9 = Bulk

Z = FLEXITERM

100% Tin

(RoHS Compliant)

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

DIMENSIONS

Style

(L) Length

(W)Width

(T) Thickness

(t) terminal

millimeters (inches)

1206

1210*

1808*

1812*

1825*

2220*

2225*

0805

2.01 ± 0.20

3.20 ± 0.20

3.2 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.60 ± 0.30

5.60 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.220 ± 0.012) (0.220 ± 0.010)

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.2 ± 0.20

6.34 ± 0.30

5.10 ± 0.40

6.35 ± 0.25

(0.049 ± 0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.200 ± 0.016) (0.250 ± 0.010)

1.30 max.

(0.051 max.)

1.50 max.

(0.059 max.)

1.78 max.

(0.070 max.)

1.78 max.

(0.070 max.)

2.00 max.

(0.080 max.)

2.00max.

(0.080 max.)

2.00 max.

(0.080 max.)

2.00 max.

(0.080 max.)

0.50 ± 0.25

0.63 ± 0.38

(0.020 ± 0.010) (0.020 ± 0.010) (0.020 ± 0.010) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015)

*Reflow Soldering Only
