IDT71V3576S183PF: DescriptionCache SRAM, 128KX36, 3.3ns, CMOS, PQFP100, 14 X 20 MM, PLASTIC, TQFP-100; Categorystorage storage; File Size1MB，18 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71V3576S183PF Overview

Cache SRAM, 128KX36, 3.3ns, CMOS, PQFP100, 14 X 20 MM, PLASTIC, TQFP-100

IDT71V3576S183PF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1484456028
Parts packaging code	QFP
package instruction	14 X 20 MM, PLASTIC, TQFP-100
Contacts	100
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.A
Maximum access time	3.3 ns
Other features	ALSO REQUIRES 3.3V I/O SUPPLY
Maximum clock frequency (fCLK)	183 MHz
I/O type	COMMON
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
memory density	4718592 bit
Memory IC Type	CACHE SRAM
memory width	36
Humidity sensitivity level	3
Number of functions	1
Number of terminals	100
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP100,.63X.87
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Minimum standby current	3.14 V
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	14 mm

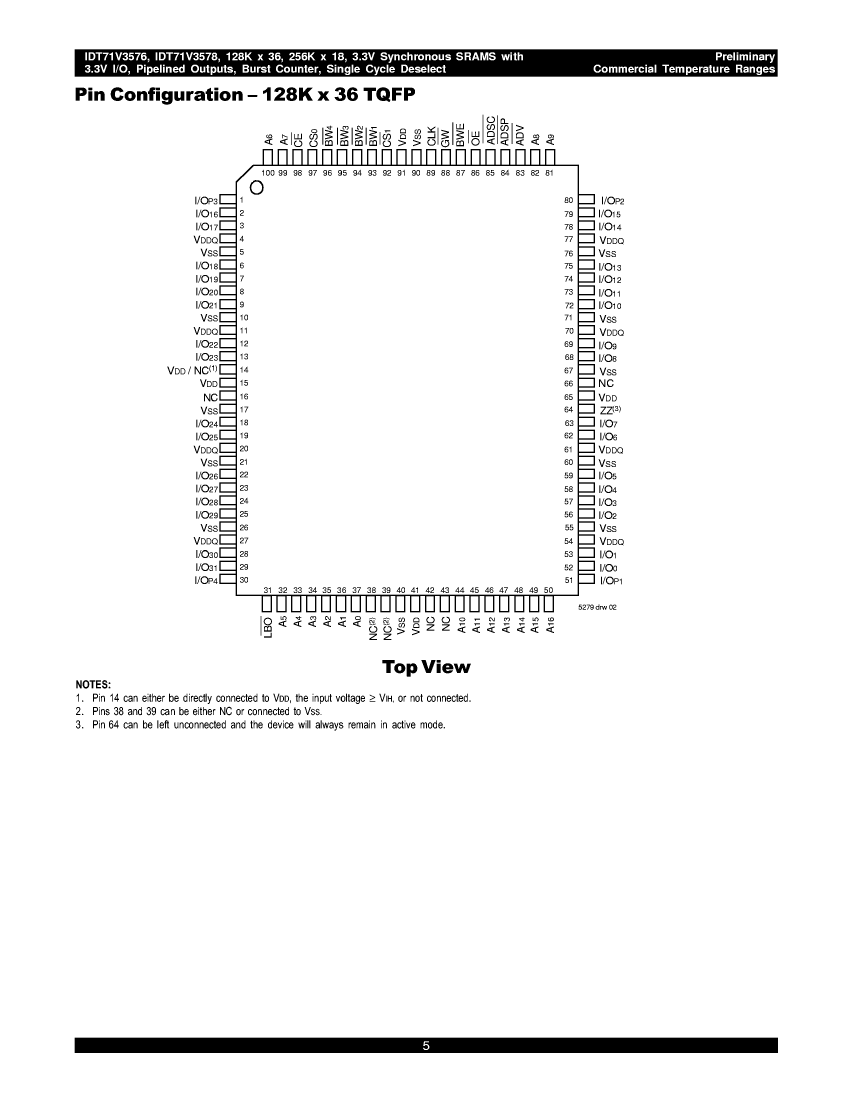

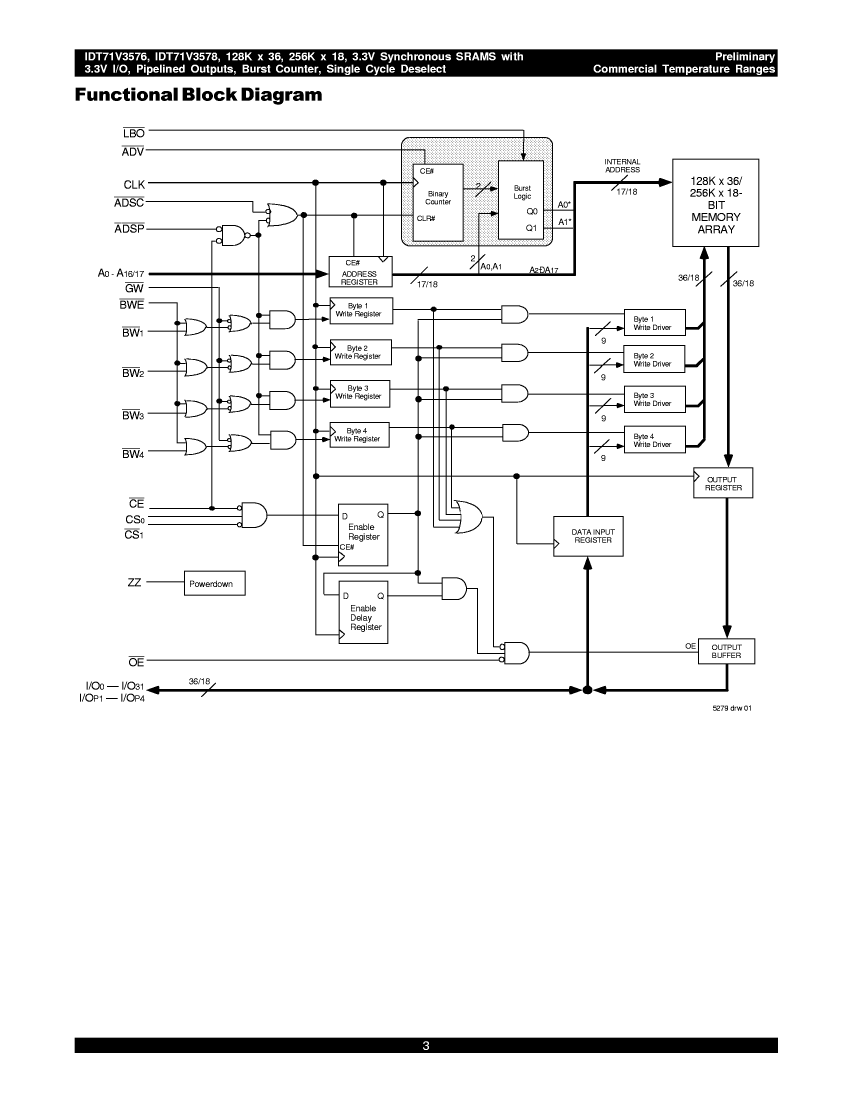

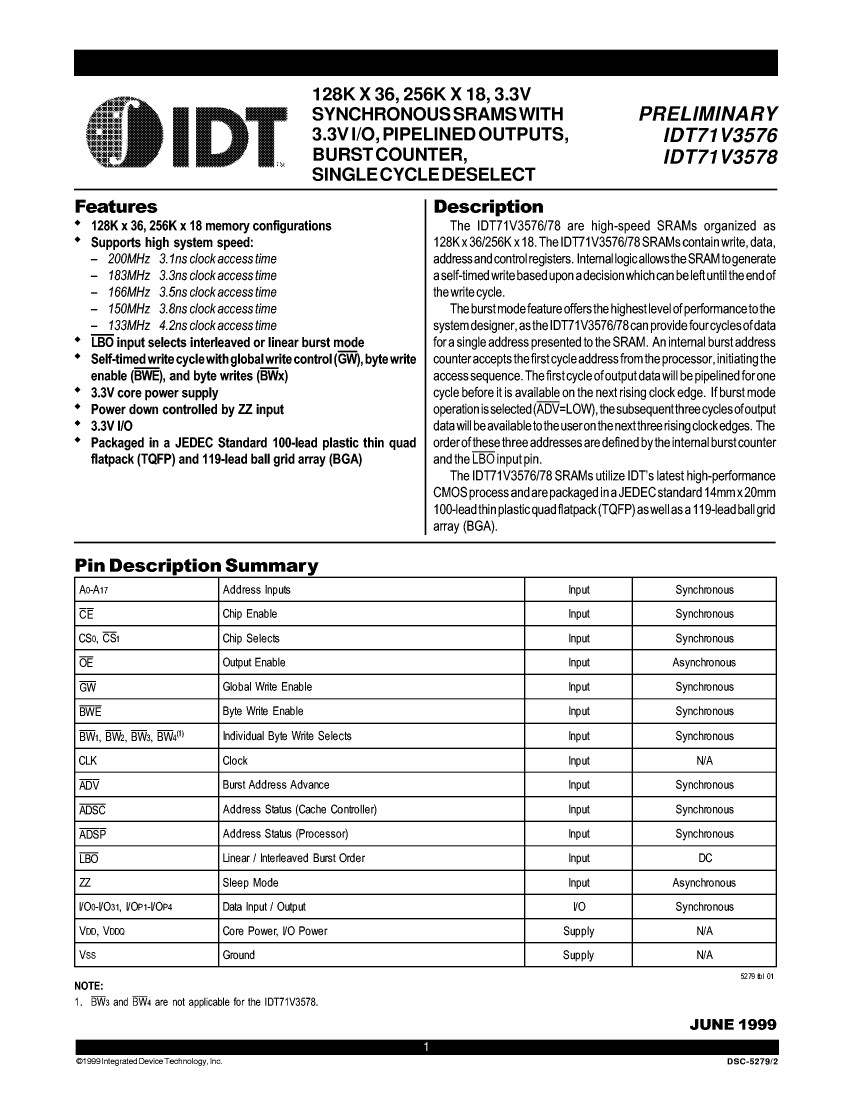

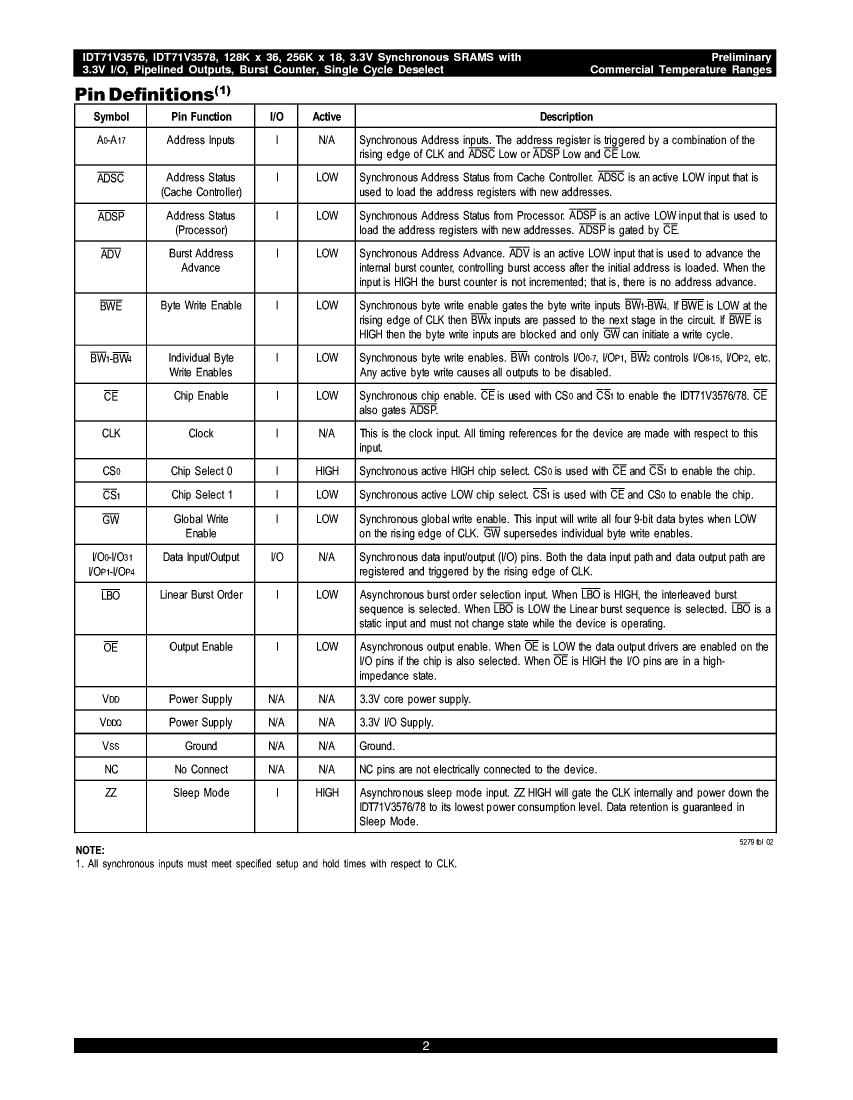

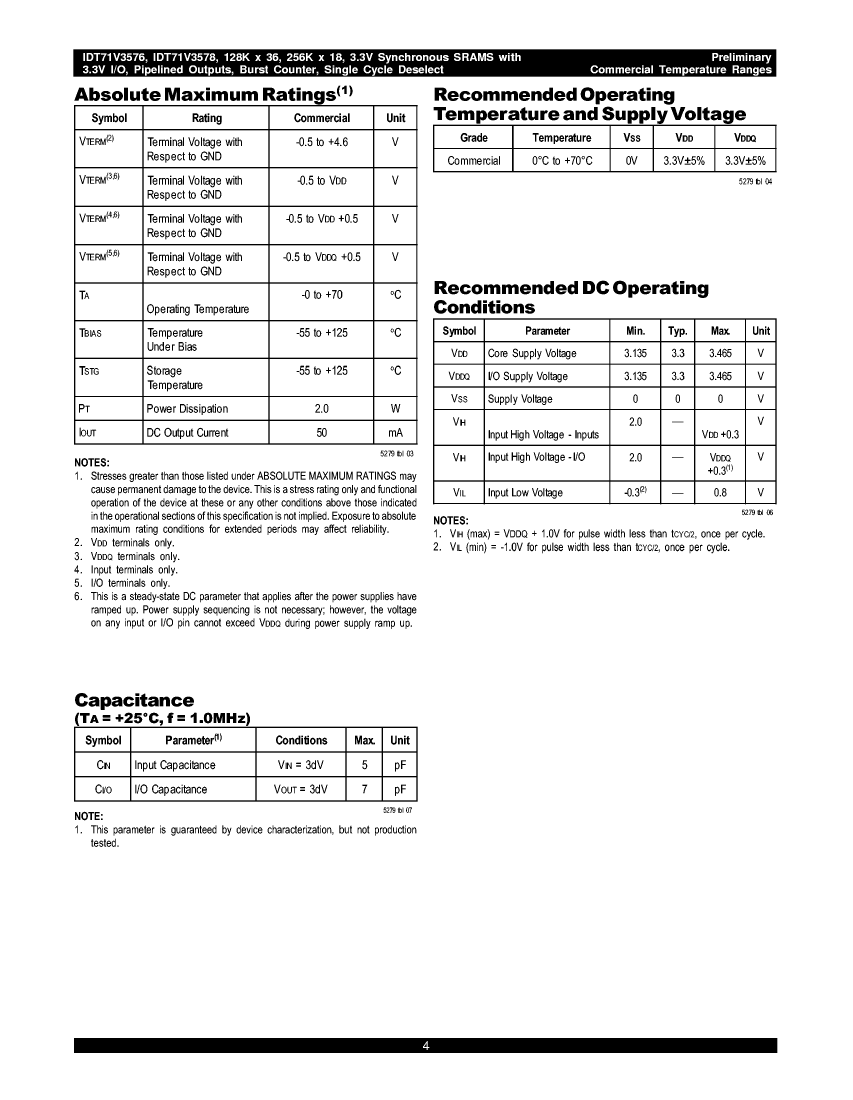

Preview

Download Datasheet

View All

IDT71V3576S183PF Related Products

	IDT71V3576S183PF	71V3576S183PF	71V3576S200PF
Description	Cache SRAM, 128KX36, 3.3ns, CMOS, PQFP100, 14 X 20 MM, PLASTIC, TQFP-100	Standard SRAM, 128KX36, 3.3ns, CMOS, PQFP100, PLASTIC, TQFP-100	Standard SRAM, 128KX36, 3.1ns, CMOS, PQFP100, PLASTIC, TQFP-100
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Objectid	1484456028	1164070662	1164070664
package instruction	14 X 20 MM, PLASTIC, TQFP-100	PLASTIC, TQFP-100	PLASTIC, TQFP-100
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	3.3 ns	3.3 ns	3.1 ns
Other features	ALSO REQUIRES 3.3V I/O SUPPLY	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE
Maximum clock frequency (fCLK)	183 MHz	183 MHz	200 MHz
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0	e0
memory density	4718592 bit	4718592 bit	4718592 bit
Memory IC Type	CACHE SRAM	STANDARD SRAM	STANDARD SRAM
memory width	36	36	36
Humidity sensitivity level	3	3	3
Number of functions	1	1	1
Number of terminals	100	100	100
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	128KX36	128KX36	128KX36
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	QFP	QFP
Encapsulate equivalent code	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	240	240	240
power supply	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	3.14 V	3.14 V	3.14 V
Maximum supply voltage (Vsup)	3.465 V	3.465 V	3.465 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	20	20	20
