LFXTAL062839BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL062839BULK

LFXTAL062839BULK: DescriptionParallel - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size108KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL062839BULK Overview

Parallel - Fundamental Quartz Crystal

LFXTAL062839BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8315713847
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	1 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

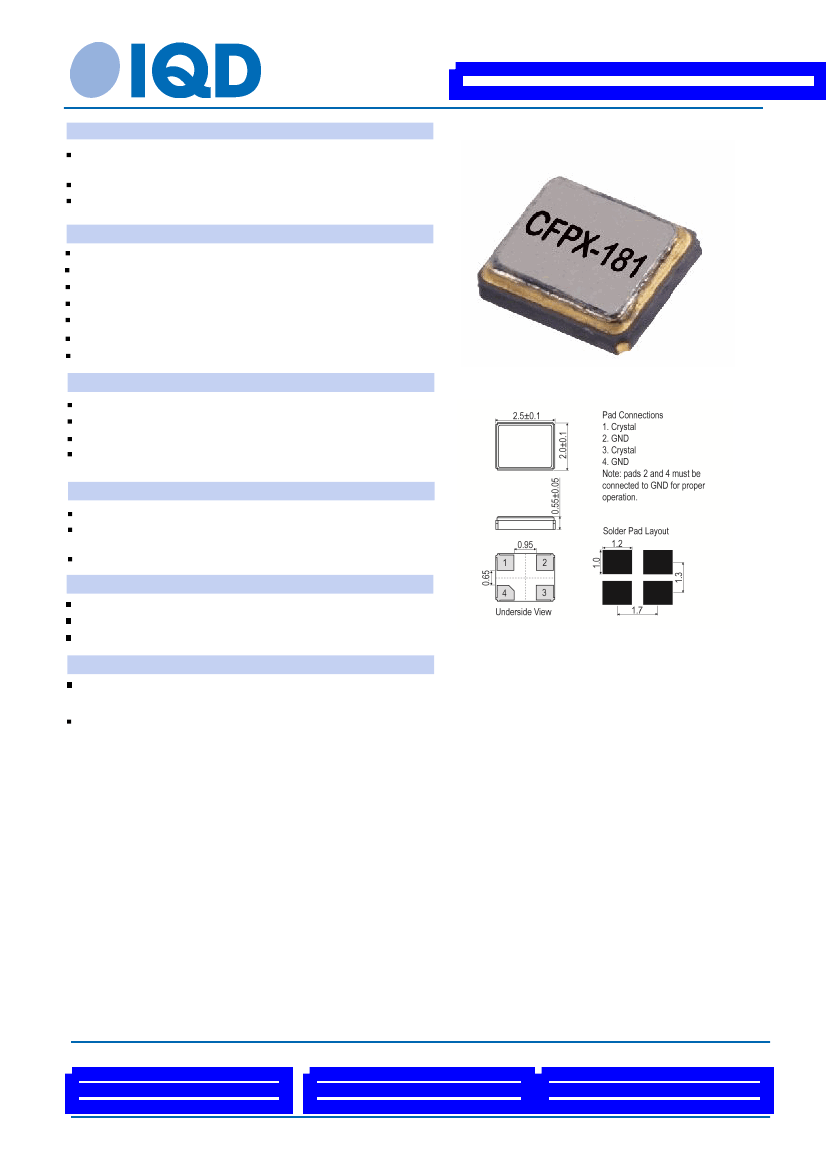

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL062839Bulk

Description

SMD quartz crystal hermetically sealed in a ceramic package

with a seam sealed metal lid

Model

CFPX-181

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

32.0MHz

±10.00ppm

@ 25°C

±15.00ppm

-40.00 to 85.00°C

Fundamental

±1ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

9.00pF

5pF max

100µW max

50.00Ω max

Drop: 75cm drop (3 times) onto hard wooden board

Vibration: 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually

perpendicular planes, duration 2hrs each plane

Storage Temperature Range: -40 to 90°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 4 Oct 16 13:03 using Part Data Sheet V1.00014
