LFXTAL062839REEL

Description
Parallel - Fundamental Quartz Crystal, 32MHz Nom
CategoryPassive components    Crystal/resonator
File Size107KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL062839REEL Overview

Parallel - Fundamental Quartz Crystal, 32MHz Nom

LFXTAL062839REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339123665
package instructionSMD, 4 PIN
Reach Compliance Codecompliant
Other featuresTR
Ageing1 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.0015%
frequency tolerance10 ppm
load capacitance9 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency32 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance50 Ω
surface mountYES

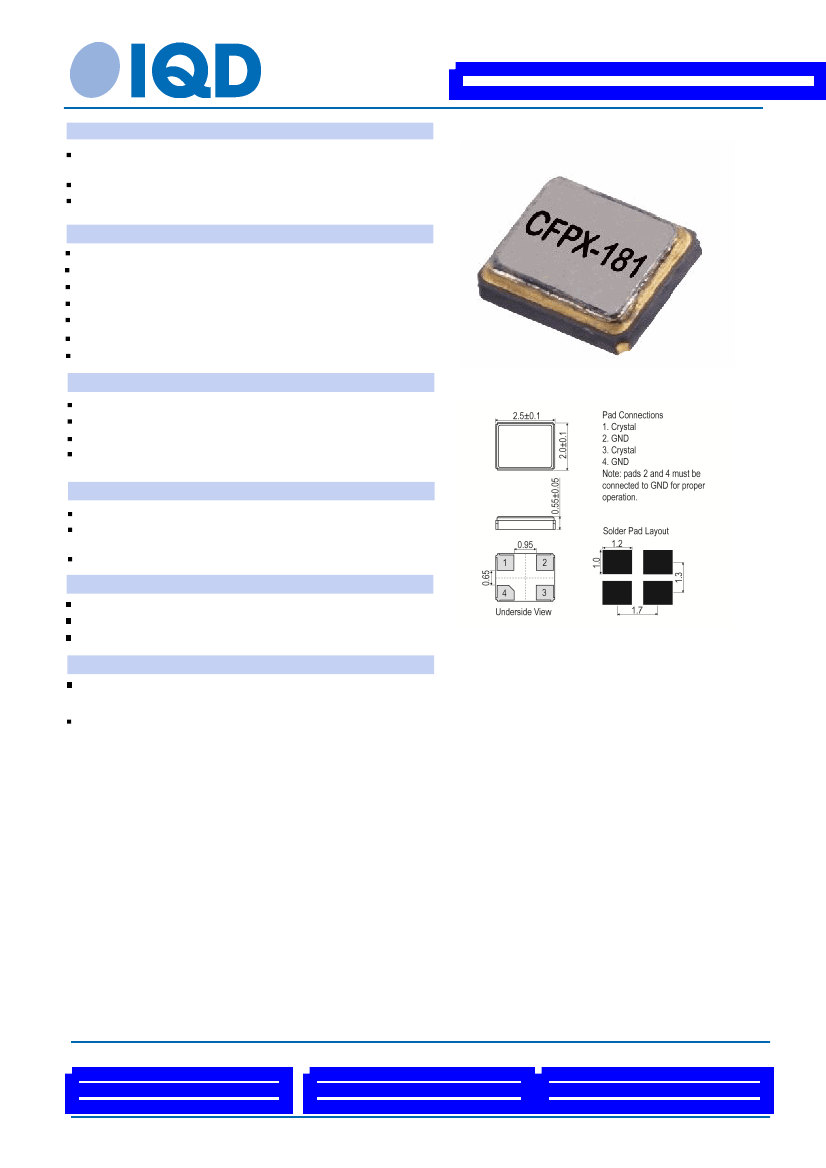

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL062839Reel
Description
SMD quartz crystal hermetically sealed in a ceramic package
with a seam sealed metal lid
Model
CFPX-181
Model Issue number
7
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
32.0MHz
±10.00ppm
@ 25°C
±15.00ppm
-40.00 to 85.00°C
Fundamental
±1ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
9.00pF
5pF max
100µW max
50.00Ω max
Drop: 75cm drop (3 times) onto hard wooden board
Vibration: 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually
perpendicular planes, duration 2hrs each plane
Storage Temperature Range: -40 to 90°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 4 Oct 16 13:03 using Part Data Sheet V1.00014
