LFXTAL072849REEL

Description
Parallel - Fundamental Quartz Crystal, 38.4MHz Nom
CategoryPassive components    Crystal/resonator
File Size174KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL072849REEL Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL072849REEL - - View Buy Now

LFXTAL072849REEL Overview

Parallel - Fundamental Quartz Crystal, 38.4MHz Nom

LFXTAL072849REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339124170
package instructionSMD, 4 PIN
Reach Compliance Codecompliant
Other featuresTR
Ageing3 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.0015%
frequency tolerance15 ppm
load capacitance10 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency38.4 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL2.0XB1.6XH0.5 (mm)/L0.079XB0.063XH0.02 (inch)
Series resistance60 Ω
surface mountYES

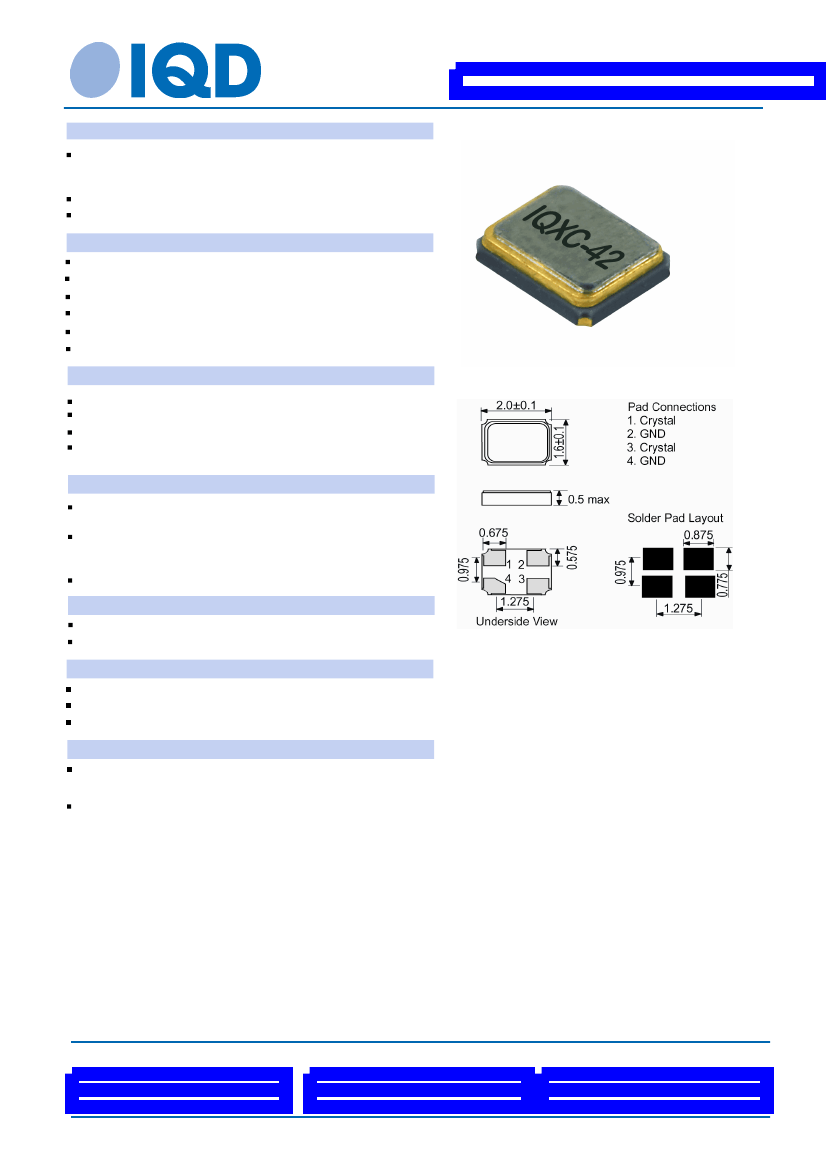

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL072849Reel
Description
2 x 1.6mm SMD crystal
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
IQXC-42
Model Issue number
1
Frequency Parameters
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
38.40MHz
±15.00ppm
±15.00ppm
-20.00 to 70.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
3pF max
100µW max
60.00Ω max
Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3
mutually perpendicular planes
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –55 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
NiAu
260degC 10s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 23 May 18 9:00 using Part Data Sheet V1.00015
