LFXTAL072849RL3K datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL072849RL3K

Preview

LFXTAL072849RL3K: DescriptionParallel - Fundamental Quartz Crystal, 38.4MHz Nom; CategoryPassive components Crystal/resonator; File Size174KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL072849RL3K Overview

Parallel - Fundamental Quartz Crystal, 38.4MHz Nom

LFXTAL072849RL3K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8341451031
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	15 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	38.4 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.5 (mm)/L0.079XB0.063XH0.02 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

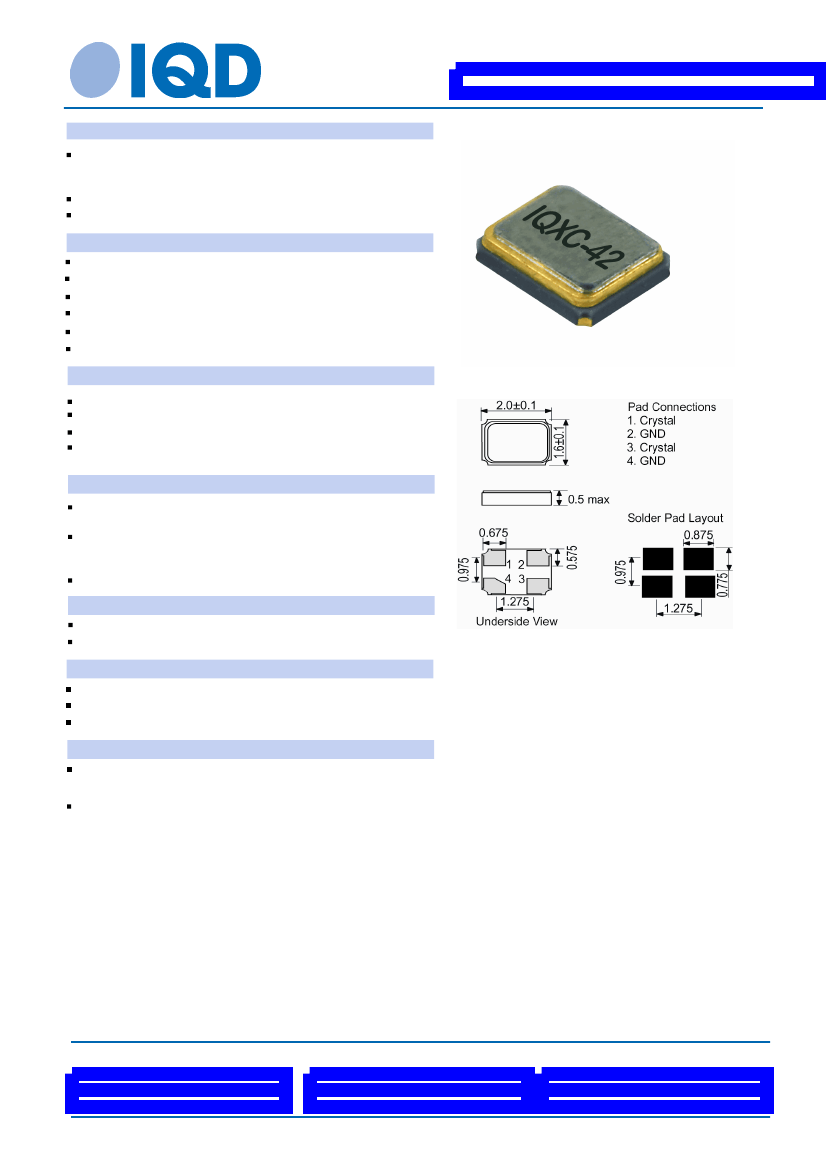

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL072849RL3K

Description

2 x 1.6mm SMD crystal

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

IQXC-42

Model Issue number

1

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

38.40MHz

±15.00ppm

-20.00 to 70.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

10.00pF

3pF max

100µW max

60.00Ω max

Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3

mutually perpendicular planes

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 7 Jan 19 13:13 using Part Data Sheet V1.00015
