Product Specification
IXD2135/IXD2136
Synchronous 1A Step-Up DC/DC Converter
FEATURES
Operating Input Voltage Range:
0.65 V ~
6.5 V
Output Voltage Range:
1.8 V~5.0V with
(0.1V increments, accuracy ±2.0%)
Oscillation Frequency:
1.2 MHz ± 15%
Built-in Switching 0.2 Ω NMOSFET
Build-in Synchronous Rectification 0.2 Ω
PMOSFET
Operating Mode:
PWM or PWM/PFM Auto
Selection
Protection:
Over-Current Limit Latch,
Thermal Shutdown
Functions:
Under-Voltage Lockout, Soft
Start, Load Disconnect, Load Capacitor Auto
Discharge,
Operating Ambient Temperature:
-40 -
0
+85 C
Package:
USP-10B (10-pin 2.6 x 2.9 x 0.6
mm)
EU RoHS Compliant, Pb Free
Mobile phones
Cameras, VCRs
Various portable equipment powered from 1
– 3 cell alkaline or 1 cell Li-ion batteries
transistor and a 0.2 Ω synchronous P-channel
transistor capable of providing up to 1.0 A inductor
peak current.
The IXD2135/36 converters are able to start
operation at 0.9 V input voltage to generate 3.3 V
output voltage with a 33 Ω load resistor, which is
suitable for mobile equipment powered from a single
alkaline or nickel metal hydride battery.
The load disconnect function cuts the current
conduction path from input to output at shutdown
mode.
The output voltage is selectable in 0.1 V increments
within 1.8 ~ 5.0 V (± 2.0% accuracy).
The Under-voltage Lockout (UVLO) function prevents
battery damage due deep discharge.
The UVLO threshold voltage is 0.85 V (B/K versions)
or 1.6V A/C versions), and are selectable in the
range from 0.9 V to 3.0 V.
The IXD2135/36 requires only inductor and three
ceramic capacitors connected externally for normal
operations.
Maximum oscillation frequency is set at 1.2 MHz in
PWM mode and maximum duty cycle is set at 93%,
making it suitable for use with large load current. The
IXD2135/36 converters are able to switch
automatically between PWM and PFM modes to
support both large and small load currents.
These IXD2135/36 converters use small 10-pin 2.6 x
2.9 x 0.6 mm USP-10B packages.
APPLICATION
DESCRIPTION
The IXD2135/36 are synchronous step-up DC/DC
converters with build-in a 0.2 Ω N-channel switching

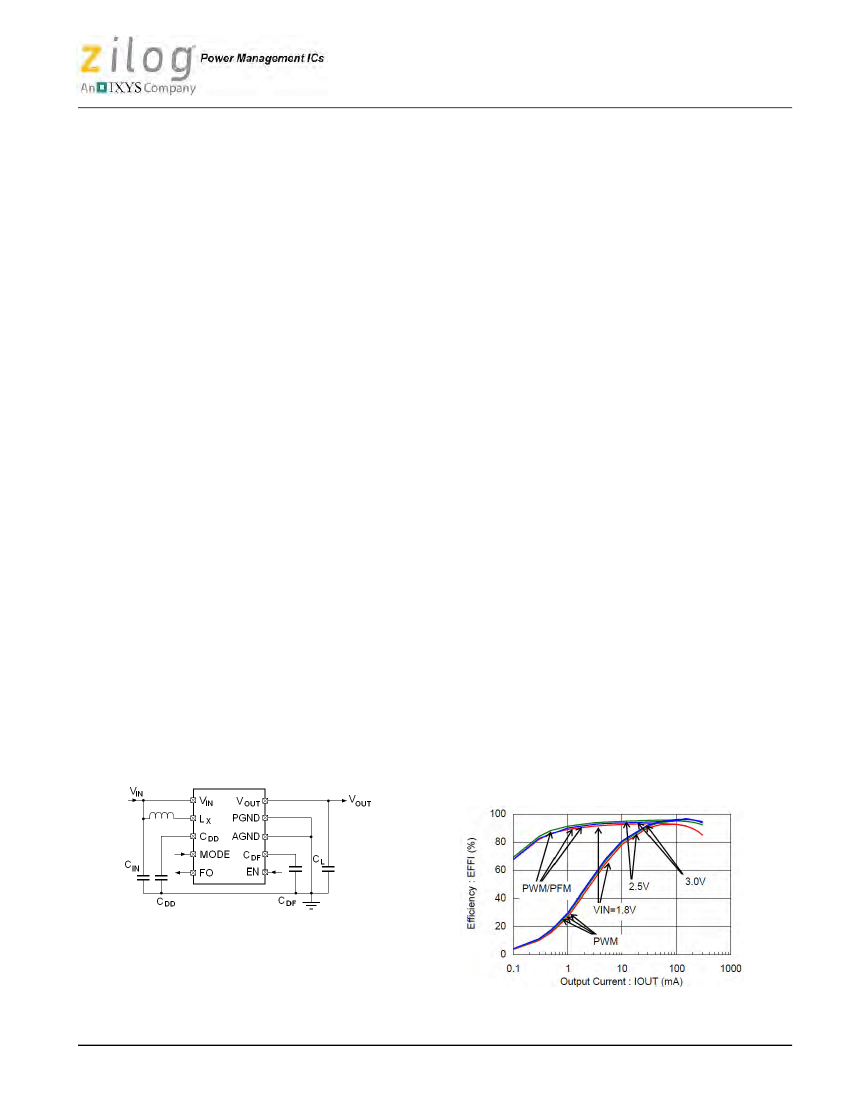

TYPICAL APPLICATION CIRCUIT
TYPICAL PERFORMANCE CHARACTERISTIC
Efficiency vs. Output Current
IXD2135C32CDR-G (V
OUT
=3.2V)
L = 4.7 μH (VLF3014ST-4R7M1R1), C
L
= 22 μF (LMK316ABJ226ML), C
IN
= 10 μF (JMK212ABJ106KG),
C
DD
= 0.47 μF (TMK107BJ474KA) f
OSC
=1.2MHz
PS036201-0615
PRELIMINARY
1
