RJ-9X200KOHM(204) datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RJ-9X200KOHM(204)

RJ-9X200KOHM(204): DescriptionPotentiometer, Cermet, 0.5W, 200000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,; CategoryPassive components The resistor; File Size862KB，4 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric Compare View All

RJ-9X200KOHM(204) Overview

Potentiometer, Cermet, 0.5W, 200000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,

RJ-9X200KOHM(204) Parametric

Parameter Name	Attribute value
Objectid	252189360
Reach Compliance Code	compliant
structure	Trimmer
Lead diameter	0.5 mm
Lead length	7 mm
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Package height	9.7 mm
Package length	9 mm
Package form	PCB Mount
Package width	4.7 mm
method of packing	Bulk
Rated power dissipation(P)	0.5 W
resistance	200000 Ω
Resistor type	POTENTIOMETER
rotation angle	5400 deg
series	RJ-9
size code	3519
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Tolerance	10%
Operating Voltage	300 V

Preview

Download Datasheet

View All

ポ

テ

ン

シ

ョ

メ

ー

タ

高

周

デ

バ

イ

ス

ポ

テ

ン

シ

ョ

メ

ー

タ

色

ド　

ー

ル

タ

ジ

デ

応

対

波

マ

リ

ト

高性½、高信頼性の微細設定トリマ

１

８回転型サーメットトリマ

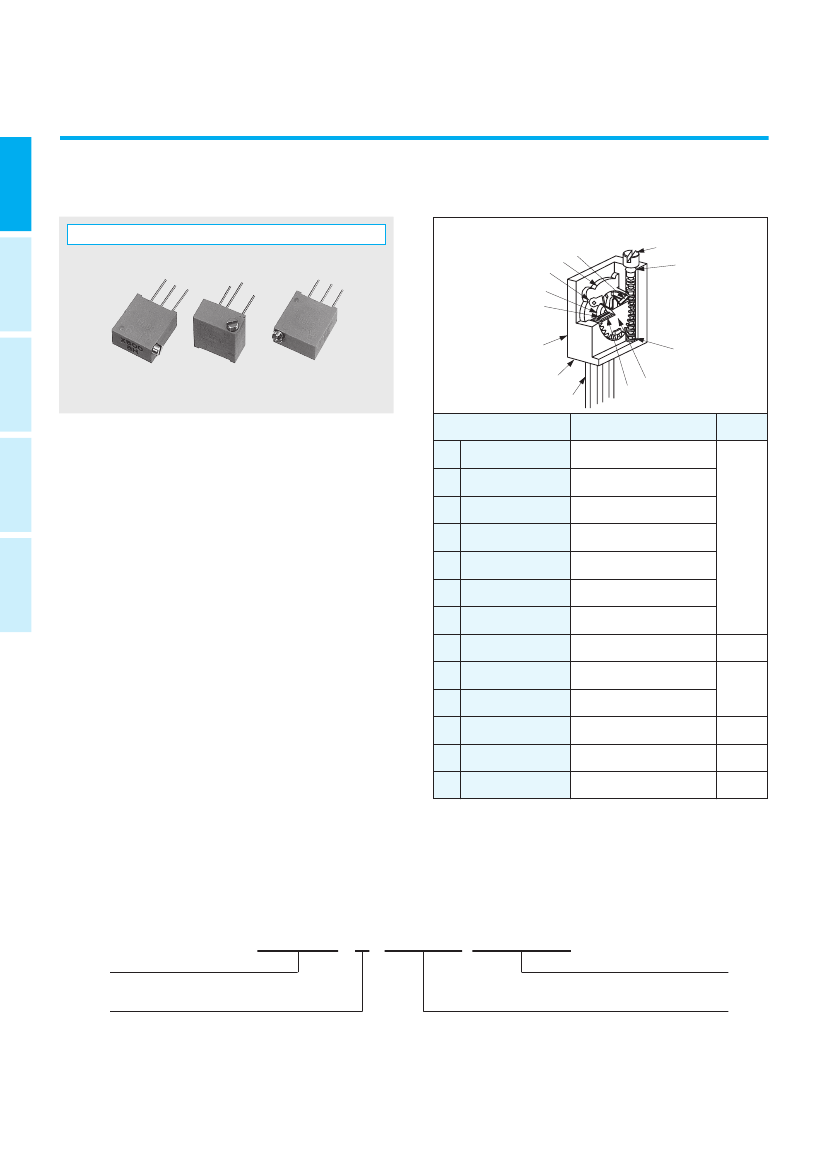

RJ-9 構造図

18 TURNS CERMET TRIMMERS

RJ-9

内部構造図　

INTERNAL STRUCTURE

RoHS 指令対応　RoHS

compliant

■特　長　

FEATURES

●

RoHS 指令対応

●

5 M

の幅広い抵抗値範囲

●

貴金属合金多接点ワイパ採用

●

RoHS compliant

●

Wide resistance range from 10 Ω to 5 MΩ

●

Precious metal alloy wiper

電

流

保

護

素

子

Part name

名　称

Material

黄銅、ッケルめっ

ニ

き

材　料

Flammability

燃焼性

シャト

フ

ラ　L

イ　E

バ D

Shaft

Brass, Nickel-plated

Stainless steel

セラミク

ッ

ステンレス

クラ

ッチバネ

Clutch spring

Base element

電極½

抵抗½

ベースエレメト

ン

Ceramic

過

Electrode

Resistive element

ワイパ

（摺動子）

Ag-Pd サーメト

ッ

Ag-Pd cermet

RuO

cermet

多元合金

エポキシ

—

RuO

サーメト

ッ

Wiper

Multi metal alloy

Epoxy

PBT

ポリ

（ブチレンテレフタト）

UL94V-0

レー

Polybutyleneterephthalate

ニ

ッケル、

金めっ

き

接着剤

Adhesive

ハウジング

Housing

端　子

ゴム板

Terminal pin

Rubber cushion

ロータギア

Nickel, Gold-plated

Silicone rubber

シコンゴム

リ

—

UL94V-0

—

UL94HB

Rotor gear

Stop ball

“O” ring

（ポリアミ

ド）

Polyamide

スッ

トプボール

Oリ

ング

Stainless steel

Silicone rubber

シコンゴム

リ

ステンレス

■型式表示　

PART NUMBER DESIGNATION

R J - 9 P 2 M

( 2 0 5 )

シーズ名　

Series name

リ

抵抗値記号　

Resistance code

½品½状

　Product

shape

抵抗値　

Resistance value

：上面調整　

Top adjustment

：側面調整　

Side adjustment

：側面調整　

Side adjustment

※

ご注文に際しては、型式一覧表をご確認ください。

Please refer to the LIST OF PART NUMBERS when placing orders.

738

RJ-9X200KOHM(204) Related Products

	RJ-9X200KOHM(204)	RJ-9P2MOHM(205)	RJ-9W2MOHM(205)	RJ-9X2MOHM(205)	RJ-9P200KOHM(204)	RJ-9W200KOHM(204)
Description	Potentiometer, Cermet, 0.5W, 200000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,	Potentiometer, Cermet, 0.5W, 2000000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3835,	Potentiometer, Cermet, 0.5W, 2000000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,	Potentiometer, Cermet, 0.5W, 2000000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,	Potentiometer, Cermet, 0.5W, 200000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3835,	Potentiometer, Cermet, 0.5W, 200000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3519,
Objectid	252189360	252189370	252189368	252189369	252189361	252189359
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
structure	Trimmer	Trimmer	Trimmer	Trimmer	Trimmer	Trimmer
Lead diameter	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Lead length	7 mm	7.6 mm	6.5 mm	7 mm	7.6 mm	6.5 mm
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	9.7 mm	4.7 mm	9.7 mm	9.7 mm	4.7 mm	9.7 mm
Package length	9 mm	9.7 mm	9 mm	9 mm	9.7 mm	9 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	4.7 mm	9 mm	4.7 mm	4.7 mm	9 mm	4.7 mm
method of packing	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Rated power dissipation(P)	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
resistance	200000 Ω	2000000 Ω	2000000 Ω	2000000 Ω	200000 Ω	200000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	5400 deg	5400 deg	5400 deg	5400 deg	5400 deg	5400 deg
series	RJ-9	RJ-9	RJ-9	RJ-9	RJ-9	RJ-9
size code	3519	3835	3519	3519	3835	3519
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C
Tolerance	10%	10%	10%	10%	10%	10%
Operating Voltage	300 V	300 V	300 V	300 V	300 V	300 V
