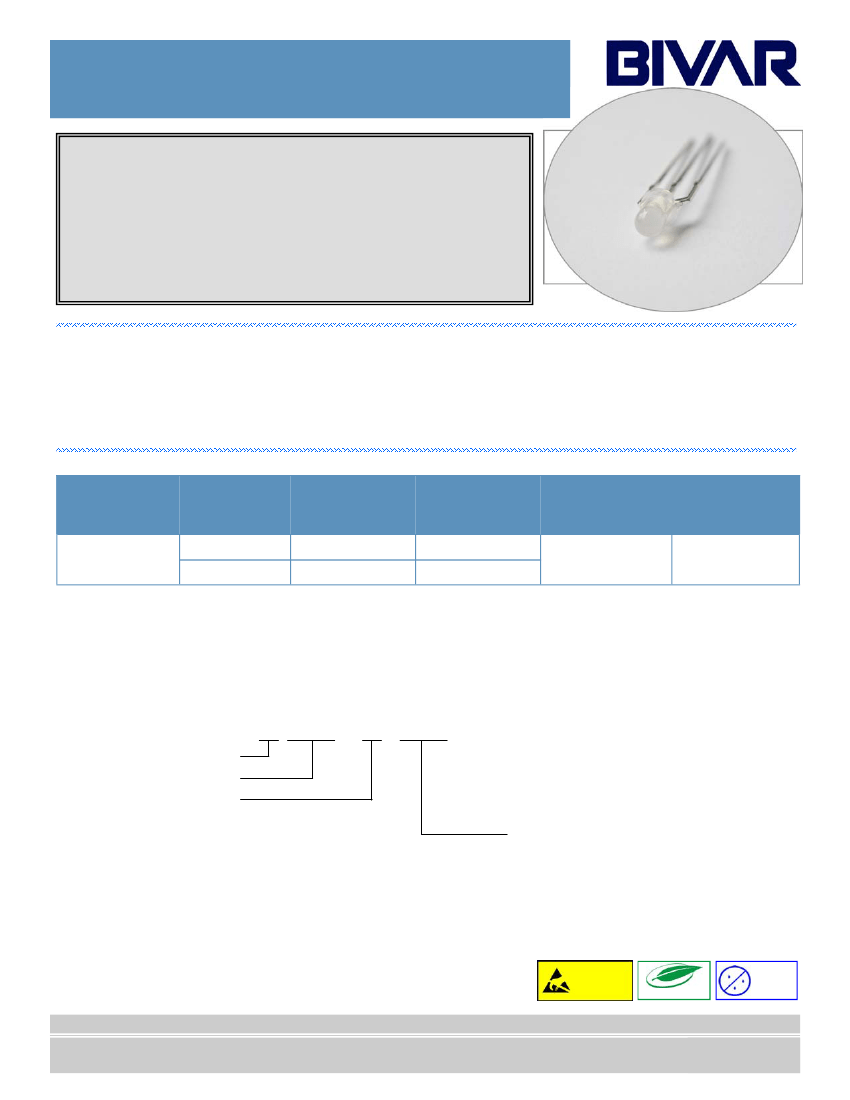

3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
RED/YELLOW, Tri-Color
RED/YELLOW, Bi-Color
3BC-3-R/Y
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
White Diffused Lens
3-Lead Bi-Color LED
Ideal for Status Indication and Display
Bivar 3mm T1 Package 3-Lead Bi-Color is ideal for those applications where multiple signals need to
be displayed at the same location such as standby-on indication for server or computer peripherals.
When needed, the 3rd color signal could be created by powering up both chips together for on-off-
standy applications that require three distinct signals. Bivar offers white diffused LED lens for uniform
light output. This 3-Lead Bi-color LED package comes in a common cathode Lead Frame configura-
tion.
Part Number
Material
GaAsP/GaP
GaAsP/GaP
Emitted Color
RED
YELLOW
Peak. Wavelength
λp(nm)
TYP.
625nm
590nm
Lens Appearance
Viewing Angle
3BC-3-R/Y
White Diffused
40°
Part Number Designation
3 B C - 3 -X X
LED Body, mm
Bi-Color
Tri-Lead
Emitted Colors, i.e. Y/G, “ ” for R/G
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 1 of 6
3mm (T1) Package Discrete LED
RED/YELLOW, Bi-Color

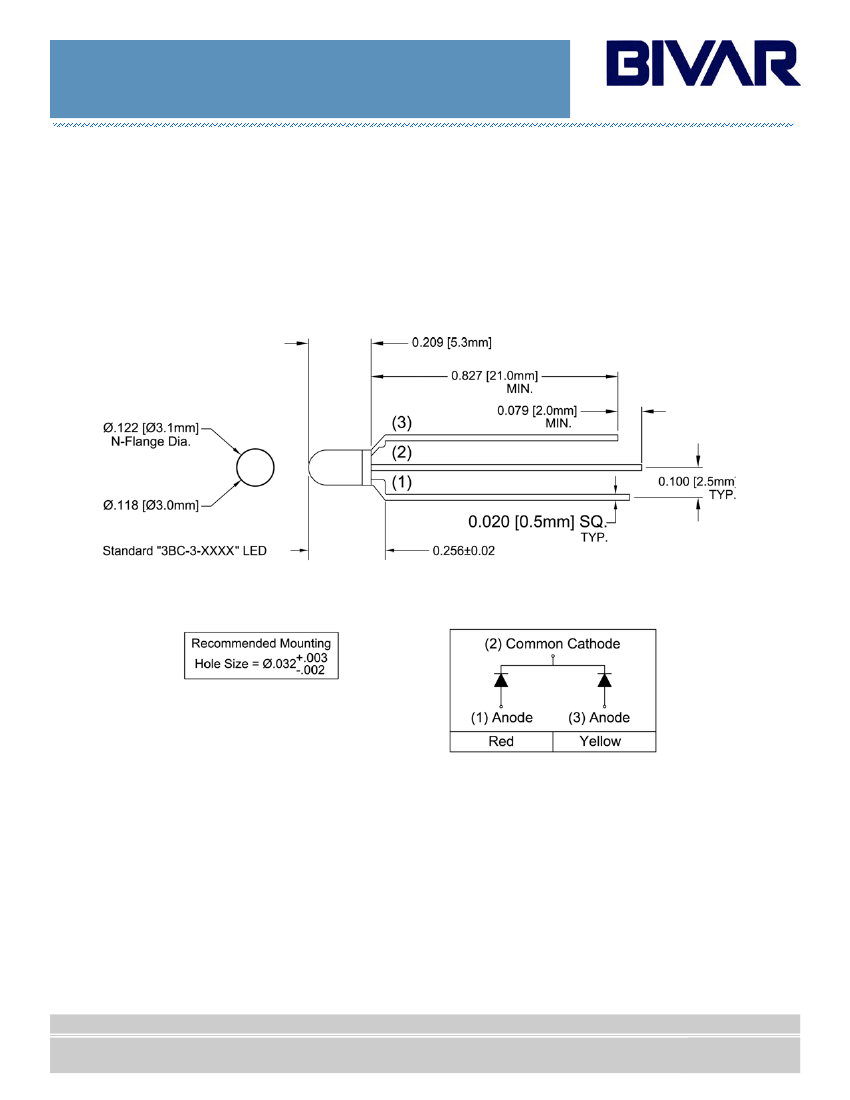

Outline Dimensions
