Features
■
Single Turn / Cermet / Industrial / Sealed
■
Available on tape and reel
■
Available with a knob for finger adjust
■
Available with extended shaft
■
Available with cross-slot rotor
■
Top and side adjust types (F, P, H, W, X
■
RoHS compliant* version available
■
For trimmer applications/processing
guidelines,
click here
most popular)

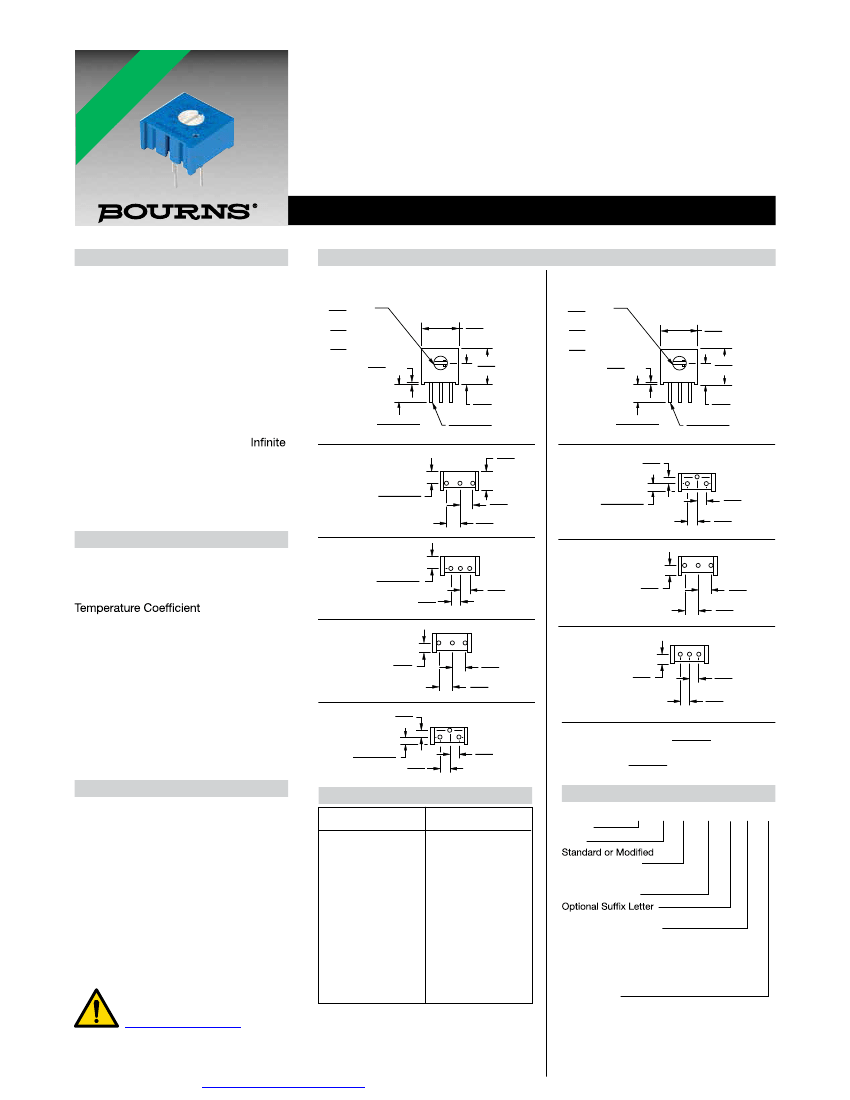

3386 - 3/8 ” Square Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
......................10 ohms to 2 megohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
....................................... 2 ohms max.
Contact Resistance Variation
........................... 2 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage Divider ...................... ±0.05 %
Rheostat ................................ ±0.15 %
Resolution ...................................
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 900 vac
70,000 Feet ............................ 350 vac
Adjustment Angle ................. 280 ° nom.
Environmental Characteristics
Power Rating (300 volts max.)
85 °C ...................................... 0.5 watt
125 °C ....................................... 0 watt
Temperature Range ... -55 °C to +125 °C
... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(2 %
ΔTR,
10 Megohms min.)
Vibration ....... 30 G (1 %
ΔTR;
1 %
ΔVR)
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life.. 1,000 hours 0.5 watt @ 70 °C
(3 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Rotational Life .......................200 cycles
(4 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Physical Characteristics
Mechanical Angle ................. 310 ° nom.
Torque............................. 5.0 oz-in. max.
Stop Strength ............... 15.0 oz -in. min.
Terminals .......................Solderable pins
Weight ....................................... 0.03 oz.
Marking........................... Manufacturer’s
trademark, resistance code,
wiring diagram, date code,
manufacturer’s model
number and style
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Wiper ............... 50 % (Actual TR) ±10 %
Adjustment Tool..............................H-90
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov

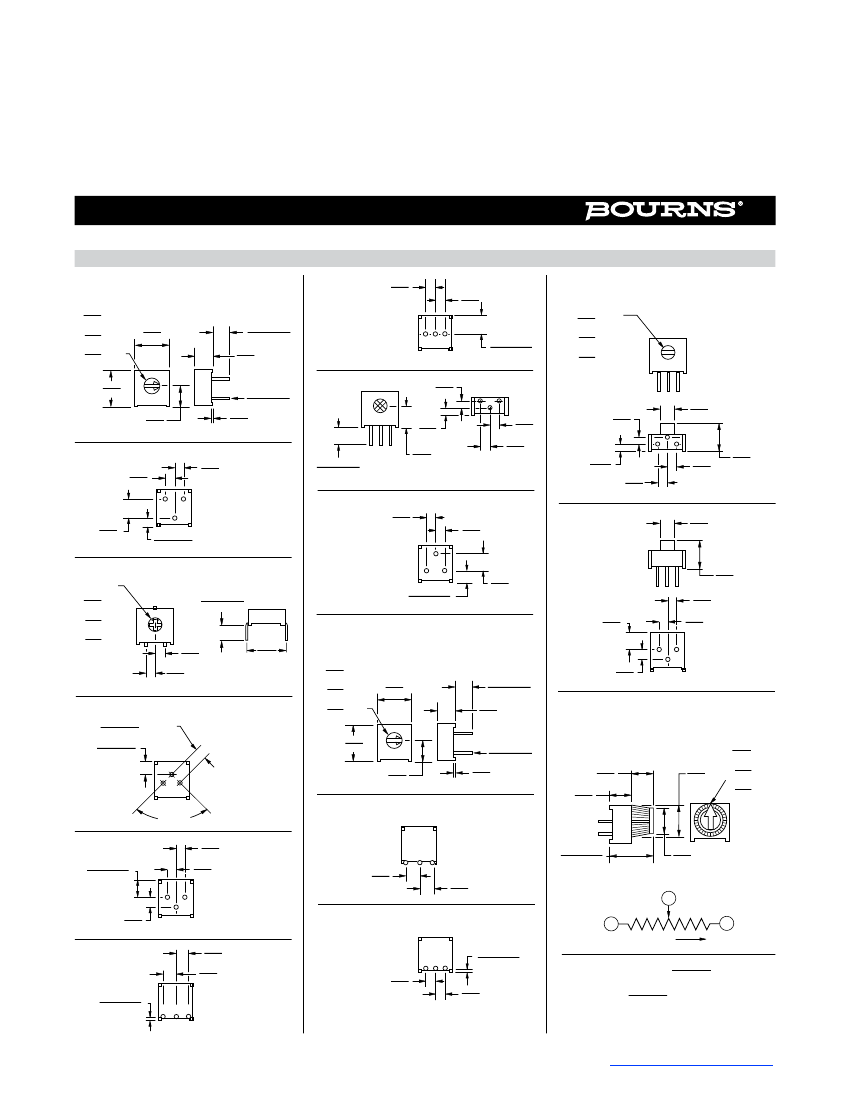

Product Dimensions
Common Dimensions
Side Adjust Models B,C,J,X
ADJ. SLOT
.76
WIDE
(.030)
X .76
DEEP
(.030)
X 3.15 LONG
(.124)
.38
MIN.
(.015)
Common Dimensions
Side Adjust Models H,S,W
ADJ. SLOT
.76
WIDE
(.030)
X .76
DEEP
(.030)
X 3.15 LONG
(.124)
.38
MIN.
(.015)
9.53
(.375)
9.53
(.375)
9.53
(.375)
9.53
(.375)
5.97
±
.89
(.235
±
.035)
5.33
(.210)
.51
±
.05 DIA. PINS
(.020
±
.002)
4.83
(.190)
3
2
1
5.97
±
.89
(.235
±
.035)
5.64
(.222)
.51
±
.05 DIA. PINS
(.020
±
.002)
3386B
3386H
2.54
(.100)
1
2
3
3.56
±
.25
(.140
±
.010)
3.81
(.150)
3.81
(.150)
1.40
±
.25
(.055
±
.010)
2.54
(.100)
2.54
(.100)
1
2
3
3386C
3
2
1
3386S
3.56
±
.25
(.140
±
.010)
2.54
(.100)
2.44
(.096)
2.54
(.100)
3.81
(.150)
3.81
(.150)
1
2
3
3386J
2.44
(.096)
3
2
1
3386W
3.81
(.150)
3.81
(.150)
2.44
(.096)
2.54
(.100)
2.54
(.100)
3386X
2.54
(.100)
3
2
1
DIMENSIONS:
2.54
(.100)
1.40
±
.25
(.055
±
.010)
MM
(INCHES)
EXCEPT WHERE NOTED
2.54
(.100)
TOLERANCES: ±
0.25
(.010)
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
How To Order
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
205
3386 P - 1 - 103 T __ LF
Model
Style
Product Indicator
-1 = Standard Product
-EY5 = Extended Shaft
Resistance Code
T = Knob**
Packaging Designator
Blank = Tube (Standard)
R = Tape & Reel (W and U Pin Styles Only)
A = Ammo Pack (W and U Pin Styles Only)
Tape and reel material meets Antistatic ANSI/
ESD 5541-2003 packaging standards.
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
**Knob option is available only in standard tube
packaging. Not recommended for side load
applications.
Consult factory for other available options.
Popular distribution resistance values listed in
boldface. Special resistances available.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the
last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
