34707-3030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34707-3030

34707-3030: Description52 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size50KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

34707-3030 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34707-3030	-	-	View	Buy Now

34707-3030 Overview

52 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

34707-3030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHROUDED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	52
Base Number Matches	1

Preview

Download Datasheet

View All

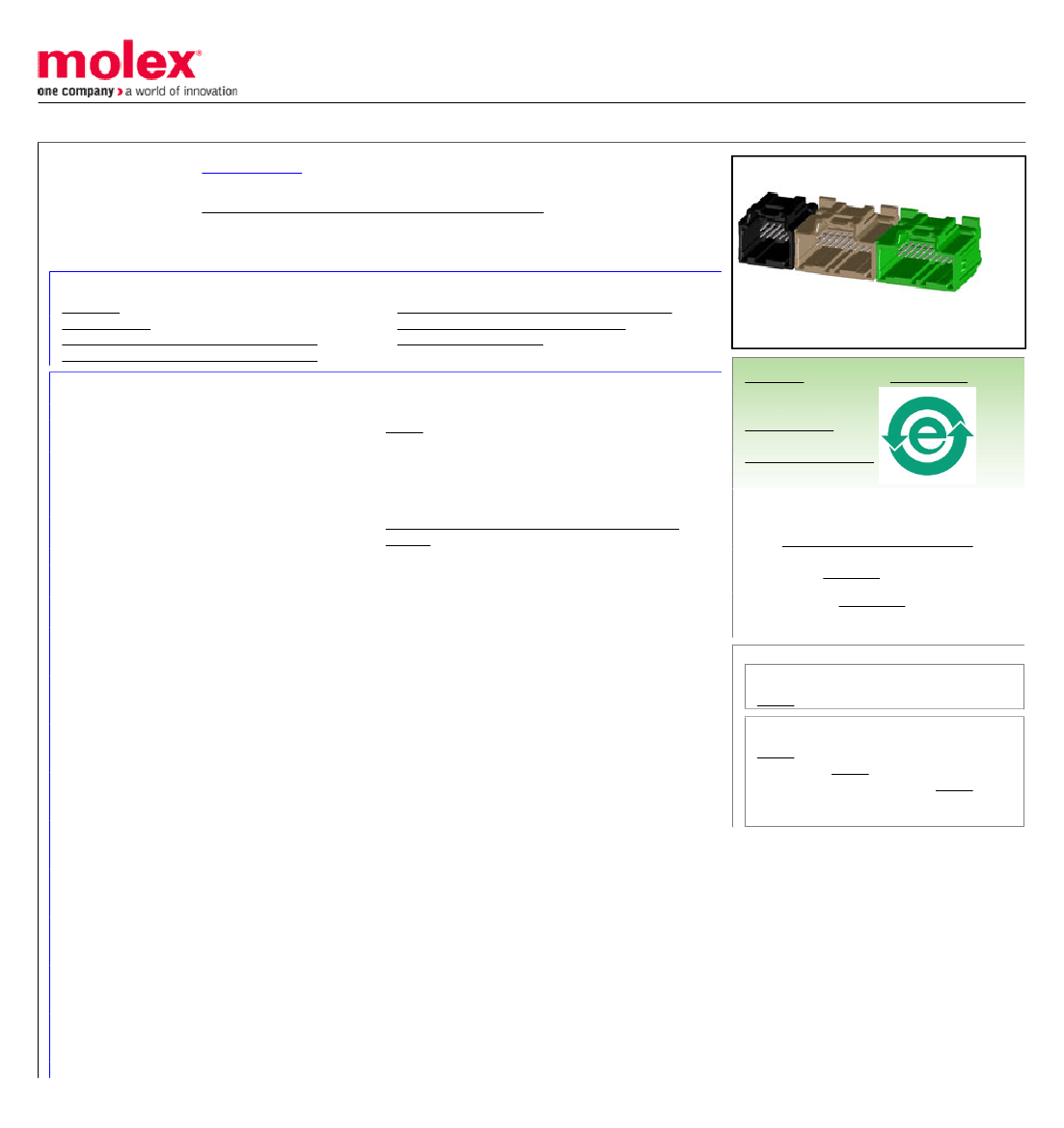

This document was generated on 09/16/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

34707-3030

Active

Stac64™ Single, Multi-Pocket and Hybrid Header System

Stac64™ 3 Bay Vertical Headers, 52 Circuits, Bay A 12 Circuit Signal Header,

Polarization A, Black; Bay B 20 Circuit Signal Header, Polarization C, Brown; Bay C 20

Circuit Signal Header, Polarization D, Green, Tray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-31372-100 (PDF)

Product Specification PS-34729-020 (PDF)

Application Specification AS-34729-020 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

PCB Headers

34707

Power, Wire-to-Board

Bay A 20 Circuits Stac64™ Vertical Signal Header,

Polarization A. Bay B 20 Circuits Stac64™ Vertical

Signal Header, Polarization C. Bay C 20 Circuits

Stac64™ Vertical Signal Header, Polarization D

Stac64™ Single, Multi-Pocket and Hybrid Header

System

987650-4561

Stac64™

884982008441

Overview

Product Literature Order No

Product Name

UPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Black, Brown, Green

None

Yes

Copper Alloy

Nickel

Tin

High Temperature Thermoplastic

20.553/g

Vertical

3.36mm

Yes

None

1.57mm

Tray

2.54mm

Yes

Search Parts in this Series

34707Series

Mates With

31408 USCAR 2.54mm (.100”) Pitch

Receptacle, 31372 5.25mm (.206") Pitch

Hybrid Receptacle Assembly, 34729

2.54mm (.100") Pitch Stac64™ Right Angle

Receptacle
